Marcq Posted December 3, 2019 Posted December 3, 2019 So did you try running as Admin and auto start uploading when port present?... Other thing... the reset must not be a permanent input. Run as Admin? yes Auto start unchecked The reset must not be a permanent input? I'm not sure what you mean Marc..
ice_pdb Posted December 3, 2019 Posted December 3, 2019 (edited) Run as Admin? yes Auto start unchecked The reset must not be a permanent input? I'm not sure what you mean Marc.. About reset, I meant that the RST pin doesn't have to be permanent shorted. 2 or 3 of inputs should be ok. What I do is once I've identify the serial port of the arduino, check the Auto load and set the correct COM number. Obviously running the soft as Admin, an then reset the arduino. Then the software should detect the serial port being active and it will automatically upload the firmware. Edited December 3, 2019 by ice_pdb
Marcq Posted December 3, 2019 Posted December 3, 2019 About reset, I meant that the RST pin doesn't have to be permanent shorted. 2 or 3 of inputs should be ok. No, they were not permanent shorted What I do is once I've identify the serial port of the arduino, check the Auto load and set the correct COM number How do you identify the serial port of the arduino? Auto load, you mean Auto start upload? Marc..
ice_pdb Posted December 3, 2019 Posted December 3, 2019 No, they were not permanent shorted How do you identify the serial port of the arduino? Auto load, you mean Auto start upload? Marc.. Device Manager. In your case seems to be 5. Yes, auto start loading. Right click on the mmjoy2 software a make sure you run it as admin. If you don't do it in some Windows it won't allow any hardware modifications. Off to sleep. Later
Marcq Posted December 3, 2019 Posted December 3, 2019 (edited) Device Manager. In your case seems to be 5. Yes, auto start loading. Right click on the mmjoy2 software a make sure you run it as admin. If you don't do it in some Windows it won't allow any hardware modifications. Off to sleep. Later Yeah! I do run it as Admin When you first plug in the Pro Micro, is it supposed to show up in the USB list window (update usb list)? In my case it doesn't How can you tell if the firmware was upload successfully? My last attempt, the cmd.exe showed up so fast that I could not tell if it did or not uploaded What is the Clear EEPROM tab for? EDIT: Got it figured out, my mistake, com port changes when you touch together the Gnd and Rst :wallbash: so now I have one led lit up on the pro micro I don't remember the last time I used my head that much :rolleyes: Edited December 3, 2019 by Marcq
ice_pdb Posted December 3, 2019 Posted December 3, 2019 Oh!! I took for granted that detail...and also thought that the picture of the device manager showing the com port was from its reset state. So were you able to load the firmware? Remember that it won't show as a joystick in Windows until you configure an axis or button.
Marcq Posted December 3, 2019 Posted December 3, 2019 So were you able to load the firmware? Remember that it won't show as a joystick in Windows until you configure an axis or button. Yup the firmware is loaded, everything is cool until my next snag Thanks again Marc..
rel4y Posted January 6, 2020 Posted January 6, 2020 Hey guys, I have just made a batch of new 4021 shift registers. These are compatible to the Thrustmaster hardware and also to MMJoy2. The dimensions are 20 mm x 50 mm (0.79 in x 1.97 in), so they are very small and fit basically in everywhere. The pins are spaced in standard 2,54 mm (0.1 in) to fit normal header pins (see picture 2). I offer them either with or without header pins attached. The shift register is 24 Bit, so it has 24 inputs that you can connect buttons to. It can also be daisy chained, so you can put several shift register boards in series. Eg MMJoy2 supports 12 shift registers in series. So if you daisy chain 4 of my 24 Bit shift register boards, you have a total of 96 button inputs with just 2 pins used. If this isnt pretty damn cool I dont know what is. Price is 10€ per shift register. 1 Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
GreatWhiteHype Posted February 4, 2020 Posted February 4, 2020 (edited) I am looking for some help with the MMJOY software. The links I have read on how to use it are pretty basic and I cannot find what I am looking for. I am trying to correct some "drift" in my Cougar microstick. I have put a little deadzone via the software and my cursor still drifts up on my MFD's. It makes targeting in AA and AG a bit difficult. I am open to any suggestions. Thank you! Edited February 4, 2020 by GreatWhiteHype
rel4y Posted February 4, 2020 Posted February 4, 2020 I am looking for some help with the MMJOY software. The links I have read on how to use it are pretty basic and I cannot find what I am looking for. I am trying to correct some "drift" in my Cougar microstick. I have put a little deadzone via the software and my cursor still drifts up on my MFD's. It makes targeting in AA and AG a bit difficult. I am open to any suggestions. Thank you! You can recalibrate your Microstick in MMJoy, especially reset the center of your Microstick correctly. You can also increase your deadzone in MMJoy. If it is still drifting afterwards, most likely your Microstick is failing. The Cougar Microstick sadly is not of the best quality. Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
GreatWhiteHype Posted February 4, 2020 Posted February 4, 2020 (edited) Can you please tell me how to reset the center and re-calibrate correctly? I do not think I am doing it correctly. PM is fine, thank you! Edited February 5, 2020 by GreatWhiteHype
Foxsailor Posted March 19, 2020 Posted March 19, 2020 Guys, i could really use some help with mmjoy. I have made my own rudder pedals, using the excellent guide found on mudspike. I have flashed the pro micro board, connected the tle5010 sensor and i am getting data from the sensor. Now it´s getting weird. I have used the calibrate helper to find the min and max and i have set up the center postion. The values are between 40194 and 41232. First problem: Using vkb joystick tester, i dont get a center postion with the min and max on the outsides, but the line is on the top, with only very small min and max. Second problem: The pedals do show up in windows gamecontrollers, but there is no axes to calibrate. Has anybody seen this before and does somebody know what i am doing wrong? Thank you in advance.
tees Posted March 29, 2020 Posted March 29, 2020 diode type hi there can i use 1N4007 instead 1N41482 thanks 303 & Friends discord Hangar : JF-17 Thunder, F-16C Viper, I-16, Christen Eagle II, F-14 Tomcat, Supercarrier, WWII Assets Pack, F/A-18C Hornet, AJS-37 Viggen, Spitfire LF Mk. IX, F-5E Tiger II, M-2000C, MiG-15bis, Bf 109 K-4 Kurfürst, Fw 190 D-9 Dora, F-86F Sabre, Flaming Cliffs 3, P-51D Mustang, A-10C Warthog,SA342 Gazelle, UH-1H Huey, Mi-8MTV2 Magnificent Eight, Black Shark II, Persian Gulf Map, Normandy 1944 Map,
Sokol1_br Posted March 29, 2020 Author Posted March 29, 2020 For diode matrix? Can, the drawback is their big size.
Tanuki44 Posted April 27, 2020 Posted April 27, 2020 Hello, With MMJoy, is it possible to have a virtual button which would be the result (mixing) of 2 buttons ex : Input Button 1 (only) => Output Button 1 Input Button 2 (only) => Output Button 2 Input Button 1 and 2 (together) => Output New Button 3 It sounds like 1/4 of HAT works Input UP button => Output UP button Input RIGHT button => Output RIGHT button Input UP + RIGHT button => Output New Button 3 But without using the HAT function which requires having 4 buttons ... I'm looking for a software solution before a hardware solution :smilewink:
Sokol1_br Posted April 27, 2020 Author Posted April 27, 2020 I'm looking for a software solution before a hardware solution :smilewink: MMjoy2 has a "shift" function, don't know how work in practice, but probable not what you want. Anyway a software solution for this is JoyToKey, in Options > Configure Button Alias.
Tanuki44 Posted April 28, 2020 Posted April 28, 2020 (edited) Thank you, indeed JoyToKey seems to provide a solution to my problem. :thumbup: Edited April 28, 2020 by Tanuki44

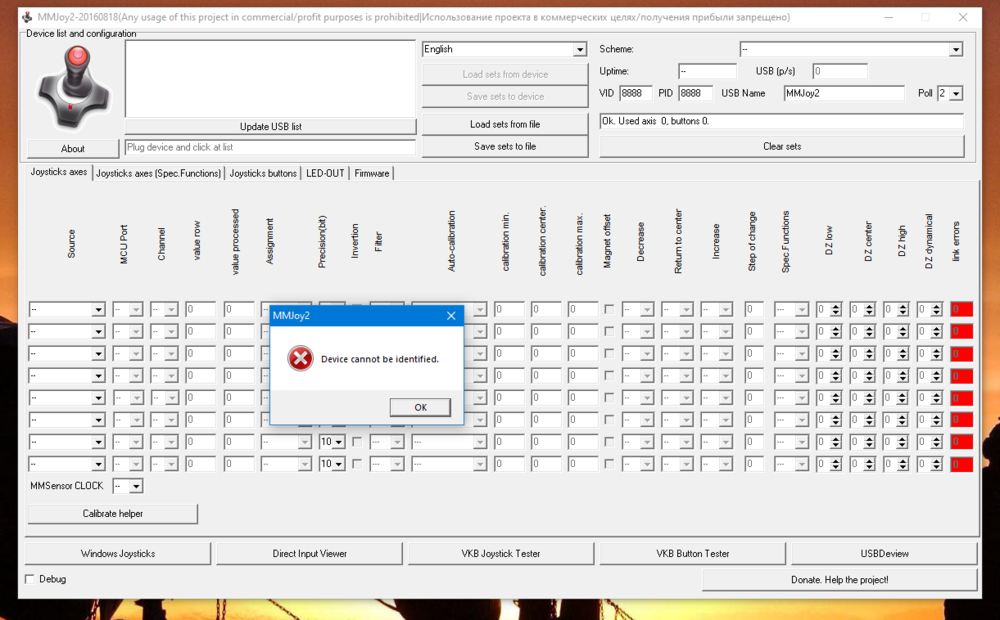

TomVR Posted April 30, 2020 Posted April 30, 2020 anyone know how to solve this? Started up mmjoy2 again to work on a new project and it gives me this message on startup. Whether I have an Arduino hooked up or not. "Device cannot be identified." I can't change the settings of any devices, nothing shows up on the usb list. Using MMJOY2_v20160818upd1 With an Arduino Micro
Sierra99 Posted May 8, 2020 Posted May 8, 2020 24 bit shift register uploaded. ORDER LINK Hey debolestis! I seem to remember one of these posts having a parts list attached...and now I can't find it. Any chance you can give me the rundown? Thanks in advance Sierra [sIGPIC][/sIGPIC] Primary Computer ASUS Z390-P, i7-9700K CPU @ 5.0Ghz, 32GB Patriot Viper Steel DDR4 @ 3200Mhz, ZOTAC GeForce 1070 Ti AMP Extreme, Samsung 970 EVO M.2 NVMe drives (1Tb & 500 Gb), Windows 10 Professional, Thrustmaster Warthog HOTAS, Thrustmaster Warthog Stick, Thrustmaster Cougar Throttle, Cougar MFDs x3, Saitek Combat Rudder Pedals and TrackIR 5. -={TAC}=-DCS Server Gigabyte GA-Z68XP-UD3, i7-3770K CPU @ 3.90GHz, 32GB G.SKILL Ripjaws DDR3 @ 1600Mhz, ZOTAC GeForce® GTX 970.
Brewnix Posted May 8, 2020 Posted May 8, 2020 Hey debolestis! I seem to remember one of these posts having a parts list attached...and now I can't find it. Any chance you can give me the rundown? Thanks in advance Sierra Do you need help sourcing parts or building? The parts are labeled on the the board. The 2 major ones are the 10k ohm network resistor and the 4021 shift register. I remember in some post conversation with Debolestis the "capacitor 100nf" I can't remember the type but you only need that when you start to daisy chain the boards. So technically you only need pin headers, resistors and shift register. I have built a few of these boards I can dig them up and give you part or model numbers? [sIGPIC][/sIGPIC]
Sokol1_br Posted May 9, 2020 Author Posted May 9, 2020 I remember in some post conversation with Debolestis the "capacitor 100nf" I can't remember the type ? 100nf ceramic capacitor
Brewnix Posted May 10, 2020 Posted May 10, 2020 100nf ceramic capacitor Nice, thanks! [sIGPIC][/sIGPIC]
Sierra99 Posted May 15, 2020 Posted May 15, 2020 Do you need help sourcing parts or building? The parts are labeled on the the board. The 2 major ones are the 10k ohm network resistor and the 4021 shift register. I remember in some post conversation with Debolestis the "capacitor 100nf" I can't remember the type but you only need that when you start to daisy chain the boards. So technically you only need pin headers, resistors and shift register. I have built a few of these boards I can dig them up and give you part or model numbers? Just looking for a source for the resister networks.. [sIGPIC][/sIGPIC] Primary Computer ASUS Z390-P, i7-9700K CPU @ 5.0Ghz, 32GB Patriot Viper Steel DDR4 @ 3200Mhz, ZOTAC GeForce 1070 Ti AMP Extreme, Samsung 970 EVO M.2 NVMe drives (1Tb & 500 Gb), Windows 10 Professional, Thrustmaster Warthog HOTAS, Thrustmaster Warthog Stick, Thrustmaster Cougar Throttle, Cougar MFDs x3, Saitek Combat Rudder Pedals and TrackIR 5. -={TAC}=-DCS Server Gigabyte GA-Z68XP-UD3, i7-3770K CPU @ 3.90GHz, 32GB G.SKILL Ripjaws DDR3 @ 1600Mhz, ZOTAC GeForce® GTX 970.
Brewnix Posted May 15, 2020 Posted May 15, 2020 Just looking for a source for the resister networks.. Ah ok! There kind of all over the place just google "10k ohm 9 pin network resistor" Not sure about some of the numbers stamped on the resistor but they are directional for the Debolestis's shift reg boards the little dot needs to be the right way on the board. https://forums.eagle.ru/showpost.php?p=2760524&postcount=50 and capacitor reference. https://forums.eagle.ru/showpost.php?p=2762026&postcount=56 Technically you can make your own network resistor but it doesn't look pretty https://learn.pimoroni.com/tutorial/hacks/inline-resistor-network just a idea if you have resistors lying around. Third pic down on page. [sIGPIC][/sIGPIC]
humptydumpty Posted May 16, 2020 Posted May 16, 2020 Hi, I am trying to setup the pedals using hall sensors and a Pro Micro, flashed the Micro with the MMJoy setup and shows up as a MMJ-Reset device , but on double clicking the device in Devices and Printers (joystick) it says its disconnected , The hall sensors that i have are the MH 481 and the Allegro 3144. Any help appreciated. [sIGPIC][/sIGPIC] Attitude Power Trim Power Attitude Trim Wing Commander SWAC
