[microvax]

Nope, this manual has a heading for it but it just says "information will be published later". I'm still hoping for a pack of errata pages to pop out of the declassification process though.



Damn it ! :D



Keep up the good work thought, really amazing ! :)

[Skjold]

You must be a regular at Krigsarkivet* or wherever you get these documents from :) Keep up the good work renhanxue!

Edited August 15, 2016 by Skjold

[renhanxue]

You must be a regular at Krigsarkivet* or wherever you get these documents from :) Keep up the good work renhanxue!



Yes it's Krigsarkivet and yes most of the staff knows me by name. Don't kinkshame :(





Anyway, here you go, SFI AJS 37 del 2 - checklists, standard procedures, emergency instructions, some performance data, peacetime restrictions, that jazz. Also includes a list of all the nav points and airfields the computer comes preprogrammed with.

[OziRekt]

Weapons questions;



Is the gunpod aimed with manual reticle depression for strafing, or is it computed automatically?



What kind of warheads do the 135mm rockets have?



What kind of bombs can be carried?

[microvax]

Weapons questions;



Is the gunpod aimed with manual reticle depression for strafing, or is it computed automatically?



What kind of warheads do the 135mm rockets have?



What kind of bombs can be carried?



Afaik the gunpods get CCIP by radar ranging.



The 135mm rockets are limited to HE and training warheads in the swedish inventory afaik.



The bombs are limited to 16x 120kg HE bombs or ilumination bombs.



If you consider the BK90 a bomb is up to you. :D

[mattebubben]

Afaik the gunpods get CCIP by radar ranging.



The 135mm rockets are limited to HE and training warheads in the swedish inventory afaik.



The bombs are limited to 16x 120kg HE bombs or ilumination bombs.



If you consider the BK90 a bomb is up to you. :D



If my memory is correct the there should be AP-Frag warheads for the Rockets as well and not just HE(GP).



And while the 120kg bomb is the only bomb carried by the Viggen it should be available in both Low drag (normal) and high drag configs

(if i remember correctly).

[microvax]

If my memory is correct the there should be AP-Frag warheads for the Rockets as well and not just HE(GP).



And while the 120kg bomb is the only bomb carried by the Viggen it should be available in both Low drag (normal) and high drag configs

(if i remember correctly).



Could be that it was only AP/frag. Since when I compared it to the S13ot, the warhead weight was bigger while the HE load was smaller.

But we all know fragmentation damage in DCS. x)



Yeah now that you said it, I think you are right, there were high and low drag versions of the m71.

[mattebubben]

Could be that it was only AP/frag. Since when I compared it to the S13ot, the warhead weight was bigger while the HE load was smaller.

But we all know fragmentation damage in DCS. x)



Yeah now that you said it, I think you are right, there were high and low drag versions of the m71.



Here is an example of a source in english mentioning the Rockets of the Viggen.



"135 mm Bofors M70 rockets (either 21 kg GP warhead with 3.7kg explosive or 20 kg AP fragmentation warhead with 5 kg explosive) in pods of six each"



Source

http://www.x-plane.org/home/urf/aviation/text/37viggen.htm



that was the only source i could find in a quick search gonna try to remember where i first read about the Different warhead types.



But speaking of the Viggens rockets i sure hope they get the Smoke trails right.



Since they are quite different from the current rockets and they look amazing.



[ame]

[/ame]



That Diry Dark smoke looks very cool.



And i hope they manage to get custom smoke for those rockets instead of the standard white smoke trails.

[microvax]

Here is an example of a source in english mentioning the Rockets of the Viggen.



"135 mm Bofors M70 rockets (either 21 kg GP warhead with 3.7kg explosive or 20 kg AP fragmentation warhead with 5 kg explosive) in pods of six each"



Source

http://www.x-plane.org/home/urf/aviation/text/37viggen.htm



that was the only source i could find in a quick search gonna try to remember where i first read about the Different warhead types.



But speaking of the Viggens rockets i sure hope they get the Smoke trails right.



Since they are quite different from the current rockets and they look amazing.





That Diry Dark smoke looks very cool.



And i hope they manage to get custom smoke for those rockets instead of the standard white smoke trails.



Ah noice find !



Yeah hoping that in general rockets get better smoke trails. Russian S8 rockets also practically operate smokeless, while IRL they dont do that really.



But I hope as you do, that we ged glorious m70 black smoke trails ! :D





EDIT: Big shoutout to all you people doing work here informing everyone while beeing nice people. This thread is just wonderfull to be a part off.

[inspired by terrible experience with people in other speculation/discussion threads for other in dev modules. x)]

Edited August 15, 2016 by microvax

[renhanxue]

Rockets: there's HE (or HE-frag rather) and HEAT (plus some fragmentation I guess?) warheads. Actually there are two HE warheads, one older (m/56) and one newer (m/70) but I don't know the difference between them. Additionally there are like three different contact fuzes (no idea what the difference is) and one proximity fuze. You can use the proximity fuze with both HEAT and HE warheads.



Bombs: 120kg HE bombs are the only offensive option. 4 are carried per pylon, up to a maximum of 16. They can be dropped with or without a retardation chute and with either contact or proximity fuzing.

[BravoYankee4]

There is so much to read, and a lot for us Swedes to translate :)

One funny little note I found:



"If you start with full afterburner (Zone 3) the aircraft accelerates very fast, so there is a risk that you are going faster than the maximum allowed speed for extended gears before they are fully retracted" :)

[BravoYankee4]

This is also interesting. It says about releasing bombs that the mode switch can be at SERIE or IMPULS as desired.

Is it then a confirmation that single bombs can be dropped? Perhaps that is a single bomb per pylon, but still that is less than all 16 at once?

Or should it be interpreted as that the switch position doesn't matter?

Edited August 16, 2016 by BravoYankee4

[renhanxue]

There is so much to read, and a lot for us Swedes to translate :)

One funny little note I found:



"If you start with full afterburner (Zone 3) the aircraft accelerates very fast, so there is a risk that you are going faster than the maximum allowed speed for extended gears before they are fully retracted" :)

Max allowed speed with gear out is 600 km/h IAS. At low altitude it's also easy to overspeed a relatively light aircraft with gear in; Vne is 1350 km/h IAS (around M 1.1 at sea level).

[Jediteo]

This is also interesting. It says about releasing bombs that the mode switch can be at SERIE or IMPULS as desired.

Is it then a confirmation that single bombs can be dropped? Perhaps that is a single bomb per pylon, but still that is less than all 16 at once?

Or should it be interpreted as that the switch position doesn't matter?

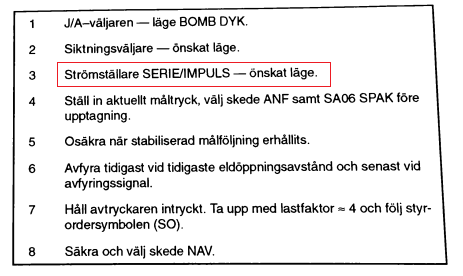

The SERIE / IMPULSE setting (when releasing bombs, it has different purposes for other weapons) only affects the training bombs, either releasing one or two bombs.



The entire bomb load is released according to the set impact intervals, assuming you keep the trigger pulled throughout the release cycle. You can theoretically divide the bomb load by releasing the trigger. However, that is not really all that useful as you cannot see how many bombs you have remaining, just that not all of them have been released.



Also notice that pretty much all the weapons delivery procedures require you to set the barometric pressure for the target (QFE) due to how the sight calculates the impact points.

[microvax]

Rockets: there's HE (or HE-frag rather) and HEAT (plus some fragmentation I guess?) warheads. Actually there are two HE warheads, one older (m/56) and one newer (m/70) but I don't know the difference between them. Additionally there are like three different contact fuzes (no idea what the difference is) and one proximity fuze. You can use the proximity fuze with both HEAT and HE warheads.



Bombs: 120kg HE bombs are the only offensive option. 4 are carried per pylon, up to a maximum of 16. They can be dropped with or without a retardation chute and with either contact or proximity fuzing.



Low level high speed bombing with 16x 120kg proximity fuzed retarded bombs intensifies.



And nice that there are heat rockets. I mean, 4 mavericks will be allways better in terms of taking out bunkers etc. But rockets and unguided bombs are simply fun to use. :D

[Apache600]

Quick question about aircraft power-up. Does the aircraft have an APU so it can do a stand-alone start, or will it rely on ground support to help it start up? I.E. whether it be a GPU (like the MiG-15 and F-86) or compressed air for turbine spin (like the F-5)?

[renhanxue]

It doesn't have an APU but you can start it with the onboard battery, no ground power needed. The preferred method is to start with ground power, though. If you start from battery you have to postpone a bunch of checklist items until after the engine is spooled up, though (you can't do them without AC power).

Edited August 16, 2016 by renhanxue

[Hook47]

I think my fellow Viggen fans should head on over to the Multiplayer thread to check out a little surprise :)

Edited August 19, 2016 by Hook47

[BravoYankee4]

I think my fellow Viggen fans should head on over to the Multiplayer thread to check out a little surprise :)





Spoiler :)

[b][color=Sienna][size=4]BIG UPDATE-8/18/2016: We are very  pleased to announce Leatherneck Simulations has officially joined our  growing list of Sponsors & Partners, and is [u]generously[/u] providing a [u]free [/u]copy  of the upcoming DCS: AJS-37 Viggen to EACH MEMBER of the winning team  in Round 2, along with an additional copy to be awarded to the match  MVP! You read correctly- the winners of Round 2 will be proud owners of  the much anticipated DCS: Viggen by Leatherneck Simulations! Thank you  Leatherneck Simulations! We are honored to have you on-board! (Important  note: This is is no way a promise of a release date for the DCS: AJS-37  Viggen, only that the appropriate contestants will be provided with the  product once it becomes available!)[/size][/color][/b]

[RaXha]

I think my fellow Viggen fans should head on over to the Multiplayer thread to check out a little surprise :)





Alright *Goes looking*





BIG UPDATE-8/18/2016: We are very pleased to announce Leatherneck Simulations has officially joined our growing list of Sponsors & Partners, and is generously providing a free copy of the upcoming DCS: AJS-37 Viggen to EACH MEMBER of the winning team in Round 2, along with an additional copy to be awarded to the match MVP! You read correctly- the winners of Round 2 will be proud owners of the much anticipated DCS: Viggen by Leatherneck Simulations! Thank you Leatherneck Simulations! We are honored to have you on-board! (Important note: This is is no way a promise of a release date for the DCS: AJS-37 Viggen, only that the appropriate contestants will be provided with the product once it becomes available!)



Awesome! :D



Source

[microvax]

:lol::lol: OMGGOMGOMGOMGOMG HYYYPEEEE. :lol::lol:





I honestly think all the swedes doing translation and bailing out literally sekrit documentz should get a Viggen as well. :)



So excited god damn it. Why do you do dis leatherneck.



Btw, do we know if the Viggen is cleared to go supersonic with A2G stores ?

In the mirage subforum peoplz are allways telling me, that I am going to fast and the mirage isnt cleared to go faster then mach 0.95 with A2G stores. :pilotfly:

[renhanxue]

Btw, do we know if the Viggen is cleared to go supersonic with A2G stores ?

In the mirage subforum peoplz are allways telling me, that I am going to fast and the mirage isnt cleared to go faster then mach 0.95 with A2G stores. :pilotfly:

If by cleared you mean by-the-book restrictions that are unlikely to be followed in war, then what you're cleared for with various loads is as follows:



If carrying autocannon or rocket pods on the wing pylons (V7):

Do not exceed M 0.96 below 1000m MSL



If any of the following applies:

- autocannon or rocket pods carried on V7

- U22 or KB ECM pods carried

- Any load on the fuselage pylons (S7)

- Rb 75 or rb 05 carried on V7

- Any bomb mount (without bombs) carried

Do not exceed 90° bank angle at or above M 0.96 below 2000m MSL



If carrying bombs (on any pylon):

Do not exceed M 0.96



If carrying rb 24 on the outer wing pylons (R7):

Do not exceed M 0.95

No angular velocity around the roll axis is permitted at negative load factors, nor at load factors greater than 4 G



If carrying rb 04:

Do not exceed M 0.96

Do not apply a load factor greater than 3 G during a roll

Do not climb above 7000m MSL

Do not fly angles of climb or descent steeper than 60°



If carrying rb 05:

Do not climb above 12000m MSL

Do not fly angles of climb or descent steeper than 60°



If carrying rb 75:

Do not climb above 12000m MSL



If carrying rb 15:

Do not exceed M 0.95

Do not apply a load factor greater than 5.5 G

Do not climb above 7000m MSL

Do not exceed 80° bank angle

Do not fly angles of climb or descent steeper than 80°

Edited August 19, 2016 by renhanxue

[microvax]

If by cleared you mean by-the-book restrictions that are unlikely to be followed in war, then what you're cleared for with various loads is as follows:



If carrying autocannon or rocket pods on the wing pylons (V7):

Do not exceed M 0.96 below 1000m MSL



If any of the following applies:

- autocannon or rocket pods carried on V7

- U22 or KB ECM pods carried

- Any load on the fuselage pylons (S7)

- Rb 75 or rb 05 carried on V7

- Any bomb mount (without bombs) carried

Do not exceed 90° bank angle at or above M 0.96 below 2000m MSL



If carrying bombs (on any pylon):

Do not exceed M 0.96



If carrying rb 24 on the outer wing pylons (R7):

Do not exceed M 0.95

No angular velocity around the roll axis is permitted at negative load factors, nor at load factors greater than 4 G



If carrying rb 04:

Do not exceed M 0.96

Do not apply a load factor greater than 3 G during a roll

Do not climb above 7000m MSL

Do not fly angles of climb or descent steeper than 60°



If carrying rb 05:

Do not climb above 12000m MSL

Do not fly angles of climb or descent steeper than 60°



If carrying rb 75:

Do not climb above 12000m MSL



If carrying rb 15:

Do not exceed M 0.95

Do not apply a load factor greater than 5.5 G

Do not climb above 7000m MSL

Do not exceed 80° bank angle

Do not fly angles of climb or descent steeper than 80°



renhanxue, you really deserve a medal for this ! :D

Great Info, is allowed to go mach 0,01 faster then mirage with bombs, day saved. :D

But Yeah, I guess at war nobody would care more then absolutely necessary about the limitations. :D



So RB75 is even officially cleared for supersonic flight, thats glorious !

Edited August 19, 2016 by microvax

[BravoYankee4]

If by cleared you mean by-the-book restrictions that are unlikely to be followed in war, then what you're cleared for with various loads is as follows:



If carrying autocannon or rocket pods on the wing pylons (V7):

Do not exceed M 0.96 below 1000m MSL



If any of the following applies:

- autocannon or rocket pods carried on V7

- U22 or KB ECM pods carried

- Any load on the fuselage pylons (S7)

- Rb 75 or rb 05 carried on V7

- Any bomb mount (without bombs) carried

Do not exceed 90° bank angle at or above M 0.96 below 2000m MSL



If carrying bombs (on any pylon):

Do not exceed M 0.96



If carrying rb 24 on the outer wing pylons (R7):

Do not exceed M 0.95

No angular velocity around the roll axis is permitted at negative load factors, nor at load factors greater than 4 G



If carrying rb 04:

Do not exceed M 0.96

Do not apply a load factor greater than 3 G during a roll

Do not climb above 7000m MSL

Do not fly angles of climb or descent steeper than 60°



If carrying rb 05:

Do not climb above 12000m MSL

Do not fly angles of climb or descent steeper than 60°



If carrying rb 75:

Do not climb above 12000m MSL



If carrying rb 15:

Do not exceed M 0.95

Do not apply a load factor greater than 5.5 G

Do not climb above 7000m MSL

Do not exceed 80° bank angle

Do not fly angles of climb or descent steeper than 80°



Well, even though you can't go faster than M 0,96 it will for sure be a surprise when coming at an altitude of 10 meters or less in a co-ordinated mass attack from several directions in full radio silence :music_whistling:

[microvax]

Well, even though you can't go faster than M 0,96 it will for sure be a surprise when coming at an altitude of 10 meters or less in a co-ordinated mass attack from several directions in full radio silence :music_whistling:



Yeah, practicing rocket runs/bombs runs etc. on tunguskas and sa15s atm with the mirage. If you fly below 10m at mach 1.07 you are fine. xD
