rel4y Posted January 22, 2019 Author Posted January 22, 2019 Will these work with the CH throttle Quadrant? I actually got asked this question last week already and my answer was I honestly dont know. I expect CH to use the same type of pots in this piece of hrdware as in all their products, but I have no experience with it. I asked him to send me some pictures of the internals, as I cant find any on the internet. But he is currently not at home if I understood correctly. If you could send me a picture, or maybe link me one from the internet I could probably give you an answer. Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
Sokol1_br Posted January 23, 2019 Posted January 23, 2019 Another cool thing about MMJoy is that you can adjust both VID and PID, so you can adjust the order of your HID device in terms of hardware numeration as you like. And I can also make it TARGET compatible. :) Psst, don't tell the secret. :D
Sokol1_br Posted January 23, 2019 Posted January 23, 2019 (edited) I expect CH to use the same type of pots in this piece of hrdware as in all their products, but I have no experience with it. All CH's stick, rudder and throttle use the same CTS HP 100 potentiometer, linear (response) type B, 100 K. Exception is Quadrant, there is used small square plastic Bourns pot. The major difficult is the fact that in CH stick pot pole is part of gimbal - remove pot, gimbal fall apart. In my CH's mods I leave pot (steel) pole as part of gimbal, cut off the resistive trail support and glue the magnet needed for contactless sensor in pole end. In throttle, the grip is attached to a "drawer" that move a lever attached to throttle pole. The "drawer" seem from above. https://i.imgur.com/H8PLCua.jpg Edited January 23, 2019 by Sokol1_br
rel4y Posted January 24, 2019 Author Posted January 24, 2019 Ok, thanks Sokol. My normal CH pots work quite fine, I initially had some trouble because of the reasons you mentioned however. They had to be able to take non axial loads, but the ball bearings inside handle that quite well. Then I guess I cant help people with the CH quadrant if these are using different pots. For some reason I can find no inside pictures of the CH quadrant on the webs... Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
PoleCat Posted January 24, 2019 Posted January 24, 2019 PM sent for order! Thank you! PoleCat http://www.104thphoenix.com/
SVgamer72 Posted January 24, 2019 Posted January 24, 2019 I took my CH Throttle Quadrant apart. Pots are soldered to a circuit board that is used to mount them. I don't think a simple swap replacement is possible
rel4y Posted January 24, 2019 Author Posted January 24, 2019 Mmm, that looks like a tough one! Thank you for the pictures though. Now I finally know whats inside. But arent the white plastic parts holding the pots tightly onto the black plastic cover? If that is the case then my replacement sensors might actually work. I think soldering the sensors in place may not be very hard if they are not held in place by the PCB only. Another problem could be friction. Is there any sort of friction mechanism or are the levers held in place only ba the pots? If that is the case then my sensors are not a good choise since the ball bearings make them nearly frictionless. :( Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
SVgamer72 Posted January 25, 2019 Posted January 25, 2019 Mmm, that looks like a tough one! Thank you for the pictures though. Now I finally know whats inside. But arent the white plastic parts holding the pots tightly onto the black plastic cover? If that is the case then my replacement sensors might actually work. I think soldering the sensors in place may not be very hard if they are not held in place by the PCB only. Another problem could be friction. Is there any sort of friction mechanism or are the levers held in place only ba the pots? If that is the case then my sensors are not a good choise since the ball bearings make them nearly frictionless. :( The white plastic sandwiches between the casing and the circuit board to provide friction and to create a detent. It's like the bearing cap on a cars crankshaft. The circuit board keeps the pots in place, and is the main anchor point for spacing. I am sure your sensors could be used, but it would require 3D printing a custom mounting solution to replace the original pot/board combo.
59th_Wittman Posted February 4, 2019 Posted February 4, 2019 Hello rel4y! I'm glad to read your post! I have two HOTAS Cougars, older and a new one. I will check the Throttle's PCB version! I will order hall sensors for Stick and Throttle in PM soon. I have a question! Could you make a hall sensor in place of Antenna Elevation potentiometer? :thumbup: Thanks in advance! 59th_Wittman HDF 59th Virtual Air Base
rel4y Posted February 4, 2019 Author Posted February 4, 2019 Could mods please stop deleting valid posts in this thread? I did not put my thread into this subforum, instead a mod moved it here. It was from the very beginning about more than just Thrustmaster mods, but I cant change titles myself nor move the thread. I have a question! Could you make a hall sensor in place of Antenna Elevation potentiometer? 59th_Wittman Hi Wittman, I actually had a lot of requests for the antenna pot lately, but it is not as straightforward as you may think to make that one. It has a center detent and the axle type is conceivably inappropriate for a 3D printed model. i will have a look at it eventually, as at the ministick, but as of currently it is not of very high priority to me. Sorry mate. :/ Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
59th_Wittman Posted February 5, 2019 Posted February 5, 2019 Hello rel4y! I send PM. 59th_Wittman HDF 59th Virtual Air Base
Sierra99 Posted February 13, 2019 Posted February 13, 2019 Could mods please stop deleting valid posts in this thread? I did not put my thread into this subforum, instead a mod moved it here. It was from the very beginning about more than just Thrustmaster mods, but I cant change titles myself nor move the thread rel4y I deleted my posts because I didn't want to hyjack a TQS thread with suncom questions... :music_whistling: Sorry for the confusion. As far as I know the moderators won't do that to individual threads. :smilewink: [sIGPIC][/sIGPIC] Primary Computer ASUS Z390-P, i7-9700K CPU @ 5.0Ghz, 32GB Patriot Viper Steel DDR4 @ 3200Mhz, ZOTAC GeForce 1070 Ti AMP Extreme, Samsung 970 EVO M.2 NVMe drives (1Tb & 500 Gb), Windows 10 Professional, Thrustmaster Warthog HOTAS, Thrustmaster Warthog Stick, Thrustmaster Cougar Throttle, Cougar MFDs x3, Saitek Combat Rudder Pedals and TrackIR 5. -={TAC}=-DCS Server Gigabyte GA-Z68XP-UD3, i7-3770K CPU @ 3.90GHz, 32GB G.SKILL Ripjaws DDR3 @ 1600Mhz, ZOTAC GeForce® GTX 970.
Joe Lighty Posted February 16, 2019 Posted February 16, 2019 Just some feedback on the magnetoresistive sensors for the Cougar joystick: I ordered these from rel4y and he sent them quickly from Germany to Australia - I've just had the chance to install these and they truly are "plug-and-play" - beyond that, my Cougar didn't even need to be calibrated - perfect upon installation - the axis are SUPER smooth. I have breathed new life into my previously "spiky" Cougar - ready for DCS F16. Awesome product, great price and service - highly recommended!

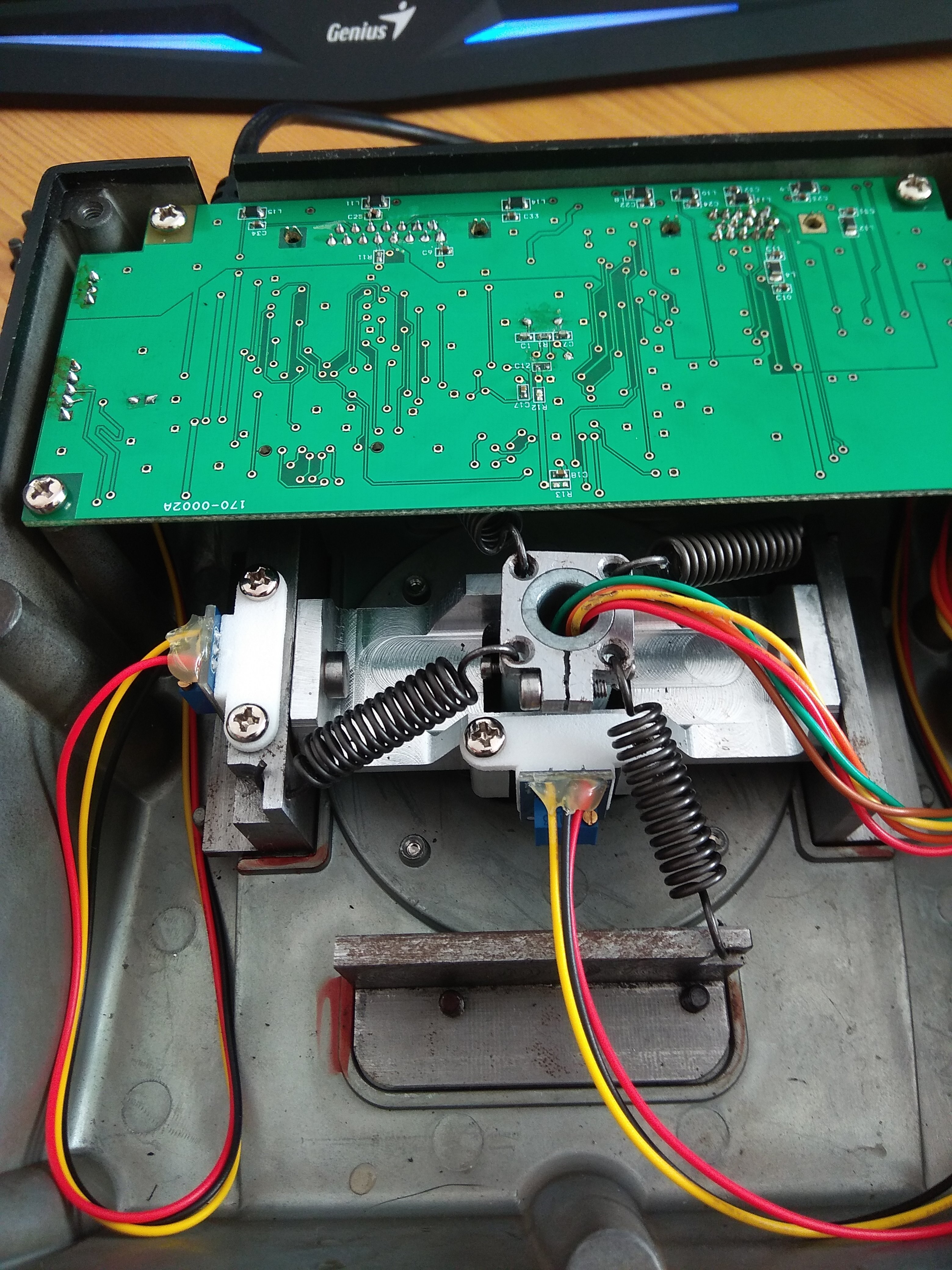

59th_Wittman Posted February 18, 2019 Posted February 18, 2019 Hall sensor kit Hall sensors installed my Cougar and working perfectly! Thank You very much! :thumbup: HDF 59th Virtual Air Base
Joe Lighty Posted February 18, 2019 Posted February 18, 2019 Interesting gimbal you’ve got there! Is that an Uber?
59th_Wittman Posted February 18, 2019 Posted February 18, 2019 This is a MMaister hardware mod by made a Hungarian Virtual pilot(VO101). The default idea was the EvenStrain gimbals mod, but this has been improved. I'm using this mod 12 years ago and works perfectly. I used many pots, but now with hall sensors, gratitude for rel4y! HDF 59th Virtual Air Base
rel4y Posted March 5, 2019 Author Posted March 5, 2019 Just a quick headsup, the next batch is underway with the Cougar Joystick sensors being almost done. By the end of this week I will make the new Throttle sensors and the USB adapters will most likely be made at the beginning of next week. It is really a lot of soldering, but I am going as quick as I can! :) I had to increase shipping prices by 0.5€ as the mail service increased its prices. Also the Throttle digital GMR sensor is now 15€ because TLE5011 prices have somehow skyrocketed. The preorders will most likely be shipped mid next week. Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
Rudel_chw Posted March 5, 2019 Posted March 5, 2019 Glad everything seems to be going fine with your cottage industry .. my Sensors are still working perfectly fine, thanks a lot for your creation and wish you the best :D For work: iMac mid-2010 of 27" - Core i7 870 - 6 GB DDR3 1333 MHz - ATI HD5670 - SSD 256 GB - HDD 2 TB - macOS High Sierra For Gaming: 34" Monitor - Ryzen 3600 - 32 GB DDR4 2400 - nVidia RTX2080 - SSD 1.25 TB - HDD 10 TB - Win10 Pro - TM HOTAS Cougar Mobile: iPad Pro 12.9" of 256 GB
rel4y Posted March 5, 2019 Author Posted March 5, 2019 Thank you Rudel and glad to hear! I am honestly amazed by how much interest there still is in the Cougar HOTAS, I didnt expect that. I mean I love my Cougar as well, but you would have thought most people switched over to Warthogs or the russian stuff. :) Cougar, CH and Saitek PnP hall sensor kits + shift registers: https://forums.eagle.ru/showthread.php?t=220916 Shapeways store for DIY flight simming equipment and repair: https://www.shapeways.com/shops/rel4y-diy-joystick-flight-simming
Rudel_chw Posted March 5, 2019 Posted March 5, 2019 I expect that the upcoming DCS F-16 will trigger a lot of interest on second hand Cougars, so it really pays to keep ours in tip top shape ... besides the Cougar has one virtue that the Warthog hasnt: The Foxy configuration utility :D For work: iMac mid-2010 of 27" - Core i7 870 - 6 GB DDR3 1333 MHz - ATI HD5670 - SSD 256 GB - HDD 2 TB - macOS High Sierra For Gaming: 34" Monitor - Ryzen 3600 - 32 GB DDR4 2400 - nVidia RTX2080 - SSD 1.25 TB - HDD 10 TB - Win10 Pro - TM HOTAS Cougar Mobile: iPad Pro 12.9" of 256 GB
59th_Wittman Posted March 7, 2019 Posted March 7, 2019 (edited) I earlier planed to change the Cougar to Hotas Warthog. I tested the new TM HOTAS, but I don't like the Warthog stick mechanics and Rudal_chw wrote well! Cougar has a Foxy, Warthog hasn't. My squadron members most use the Warthog, only some older members and me use the Cougar. Now I'm very happy, because rel4y made hall sensors for Cougar! I have another Cougar for my son, and it will get hall sensors too. Cheers! 59th_Wittman Edited March 7, 2019 by 59th_Wittman HDF 59th Virtual Air Base
Valky Posted March 14, 2019 Posted March 14, 2019 Just a quick headsup, the next batch is underway with the Cougar Joystick sensors being almost done. By the end of this week I will make the new Throttle sensors and the USB adapters will most likely be made at the beginning of next week. It is really a lot of soldering, but I am going as quick as I can! :) I had to increase shipping prices by 0.5€ as the mail service increased its prices. Also the Throttle digital GMR sensor is now 15€ because TLE5011 prices have somehow skyrocketed. The preorders will most likely be shipped mid next week. Do you still have any of the Cougar Joystick sensors left? I would like to order some.
Silvertree Posted March 15, 2019 Posted March 15, 2019 I bought a sensor and board from rel4y. It's really easy to install and I am quite pleased. rel4y is super helpful.
