DCS-ExportScripts for Stream Deck Community Github Library

bones1014 · October 23, 2021

It something that broke with the last update. It used to display either the radio channel or freq based on the mode. I've been trying different things and checking the numbers being exported but I can't figure it out. This is what's in the LUA right now

-----------------------------------
   -----Get F14 Radio Frequencies-----
   -----------------------------------

   -----UHF-----

   --[[
   1. Get the state of the switch to determine if presets or freqs are being used
   2. Get the channel or freq
   3. Using the above logic, present the Channel or Freq
   4. Preceede channels with "CH ".
   5. Dont preceede freqs with anything.
   ]]

   --[[
   [2033] = "%.4f", -- Mode selector knob (GUARD|MANUAL|PRESET)
   0.0 = preset
   0.5 = MANUAL
   1.0 = GUARD
   ]]

   local UHF_ARC159_infoBase = ExportScript.Tools.split(list_indication(8), "%c")--this contains the formated table of the base radio
   local UHF_ARC159_readoutBase = UHF_ARC159_infoBase[10] -- so far it has always been 10 in both channel and freq modes
   local UHF_ARC159_FreqMode = string.format("%0.1f", mainPanelDevice:get_argument_value(2033))

   if UHF_ARC159_FreqMode == "1.0" or UHF_ARC159_FreqMode == "0.5" then
       ExportScript.Tools.SendData(60000, string.format("ARC-159\n" .. UHF_ARC159_readoutBase:sub(1,3) .. "." .. UHF_ARC159_readoutBase:sub(4,6)))
       ExportScript.Tools.SendData(60001, string.format(UHF_ARC159_readoutBase:sub(1,3) .. "." .. UHF_ARC159_readoutBase:sub(4,6)))
   elseif UHF_ARC159_FreqMode == "0.0" then
       ExportScript.Tools.SendData(60000, string.format("ARC-159\n" .. "CH " .. UHF_ARC159_readoutBase:sub(4,6)))
       ExportScript.Tools.SendData(60001, string.format("CH " .. UHF_ARC159_readoutBase:sub(4,6)))
   end

   local UHF_ARC159_infoPilot = ExportScript.Tools.split(list_indication(9), "%c")--this contains the formated table of the Pilot radio
   local UHF_ARC159_readoutPilot = UHF_ARC159_infoPilot[16] -- so far it has always been 10 in both channel and freq modes
   local UHF_ARC159_FreqMode = string.format("%0.1f", mainPanelDevice:get_argument_value(2033))

   if UHF_ARC159_FreqMode == "1.0" or UHF_ARC159_FreqMode == "0.5" then
       ExportScript.Tools.SendData(60002, string.format("ARC-159\n" .. UHF_ARC159_readoutPilot:sub(1,3) .. "." .. UHF_ARC159_readoutPilot:sub(4,6)))
       ExportScript.Tools.SendData(60003, string.format(UHF_ARC159_readoutPilot:sub(1,3) .. "." .. UHF_ARC159_readoutPilot:sub(4,6)))
   elseif UHF_ARC159_FreqMode == "0.0" then
       ExportScript.Tools.SendData(60002, string.format("ARC-159\n" .. "CH " .. UHF_ARC159_readoutPilot:sub(4,6)))
       ExportScript.Tools.SendData(60003, string.format("CH " .. UHF_ARC159_readoutPilot:sub(4,6)))
   end


   local UHF_ARC159_infoRio = ExportScript.Tools.split(list_indication(9), "%c")--this contains the formated table of the Rio radio
   local UHF_ARC159_readoutRio = UHF_ARC159_infoRio[16] -- so far it has always been 10 in both channel and freq modes
   local UHF_ARC159_FreqMode = string.format("%0.1f", mainPanelDevice:get_argument_value(2033))

   if UHF_ARC159_FreqMode == "1.0" or UHF_ARC159_FreqMode == "0.5" then
       ExportScript.Tools.SendData(60004, string.format("ARC-159\n" .. UHF_ARC159_readoutRio:sub(1,3) .. "." .. UHF_ARC159_readoutRio:sub(4,6)))
       ExportScript.Tools.SendData(60005, string.format(UHF_ARC159_readoutRio:sub(1,3) .. "." .. UHF_ARC159_readoutRio:sub(4,6)))
   elseif UHF_ARC159_FreqMode == "0.0" then
       ExportScript.Tools.SendData(60004, string.format("ARC-159\n" .. "CH " .. UHF_ARC159_readoutRio:sub(4,6)))
       ExportScript.Tools.SendData(60005, string.format("CH " .. UHF_ARC159_readoutRio:sub(4,6)))
   end

   -----V/UHF ARC182-----

   --[[
   [353] = "%0.1f", -- VHF/UHF ARC-182 Freq Mode (UHF GUARD|V/UHF|V/UHF GUARD|PRESET|V/UHF|LOAD?)
   0.0 = UHF GUARD
   0.2 = V/UHF
   0.4 = V/UHF GUARD
   0.6 = PRESET
   0.8 = V/UHF
   1.0 = LOAD?
   ]]

   local VHF_ARC182_infoBase = ExportScript.Tools.split(list_indication(12), "%c")--this contains the formated table of the base radio
   local VHF_ARC182_readoutBase = VHF_ARC182_infoBase[10] -- so far it has always been 10 in both channel and freq modes
   local VHF_ARC182_FreqMode = string.format("%0.1f", mainPanelDevice:get_argument_value(353))

   if VHF_ARC182_FreqMode == "0.0" or VHF_ARC182_FreqMode == "0.2" then
       ExportScript.Tools.SendData(60006, string.format("ARC-182\n" .. VHF_ARC182_readoutBase:sub(1,3) .. "." .. VHF_ARC182_readoutBase:sub(4,6)))
       ExportScript.Tools.SendData(60007, string.format(VHF_ARC182_readoutBase:sub(1,3) .. "." .. VHF_ARC182_readoutBase:sub(4,6)))
   elseif VHF_ARC182_FreqMode == "0.4" or VHF_ARC182_FreqMode == "0.8" then
       ExportScript.Tools.SendData(60006, string.format("ARC-182\n" .. VHF_ARC182_readoutBase:sub(1,3) .. "." .. VHF_ARC182_readoutBase:sub(4,6)))
       ExportScript.Tools.SendData(60007, string.format(VHF_ARC182_readoutBase:sub(1,3) .. "." .. VHF_ARC182_readoutBase:sub(4,6)))
   elseif VHF_ARC182_FreqMode == "1.0" then
       ExportScript.Tools.SendData(60006, string.format("ARC-182\n" .. VHF_ARC182_readoutBase:sub(1,3) .. "." .. VHF_ARC182_readoutBase:sub(4,6)))
       ExportScript.Tools.SendData(60007, string.format(VHF_ARC182_readoutBase:sub(1,3) .. "." .. VHF_ARC182_readoutBase:sub(4,6)))
   elseif VHF_ARC182_FreqMode == "0.6" then
       ExportScript.Tools.SendData(60006, string.format("ARC-182\n" .. "CH " .. VHF_ARC182_readoutBase:sub(4,6)))
       ExportScript.Tools.SendData(60007, string.format("CH " .. VHF_ARC182_readoutBase:sub(4,6)))
   end

end

bones1014 · October 23, 2021

I fixed it. Change this line

local UHF_ARC159_infoBase = ExportScript.Tools.split(list_indication(8), "%c")--this contains the formated table of the base radio

to

local UHF_ARC159_infoBase = ExportScript.Tools.split(list_indication(9), "%c")--this contains the formated table of the base radio

Bailey · October 28, 2021

F-16C Update (https://github.com/asherao/DCS-ExportScripts/wiki/F-16C)
- Removed F-18 code (haha, idk how it got in there)
- Fixed CMDS readouts
- Added more CMDS readouts
- Added fuel totalizer readout
- Added fuel flow readout
- Added Media Pic

This update was inspired by this post:

Edited October 28, 2021 by Bailey

Lange_666 · October 29, 2021

Oh boy this Github... why is it so complicated?
Always makes me nervous when ending up there.
Finding the correct download link always seems to be a big problem for me (yeah i'm getting old).
Who not: Latest version --> link --> click?

Edited October 29, 2021 by Lange_666

Bailey · October 29, 2021

33 minutes ago, Lange_666 said:

Oh boy this Github... why is it so complicated?
Always makes me nervous when ending up there.
Finding the correct download link always seems to be a big problem for me (yeah i'm getting old).
Who not: Latest version --> link --> click?

I agree, its a headache. After clicking this link (https://github.com/asherao/DCS-ExportScripts), click the "Code" square/button and then click "Download Zip" in the dropdown. Then unzip/install as other mods/scripts.

You can also navigate to the lua you want and copy/paste the code into the lua file already on your pc.

Lange_666 · October 29, 2021

Big thanks !

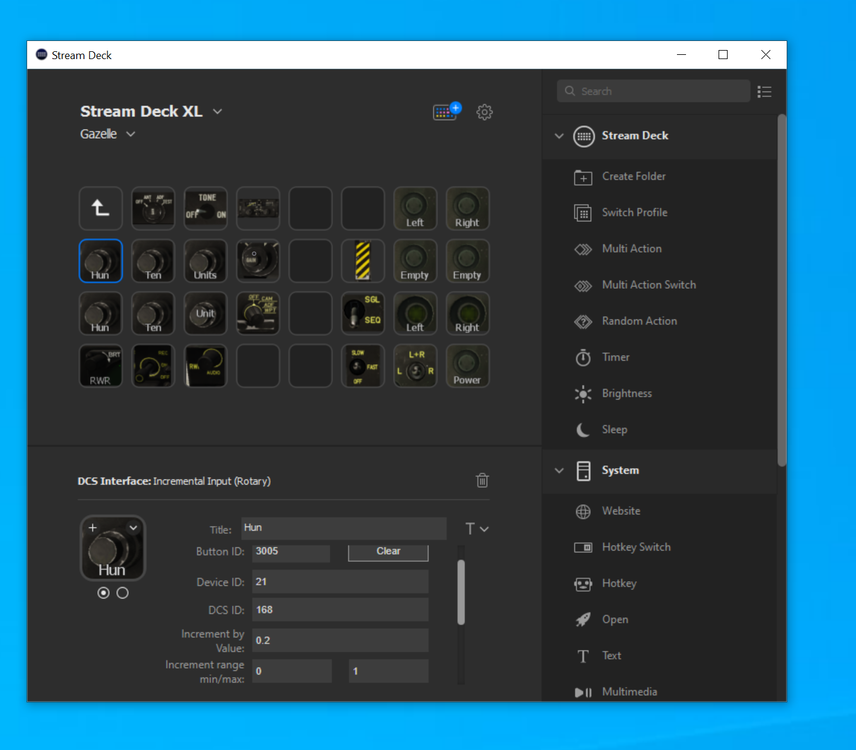

Bailey · November 6, 2021

Updated Gazelle M lua
- Reworked and added Radio exports, see wiki for details (https://github.com/asherao/DCS-ExportScripts/wiki/Gazelle-M)
- Added many Gaz stock button pics
- Added Gazelle M media

Edited November 7, 2021 by Bailey

Mordants · November 8, 2021

On 11/6/2021 at 11:17 AM, Bailey said:

Updated Gazelle M lua
- Reworked and added Radio exports, see wiki for details (https://github.com/asherao/DCS-ExportScripts/wiki/Gazelle-M)
- Added many Gaz stock button pics
- Added Gazelle M media

Is there a Stream Deck file to go with this? I have managed to incorporate the radio and ADF readouts to my SA342M file but for the life of me cannot get the ADF dials to decrease, If I add a negative value to the increment it still increases. I can't figure out the above dials numbers in the lua file. Apologies if its straight forward but I'm not too bright. I have many hours tinkering with DCS interface values, but it can get frustrating sometimes. Thanks for your time, It's really great the work you do for the community.

Bailey · November 8, 2021

2 hours ago, Mordants said:

Is there a Stream Deck file to go with this? I have managed to incorporate the radio and ADF readouts to my SA342M file but for the life of me cannot get the ADF dials to decrease, If I add a negative value to the increment it still increases. I can't figure out the above dials numbers in the lua file. Apologies if its straight forward but I'm not too bright. I have many hours tinkering with DCS interface values, but it can get frustrating sometimes. Thanks for your time, It's really great the work you do for the community.

Here, try this.
https://github.com/asherao/DCS-ExportScripts/tree/master/docu/StreamDeck Examples
I found the solution on accident because of a fortunate typo I made. For the decrease, make the "Increment range min/max" -1 and 1, respectively. Please let me know if you are able to load the profile in the link above. Thanks for the thanks! It is much appreciated.

Mordants · November 8, 2021

1 hour ago, Bailey said:

Here, try this.
https://github.com/asherao/DCS-ExportScripts/tree/master/docu/StreamDeck Examples
I found the solution on accident because of a fortunate typo I made. For the decrease, make the "Increment range min/max" -1 and 1, respectively. Please let me know if you are able to load the profile in the link above. Thanks for the thanks! It is much appreciated.

You are definitely the man! I've downloaded and installed the profile and works a treat, love it. Now I'm just going to analyse how you did it to see where I went wrong. Though I'm sure I tried all permutations of negative numbers. Obviously not otherwise we wouldn't be having this dialogue! Once again thanks for your generous help, I am indebted.

hasole · November 12, 2021

On 11/7/2021 at 12:17 AM, Bailey said:

Updated Gazelle M lua
- Reworked and added Radio exports, see wiki for details (https://github.com/asherao/DCS-ExportScripts/wiki/Gazelle-M)
- Added many Gaz stock button pics
- Added Gazelle M media

I need to make buttons like these for the Tomcat RWR, SW, ICS

lassekongo · December 28, 2021

@Bailey I wrote what it said on the export wiki for the f16. I can get alt pressure readout to work but not 3000-3007 readouts for chaff and flare

Bailey · January 4, 2022

On 12/28/2021 at 9:41 AM, lassekongo said:

@Bailey I wrote what it said on the export wiki for the f16. I can get alt pressure readout to work but not 3000-3007 readouts for chaff and flare

I have updated the lua. Please try again. 3000-3007 are working on my end. If it still does not work please post your lua file and the location it was in.

lassekongo · January 4, 2022

@Bailey Will check soon with new F16 export module lua

Bailey · January 4, 2022

Cat's outta the bag. F16 has been updated with the ECM Panel to include the buttons and their colors. Check out this post and the ones surrounding it for the research, collaboration, and awesome teamwork:

Please remember to read the wiki for more information. Enjoy!
https://github.com/asherao/DCS-ExportScripts/wiki/F-16C

Edited January 4, 2022 by Bailey

lassekongo · January 9, 2022

So this new f16 lua file seems to send inputs but not recive any to the switch icon images

lassekongo · January 9, 2022

On 1/4/2022 at 1:53 AM, lassekongo said:

@Bailey Will check soon with new F16 export module lua

@Bailey can now confirm sadly that the values for 3000-3007 (chaff flare etc) does still not work for me on the text display. I also posted an other answer to you in New stream deck plugin thread about my issue with the ecm buttons

Oh and second weird issue i am having is that for some reason the switch input and momentary button with lamps is sending inputs and working but is not changing to second state image. I have checked that it is only the F16 module that is having this issue. I have experinced many kinds of errors before with dcs interface (especially ecport lua hehe) and have now reached an ok ish understanding of the varoious things of what causes issues but have never experinced that it is only one module that is having problems like this of changing button state or rather reading it but can send it. As it is only the f16 could there be something with the new Lua perhaps ?

Bailey · January 9, 2022

18 minutes ago, lassekongo said:

@Bailey can now confirm sadly that the values for 3000-3007 (chaff flare etc) does still not work for me on the text display. I also posted an other answer to you in New stream deck plugin thread about my issue with the ecm buttons

Oh and second weird issue i am having is that for some reason the switch input and momentary button with lamps is sending inputs and working but is not changing to second state image. I have checked that it is only the F16 module that is having this issue. I have experinced many kinds of errors before with dcs interface (especially ecport lua hehe) and have now reached an ok ish understanding of the varoious things of what causes issues but have never experinced that it is only one module that is having problems like this of changing button state or rather reading it but can send it. As it is only the f16 could there be something with the new Lua perhaps ?

Please attach the lua you are using.

Bailey · January 10, 2022

21 hours ago, Bailey said:

Please attach the lua you are using.

21 hours ago, lassekongo said:

@Bailey can now confirm sadly that the values for 3000-3007 (chaff flare etc) does still not work for me on the text display. I also posted an other answer to you in New stream deck plugin thread about my issue with the ecm buttons

Oh and second weird issue i am having is that for some reason the switch input and momentary button with lamps is sending inputs and working but is not changing to second state image. I have checked that it is only the F16 module that is having this issue. I have experinced many kinds of errors before with dcs interface (especially ecport lua hehe) and have now reached an ok ish understanding of the varoious things of what causes issues but have never experinced that it is only one module that is having problems like this of changing button state or rather reading it but can send it. As it is only the f16 could there be something with the new Lua perhaps ?

Issue solved. Remember to keep those luas updated!
https://forums.eagle.ru/topic/230609-new-streamdeck-plugin/?do=findComment&comment=4864852

Edited January 10, 2022 by Bailey

Bailey · January 17, 2022

Updated the library:
- Added Mi-8 Hip digital compass (https://github.com/asherao/DCS-ExportScripts/wiki/Mi-8MT-Hip)

- Added UH-60L mod lua (https://github.com/asherao/DCS-ExportScripts/blob/master/Scripts/DCS-ExportScript/ExportsModules/UH-60L.lua)
- Documentation to come later

Edited January 17, 2022 by Bailey

scoobie · January 17, 2022

Hi, @bones1014! Just a tiny tip (and optional to use) that can make life easier a bit.
You don't need "string.format()" where inside it you have a ready to use string.
So, for example, instead of:
ExportScript.Tools.SendData(60001, string.format("CH " .. UHF_ARC159_readoutBase:sub(4,6)))
You can simply write:
ExportScript.Tools.SendData(60001, "CH " .. UHF_ARC159_readoutBase:sub(4,6))
It's the same. Well actually the latter is faster to run for two reasons (but this shouldn't matter much), but it's also healthier for the eyes (less reading)!

bones1014 · January 17, 2022

3 hours ago, scoobie said:

Hi, @bones1014! Just a tiny tip (and optional to use) that can make life easier a bit.
You don't need "string.format()" where inside it you have a ready to use string.
So, for example, instead of:
ExportScript.Tools.SendData(60001, string.format("CH " .. UHF_ARC159_readoutBase:sub(4,6)))
You can simply write:
ExportScript.Tools.SendData(60001, "CH " .. UHF_ARC159_readoutBase:sub(4,6))
It's the same. Well actually the latter is faster to run for two reasons (but this shouldn't matter much), but it's also healthier for the eyes (less reading)!

Where did I do that?

scoobie · January 17, 2022

Oh, wait... so the text wasn't yours, you only quoted what you had found in a file written by someone else? :doh: Sorry then

Never mind, I didn't mean anything wrong - it's no big deal, the code will work either way, it just struck me that someone is/was putting more work into that Lua than neccessary.

Here: https://forums.eagle.ru/topic/283178-dcs-exportscripts-for-stream-deck-community-github-library/?do=findComment&comment=4805362

bones1014 · January 17, 2022

2 minutes ago, scoobie said:

Oh, wait... so the text wasn't yours, you only quoted what you had found in a file written by someone else? Sorry then

Never mind, I didn't mean anything wrong - it's no big deal, the code will work either way, it just struck me that someone is/was putting more work into that Lua than neccessary.

Here: https://forums.eagle.ru/topic/283178-dcs-exportscripts-for-stream-deck-community-github-library/?do=findComment&comment=4805362

Oh ok. I don't mind pointers. spaghetti code is bad and wastes time! If there's ever a better way to do something let me know. Coding can be tough.

scoobie · January 17, 2022

14 minutes ago, bones1014 said:

If there's ever a better way to do something let me know.

Black humour, I like it! I can make coffee instead, I don't get that Lua contraption, maybe like 10% of it, at best. I'd love to read one day how this strange language works :book:
Sorry for off-topic!
