OpenXR Guide - Deprecated - This time for real (▀̿Ĺ̯▀̿ ̿)

[speed-of-heat]

it was on discord and gitlab that znixian had committed the jabbah changes



[Sile]

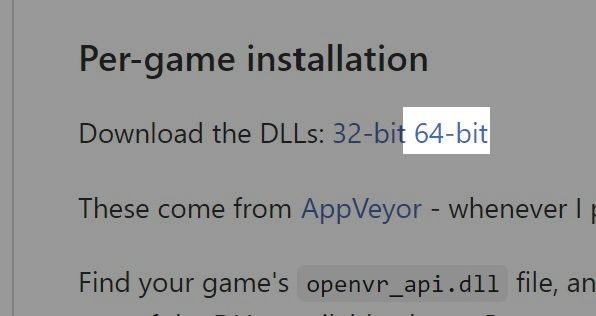

Is the new openvr_api.dll behind this link (see picture)?

How do i know which version it is? There is no version / date information anywhere. It's missing in the file properties as well.

Edited April 25, 2022 by Sile

[slughead]

I've looked at the github and the discord developer chat etc. Whilst code has been committed from Jabbah, there is nothing to suggest it is ready for general use. Perhaps I've missed some chat where they have said something like.... code is ready for release, we will release a build shortly...  For now, just looks like a code checkin to me and nothing to suggest it's been tested for release.

[Sr.]

24 minutes ago, speed-of-heat said:

it was on discord and gitlab that znixian had committed the jabbah changes



Ok... I somehow got it to run. Lots more options now (have yet to mess with them).

I started by making a copy of my current OvGME OXR063 folder.

Downloaded the new 64bit.dll https://znix.xyz/OpenComposite/download.php?arch=x64&branch=openxr to the new folder copy.

Toggled off the current OXR063 folder inside OvGME

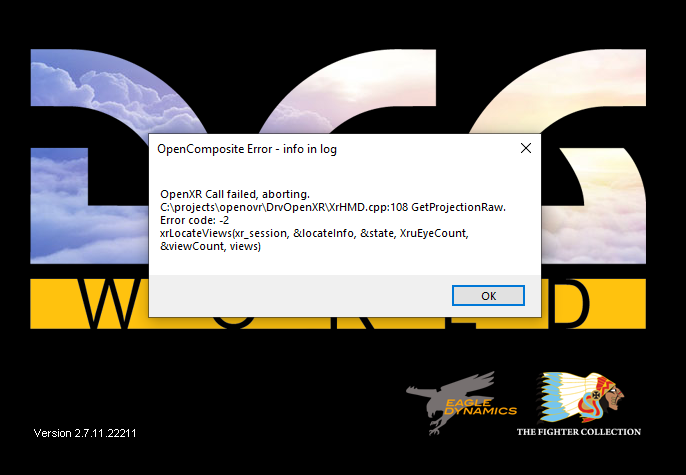

Toggled the new copy on, ran DCS... got an error referring to line to in OpenComposite.ini

Went in to DCS bin and deleted that file.

Restarted DCS and I can now see the new menu options in the GUI. One in particular was for shadows, more color tuning, and one called shades or sunglasses... seem to control contrast/brightness.





[DeltaMike]

Yeah the opencomposite.ini that was used in Jabbah's version has terms not found in the main branch ... does it run OK without it?  (I'm not gonna have access to my rig for a couple of weeks)

[Sr.]

9 minutes ago, DeltaMike said:

Yeah the opencomposite.ini that was used in Jabbah's version has terms not found in the main branch ... does it run OK without it?  (I'm not gonna have access to my rig for a couple of weeks)

Seems to... I can confirm the vibrance, saturation and "sunglasses" options work.

Looks like it might augment or replace a few of the settings of 3DMigoto.





There's now an additional "CPU bound" table under the Developer counter (fps etc), which will immediately display any change. I saw it kick in while glancing back toward Vegas in the FA-18 free flight mission.

Edited April 25, 2022 by Sr.

[Sile]

vor 21 Minuten schrieb Sr.:

Ok... I somehow got it to run. Lots more options now (have yet to mess with them).

I started by making a copy of my current OvGME OXR063 folder.

Downloaded the new 64bit.dll https://znix.xyz/OpenComposite/download.php?arch=x64&branch=openxr to the new folder copy.

Toggled off the current OXR063 folder inside OvGME

Toggled the new copy on, ran DCS... got an error referring to line to in OpenComposite.ini

Went in to DCS bin and deleted that file.

Restarted DCS and I can now see the new menu options in the GUI. One in particular was for shadows, more color tuning, and one called shades or sunglasses... seem to control contrast/brightness.





The menu changes come from the new openxr toolkit version 1.1.0 and not the new opencomposite version.

There is no menu in opencomposite.

Edited April 25, 2022 by Sile

[slughead]

You can use the opencomposite.ini from your old package. You will need to comment out (put a ; at the start of the line using notepad) the line with "mirrorMode" and the line with "enableHiddenMeshFix". Then it will run.

45 minutes ago, Sile said:

Is the new openvr_api.dll behind this link (see picture)?

How do i know which version it is? There is no version / date information anywhere. It's missing in the file properties as well.



Yes

[Sr.]

Just now, Sile said:

The menu changes come from the new openxr toolkit version 1.1.0 and not the new opencomposite version.

There is no menu in opencomposite.



Cool... I had also updated Toolkit earlier.

[nikoel]

13 hours ago, ApacheLongbow said:

Hello, I downloaded the new openvr_api.dll from the link below, uninstalled and reinstalled openxr toolkit but I'm getting the error above. Any ideas?

https://gitlab.com/znixian/OpenOVR/-/tree/openxr



You still need Jabbah's original D3DCompiler_47.dll to make the installation work

D3DCompiler_47.dll

[nikoel]

I have the latest everything (OpenXR, Toolkit etc) and it works

I no longer use Jabbah's fork, and instead utilised the official install of OpenComponsite above

Not sure what your %PATH% is so can not help you. The file goes into the bin folder as always

[speed-of-heat]

so download the 64 bit version from https://znix.xyz/OpenComposite/download.php?arch=x64

and the current D3DCompiler_47.dll, can be copied from C:\Windows\system32  (it needs to be local or it errors)

opencomposite.ini  needs to be:

;Mirror mode outputs a shared texture for use by OBS plugin
; mirrorMode=disabled

;Performance stats enables writing of performance stats
; If enabled press F11 to start stats capture to file
; File is currently output to \Program Files (x86)\Steam\steamapps\common\Assetto Corsa Competizione\AC2\Binaries\Win64\teststats.csv
;performanceStats=disabled

;Hidden area mesh fix now is autogenerated you no longer need to put in manual values see changeling V0.6.1
enableHiddenMeshFix=enabled

;Use OpenXR layers to handle GUI overlays and HUDs, if set to false will render internally directly onto swap chain before submitting
enableLayers=true

forceConnectedTouch=disabled
renderCustomHands=disabled

and all to be installed into the \bin directory within the DCS main game install.

Edited April 26, 2022 by speed-of-heat

[sze5003]

so download the 64 bit version from https://znix.xyz/OpenComposite/download.php?arch=x64
and the current D3DCompiler_47.dll, can be copied from C:\Windows\system32  (it needs to be local or it errors)
opencomposite.ini  needs to be:

;Mirror mode outputs a shared texture for use by OBS plugin; mirrorMode=disabled;Performance stats enables writing of performance stats; If enabled press F11 to start stats capture to file; File is currently output to \Program Files (x86)\Steam\steamapps\common\Assetto Corsa Competizione\AC2\Binaries\Win64\teststats.csv;performanceStats=disabled;Hidden area mesh fix now is autogenerated you no longer need to put in manual values see changeling V0.6.1enableHiddenMeshFix=enabled;Use OpenXR layers to handle GUI overlays and HUDs, if set to false will render internally directly onto swap chain before submittingenableLayers=trueforceConnectedTouch=disabledrenderCustomHands=disabled

and all to be installed into the \bin directory within the DCS main game install.

Good summary. I'm guessing at some point this will be posted to replace what's on the first page?

[nikoel]

Wut?

I cleaned DCS super thoroughly as always

Downloaded the standalone OpenXR installer.

Unpacked and activated across the entire system

Dropped the extra file that is above into the folder and that was that

(I guess you can use the standalone [per game] installer as well)



58 minutes ago, ApacheLongbow said:

D3DCompiler_47.dll is Microsoft, so it's located at \system32. If you delete it from your DCS bin folder, the system will look for a new one from your "System Path" and replace it.

Do you use Oculus as well, and everything works, including the toolkit?



Why would I use Oculus?

The D3D file above is the exact the same as the one provided by Jabbah in the latest release of his fork of OpenComposite

Edited April 26, 2022 by nikoel

[speed-of-heat]

23 minutes ago, nikoel said:



The D3D file above is the exact the same as the one provided by Jabbah in the latest release of his fork of OpenComposite



the one i had had not commented out lines 2 and 7 which caused errors

16 hours ago, ApacheLongbow said:

Hello, I downloaded the new openvr_api.dll from the link below, uninstalled and reinstalled openxr toolkit but I'm getting the error above. Any ideas?

https://gitlab.com/znixian/OpenOVR/-/tree/openxr



at a guess you downloaded the 32bit version

[dburne]

4 minutes ago, ApacheLongbow said:

64bits.

Anyway, I give up, this whole project is big mess right now. The readmes are not updated, the files are all over the place and we're all taking different "languages".

Thanks for the help guys, I'll leave this for a later date.





A big reason I do not run Mods. This topic was opened in Mid March and is already 62 pages - for a quick start guide. Not to mention the other thread as well.

Edited April 26, 2022 by dburne

[sze5003]

I'm still running open xr 0.63 from the first page. It's been working fine since.

[Sr.]

I don't even have an opencomposite.ini file and mine works.

[Nightstorm]

1 minute ago, Sr. said:

I don't even have an opencomposite.ini file and mine works.

I read in the official branch instructions that if the opencomposite.ini isn't found it'll just use default settings.  Whatever they are.

[speed-of-heat]

odd mine wont seem to work of the generic installer .. just drops to 2d

[Nightstorm]

I took the last version I was using, 0.6.3, updated the 64 bit DLL with the current one.  Commented out the couple of lines in the ini file and installed the new version of the companion app v1.1.  Everything works just as it did before but I have the new options and motion reprojection seems (slightly) improved.

I don't know if this official branch had MR changes / fixes or not.  So, the test I did could have been a one off.  I still get the shimmering when I fly through clouds.  With MR off though, it works just as well as before with no loss in performance.

The additional post process options for vibrance, highlight, saturation etc are nice.

Edited April 26, 2022 by Nightstorm

[Sile]

vor 22 Minuten schrieb Nightstorm:

I took the last version I was using, 0.6.3, updated the 64 bit DLL with the current one.  Commented out the couple of lines in the ini file and installed the new version of the companion app v1.1.  Everything works just as it did before but I have the new options and motion reprojection seems (slightly) improved.

I don't know if this official branch had MR changes / fixes or not.  So, the test I did could have been a one off.  I still get the shimmering when I fly through clouds.  With MR off though, it works just as well as before with no loss in performance.

The additional post process options for vibrance, highlight, saturation etc are nice.



Followed the same path as you and everything still works.

The new options and post processing variants (Menu in Headset) were introduced by the recently updated OpenXR Toolkit 1.1.0 and not OpenComposite, though.
Just to avoid confusion.

And 0.6.3 from the front page guide should still work as well.

Edited April 26, 2022 by Sile

[nikoel]

2 hours ago, dburne said:



A big reason I do not run Mods. This topic was opened in Mid March and is already 62 pages - for a quick start guide. Not to mention the other thread as well.



Perhaps it's 62 pages because you keep reminding us how you don't run any mods every page of this thread. The start guide is all entailed in the first page

The reason it didn't work for you is because you

a) Failed to follow instructions
b) Complained about it - by saying that I was assuming everyone is a programmer (ignoring that literally thousands of people were successful before you)
c) When you finally got it work, you instantly gave up because of colour saturation even though you could have easily dialled it up with 4 keypresses like everyone else
d) Cranky, set in your ways and stubborn

This is not for everyone. Real issues with compatibility exist and being actively worked on. We are helping each other - however there is a strong correlation between competence and success.

If you dedicated even half of your effort towards OpenXR that you do repeating the ol' phrase above you would had it running beautifully

Jabbah, Mbuccia and so many other people have given up their time to help us. They are hugely talented and their time is infinitely valuable and they have spent it on helping us. M Bucchia works for Microsoft and his team in the early stages released a version for DCS. He didn't have to do this

This thread would not be 62 pages long if it was some useless piece of bloatware. If you look at any Hoggit VR post recently for WMR headsets, you will find OpenXR in there somewhere. Here I literally found one by not even scrolling the front page

You're entitled to your opinion, but your opinion is crapping upon the people who have helped us. This is not right



Edited April 26, 2022 by nikoel

[Sr.]

This one got buried yesterday, but this is what I did to get the new "fork?" working.



Quote

Ok... I somehow got it to run. Lots more options now (have yet to mess with them).

First I ran the installer, not really knowing if that had done anything I went with manually installing.

I started by making a copy of my current OvGME OXR063 folder.

Downloaded the new 64bit.dll https://znix.xyz/OpenComposite/download.php?arch=x64&branch=openxr to the new folder copy.

Toggled off the current OXR063 folder inside OvGME

Toggled the new copy on, ran DCS... got an error referring to line to in OpenComposite.ini

Went in to DCS bin and deleted that file.



[speed-of-heat]

14 minutes ago, Sr. said:

This one got buried yesterday, but this is what I did to get the new "fork?" working.





yep largely what i did, but i just corrected the errors in the ini file, and this works, i just can't get the generic installer to work, when i install the binaries to dcs\bin it works fine though
