Cursor functions won't bind, cursor press does

Airwolf466
 Share

Recommended Posts

Airwolf466

Airwolf466

Posted
Posted (edited)

As in the title , in the Apache I can't bind the cursor l/r and u/p to my Warthog throttle, either in axis(preferred) or key commands. Cursor press does assign. It's not a cursor fault as it's still working fine in the Hornet.

Is anyone else seeing this?

Edited by Airwolf466

"You see, IronHand is my thing"

VIXEN413

VIXEN413

Posted
Posted

Same for me.

I can bind the x and z axis  of the hocas cursor and see it moving in the control setup so I know the binding is fine.

once in the cockpit, I can move the cursor but if it touches the side of the screen, it becomes frozen and I cant move it anymore.

I swap the cursor to the other screen where it appears in the middle but still cant move it around with the cursor hat. I press cursor enter, screen swap again and again and still no joy despite having correct input sensing in the axis setup...

other modules cursor works fine still but hornet cursor has a different way of moving then before too. I ll repport in hornet bugs.

Rig: MB Gigabite z390UD, CPU Intel I7 8700k, RAM 32G DDR4 3200 Gskill ripjaws, GPU MSI RTX2080SuperOC, HDD Crucial mx500 1tb M2 sata, PSU Corsair 850W, watercooling Corsair h100,



Controlers TM f/a 18 stick on Virpil warbrd base, TM cougar f16 stick on cougar base, Cougar F16 throttle on TUSBA, ch pedals, TM cougar MFD



27" monitor with trk IR 5 and HP Reverb HMD.





Modules F18, F16, F86, Mig15, FW 190D9, Nellis range map, Aggr campaign, Middle East map

mhe

mhe

Posted
Posted

I also have the cursor stuck to the screen edge once it touches there. Doesn't seem to be hardware related, using a Virpil collective with an alpha grip.

| i9 12900K |  64GB DDR5-6000 | STRIX RTX 4090 OC | LG 38GN950 38" |

| Hanns-G HT225HPB | TIR 5 & Varjo Aero | Virpil Throttle & Stick | TM TPRs |

You don't stop playing because you grow old, you grow old because you stop playing.

pellelil

pellelil

Posted
Posted

I noticed that the cursor in most cases will freeze when it touches the screen edge. However if I center (let go) of my axis hat mapped up to the cursor (TM Warthog throttle). Then I will be able to move the cursor again.

Pelle Liljendal

(MooseMan)

Airwolf466

Airwolf466

Posted
  • Author
Posted

I haven't tested how the cursors are working in pit,yet, but I did manage to get the axis' to assign to the throttle cursor. I was comparing the Apache setup with the DCS Hornet. If you look at the "key/button" drop down in the  axis Assignment Panel, the same joy_x and joy_y are listed for the throttle. If you select them from that list they will assign. So, the problem seems to be that the UI is not "seeing" you when you try to assign via moving the cursor up/down/left/right

"You see, IronHand is my thing"

FZG_Immel

FZG_Immel

Posted
Posted
On 3/17/2022 at 10:54 PM, VIXEN413 said:

Same for me.

I can bind the x and z axis  of the hocas cursor and see it moving in the control setup so I know the binding is fine.

once in the cockpit, I can move the cursor but if it touches the side of the screen, it becomes frozen and I cant move it anymore.

I swap the cursor to the other screen where it appears in the middle but still cant move it around with the cursor hat. I press cursor enter, screen swap again and again and still no joy despite having correct input sensing in the axis setup...

other modules cursor works fine still but hornet cursor has a different way of moving then before too. I ll repport in hornet bugs.

SAME

  • Thanks 1

[sIGPIC]https://forums.eagle.ru/signaturepics/sigpic70550_3.gif[/sIGPIC]

Asus Z390-H - SSD M.2 EVO 970 - Intel I9 @5.0ghz - 32gb DDR4 4000 - EVGA 3090 - Cougar FSSB + Virpil WRBRD + Hornet Stick - Thrustmaster TPR Pedal + WinWing MIP + Orion + TO and CO pannels - Track IR5

Airwolf466

Airwolf466

Posted
  • Author
Posted

Hi, Nine. Please explain-tracks? Also, to update my earlier post, the cursors are now working in'pit, as well. They do seem a bit "sticky" when at the edge of the display, but they don't get "stuck"

"You see, IronHand is my thing"

Bearfoot

Bearfoot

Posted
Posted

Same. Cursor gets stuck once it gets to the dugout area. Nothing moves it after.

I've read that setting a dead zone fixes the issues. Haven't tried that yet.

  • 3 weeks later...
thatdanield

thatdanield

Posted
Posted
On 3/17/2022 at 5:54 PM, VIXEN413 said:

Same for me.

I can bind the x and z axis  of the hocas cursor and see it moving in the control setup so I know the binding is fine.

once in the cockpit, I can move the cursor but if it touches the side of the screen, it becomes frozen and I cant move it anymore.

I swap the cursor to the other screen where it appears in the middle but still cant move it around with the cursor hat. I press cursor enter, screen swap again and again and still no joy despite having correct input sensing in the axis setup...

other modules cursor works fine still but hornet cursor has a different way of moving then before too. I ll repport in hornet bugs.

What do you use to get it to show up in the first place? I press some button to get it to show up, from which point it proceeds to freeze in the center of either screen.

Overvolt

Overvolt

Posted
Posted

Any news? Same problem here

Intel i7 7700K | ASUS MAXIMUN IX Hero | GSkill RBG 3000mhz 32G(4x8G) | MSI Trio 1080ti | 1x M.2 SSD Samsung 960PRO 512G | 1 x WesterDigital 4T | Corsair AX-850W | Monitor Alienware 34" aw3418dw | Oblisidian 800D |CORSAIR H80 | Teclado Logitech G15 |Mouse Razer DeathAdder Elite | Trackir 5 + Clip pro | Thrustmaster HOTAS Warthog | Pedal MFG Crosswind

  • 1 year later...
Swanikanu

Swanikanu

Posted
Posted
Am 17.4.2022 um 11:17 schrieb Khegrow:

Possible solution: Setup a deadzone of 1 to each Axis.

This worked for me.




But the cursor has 4 buttons (u,d,l,r)... not axis ....
Same Problem here

  • 5 months later...
  • 3 months later...
Kutscha

Kutscha

Posted
Posted (edited)

Hi



I use the Virpil AH64 collective. The same. In the desktops Virpil Setup programm all works fine, but no reaction in DCS under the control settings or in came touching/slewing the cursor hat. Just Pressing it works (Btn 18)

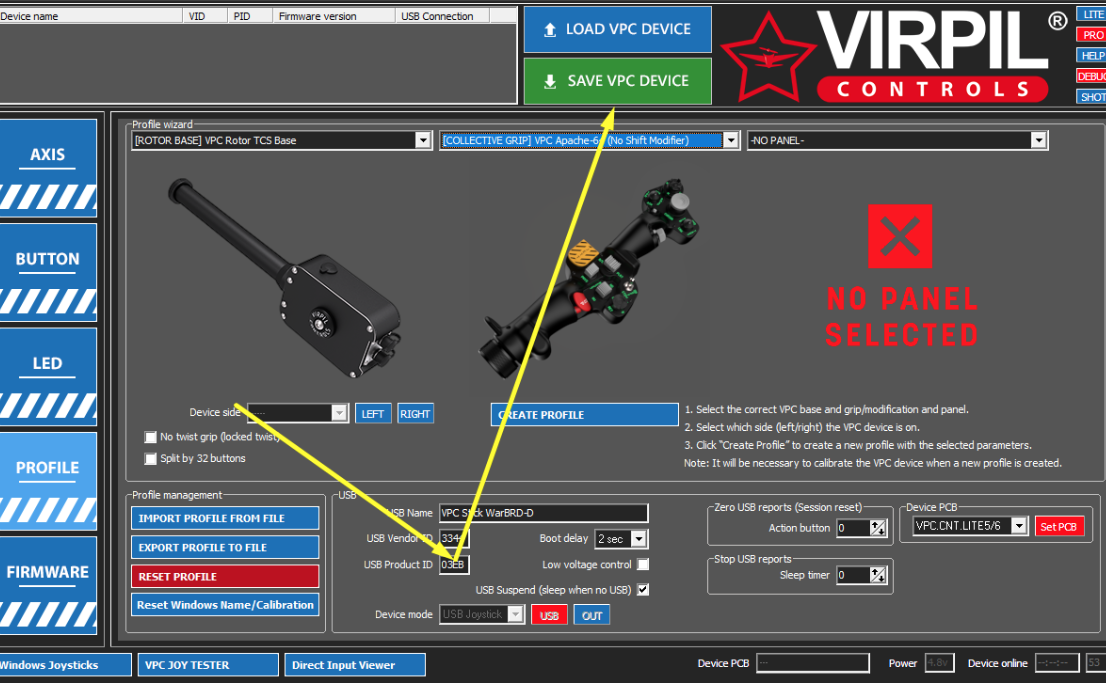

Virpil Support doesnt know either. They asked me to change the Unit ID in the desktops setup software to something else 4-digit. Don´t know if this is possible with winwing, VKC, Thrustmaster and Co.



I am not at home and cannot try, but let me know if it works for you guys please





Bildschirmfoto 2024-05-22 um 11.27.31.png

Edited by Kutscha
corbu1

corbu1

Posted
Posted

How did you bind the cursor moves in DCS? My virpil apache collective works fine and I can slew/ move the cursor.

DCS Version: 2.9.15.9408
Modules: UH-1H - SA342 - KA-50 BS3 - MI-24P - MI-8MTV2 - AH-64D - CH-47F - OH-58D - UH-60L(Mod, n.i.) - OH-6A(Mod, n.i.) - A-10CII - F-16C - F/A-18C - AJS37 - F-14 - MiG-21bis - JF-17 - Mirage F1 - FC2024 -Combined Arms - Supercarrier - NTTR - Normandy2.0 - Channel - Persian Gulf - Syria - SA - Sinai - Afghanistan - Kola - Iraq - Cold War Germany — Waiting for: BO-105 - AH-1G/F(Mod)

DCS-Client: 9800X3D, 64GB 6200, RTX3090, 1TB M2 NVMe(win10), 4TB M2 NVMe(DCS), VR VivePro2, PointCTRL, VaicomPro, Wacom Intuos S with VRK v2Beta

DCS-DServer: 11600KF, 64GB 3600, GTX1080, 1TB M2 NVMe(win10), 2TB M2 NVMe(DCSDServer), DCS Olympus

Simpit: NLR Flightsim Pro Cyclic: TM Warthog Grip with 30cm Extension + VPforce Rhino FFB FW Stick: TM Warthog Grip and Base, Throttle: TM Warthog Pedals: Komodo Sim. with Dampers Collective: VPC Rotorplus+AH-64D Grip Other: NLR HF8, Buttkicker (3*MiniConcert), TotalControls AH64D MPD‘s and EUFD, Alain Dufour’s AH-64 TEDAC, TM MFD, Streamdecks (1*32,3*15,1*6), VPC CP#1

Kutscha

Kutscha

Posted
Posted

Hi



i went to setup, controls, CPG, and then collective and also tried LHG, selected cursor left/right/up/ down, virpil collective column and the moved the cursor hat on my collective



but no reaction, just when I push down the hat as cursor/enter. In Virpil all the axis of the cursor hat are recognized, but not in dcs



did you do any settings for this in the Virpil desktop software?



maybe you could post or PN me screenshots of your setting?

Floyd1212

Floyd1212

Posted
Posted
7 hours ago, Kutscha said:

i went to setup, controls, CPG, and then collective and also tried LHG, selected cursor left/right/up/ down, virpil collective column and the moved the cursor hat on my collective but no reaction, just when I push down the hat as cursor/enter.

You are setting up the cursor controls as an axis, yes?  Sounds like you are trying to bind an analog stick on your hardware to a set of 4 digital button presses in DCS.


corbu1

corbu1

Posted
Posted
Am 24.5.2024 um 08:35 schrieb Kutscha:

Hi



i went to setup, controls, CPG, and then collective and also tried LHG, selected cursor left/right/up/ down, virpil collective column and the moved the cursor hat on my collective



but no reaction, just when I push down the hat as cursor/enter. In Virpil all the axis of the cursor hat are recognized, but not in dcs



did you do any settings for this in the Virpil desktop software?



maybe you could post or PN me screenshots of your setting?

Sorry for the late replay!

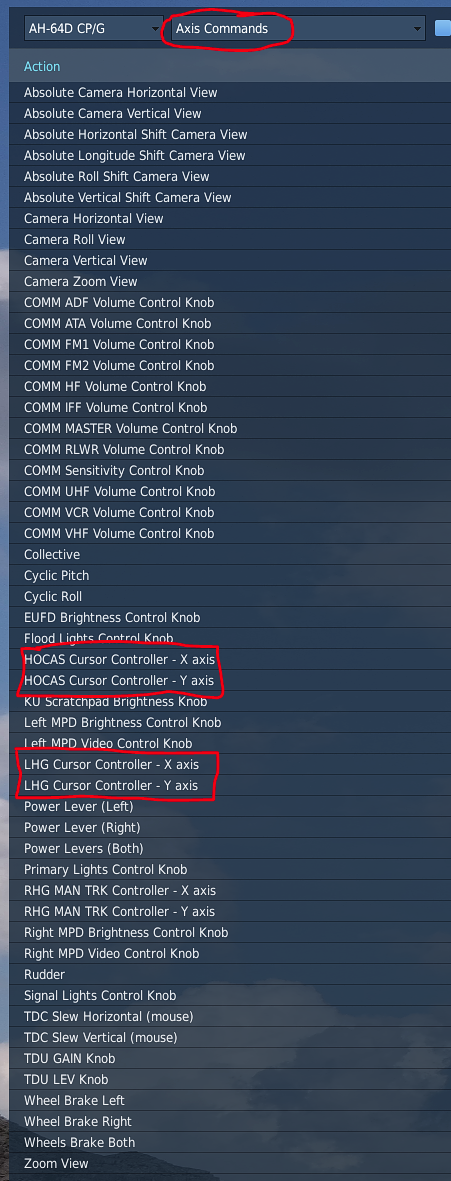

I have set it as axis commands as Floyd1212 asked you.

It‘s hocas cursor controller x and y axis.

Binding is JOY_RX and JOY_RY.

Maybe that helps?

DCS Version: 2.9.15.9408
Modules: UH-1H - SA342 - KA-50 BS3 - MI-24P - MI-8MTV2 - AH-64D - CH-47F - OH-58D - UH-60L(Mod, n.i.) - OH-6A(Mod, n.i.) - A-10CII - F-16C - F/A-18C - AJS37 - F-14 - MiG-21bis - JF-17 - Mirage F1 - FC2024 -Combined Arms - Supercarrier - NTTR - Normandy2.0 - Channel - Persian Gulf - Syria - SA - Sinai - Afghanistan - Kola - Iraq - Cold War Germany — Waiting for: BO-105 - AH-1G/F(Mod)

DCS-Client: 9800X3D, 64GB 6200, RTX3090, 1TB M2 NVMe(win10), 4TB M2 NVMe(DCS), VR VivePro2, PointCTRL, VaicomPro, Wacom Intuos S with VRK v2Beta

DCS-DServer: 11600KF, 64GB 3600, GTX1080, 1TB M2 NVMe(win10), 2TB M2 NVMe(DCSDServer), DCS Olympus

Simpit: NLR Flightsim Pro Cyclic: TM Warthog Grip with 30cm Extension + VPforce Rhino FFB FW Stick: TM Warthog Grip and Base, Throttle: TM Warthog Pedals: Komodo Sim. with Dampers Collective: VPC Rotorplus+AH-64D Grip Other: NLR HF8, Buttkicker (3*MiniConcert), TotalControls AH64D MPD‘s and EUFD, Alain Dufour’s AH-64 TEDAC, TM MFD, Streamdecks (1*32,3*15,1*6), VPC CP#1
