Cargo System Guide

[BIGNEWY]

Cargo System Update

We are working on additional features for the logistics and cargo in DCS World. With the DCS: CH-47F Early Access we are making available parts of new system:

-       Dynamic cargo

-       Internal cargo loading

Details about them are below. We are eager to see feedback from the community and adjust them further. Currently these features are available in CH-47F, but we are planning to add them in other DCS World transport capable modules. We are also working on dynamic FARP, “Fat Cow” and improved groups transport concepts.

Setting up mission environment for dynamic cargo

A warehouse serving resources as dynamic cargo is a WIP feature. In order to avoid it affecting the already established environment of the multiplayer servers we are making it adjustable and optional for each warehouse and OFF by default for now. It will allow a more graceful introduction of it in multiplayer.

Before you can use dynamic cargo near warehouse you need to setup this warehouse in mission editor to allow take resources dynamically and pack them in cargos. This is simple process.

In Mission Editor click on the airfield or FARP or Carrier for which you want to activate dynamic cargo resources availability and then click on “Full Info” at the right-side bar:

Then you will see warehouse parameters window:

After that save and play mission and warehouses where this parameter was activated will allow to spawn cargo dynamically with resources taken directly from warehouse. Let’s look at the process of spawning dynamic cargo on DCS: CH-47F example.



Transporting Cargo Internally

When loading or unloading cargo with the DCS: CH-47F, ensure the tail ramp has been fully deployed to include the ramp extensions. If the tail ramp is already deployed to the ground, an additional command [LShift-G] to lower the ramp will deploy the ramp extensions.

·          Stage 1. Ramp raised; cargo door (ramp “tongue”) deployed from tail ramp to enclose the aft cabin.

·          Stage 2. Ramp raised; cargo door retracted.

·          Stage 3. Ramp partially lowered, parallel to fuselage.

·          Stage 4. Ramp fully lowered to the ground.

·          Stage 5. Ramp fully lowered to the ground; ramp extensions deployed.

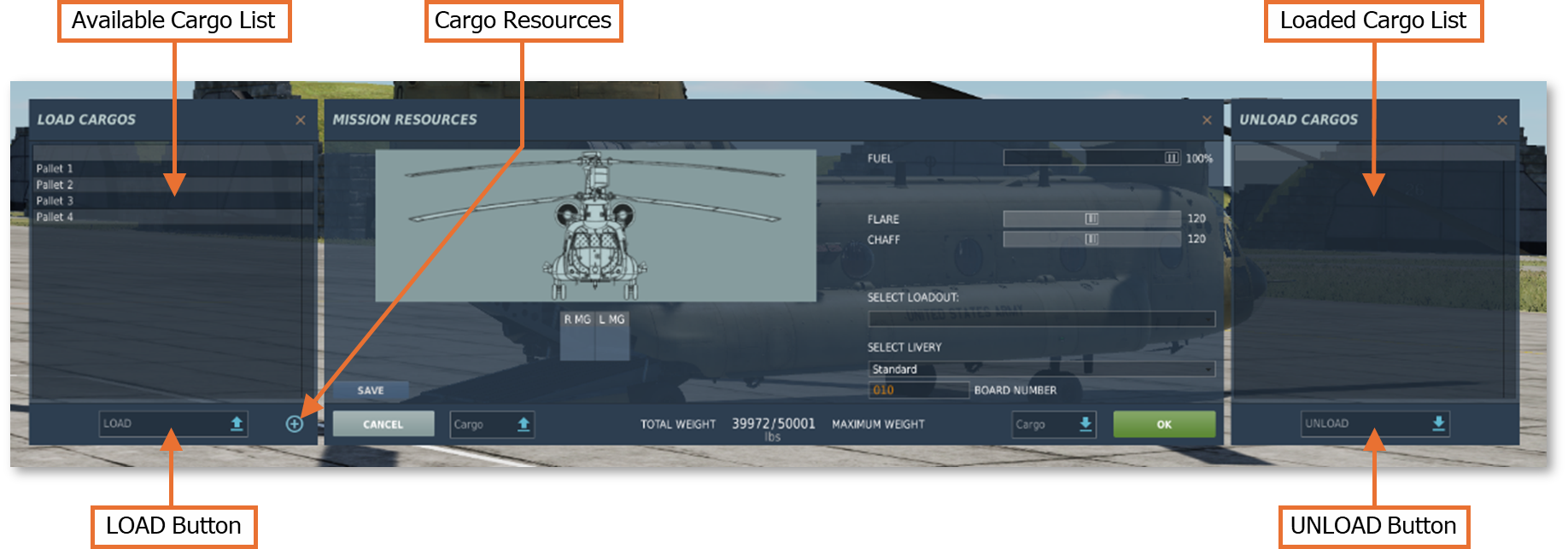

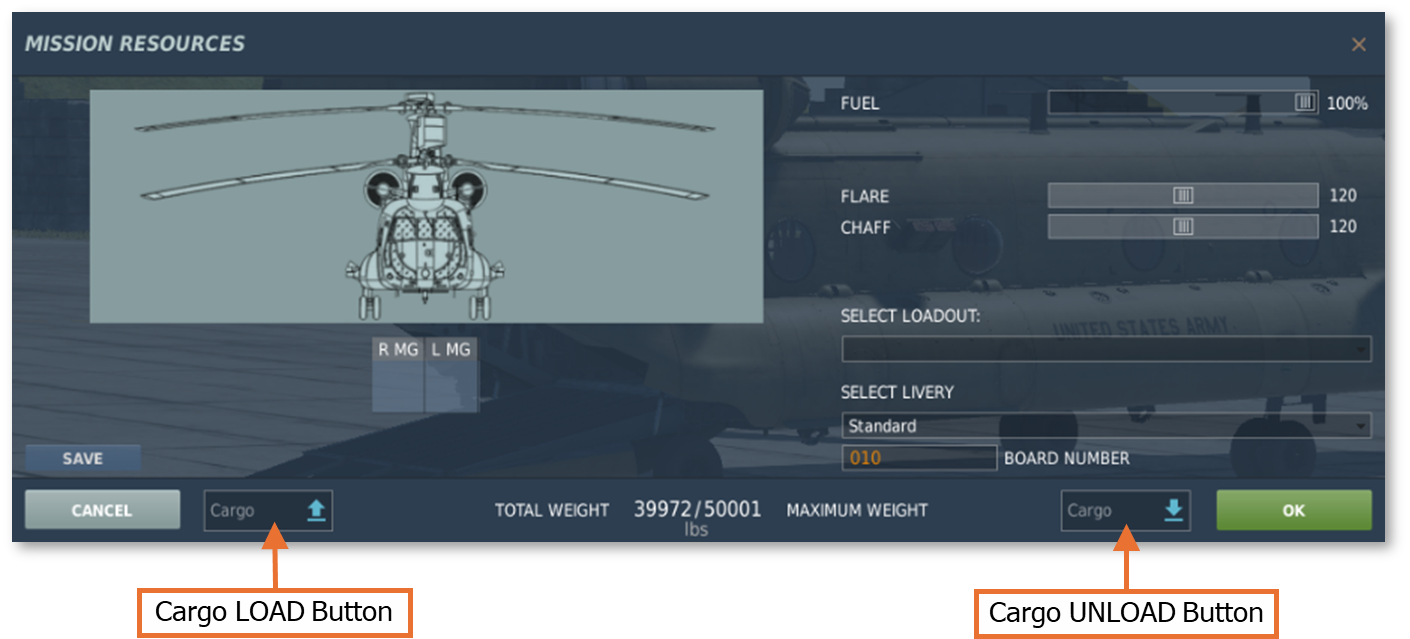

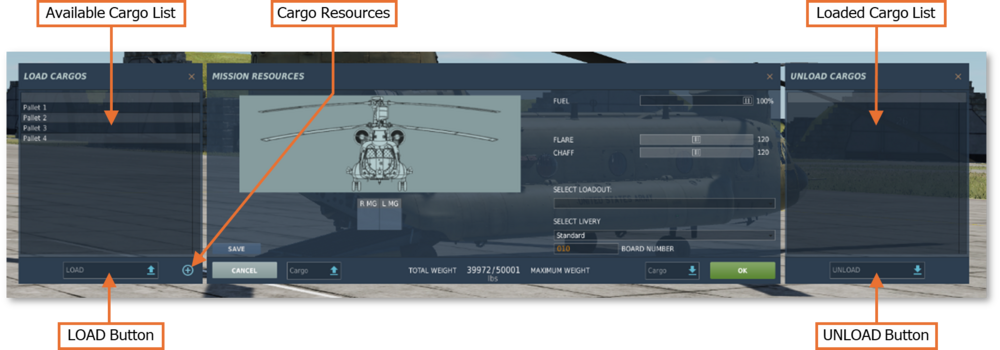

Options for loading and unloading cargo are accessed via the Rearming and Refueling Window [LAlt + ‘]. The Cargo LOAD button is displayed on the left side and the Cargo UNLOAD button is displayed on the right side.

Left-clicking these buttons will display the corresponding LOAD CARGO or UNLOAD CARGO panels respectively. Each panel provides an interface for interacting with the internal cargo loading capability of the CH-47F.

The Cargo Resources button on the LOAD CARGO panel accesses the local warehouse functions.

Spawning Dynamic Cargo

If the warehouse near your aircraft has Dynamic Cargo activated, then you can pack and spawn resources from that warehouse into new cargo assets that will appear near your aircraft. Press “+” button to start filling parameters for the new cargo.

A cargo resources window will open where you will be able to choose which resources you want to take from that warehouse and pack them into cargo. You can choose cargo 3D model appearance and name. By default, cargo names already include user callsign and timestamp for time of creation. Currently there are limits on qty. for each resource that can be packed into single cargo, WIP we will adjust it in future and looking forward for the feedback.

Loading Cargo

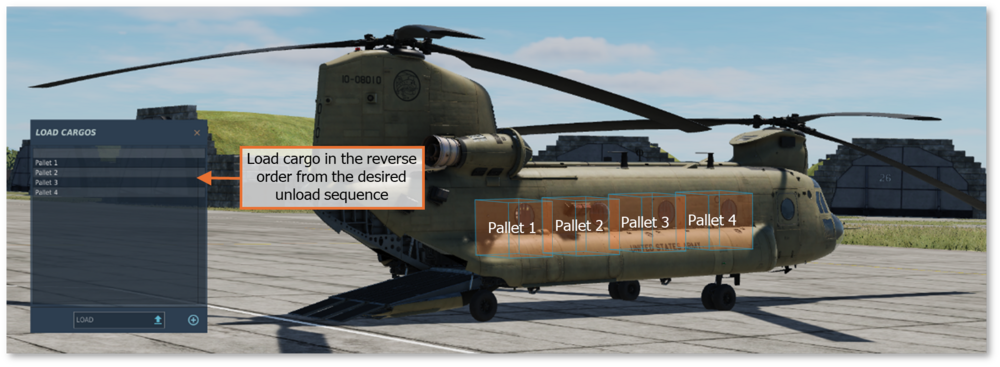

When the LOAD CARGO panel is displayed, all cargo within 150 feet of the helicopter will be listed, based on the cargo object’s NAME entered in the Mission Editor. Any cargo object may be loaded within the CH-47F by left-clicking on the corresponding entry in the list, and then left-clicking the LOAD button at the bottom of the panel.

Cargo is loaded sequentially from the front of the cabin toward the rear of the cabin. If there is a need to unload specific cargo objects prior to others, such as delivering cargo to multiple destinations during a single flight, ensure the cargo is loaded in the reverse order from which it will need to be unloaded.

In the image above, four cargo objects are named Pallet 1 through 4, with Pallet 1 representing the cargo to be delivered at the first destination, and Pallet 4 representing the cargo to be delivered at the final destination. Pallet 4 is loaded first in the front of the cabin to be offloaded as the final cargo delivery, with each Pallet loaded in reverse sequence, so that Pallet 1 is loaded near the tail ramp to be offloaded as the first cargo delivery.

Unloading Cargo

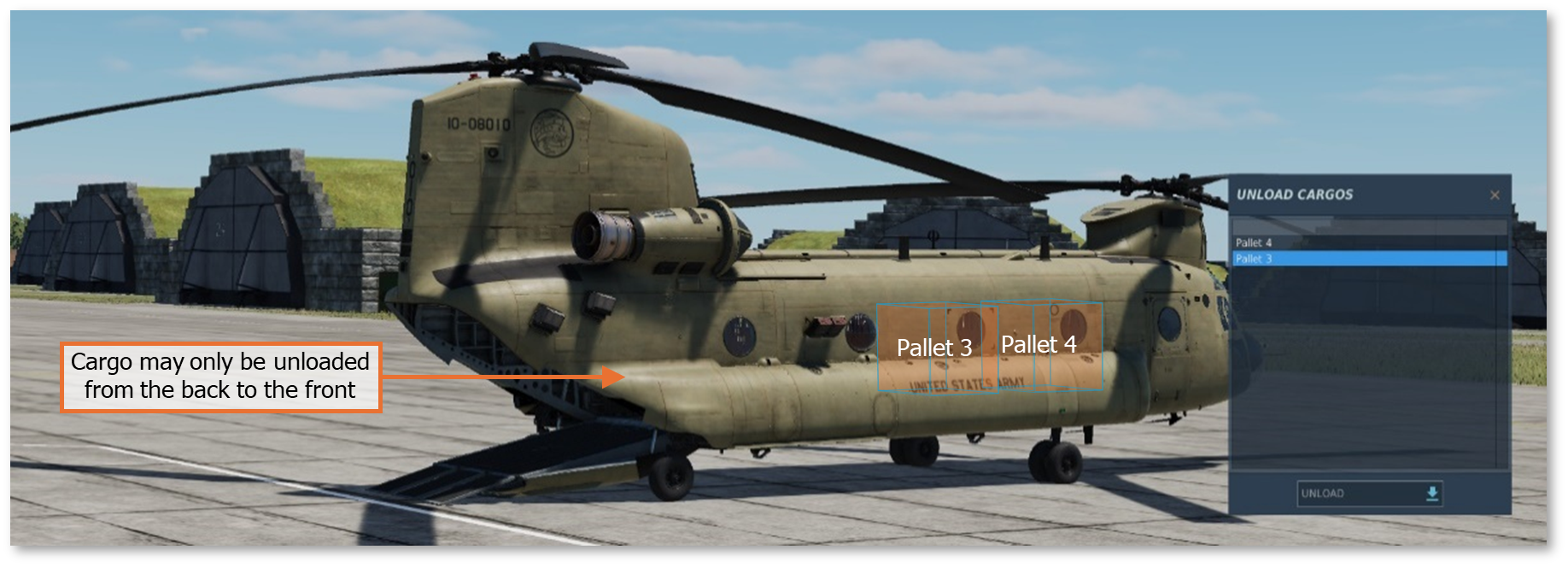

When the UNLOAD CARGO panel is displayed, all cargo within the helicopter will be listed, based on the cargo object’s NAME entered in the Mission Editor. All cargo will be shown in the list from front to back, with the final entry in the list highlighted, representing the first and only cargo object that can be unloaded. To unload the highlighted cargo object, left-click the UNLOAD button at the bottom of the panel.

When unloaded, cargo objects will be placed on the ground approximately 70 feet directly behind the helicopter. If cargoes are unloaded near warehouse and cargoes contain any warehouse resources they will be automatically added to that warehouse.
