AstonMartinDBS Posted June 28, 2022 Author Posted June 28, 2022 @Furiz: I'll create a special table, if someone can provide a full overview of all thread codes which are included in the HDS-Mod. Needed data: Display Name RWR code DED ID I don't include mod-based data in a core-based table for the exact same reason which @Minsky already clarified in the following posting: 1 [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
VDV Posted February 4, 2024 Posted February 4, 2024 does HTS pod shows range to the SAM on the HUD on anywhere else? thanks
skywalker22 Posted February 4, 2024 Posted February 4, 2024 It does on the MFD's HAD page, just not in the number format, but graphically (you see on the map from top view, check the display range scale (10,20,30,60...nm)). The better you do the triangulation on the SAM emitter, the more precice you will see the location of it. 1
Panthir Posted February 26, 2024 Posted February 26, 2024 Gents I have a question about TPS 117 radar. Is there any harm thread code (ID number) for this Search Radar? My Hardware: ROG Strix X570-F Gaming - AMD 5600X @ 4.7 ghz - G.SKILL TRIDENT 32GB DDR4 3200 (14-14-14-34 CL) - GigaByte 3080ti OC 12gb - Corsair MP600 Force 1TB - 2 x EVO Nvme 500GB - Virpil Warbird Base T-50CM2 and TM Throttle + Trackhat + G25 + AOC AG271QG 27" My Modules: JF-17, F-16C, AV-8N/A, F-18C, ASJ37, MiG-15Bis, MiG-21Bis, Fw-190D, Bf-109K, P-51D, F-86F, Ka-50 III, UH-1H, Mi-8MTV2, NS430, FC3, A-10C, Mirage 2000C, L-39, F-5E-3, SA342, Spitfire, AH-64, Mirage F-1CE. My Maps: Nevada, Normandy, Persian Gulf, Syria, South Atlantic.
AstonMartinDBS Posted February 26, 2024 Author Posted February 26, 2024 (edited) 10 hours ago, Panthir said: Gents I have a question about TPS 117 radar. Is there any harm thread code (ID number) for this Search Radar? The official sources haven't been updated since several month. Maybe @BIGNEWY can provide an updated sheet again. If you're looking for the AN/FPS-117 codes: 210 - AN/FPS-117S 211 - AN/FPS-117 DomeS Source: https://docs.google.com/spreadsheets/d/1p77yaLQJaUMbAIKJDKX5iMN5N5qm_Qqt_dJNyJjLQtw/edit#gid=0 Edited February 26, 2024 by AstonMartinDBS [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
ED Team Raptor9 Posted February 26, 2024 ED Team Posted February 26, 2024 The most current ALIC tables at the time of me writing this are in the Appendices of the F-16 (and F/A-18) Early Access Guides. Regarding the 1L13, 5G66, and FPS-117 early warning radar systems, these fall outside the AGM-88 engagement capabilities and do not have corresponding ALIC codes. 1 Afterburners are for wussies...hang around the battlefield and dodge tracers like a man. DCS Rotor-Head

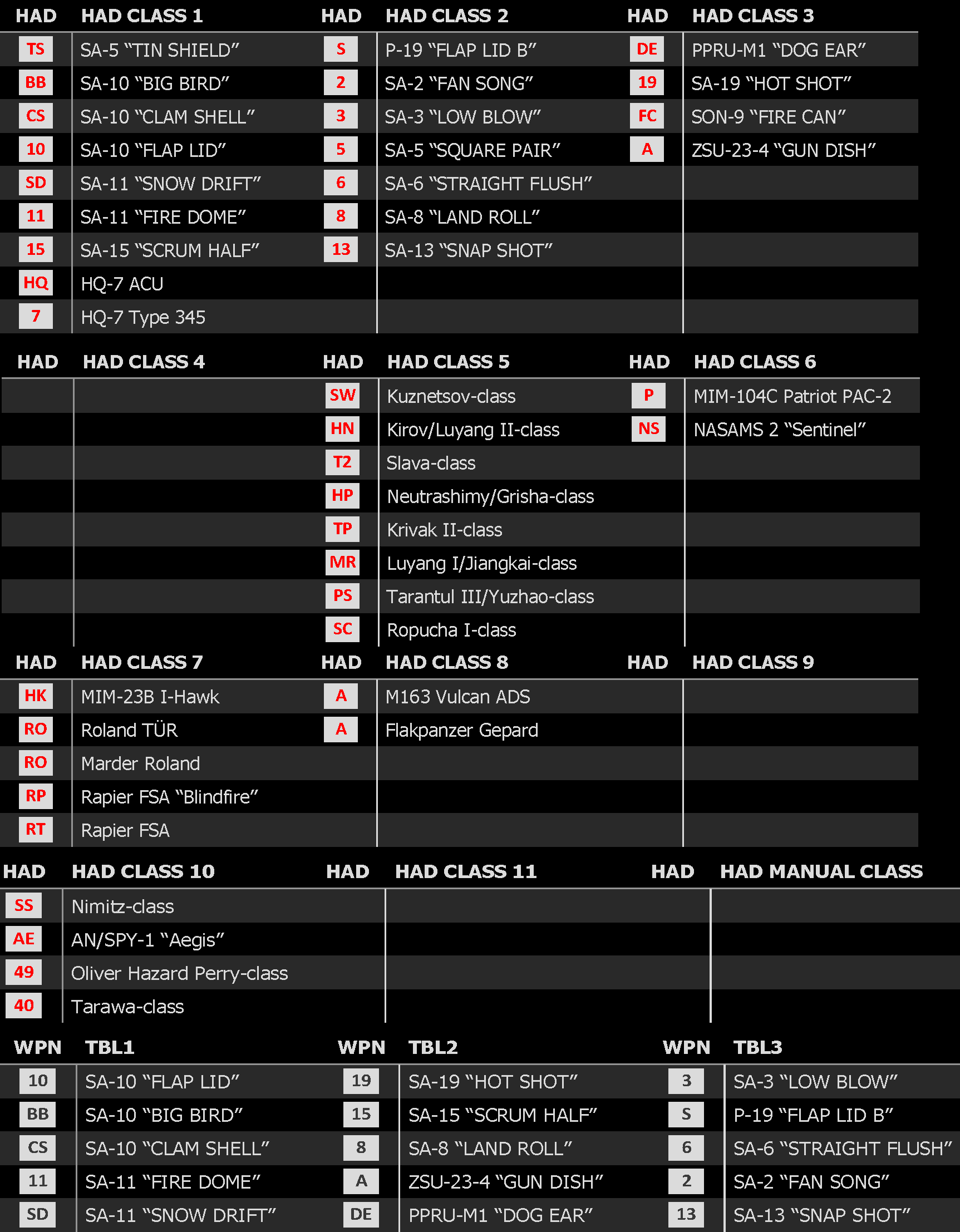

Pyrocumulous Posted November 25, 2024 Posted November 25, 2024 Here's an updated kneeboard that is exactly what's in the July 2023 F-16c manual. HAS on the bottom, HAD on top. Empty space removed and colors changed for night use, but otherwise, this was extract straight from the manual PDF and then edited in Photoshop. 5 Warthog HOTAS, VMAX Prime Throttle, TPR pedals, Kensington Slimblade Pro, Pimax Crystal, RTX 4090 FE, Asus ProArt X670E-Creator, Ryzen 7950X3D, 64gb DDR5.
