Everything posted by drPhibes

  1. If you don't mind me hijacking the thread a little, there are also some issues with NDBs on the map. Many of the NDBs located at the middle/outer markers for various airports have the same operating frequency in both runway directions, but the markers and NDBs are not interlocked based on the active runway (which they would be IRL, just like ILS). This is not an issue for the markers (which are all at 75 MHz) since they radiate a narrow beam straight up, but the NDBs can be difficult to identify by their ident codes (as the morse code for the two NDBs overlap) at long range, and are unstanble at short range, since your ADF will show erratic bearings. This may or may not be fixed when ED release their new ATC, but until then, I propose adding a 1kHz offset to every duplicate in the list below (where it doesn't cause any other frequency conflicts). E.g.: 313000 airfield2_2 LG Altes Lager 314000 airfield2_4 BM Altes Lager 645000 airfield2_0 L Altes Lager 646000 airfield2_1 B Altes Lager The duplicate list: Freq. BeaconID ID Airfield Notes 205000 airfield1_0 G Wittstock 205000 airfield1_4 O Wittstock 421000 airfield1_1 GJ Wittstock 421000 airfield1_6 OR Wittstock 219000 airfield15_0 P Templin 219000 airfield15_8 I Templin 451000 airfield15_4 PG Templin 451000 airfield15_6 IK Templin 221000 airfield101_0 - Sperenberg Invalid ident 221000 airfield101_3 NZ Sperenberg 254000 airfield101_1 Ch Sperenberg 254000 airfield101_2 - Sperenberg Invalid ident 295000 airfield118_7 X Holzdorf 295000 airfield118_8 H Holzdorf 609500 airfield118_2 XH Holzdorf 609500 airfield118_4 HX Holzdorf 300000 airfield22_7 Z Mahlwinkel 300000 airfield22_8 Z Mahlwinkel 620000 airfield22_3 NU Mahlwinkel 620000 airfield22_6 ZW Mahlwinkel 313000 airfield2_2 LG Altes Lager 313000 airfield2_4 BM Altes Lager 645000 airfield2_0 L Altes Lager 645000 airfield2_1 B Altes Lager 325000 airfield10_1 NZ Damgarten 325000 airfield10_5 M Damgarten 668000 airfield10_0 MA Damgarten 668000 airfield10_7 NW Damgarten 330000 airfield13_3 G Garz 330000 airfield13_5 G Garz 679500 airfield13_0 GZ Garz 679500 airfield13_4 ZG Garz 345000 airfield4_1 Z Zerbst 345000 airfield4_5 K Zerbst 708000 airfield4_3 KJ Zerbst 708000 airfield4_6 ZB Zerbst 350000 airfield82_1 GX Kothen 350000 airfield82_2 RX Kothen 718000 airfield82_0 G Kothen 718000 airfield82_4 R Kothen 365000 airfield157_2 LU Allstedt 365000 airfield157_3 BZ Allstedt 376000 airfield84_0 UU Parchim 376000 airfield84_3 AS Parchim 398000 airfield169_1 DK Merseburg 398000 airfield169_7 KD Merseburg 412000 airfield24_2 W Neuruppin 412000 airfield24_3 G Neuruppin 842000 airfield24_0 GK Neuruppin 842000 airfield24_1 WO Neuruppin 423000 airfield25_3 NE Peenemunde 423000 airfield25_4 EN Peenemunde 425000 airfield171_3 M Leipzig 425000 airfield171_4 S Leipzig 426000 airfield236_1 G Mockau 426000 airfield236_2 L Mockau 430000 airfield26_2 M Schönefeld 430000 airfield26_8 S Schönefeld 442000 airfield12_1 OM Finow 442000 airfield12_2 RG Finow 460000 airfield23_2 T Neubrandenburg 460000 airfield23_3 DK Neubrandenburg 476000 airfield21_0 U Lerz 476000 airfield21_4 B Lerz For the WSL or mingw64 users, all frequencies in the beacon file can be listed using grep "frequency" beacons.lua | sort (There is probably also some unnecessarily convoluted powershell command that can do the same thing)
  2. It's the same error that we saw at Hamburg(?) earlier, where changing the beacon number (the suffix after beaconId = 'airfield163_) for some reason fixed all the issues not related to the direct errors in the beacon entries. After fixing the GPs (the "position", "direction" and "positionGeo" entries were shuffled around a bit) but before changing the numbers, only 07R would work, and it was only activated when there was a tailwind! Strange stuff indeed... Replace 'airfield163_0' up to 'airfield163_10' with the following, and you should be good to go (I left the TACAN and NDBs unchanged). I tested all four approaches, and they all work now -- Frankfurt 07L { display_name = _('Frankfurt'); beaconId = 'airfield163_20'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'IFM'; frequency = 110700000.000000; position = { -443583.906250, 100.000100, -851177.812500 }; direction = -100.841391; positionGeo = { latitude = 50.047996, longitude = 8.598907 }; sceneObjects = {'t:73852303'}; chartOffsetX = 4593.000000; }; { display_name = _('Frankfurt'); beaconId = 'airfield163_21'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'IFM'; frequency = 110700000.000000; position = { -444432.531250, 100.000100, -855199.875000 }; direction = -97.789731; positionGeo = { latitude = 50.034575, longitude = 8.546010 }; sceneObjects = {'t:212951504'}; }; { display_name = _('Frankfurt'); beaconId = 'airfield163_2'; type = BEACON_TYPE_AIRPORT_HOMER; callsign = 'FR'; frequency = 297000.000000; position = { -442648.875000, 128.143317, -844779.937500 }; direction = -101.576053; positionGeo = { latitude = 50.065653, longitude = 8.684068 }; sceneObjects = {'t:73862380'}; }; -- Frankfurt 07R { display_name = _('Frankfurt'); beaconId = 'airfield163_23'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'DLF'; frequency = 109500000.000000; position = { -445032.750000, 100.000100, -855591.500000 }; direction = -99.485803; positionGeo = { latitude = 50.028721, longitude = 8.542056 }; sceneObjects = {'t:212951505'}; }; { display_name = _('Frankfurt'); beaconId = 'airfield163_24'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'DLF'; frequency = 109500000.000000; position = { -444262.406250, 100.000100, -851914.812500 }; direction = -100.825012; positionGeo = { latitude = 50.040944, longitude = 8.590415 }; sceneObjects = {'t:73852304'}; chartOffsetX = 4222.000000; }; { display_name = _('Frankfurt'); beaconId = 'airfield163_5'; type = BEACON_TYPE_AIRPORT_HOMER; callsign = 'FW'; frequency = 382000.000000; position = { -445875.125000, 90.751128, -863257.500000 }; direction = -118.128176; positionGeo = { latitude = 50.009882, longitude = 8.439541 }; sceneObjects = {'t:73828942'}; }; { display_name = _('Frankfurt'); beaconId = 'airfield163_6'; type = BEACON_TYPE_TACAN; callsign = 'FFM'; frequency = 114200000.000000; channel = 89; position = { -443403.843750, 118.535061, -848339.000000 }; direction = -12.414079; positionGeo = { latitude = 50.053775, longitude = 8.637223 }; sceneObjects = {'t:214106112'}; }; -- Frankfurt 25R { display_name = _('Frankfurt'); beaconId = 'airfield163_27'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'RHM'; frequency = 110100000.000000; position = { -443643.500000, 100.000100, -851917.625000 }; direction = 78.659737; positionGeo = { latitude = 50.046376, longitude = 8.588953 }; sceneObjects = {'t:214099125'}; }; { display_name = _('Frankfurt'); beaconId = 'airfield163_28'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'RHM'; frequency = 110100000.000000; position = { -444506.750000, 100.000100, -855987.625000 }; direction = 79.143587; positionGeo = { latitude = 50.032752, longitude = 8.535441 }; sceneObjects = {'t:73846094'}; chartOffsetX = 4591.000000; }; -- Frankfurt 25L { display_name = _('Frankfurt'); beaconId = 'airfield163_29'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'IRF'; frequency = 111100000.000000; position = { -445112.812500, 100.000100, -856363.250000 }; direction = 79.197218; positionGeo = { latitude = 50.026870, longitude = 8.531721 }; sceneObjects = {'t:73835198'}; chartOffsetX = 4222.000000; }; { display_name = _('Frankfurt'); beaconId = 'airfield163_30'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'IRF'; frequency = 111100000.000000; position = { -444321.468750, 100.000100, -852673.437500 }; direction = 81.530957; positionGeo = { latitude = 50.039301, longitude = 8.580205 }; sceneObjects = {'t:214090990'}; };
  3. As western_JPN correctly points out, uninstalling aircratft doesn't free up much space. Modules are split into two main folders in DCS; Mods, where all the gameplay related parts (DLLs, cockpit models, LUAs etc.) of the modules you have installed are stored, and CoreMods, where all the 3d models and textures for every DCS aircraft, owned/installed or not, are stored. You can delete stuff from CoreMods, but it will be reinstalled every time you update DCS. As an example, my coremods/aircraft folder is twice the size of mods/aircraft, and I have every module installed except the MB-339, F4E, F-15E and the new FC:
  4. Both the airfield and the barracks are in their correct locations: null
  5. First of all, map coordinates are geographic, not magnetic, so magnetic declination has nothing to do with coordinates being wrong. The magnetic heading of a runway changes, but the coordinates don't. I did a comparison of some landmarks in the mission editor and Google Earth, and they are all pretty much spot on (within a fraction of an arcsecond in most cases): Spandau Citadel, Berlin: Google Earth: N 52°32'27.69" E 13°12'45.51" Mission editor: N 52°32'27.63" E 13°12'46.49" Bridge near Hamburg Planetarium: Google Earth: N 53°35'28.36" E 10°01'29.58" Mission editor: N 53°35'28.35" E 10°01'30.16" Mainspitze, west of Frankfurt: Google Earth: N 49°59'37.29" E 8°17'38.38" Mission editor: N 49°59'36.82" E 8°17'38.94" Neues Rathaus, Hannover: Google Earth: N 52°22'01.74" E 9°44'14.37" Mission editor: N 52°22'01.98" E 9°44'14.67" Fulda airfield: Google Earth: N 50°32'31.32" E 9°38'20.91" Mission editor: N 50°32'33.14" E 9°38'19.03"
  6. Livery creation without the model viewer is too cumbersome to be wort the effort. User created content is an essential part of the DCS experience for many players, so I hope ED just haven't gotten around to fixing this yet. There's nothing except time and development resources preventing ED from implementing model decryption in the model viewer.
  7. If things haven't changed since the eighties, the correct frequencies should be: RWY 03: 109,3 MHz, ID: IHAE RWY 21: 111,3 MHz, ID: IHAW
  8. The airport has two parallel runways. 06L = 110.30 MHz, 06R = 110.9 MHz.
  9. The fields are the right size (approximately 100x65m), but the goals might be a bit oversized.
  10. Some additional info on how to test this yourself (outside of dcs): Copy line 142 to 210 from BeaconTypes.lua to a new file, and add: VOR_freq = tonumber(arg[1]) print(VOR_freq/1000000, "\t",getPaired_DME_FrequencyBy_VOR_Frequency(VOR_freq)/1000000,"\t", getPaired_DME_ChannelBy_VOR_Frequency(VOR_freq)) to the end of the file. This prints the VHF frequency, DME reply frequency (both in MHz), the DME/TACAN channel and mode to the console. Then run the new lua file with your lua interpreter of choice, with the VHF frequency (in Hz) as an argument (e.g. "lua vhf-ch.lua 110200000"). Passing a list of all the VOR and LOC frequencies between 108 and 117.95 to the lua generates the following list. As you can see, the channel numbers for Y channels are 0.5 off, and the same goes for the Y channel DME reply frequencies (compare them to the attached screenshot from ICAO annex 10): VHF freq. DME reply freq. Ch. Mode 108.0 978.0 17.0 X 108.05 1104.5 17.5 Y 108.1 979.0 18.0 X 108.15 1105.5 18.5 Y 108.2 980.0 19.0 X 108.25 1106.5 19.5 Y 108.3 981.0 20.0 X 108.35 1107.5 20.5 Y 108.4 982.0 21.0 X 108.45 1108.5 21.5 Y 108.5 983.0 22.0 X 108.55 1109.5 22.5 Y 108.6 984.0 23.0 X 108.65 1110.5 23.5 Y 108.7 985.0 24.0 X 108.75 1111.5 24.5 Y 108.8 986.0 25.0 X 108.85 1112.5 25.5 Y 108.9 987.0 26.0 X 108.95 1113.5 26.5 Y 109.0 988.0 27.0 X 109.05 1114.5 27.5 Y 109.1 989.0 28.0 X 109.15 1115.5 28.5 Y 109.2 990.0 29.0 X 109.25 1116.5 29.5 Y 109.3 991.0 30.0 X 109.35 1117.5 30.5 Y 109.4 992.0 31.0 X 109.45 1118.5 31.5 Y 109.5 993.0 32.0 X 109.55 1119.5 32.5 Y 109.6 994.0 33.0 X 109.65 1120.5 33.5 Y 109.7 995.0 34.0 X 109.75 1121.5 34.5 Y 109.8 996.0 35.0 X 109.85 1122.5 35.5 Y 109.9 997.0 36.0 X 109.95 1123.5 36.5 Y 110.0 998.0 37.0 X 110.05 1124.5 37.5 Y 110.1 999.0 38.0 X 110.15 1125.5 38.5 Y 110.2 1000.0 39.0 X 110.25 1126.5 39.5 Y 110.3 1001.0 40.0 X 110.35 1127.5 40.5 Y 110.4 1002.0 41.0 X 110.45 1128.5 41.5 Y 110.5 1003.0 42.0 X 110.55 1129.5 42.5 Y 110.6 1004.0 43.0 X 110.65 1130.5 43.5 Y 110.7 1005.0 44.0 X 110.75 1131.5 44.5 Y 110.8 1006.0 45.0 X 110.85 1132.5 45.5 Y 110.9 1007.0 46.0 X 110.95 1133.5 46.5 Y 111.0 1008.0 47.0 X 111.05 1134.5 47.5 Y 111.1 1009.0 48.0 X 111.15 1135.5 48.5 Y 111.2 1010.0 49.0 X 111.25 1136.5 49.5 Y 111.3 1011.0 50.0 X 111.35 1137.5 50.5 Y 111.4 1012.0 51.0 X 111.45 1138.5 51.5 Y 111.5 1013.0 52.0 X 111.55 1139.5 52.5 Y 111.6 1014.0 53.0 X 111.65 1140.5 53.5 Y 111.7 1015.0 54.0 X 111.75 1141.5 54.5 Y 111.8 1016.0 55.0 X 111.85 1142.5 55.5 Y 111.9 1017.0 56.0 X 111.95 1143.5 56.5 Y 112.0 1018.0 57.0 X 112.05 1144.5 57.5 Y 112.1 1019.0 58.0 X 112.15 1145.5 58.5 Y 112.2 1020.0 59.0 X 112.25 1146.5 59.5 Y 112.3 1157.0 70.0 X 112.35 1031.5 70.5 Y 112.4 1158.0 71.0 X 112.45 1032.5 71.5 Y 112.5 1159.0 72.0 X 112.55 1033.5 72.5 Y 112.6 1160.0 73.0 X 112.65 1034.5 73.5 Y 112.7 1161.0 74.0 X 112.75 1035.5 74.5 Y 112.8 1162.0 75.0 X 112.85 1036.5 75.5 Y 112.9 1163.0 76.0 X 112.95 1037.5 76.5 Y 113.0 1164.0 77.0 X 113.05 1038.5 77.5 Y 113.1 1165.0 78.0 X 113.15 1039.5 78.5 Y 113.2 1166.0 79.0 X 113.25 1040.5 79.5 Y 113.3 1167.0 80.0 X 113.35 1041.5 80.5 Y 113.4 1168.0 81.0 X 113.45 1042.5 81.5 Y 113.5 1169.0 82.0 X 113.55 1043.5 82.5 Y 113.6 1170.0 83.0 X 113.65 1044.5 83.5 Y 113.7 1171.0 84.0 X 113.75 1045.5 84.5 Y 113.8 1172.0 85.0 X 113.85 1046.5 85.5 Y 113.9 1173.0 86.0 X 113.95 1047.5 86.5 Y 114.0 1174.0 87.0 X 114.05 1048.5 87.5 Y 114.1 1175.0 88.0 X 114.15 1049.5 88.5 Y 114.2 1176.0 89.0 X 114.25 1050.5 89.5 Y 114.3 1177.0 90.0 X 114.35 1051.5 90.5 Y 114.4 1178.0 91.0 X 114.45 1052.5 91.5 Y 114.5 1179.0 92.0 X 114.55 1053.5 92.5 Y 114.6 1180.0 93.0 X 114.65 1054.5 93.5 Y 114.7 1181.0 94.0 X 114.75 1055.5 94.5 Y 114.8 1182.0 95.0 X 114.85 1056.5 95.5 Y 114.9 1183.0 96.0 X 114.95 1057.5 96.5 Y 115.0 1184.0 97.0 X 115.05 1058.5 97.5 Y 115.1 1185.0 98.0 X 115.15 1059.5 98.5 Y 115.2 1186.0 99.0 X 115.25 1060.5 99.5 Y 115.3 1187.0 100.0 X 115.35 1061.5 100.5 Y 115.4 1188.0 101.0 X 115.45 1062.5 101.5 Y 115.5 1189.0 102.0 X 115.55 1063.5 102.5 Y 115.6 1190.0 103.0 X 115.65 1064.5 103.5 Y 115.7 1191.0 104.0 X 115.75 1065.5 104.5 Y 115.8 1192.0 105.0 X 115.85 1066.5 105.5 Y 115.9 1193.0 106.0 X 115.95 1067.5 106.5 Y 116.0 1194.0 107.0 X 116.05 1068.5 107.5 Y 116.1 1195.0 108.0 X 116.15 1069.5 108.5 Y 116.2 1196.0 109.0 X 116.25 1070.5 109.5 Y 116.3 1197.0 110.0 X 116.35 1071.5 110.5 Y 116.4 1198.0 111.0 X 116.45 1072.5 111.5 Y 116.5 1199.0 112.0 X 116.55 1073.5 112.5 Y 116.6 1200.0 113.0 X 116.65 1074.5 113.5 Y 116.7 1201.0 114.0 X 116.75 1075.5 114.5 Y 116.8 1202.0 115.0 X 116.85 1076.5 115.5 Y 116.9 1203.0 116.0 X 116.95 1077.5 116.5 Y 117.0 1204.0 117.0 X 117.05 1078.5 117.5 Y 117.1 1205.0 118.0 X 117.15 1079.5 118.5 Y 117.2 1206.0 119.0 X 117.25 1080.5 119.5 Y 117.3 1207.0 120.0 X 117.35 1081.5 120.5 Y 117.4 1208.0 121.0 X 117.45 1082.5 121.5 Y 117.5 1209.0 122.0 X 117.55 1083.5 122.5 Y 117.6 1210.0 123.0 X 117.65 1084.5 123.5 Y 117.7 1211.0 124.0 X 117.75 1085.5 124.5 Y 117.8 1212.0 125.0 X 117.85 1086.5 125.5 Y 117.9 1213.0 126.0 X 117.95 1087.5 126.5 Y Modifying the return value of the getPaired_DME_ChannelBy_VOR_Frequency(VOR_freq) function as described in the previous post generates the following results (which correspond with annex 10): VHF freq. DME reply freq. Ch. Mode 108.0 978.0 17.0 X 108.05 1104.0 17.0 Y 108.1 979.0 18.0 X 108.15 1105.0 18.0 Y 108.2 980.0 19.0 X 108.25 1106.0 19.0 Y 108.3 981.0 20.0 X 108.35 1107.0 20.0 Y 108.4 982.0 21.0 X 108.45 1108.0 21.0 Y 108.5 983.0 22.0 X 108.55 1109.0 22.0 Y 108.6 984.0 23.0 X 108.65 1110.0 23.0 Y 108.7 985.0 24.0 X 108.75 1111.0 24.0 Y 108.8 986.0 25.0 X 108.85 1112.0 25.0 Y 108.9 987.0 26.0 X 108.95 1113.0 26.0 Y 109.0 988.0 27.0 X 109.05 1114.0 27.0 Y 109.1 989.0 28.0 X 109.15 1115.0 28.0 Y 109.2 990.0 29.0 X 109.25 1116.0 29.0 Y 109.3 991.0 30.0 X 109.35 1117.0 30.0 Y 109.4 992.0 31.0 X 109.45 1118.0 31.0 Y 109.5 993.0 32.0 X 109.55 1119.0 32.0 Y 109.6 994.0 33.0 X 109.65 1120.0 33.0 Y 109.7 995.0 34.0 X 109.75 1121.0 34.0 Y 109.8 996.0 35.0 X 109.85 1122.0 35.0 Y 109.9 997.0 36.0 X 109.95 1123.0 36.0 Y 110.0 998.0 37.0 X 110.05 1124.0 37.0 Y 110.1 999.0 38.0 X 110.15 1125.0 38.0 Y 110.2 1000.0 39.0 X 110.25 1126.0 39.0 Y 110.3 1001.0 40.0 X 110.35 1127.0 40.0 Y 110.4 1002.0 41.0 X 110.45 1128.0 41.0 Y 110.5 1003.0 42.0 X 110.55 1129.0 42.0 Y 110.6 1004.0 43.0 X 110.65 1130.0 43.0 Y 110.7 1005.0 44.0 X 110.75 1131.0 44.0 Y 110.8 1006.0 45.0 X 110.85 1132.0 45.0 Y 110.9 1007.0 46.0 X 110.95 1133.0 46.0 Y 111.0 1008.0 47.0 X 111.05 1134.0 47.0 Y 111.1 1009.0 48.0 X 111.15 1135.0 48.0 Y 111.2 1010.0 49.0 X 111.25 1136.0 49.0 Y 111.3 1011.0 50.0 X 111.35 1137.0 50.0 Y 111.4 1012.0 51.0 X 111.45 1138.0 51.0 Y 111.5 1013.0 52.0 X 111.55 1139.0 52.0 Y 111.6 1014.0 53.0 X 111.65 1140.0 53.0 Y 111.7 1015.0 54.0 X 111.75 1141.0 54.0 Y 111.8 1016.0 55.0 X 111.85 1142.0 55.0 Y 111.9 1017.0 56.0 X 111.95 1143.0 56.0 Y 112.0 1018.0 57.0 X 112.05 1144.0 57.0 Y 112.1 1019.0 58.0 X 112.15 1145.0 58.0 Y 112.2 1020.0 59.0 X 112.25 1146.0 59.0 Y 112.3 1157.0 70.0 X 112.35 1031.0 70.0 Y 112.4 1158.0 71.0 X 112.45 1032.0 71.0 Y 112.5 1159.0 72.0 X 112.55 1033.0 72.0 Y 112.6 1160.0 73.0 X 112.65 1034.0 73.0 Y 112.7 1161.0 74.0 X 112.75 1035.0 74.0 Y 112.8 1162.0 75.0 X 112.85 1036.0 75.0 Y 112.9 1163.0 76.0 X 112.95 1037.0 76.0 Y 113.0 1164.0 77.0 X 113.05 1038.0 77.0 Y 113.1 1165.0 78.0 X 113.15 1039.0 78.0 Y 113.2 1166.0 79.0 X 113.25 1040.0 79.0 Y 113.3 1167.0 80.0 X 113.35 1041.0 80.0 Y 113.4 1168.0 81.0 X 113.45 1042.0 81.0 Y 113.5 1169.0 82.0 X 113.55 1043.0 82.0 Y 113.6 1170.0 83.0 X 113.65 1044.0 83.0 Y 113.7 1171.0 84.0 X 113.75 1045.0 84.0 Y 113.8 1172.0 85.0 X 113.85 1046.0 85.0 Y 113.9 1173.0 86.0 X 113.95 1047.0 86.0 Y 114.0 1174.0 87.0 X 114.05 1048.0 87.0 Y 114.1 1175.0 88.0 X 114.15 1049.0 88.0 Y 114.2 1176.0 89.0 X 114.25 1050.0 89.0 Y 114.3 1177.0 90.0 X 114.35 1051.0 90.0 Y 114.4 1178.0 91.0 X 114.45 1052.0 91.0 Y 114.5 1179.0 92.0 X 114.55 1053.0 92.0 Y 114.6 1180.0 93.0 X 114.65 1054.0 93.0 Y 114.7 1181.0 94.0 X 114.75 1055.0 94.0 Y 114.8 1182.0 95.0 X 114.85 1056.0 95.0 Y 114.9 1183.0 96.0 X 114.95 1057.0 96.0 Y 115.0 1184.0 97.0 X 115.05 1058.0 97.0 Y 115.1 1185.0 98.0 X 115.15 1059.0 98.0 Y 115.2 1186.0 99.0 X 115.25 1060.0 99.0 Y 115.3 1187.0 100.0 X 115.35 1061.0 100.0 Y 115.4 1188.0 101.0 X 115.45 1062.0 101.0 Y 115.5 1189.0 102.0 X 115.55 1063.0 102.0 Y 115.6 1190.0 103.0 X 115.65 1064.0 103.0 Y 115.7 1191.0 104.0 X 115.75 1065.0 104.0 Y 115.8 1192.0 105.0 X 115.85 1066.0 105.0 Y 115.9 1193.0 106.0 X 115.95 1067.0 106.0 Y 116.0 1194.0 107.0 X 116.05 1068.0 107.0 Y 116.1 1195.0 108.0 X 116.15 1069.0 108.0 Y 116.2 1196.0 109.0 X 116.25 1070.0 109.0 Y 116.3 1197.0 110.0 X 116.35 1071.0 110.0 Y 116.4 1198.0 111.0 X 116.45 1072.0 111.0 Y 116.5 1199.0 112.0 X 116.55 1073.0 112.0 Y 116.6 1200.0 113.0 X 116.65 1074.0 113.0 Y 116.7 1201.0 114.0 X 116.75 1075.0 114.0 Y 116.8 1202.0 115.0 X 116.85 1076.0 115.0 Y 116.9 1203.0 116.0 X 116.95 1077.0 116.0 Y 117.0 1204.0 117.0 X 117.05 1078.0 117.0 Y 117.1 1205.0 118.0 X 117.15 1079.0 118.0 Y 117.2 1206.0 119.0 X 117.25 1080.0 119.0 Y 117.3 1207.0 120.0 X 117.35 1081.0 120.0 Y 117.4 1208.0 121.0 X 117.45 1082.0 121.0 Y 117.5 1209.0 122.0 X 117.55 1083.0 122.0 Y 117.6 1210.0 123.0 X 117.65 1084.0 123.0 Y 117.7 1211.0 124.0 X 117.75 1085.0 124.0 Y 117.8 1212.0 125.0 X 117.85 1086.0 125.0 Y 117.9 1213.0 126.0 X 117.95 1087.0 126.0 Y
  11. One of the map devs (Specter) did comment on the VORDME bug post on the orbx site a few weeks ago, so they do seem to look at the bug reports (at least occationally). IMHO, having a bugs & problems section here instead would have been preferable, both with regards to ease of access and active user base.
  12. DME not working for Y channels has been an issue for years (always?), and after some digging in the LUAs, I think I have identified why, and how to fix it. First, in order to avoid confusion (which I have seen a bit of when VOR, DME and TACAN is discussed in the forums), here is some technical info (feel free to skip this paragraph if you already know this): VOR: an omni-directional beacon operating in the VHF band between 108 and 118 MHz, that radiates 360 radials you can tune your receiver to intercept. It also gives you the direct bearing to the beacon. The "R" in name VOR can be a bit of a misnomer, since a VOR does not provide range info, but it is due to the term "radio range" being used as a colloquial term for radio naviagation aids back in the day. DME: provides the slant range between the aircraft and the beacon. Each beacon operates on two frequencies in the 960-1215 MHz range; the interrogation frequency (transmitted by the aircraft) and the reply frequency (transmitted by the beacon), which are separated by 64 MHz. The frequencies are never set manually, instead they are assigned fixed channel numbers and a mode (X/Y) for ease of use. The X and Y modes refer to different spacing between the pulses used when determining the range, allowing twice as many DMEs to operate within the same frequency band. VOR/DME (or VOR+DME): A VOR co-located with a DME, giving you both bearing and range info. The VOR frequency and DME channel is paired according to ICAOs Annex 10, and every DME channel except 60-69 has a paired VHF frequency (either localizer or VOR). TACAN: This is where it gets a bit more complicated. A TACAN is a DME where a rotating, slightly directional, antenna generates a rotating radiation pattern that aircraft equipped with TACAN can use to determine the bearing to the beacon (like a VOR). All aircraft with TACAN can get the range to a DME and all aircraft with DME can get the range to a TACAN, but only the combination TACAN/TACAN will give you range and bearing. VORTAC: A VOR co-located with a TACAN. Works just like a VOR/DME for aircraft without TACAN, and like a TACAN for aircraft with TACAN. Now, on to the bugs: Test info: Testet on the following map: Kola, with Evenes VOR/DME (117.35 MHz / 120Y) and Andøya VOR/DME (112.20 MHz / 59X). No unofficial mods installed (before testing my proposed fix for the bugs, which requires changes to BeaconSites.lua and BeaconTypes.lua). The frequency / channel pairing is according to ICAO Annex 10. The channels are not included in the beacons.lua entries for the airports, but this parameter only displays the channel number in the ME/F10 map. The actual channel use is set up based on the paired VHF freq. Plane: Mirage F1EE (TACAN for range to DME, VOR for bearing to the VOR) and F16 (TACAN for range to DME (no VOR in the 16..)) F1EE: Evenes: bearing, but no range. Andøya: both bearing and range. F16: Evenes: no range. Andøya: range OK. See \DCS World\Scripts\World\Radio\BeaconTypes.lua and BeaconSites.lua for context (variables, function names etc). Issue 1: The function "getPaired_DME_ChannelBy_VOR_Frequency(VOR_freq)" in BeaconTypes.lua returns channel numbers correctly for X channels, but the function return value (return channelX2 / 2 + chStartVal, channelMode) does not take into account that the variable channelX2 is an odd number for Y channels, and thus returns a non-integer channel value for Y. Two examples: #1: Channel 19X: VOR_freq = 108200000 (108.2 MHz) freqToSubtract = 108000000 chStartVal = 17 channelX2 = (VOR_freq - freqToSubtract) / 50000 with numbers filled in: channelX2 = (108200000 - 108000000) / 50000 = 4 Determine X or Y: channelX2 % 2 = 0 => channelMode = X return channelX2 / 2 + chStartVal, channelMode with numbers filled in: 4 / 2 + 17 = 19, X --------- #2: Channel 19Y: VOR_freq = 108250000 (108.25 MHz) freqToSubtract = 108000000 chStartVal = 17 channelX2 = (VOR_freq - freqToSubtract) / 50000 with numbers filled in: channelX2 = (108250000 - 108000000) / 50000 = 5 Determine X or Y: channelX2 % 2 = 1 => channelMode = Y return channelX2 / 2 + chStartVal, channelMode with numbers filled in: 5 / 2 + 17 = 19.5, Y (Non-integer channel number!) The return from getPaired_DME_ChannelBy_VOR_Frequency is used by the function getTACANFrequency, which returns the wrong reply frequency if the channel number you pass to it isn't an integer. Changing the return to "return (channelX2 - channelX2 % 2) / 2 + chStartVal, channelMode" fixes this problem in the tests I have performed. This will give you the DME IDENT tone in the plane (tested in the Mirage F1EE), but no DME distance. The distance problem is described below: Issue 2: The DME part of the "[SystemName.VORDME]" section in BeaconSites.lua only contains the following signals: signals = SIGNAL_VOICE_AM + SIGNAL_DME + SIGNAL_TACAN_X. Adding "+ SIGNAL_TACAN_Y" is required for Y channel DME range (which is the same signal as TACAN range, hence the name). So, TL;DR: these two changes fix the non-working Y-channel DME (actual changes highlighted in green): BeaconSites.lua, change line 403 to: signals = SIGNAL_VOICE_AM + SIGNAL_DME + SIGNAL_TACAN_X + SIGNAL_TACAN_Y, BeaconTypes.lua, change line 199 to: return (channelX2 - channelX2 % 2) / 2 + chStartVal, channelMode Screenshots from my tests: Mode X DME working (+VORin the F1EE): Mode Y DME NOT working before fix (VOR works in the F1EE): Mode Y DME working after fix:
  13. After some testing, I managed to get all the ILSes at Hannover working. For 09R/27L, All I had to do was to fix the direction of the GP (as described in the previous post), but just doing that didn't work for 09L/27R. After trying everything else (checking for frequency conflicts etc), I tried changing the beacon ID (the suffix after "airfleid19_", and that fixed it. If you delete all airfield19 entries (line 1640-1776) from beacons.lua and replace them with the following, you should have working ILS for all four runway ends. Note that this is not IC compatible, so remember to back up your original file. -- Fixed Hannover ILS -- 09L { display_name = _('Hannover'); beaconId = 'airfield19_99'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'IHNW'; frequency = 108900000.000000; position = { -188436.453125, 51.180933, -730706.875000 }; direction = -78.514527; positionGeo = { latitude = 52.466823, longitude = 9.703153 }; sceneObjects = {'t:130102024'}; chartOffsetX = 2963.000000; }; { display_name = _('Hannover'); beaconId = 'airfield19_98'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'IHNW'; frequency = 108900000.000000; position = { -187671.062500, 51.180936, -733377.500000 }; direction = -78.514527; positionGeo = { latitude = 52.469834, longitude = 9.662851 }; sceneObjects = {'t:48754130'}; }; -- 27R { display_name = _('Hannover'); beaconId = 'airfield19_97'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'IHNE'; frequency = 108300000.000000; position = { -187795.875000, 51.180936, -733856.125000 }; direction = 101.497718; positionGeo = { latitude = 52.468062, longitude = 9.656230 }; sceneObjects = {'t:131006862'}; chartOffsetX = 2962.000000; }; { display_name = _('Hannover'); beaconId = 'airfield19_96'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'IHNE'; frequency = 108300000.000000; position = { -188147.750000, 51.180936, -731212.125000 }; direction = 101.497718; positionGeo = { latitude = 52.468662, longitude = 9.695199 }; sceneObjects = {'t:48754131'}; }; -- 09R { display_name = _('Hannover'); beaconId = 'airfield19_7'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'IHSW'; frequency = 109500000.000000; position = { -189994.000000, 51.180936, -730121.062500 }; direction = -78.514527; positionGeo = { latitude = 52.453909, longitude = 9.715167 }; sceneObjects = {'t:130102023'}; chartOffsetX = 2640.000000; }; { display_name = _('Hannover'); beaconId = 'airfield19_6'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'IHSW'; frequency = 109500000.000000; position = { -189648.265625, 51.180936, -732407.375000 }; direction = -78.514527; positionGeo = { latitude = 52.453763, longitude = 9.681384 }; sceneObjects = {'t:47898667'}; }; --27L { display_name = _('Hannover'); beaconId = 'airfield19_2'; type = BEACON_TYPE_ILS_LOCALIZER; callsign = 'IHSE'; frequency = 108700000.000000; position = { -189416.812500, 51.180936, -732959.937500 }; direction = 101.497301; positionGeo = { latitude = 52.455030, longitude = 9.672881 }; sceneObjects = {'t:130102022'}; chartOffsetX = 2604.000000; }; { display_name = _('Hannover'); beaconId = 'airfield19_10'; type = BEACON_TYPE_ILS_GLIDESLOPE; callsign = 'PLG'; frequency = 108700000.000000; position = { -189997.359375, 51.180936, -730727.625000 }; direction = 101.497301; positionGeo = { latitude = 52.453033, longitude = 9.706422 }; sceneObjects = {'t:47900634'}; }; -- NDB, VOR etc { display_name = _(''); beaconId = 'airfield19_8'; type = BEACON_TYPE_AIRPORT_HOMER; callsign = 'HW'; frequency = 358000.000000; position = { -186564.000000, 44.580844, -741256.062500 }; direction = -72.689100; positionGeo = { latitude = 52.468492, longitude = 9.546607 }; sceneObjects = {'t:130999105'}; }; { display_name = _(''); beaconId = 'airfield19_11'; type = BEACON_TYPE_VOR_DME; callsign = 'HAD'; frequency = 113950000.000000; channel = 86; position = { -188825.078125, 51.180936, -731792.250000 }; direction = -90.824421; positionGeo = { latitude = 52.461880, longitude = 9.688376 }; sceneObjects = {'t:130102026'}; }; { display_name = _(''); beaconId = 'airfield19_0'; type = BEACON_TYPE_AIRPORT_HOMER; callsign = 'HA'; frequency = 320000.000000; position = { -189830.421875, 55.567503, -723867.187500 }; direction = -41.282514; positionGeo = { latitude = 52.464041, longitude = 9.805069 }; sceneObjects = {'t:130114993'}; }; { display_name = _(''); beaconId = 'airfield19_4'; type = BEACON_TYPE_AIRPORT_HOMER; callsign = 'HAE'; frequency = 332000.000000; position = { -187956.265625, 50.270390, -740012.312500 }; direction = -69.718198; positionGeo = { latitude = 52.457983, longitude = 9.567773 }; sceneObjects = {'t:130999104'}; }; 09L: 27R:
  14. Guess who didn't see the first post in the thread It's not the first time I've been tricked by the browser automatically jumping to the first unread post.
  15. I placed some static objects (ICAO spec navaid cows) in the mission editor, opened the mission file in N++ and pasted the coordinates from beacons.lua. The positions are correct (GP 09L is a little off; it should be set back ~100m further from the threshold). The directions the beacons are pointing in seem to be the issue here. Both GPs are rotated by 90°: LOC 09L: -78,5° (correct) GP 09L: +10,6° LOC 27R: +101,5° (correct) GP 27R: -168,9° It should be fixable by changing the direction parameter for 'airfield19_5' to 101.497718 and 'airfield19_1' to -78.514527 in beacons.lua.
  16. At some point in time the TACAN was moved from the position shown in the 1966 charts tot he current position (just south of the threshold for RWY 07), which is probaby why the ident and frequency was changed.
  17. Not directly. You have to open the .miz file with 7zip (or similar software; it's just a zip file), and edit the text file named "mission" in the zip.
  18. 1) As others pointed out, that isn't the helipad. 2) Landing on the roof works just fine. Watch your clearence. You clipped the top of the elevator shaft with your main rotor.
  19. Cottbus is already on Ugra's list. See the FAQ.
  20. The comment is from before the thread was moved from the Cold war Germany subforum.
  21. The spelling errors are intentional, in order to avoid any trademark issues.
  22. Just watch out for those annoying Ferrari 328 and Ford Escort drivers.
  23. It might not be, but it's pretty obvious why someone would jump to that conclusion. You really need to start seeing your own limitations, instead of constantly ignoring every single piece of advice (from people who know what they are doing, and are trying to help you!), and then blaming everyone else when you aren't able to do something. All of your "bug" reports seem to boil down to a) that you haven't understood how a thing is supposed to work, and b) you refusing to listen when someone tells you that you are doing x, y or z wrong.
  24. I wouldn't touch wubuntu with a barge pole. It's just Kubuntu with Wine, a Windows-like KDE theme, some stolen Microsoft assets and added spyware. Trademark and copyright violations aside, the people behind it seem quite sketchy. TL;DR: you're better off with a regular linux distro + Wine if you want to play DCS (it works reasonably well according to the hoggit nerds: https://wiki.hoggitworld.com/view/DCS_on_linux).

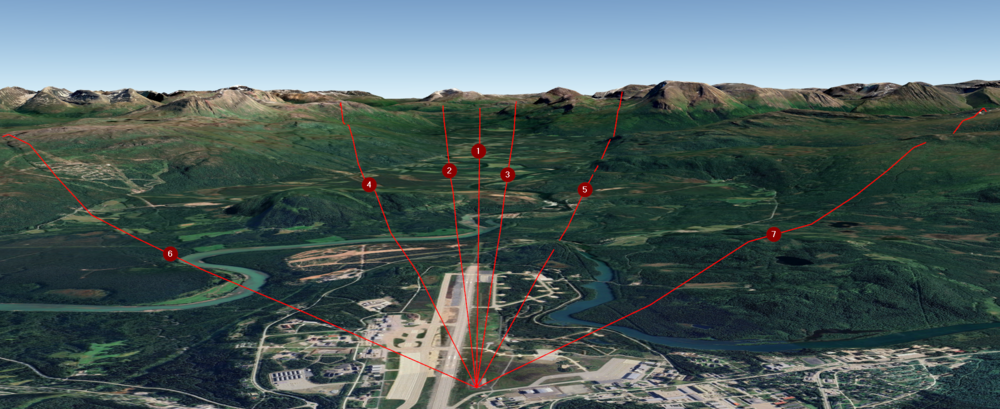

  25. You are right about the TACAN being missing, but you are mixing up the channel with the DME located right next to it. Andøya TACAN (ID: OYA) = 28X. Source: https://ais.avinor.no/no/AIP/View/135/2024-11-28-AIRAC/html/eAIP/EN-ENR-4.1-no-NO.html#ENR-4.1
×
×
