[MOD] Viggen Warfare Kneeboard Pages

[funkyfranky]

Hi all,



I have been - and still am - learning the different weapons and systems of the Viggen. This generated a couple of kneeboard pages (JSGME/OvGME ready zip file attached).



My aim was to have the most important pieces of information for each weapon, system or mode on a single page.

The main source of information was the manual, which is obviously still in a beta state :book:.

However, I tried to augment it with all the things I learned from the usual suspects, i.e.

and

YT tutorials as well as Chuck's guide. But also from what I found all around in the forum and my own experiences.



Since this comes in a kneeboard format, space is naturally rather limited. Hence, I worked a lot with colors and bold text to highlight the important parts.



Warfare

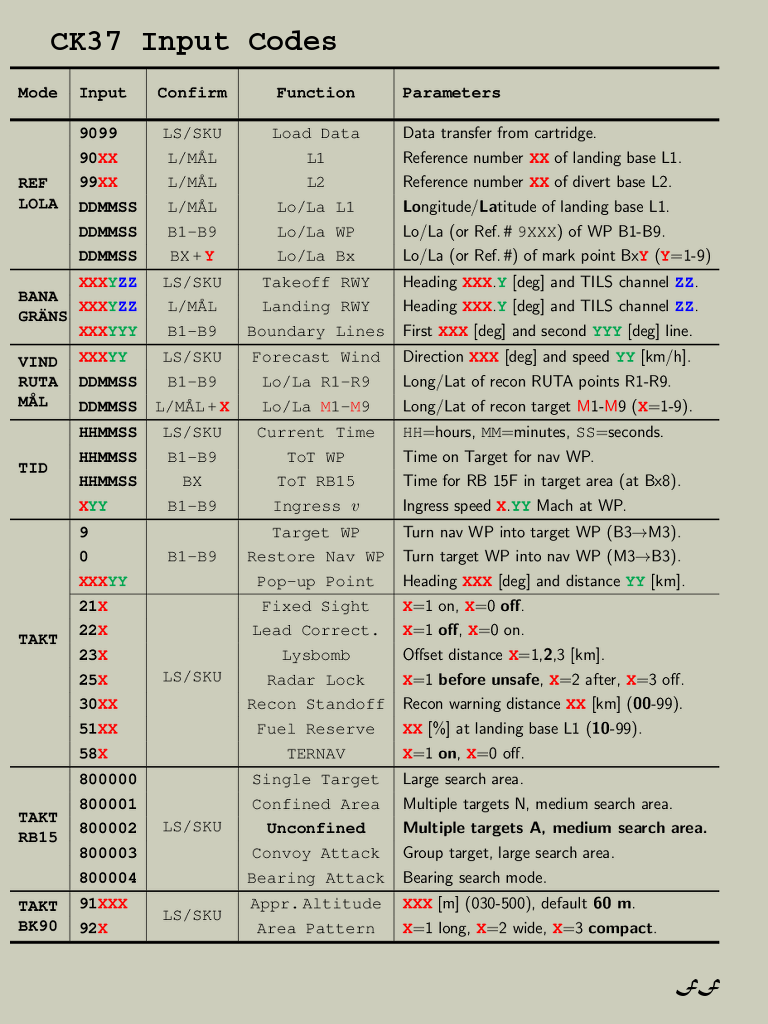

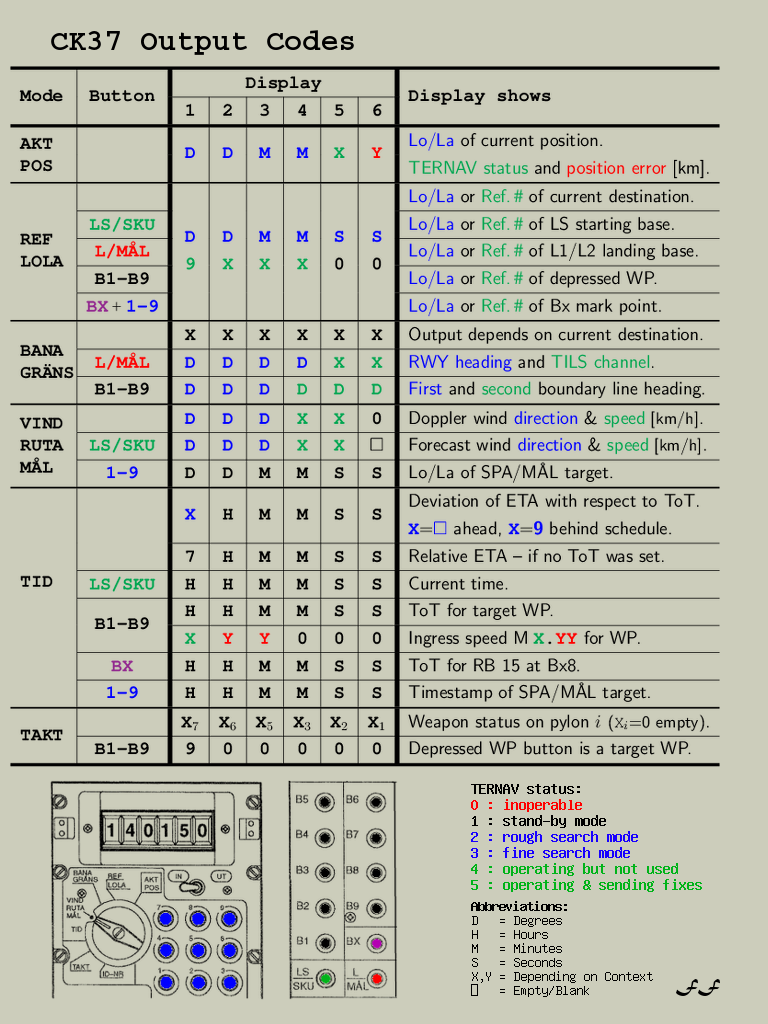

CK37 input and output codes.

[ATTACH]160076[/ATTACH]

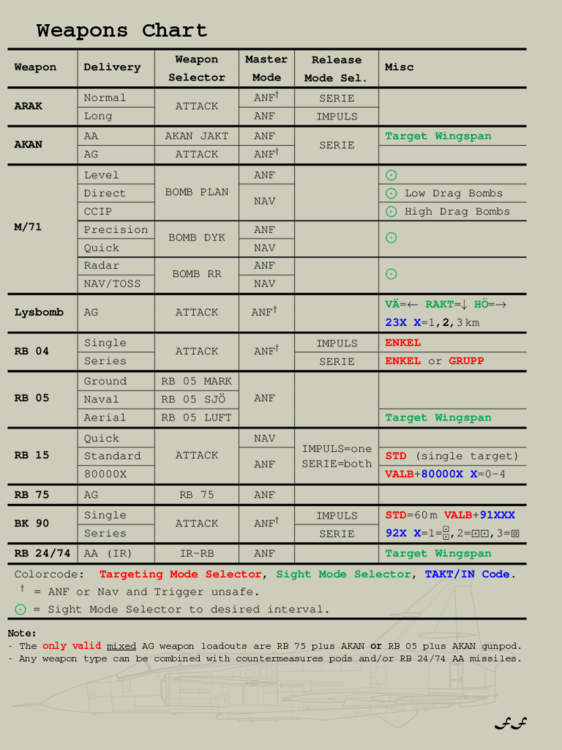

A kneeboard version of the weapons chart, which was inspired by wasserschorle's great work.

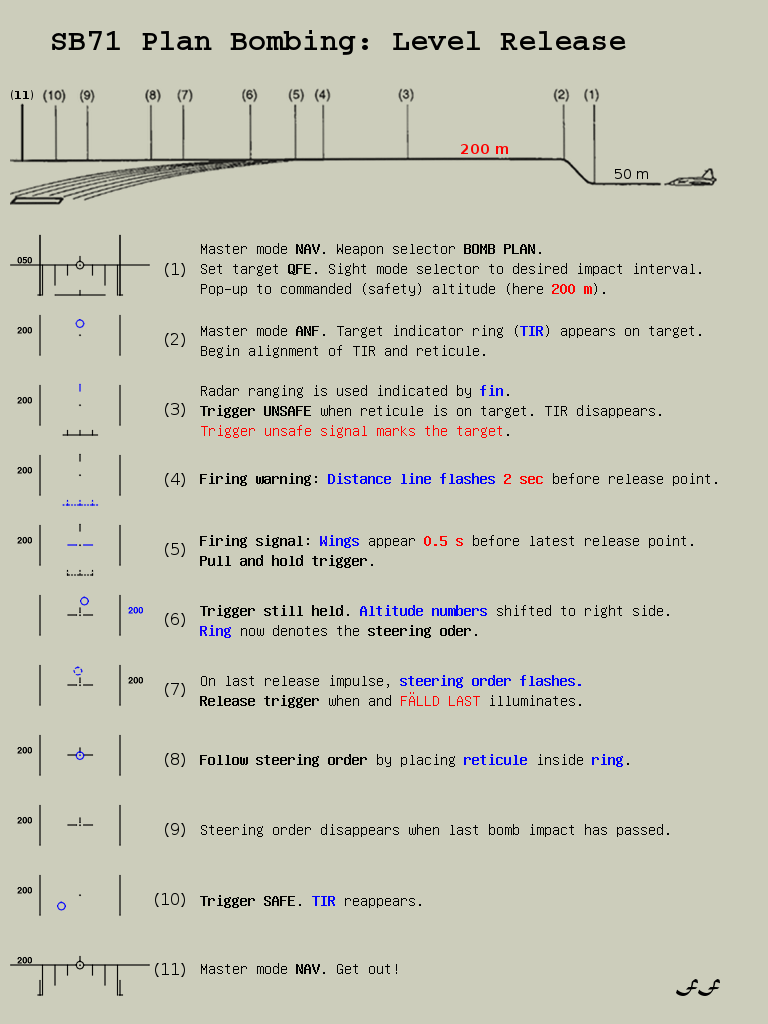

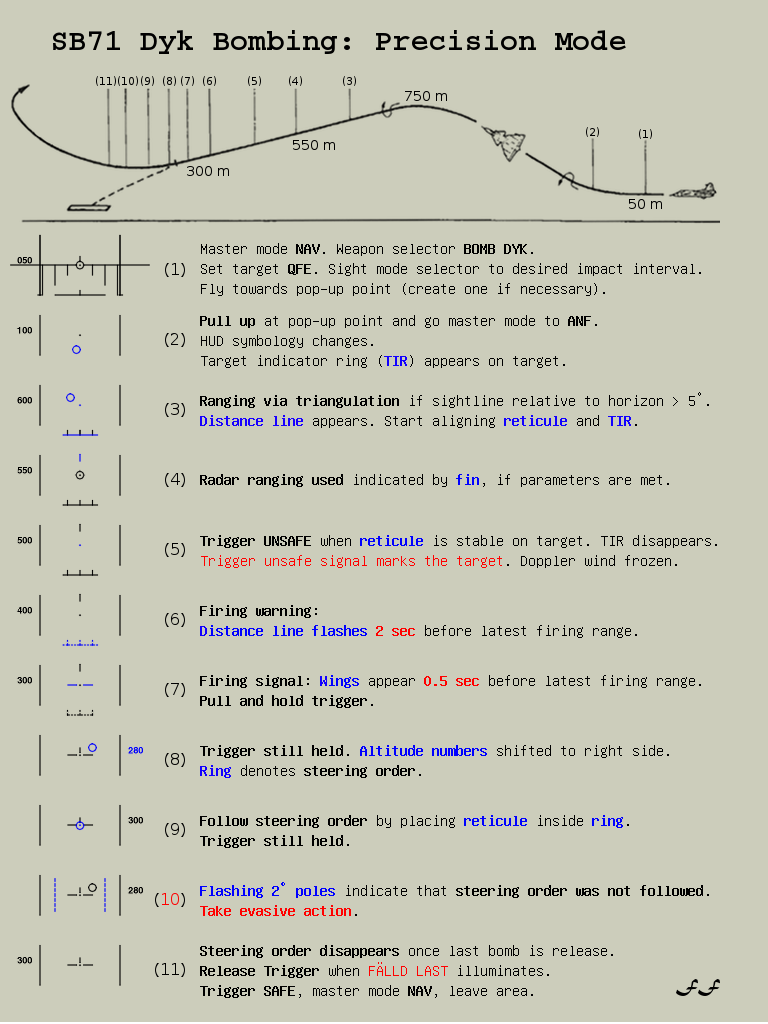

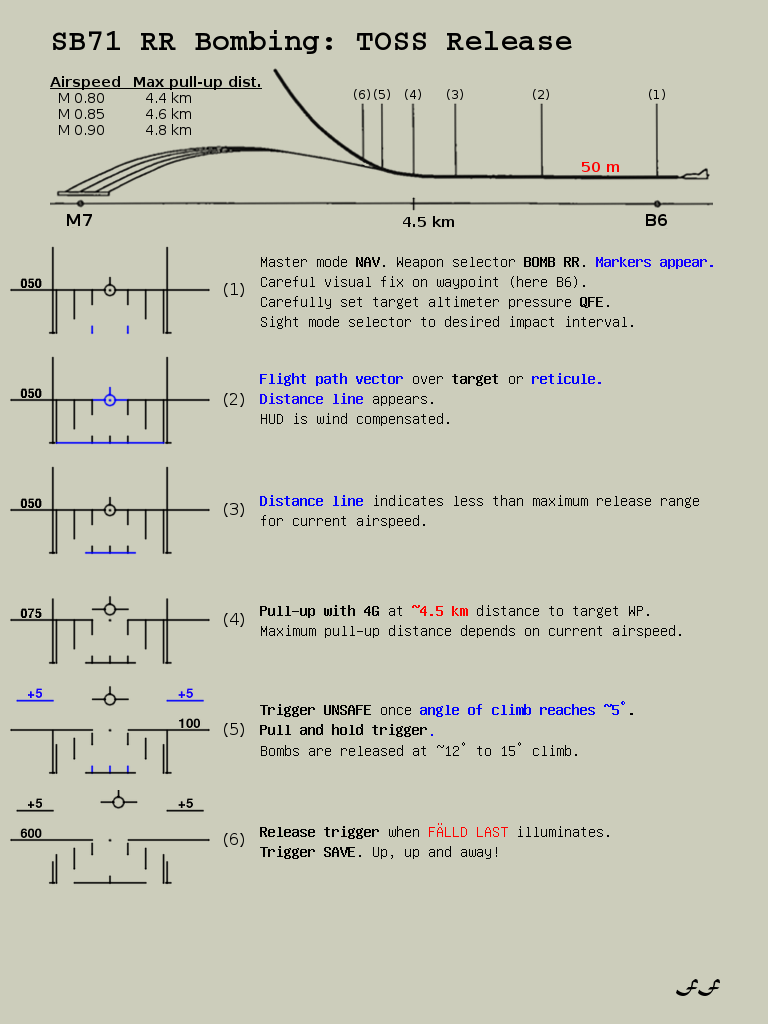

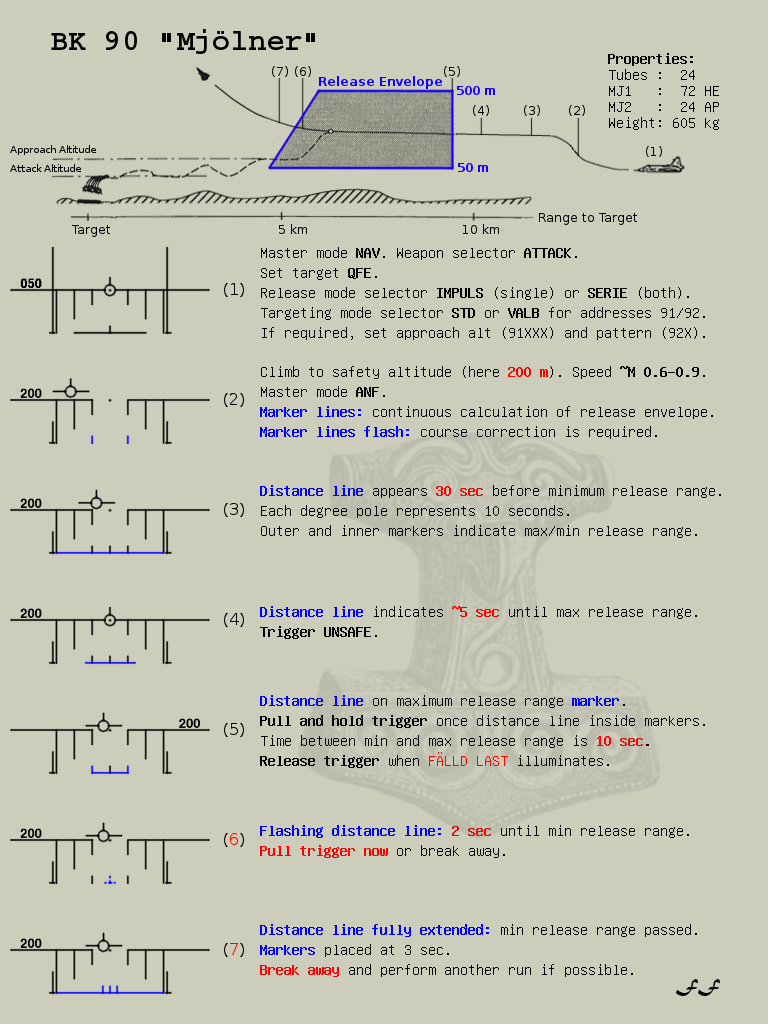

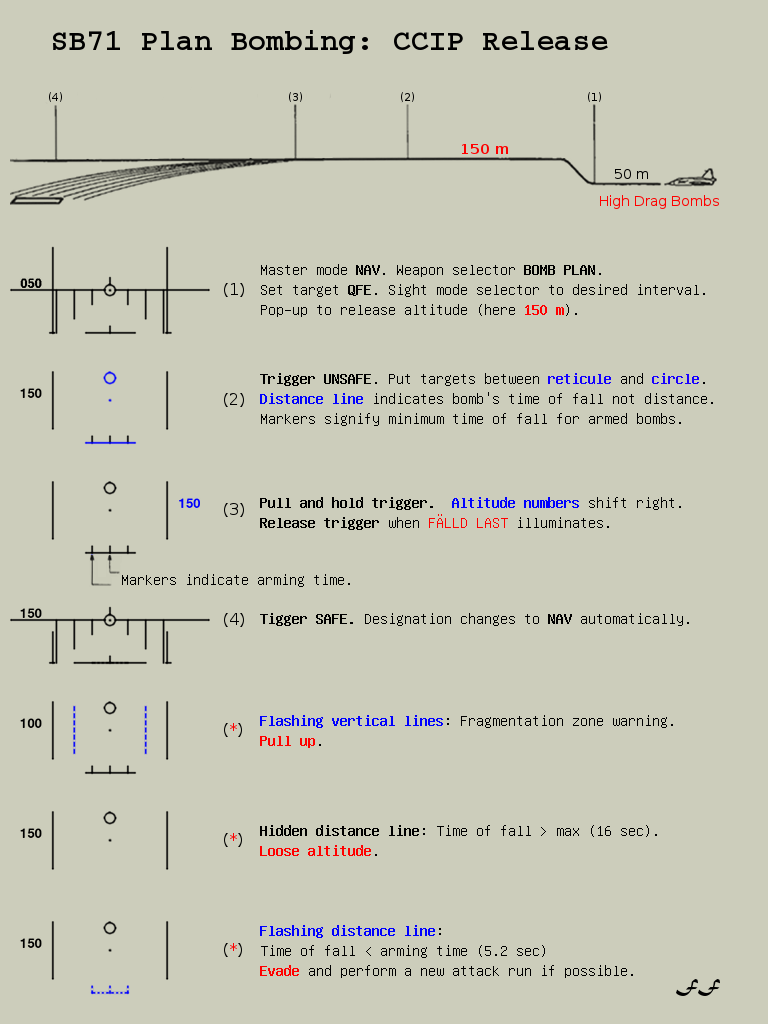

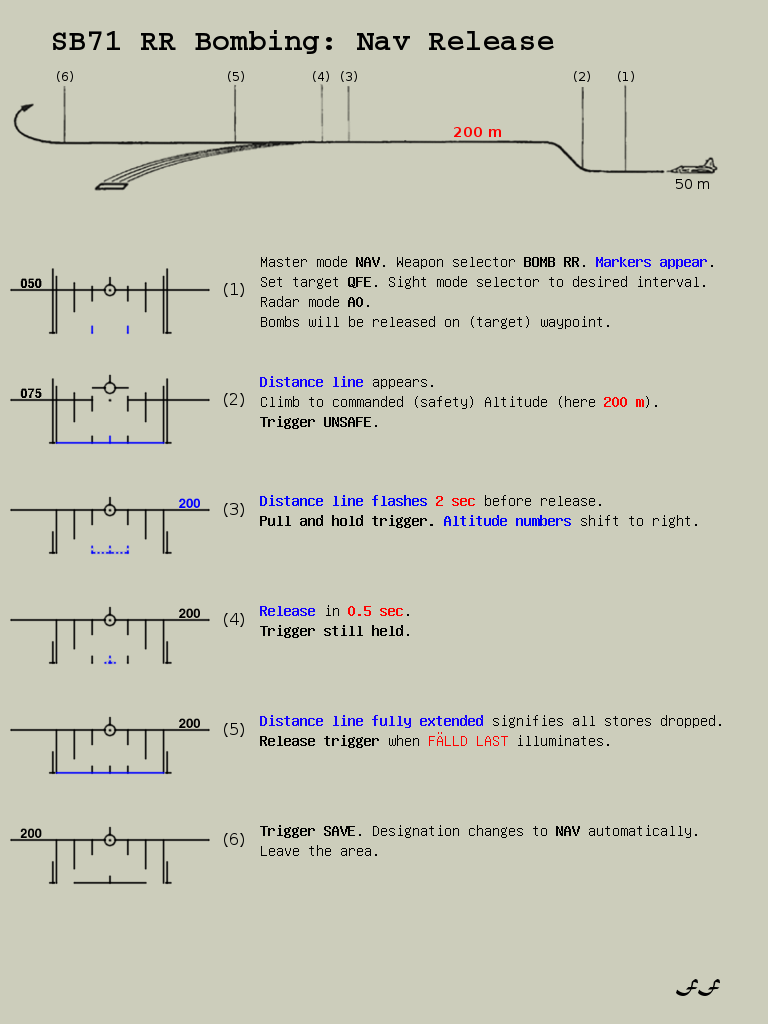

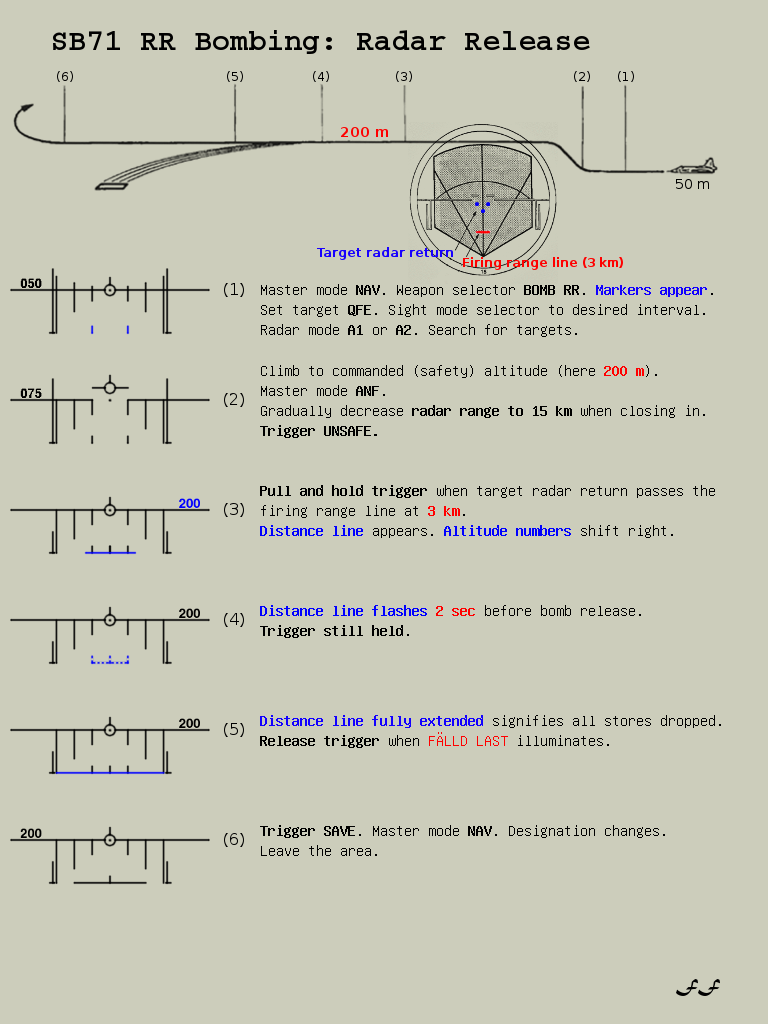

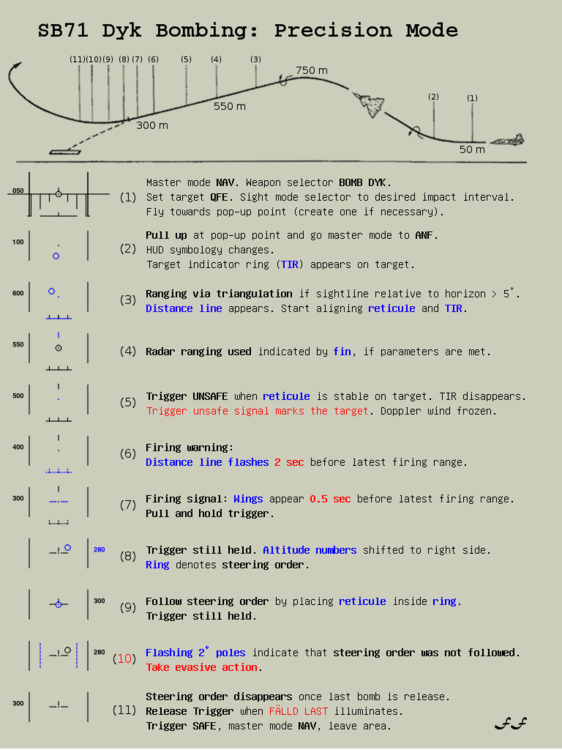

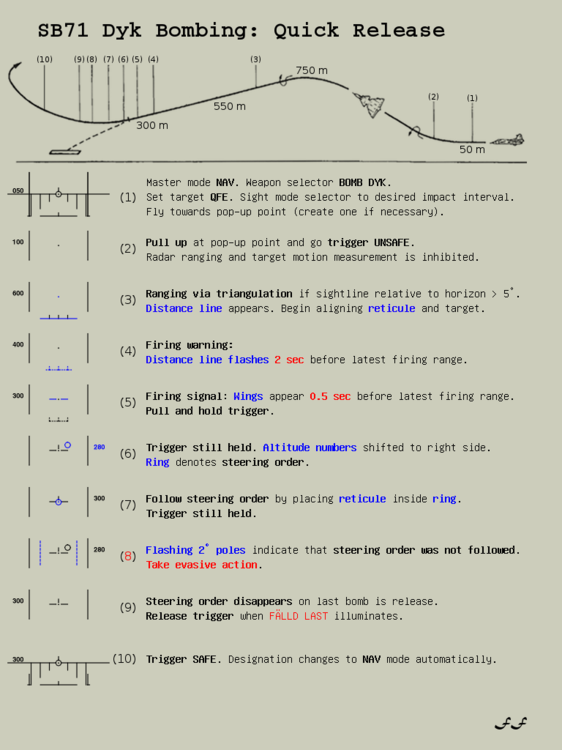

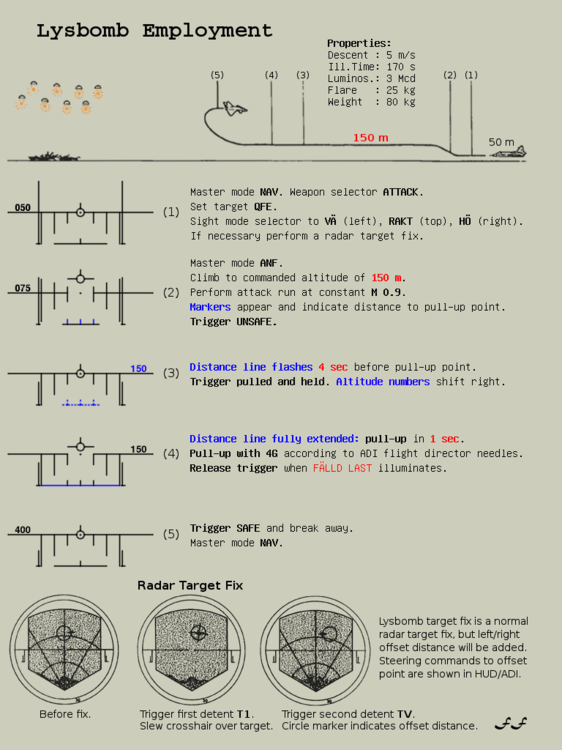

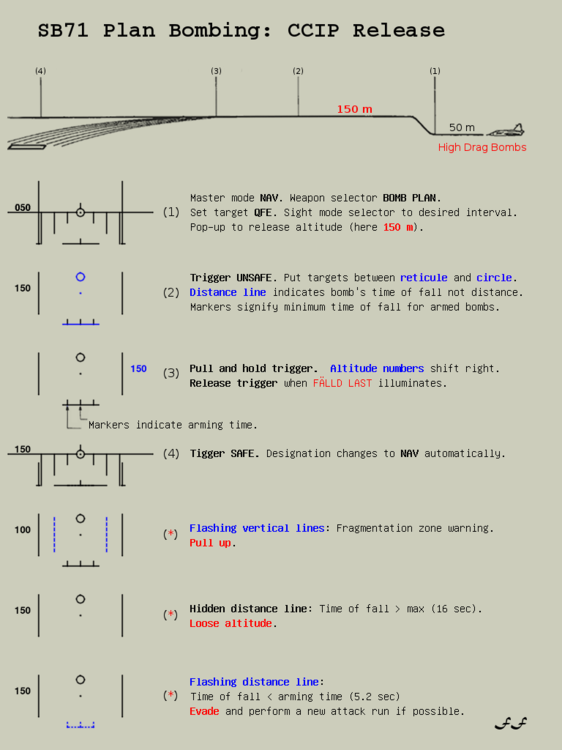

One page for each release mode of the M/71 general purpose bombs, the Lysbomb and the BK 90. All these are based on the attack profiles and include the HUD symbology.

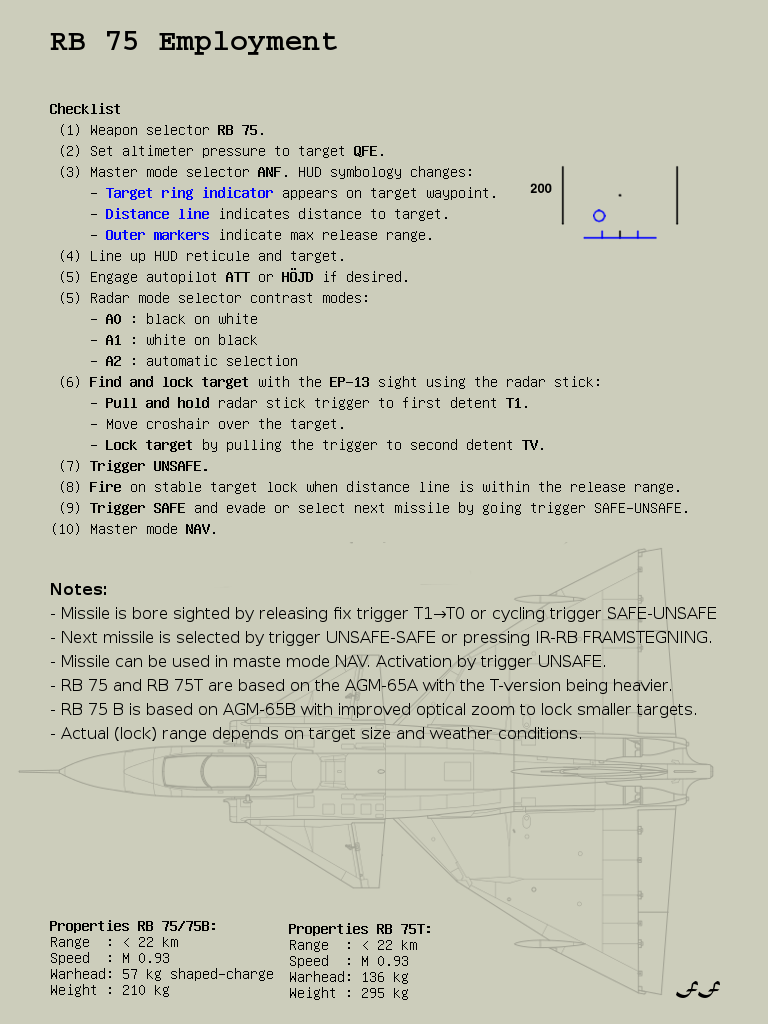

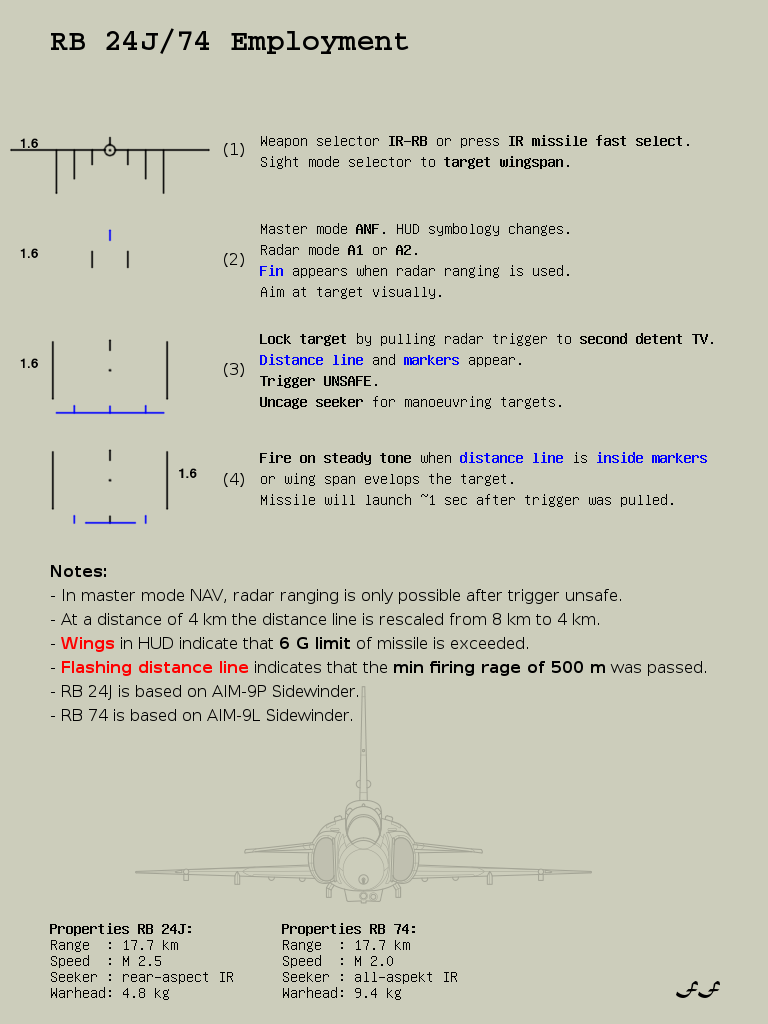

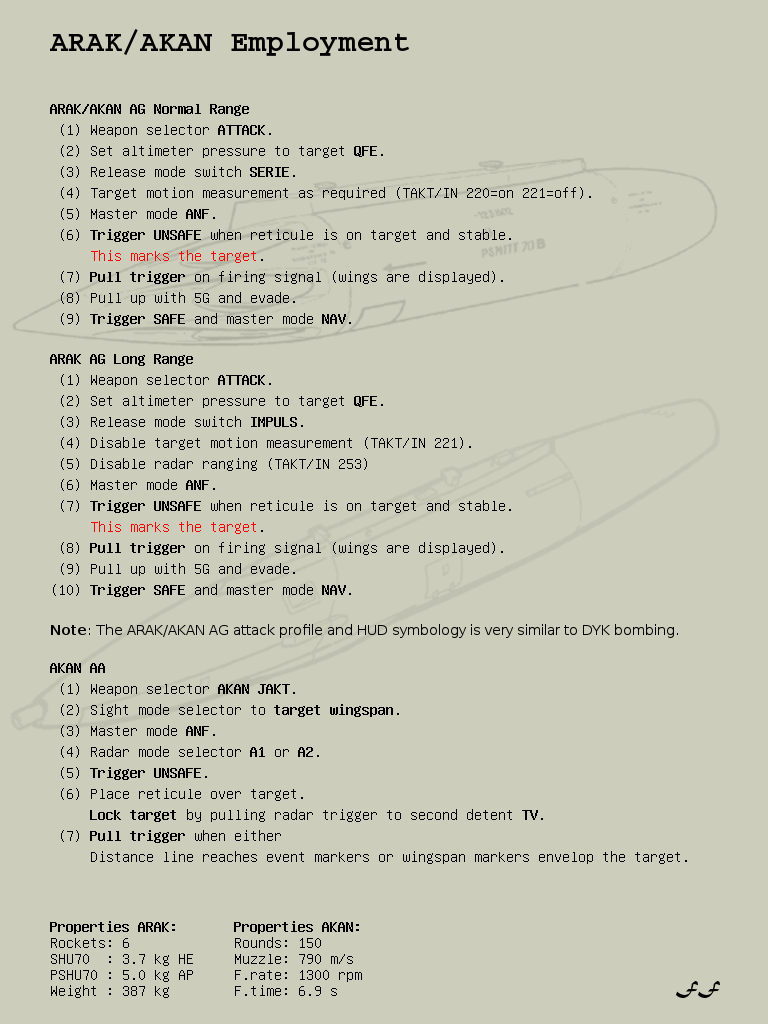

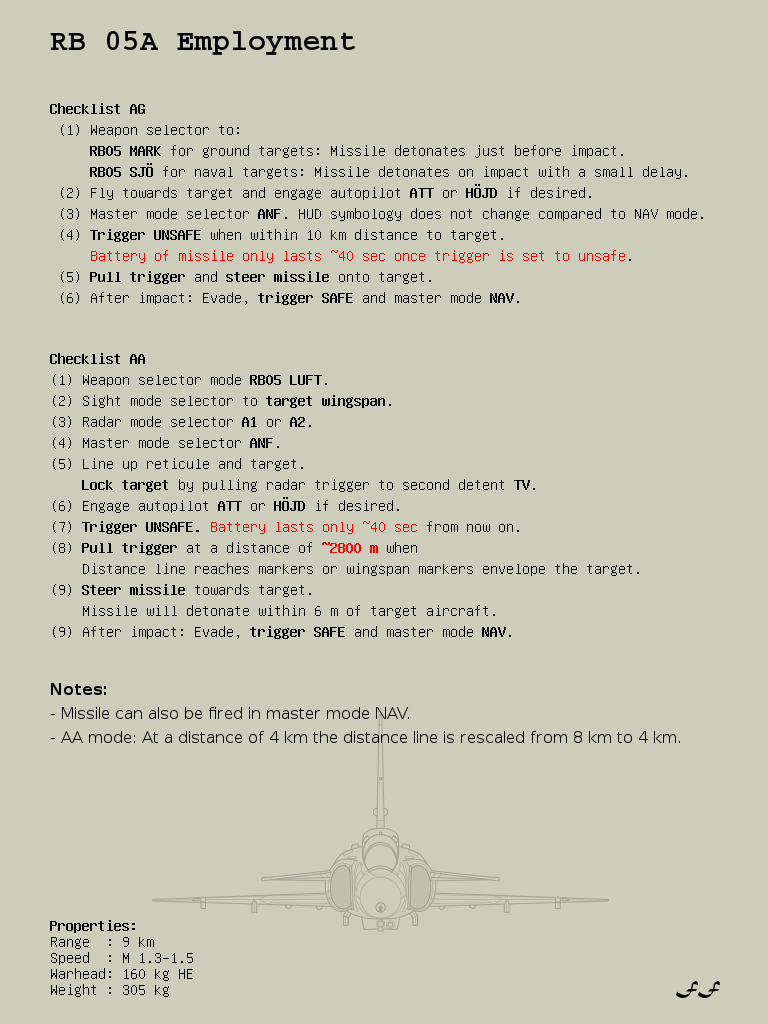

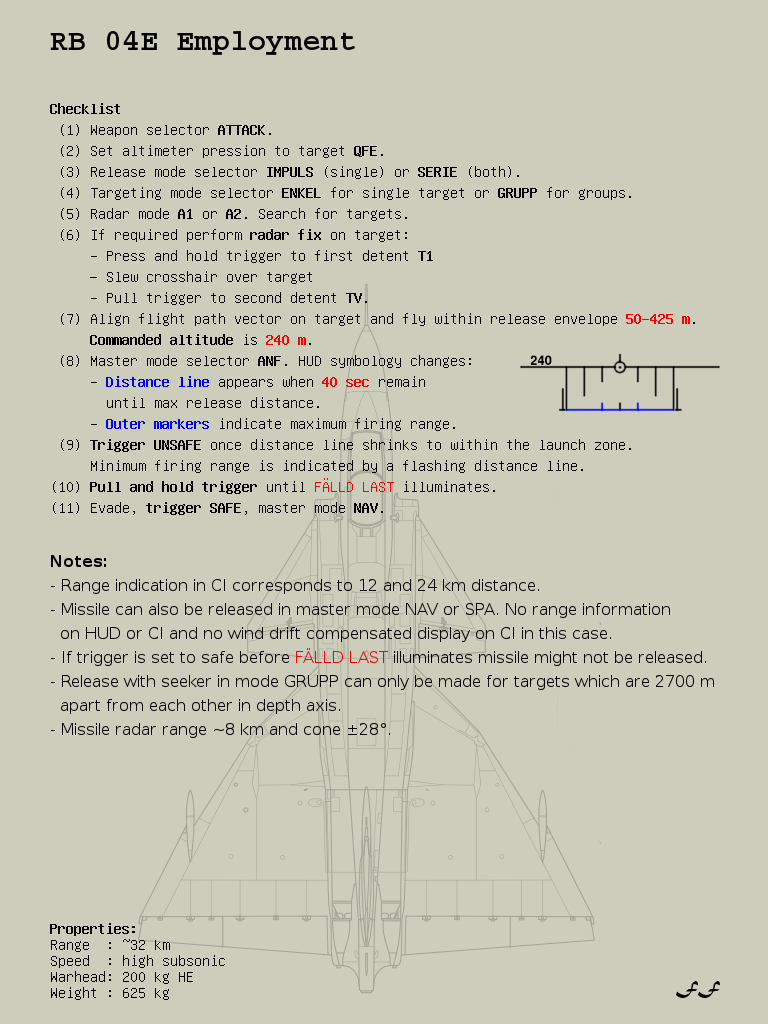

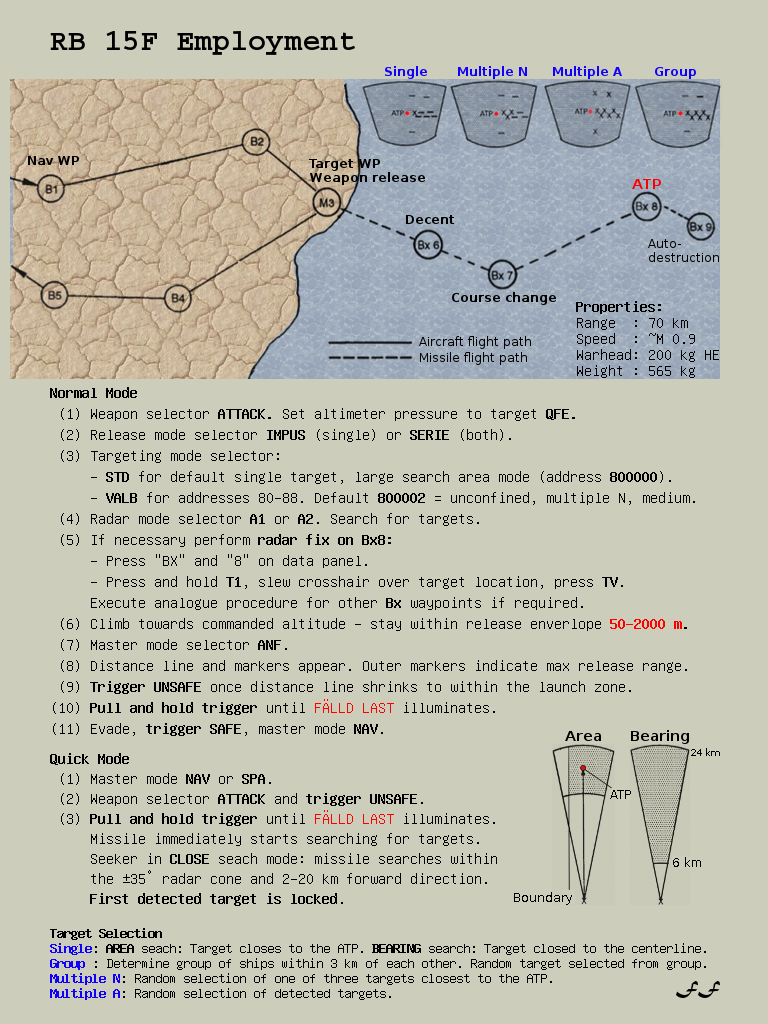

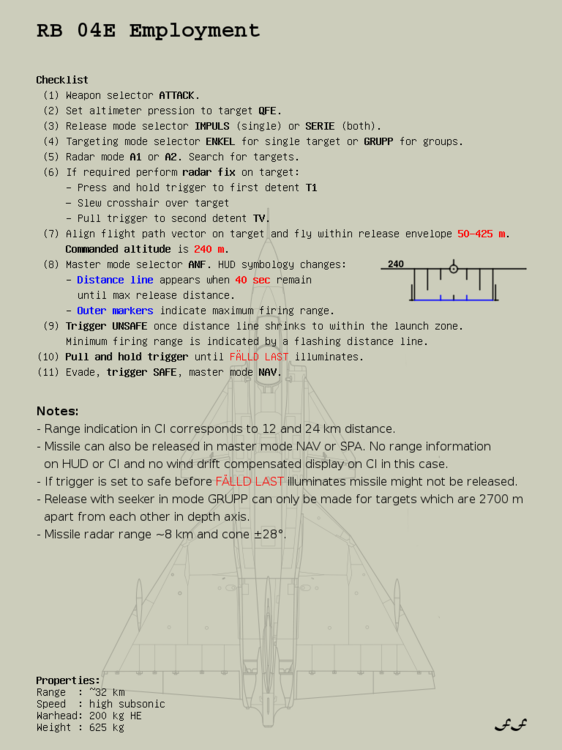

Checklists for the ARAK/AKAN, RB 04, RB 05, RB 15, RB 75 and RB 24/74 employment.

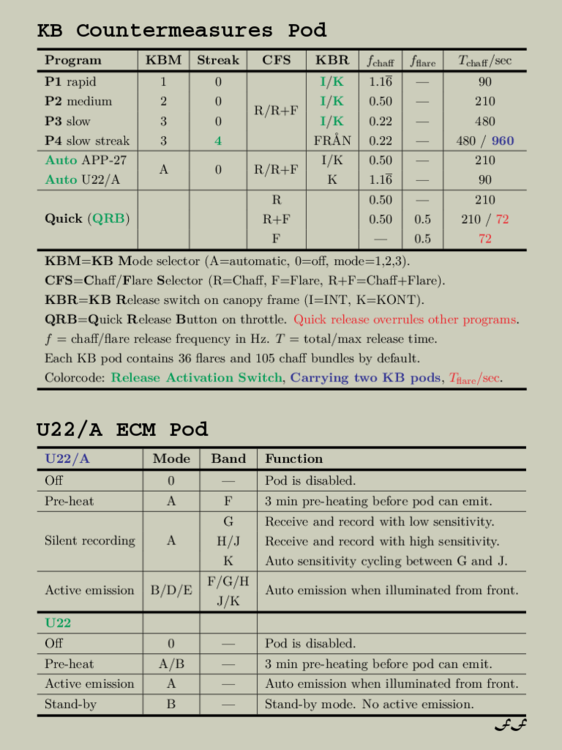

One page summarizing the modes of the KB countermeasures and U22/A ECM pod. (Note that at the moment the KB pod behaves a bit differently from what is stated in the manual. See here.)

[ATTACH]160093[/ATTACH]

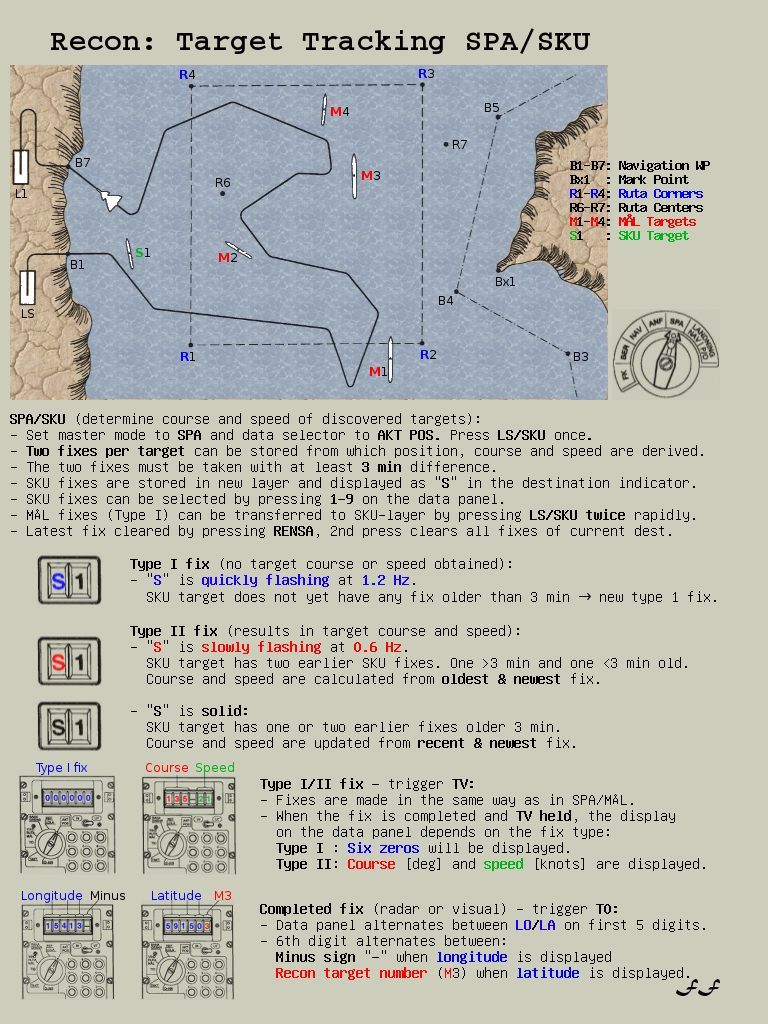

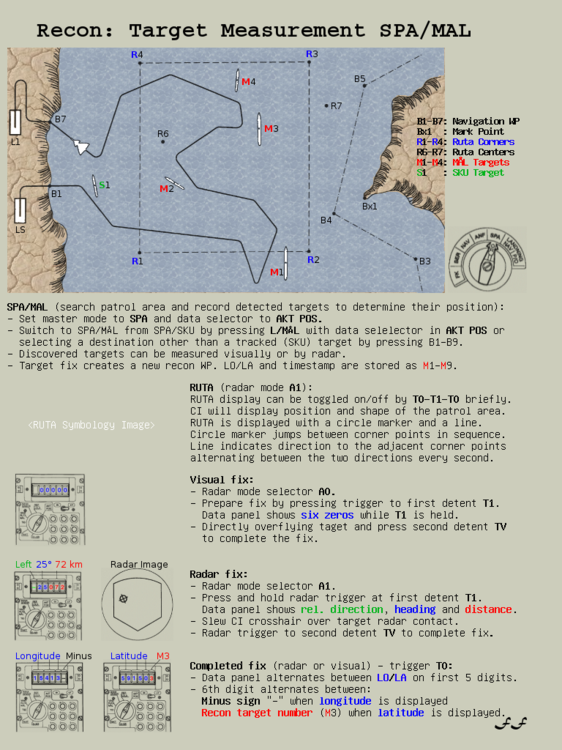

One page each for the reconnaissance modes SPA/MÅL and SPA/SKU. (Mind you that especially SPA/SKU seems to be very much WIP.)

[ATTACH]160094[/ATTACH][ATTACH]160095[/ATTACH]

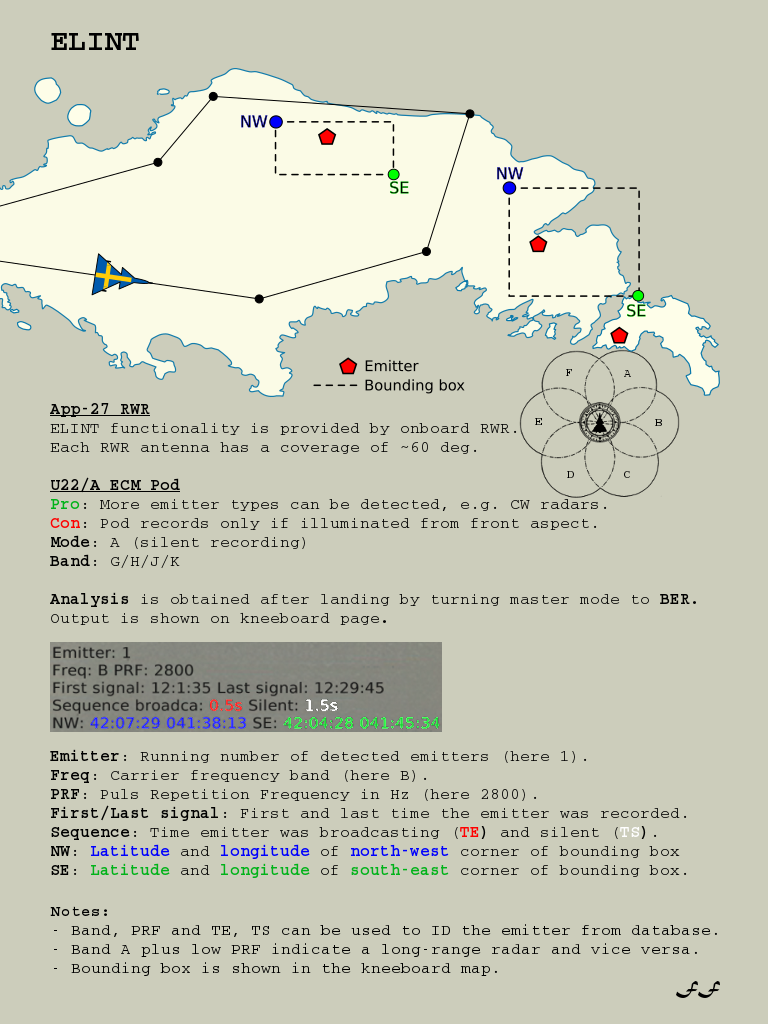

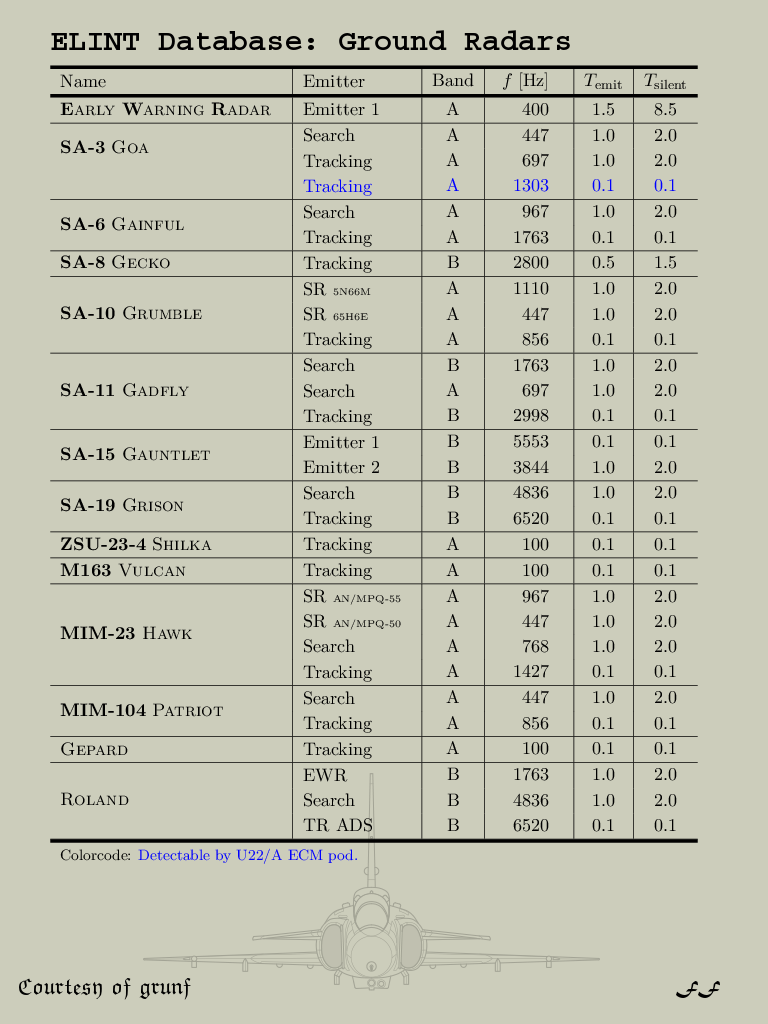

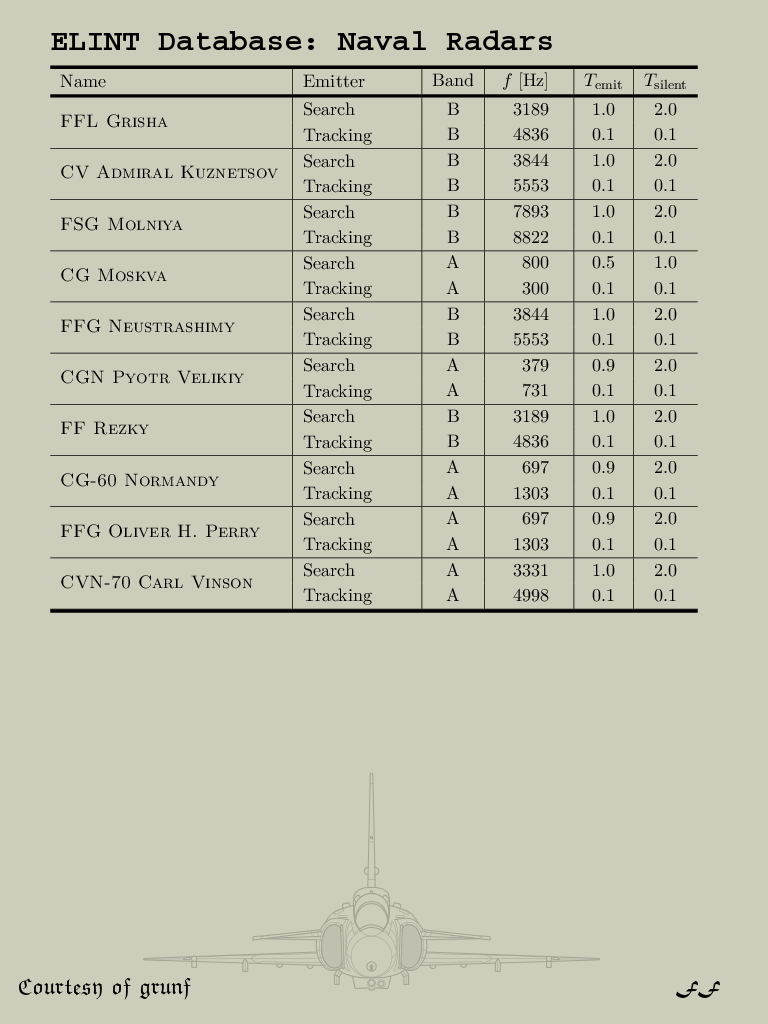

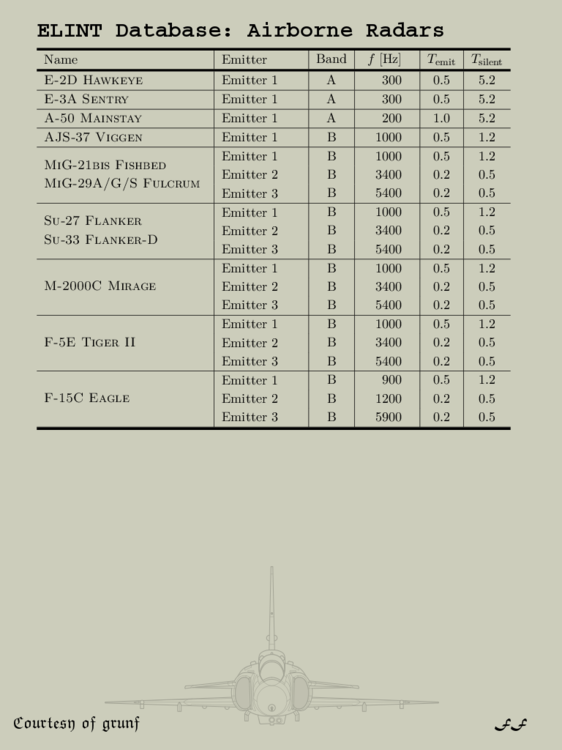

A general page about ELINT and by courtesy of grunf (thanks again!) a slightly adapted version of his marvelous database.

[ATTACH]160096[/ATTACH][ATTACH]160097[/ATTACH][ATTACH]160098[/ATTACH][ATTACH]160099[/ATTACH]



Procedures

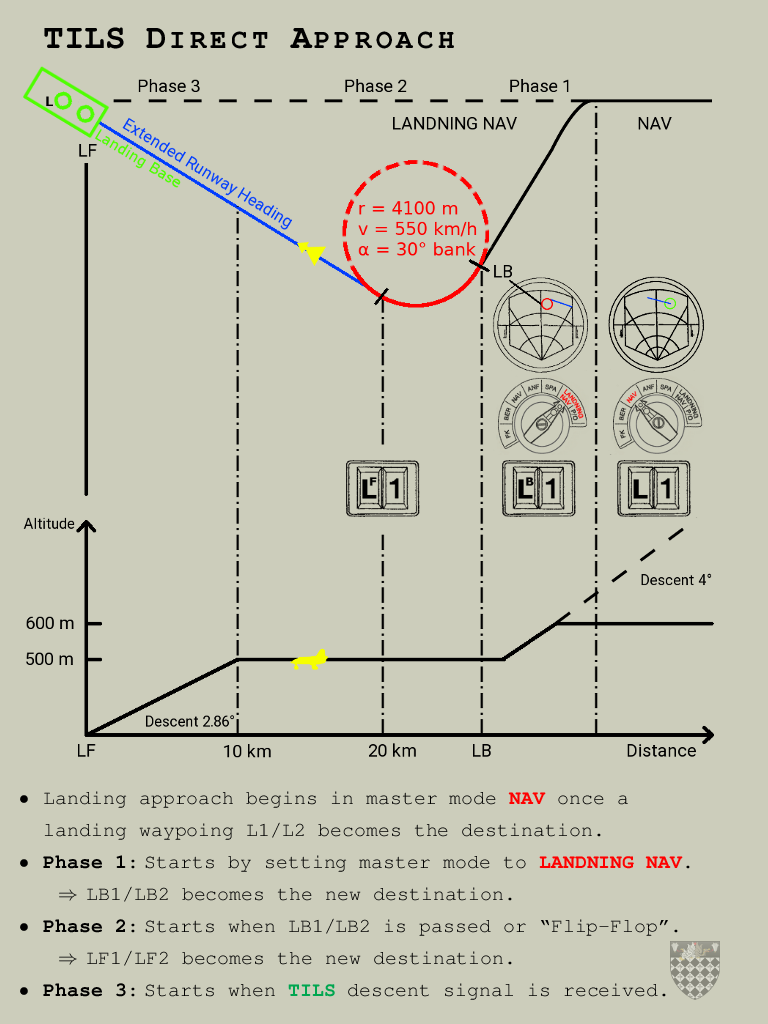

Procedures are based on the beta manual and the nice work of Toertchen.

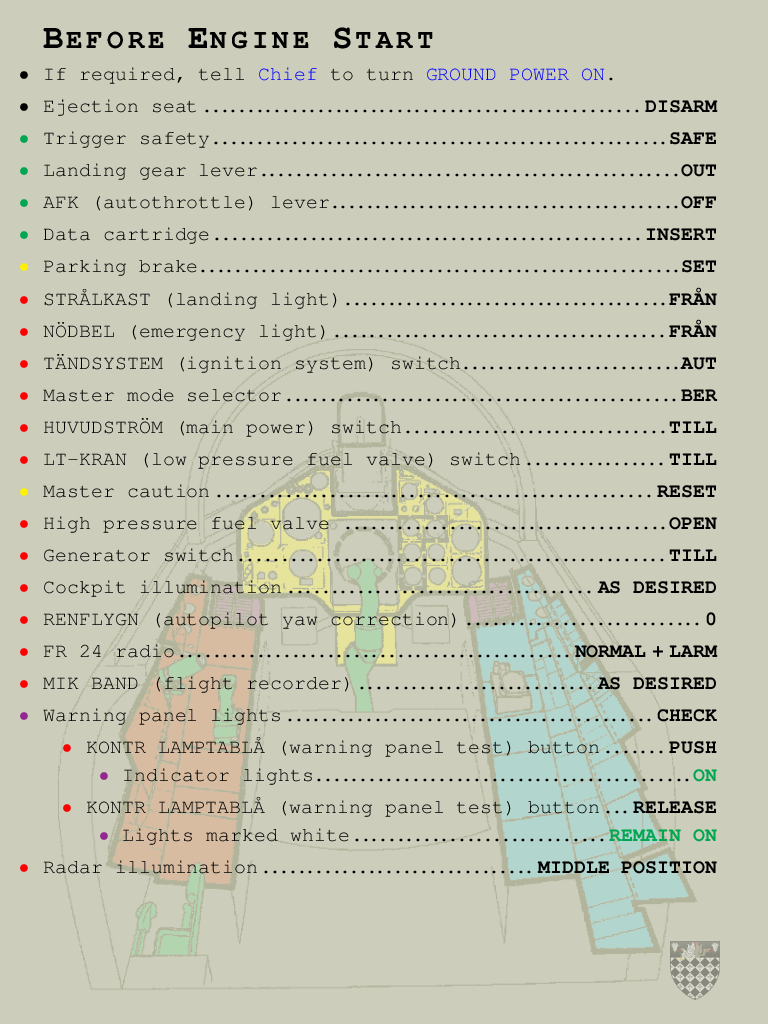

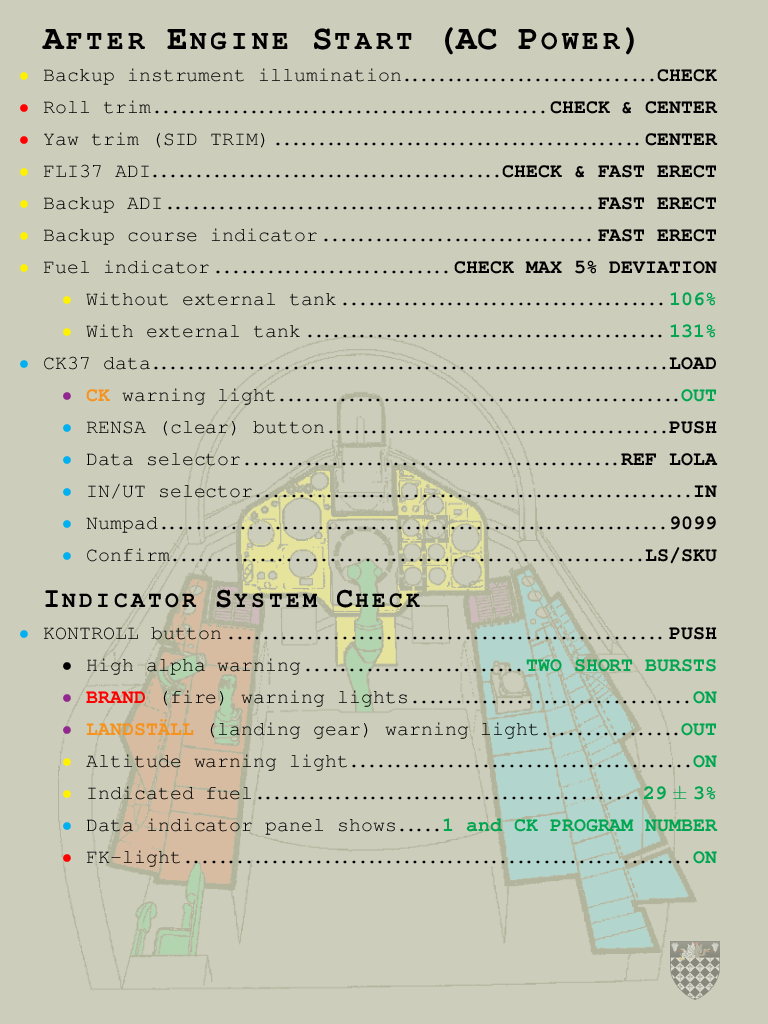

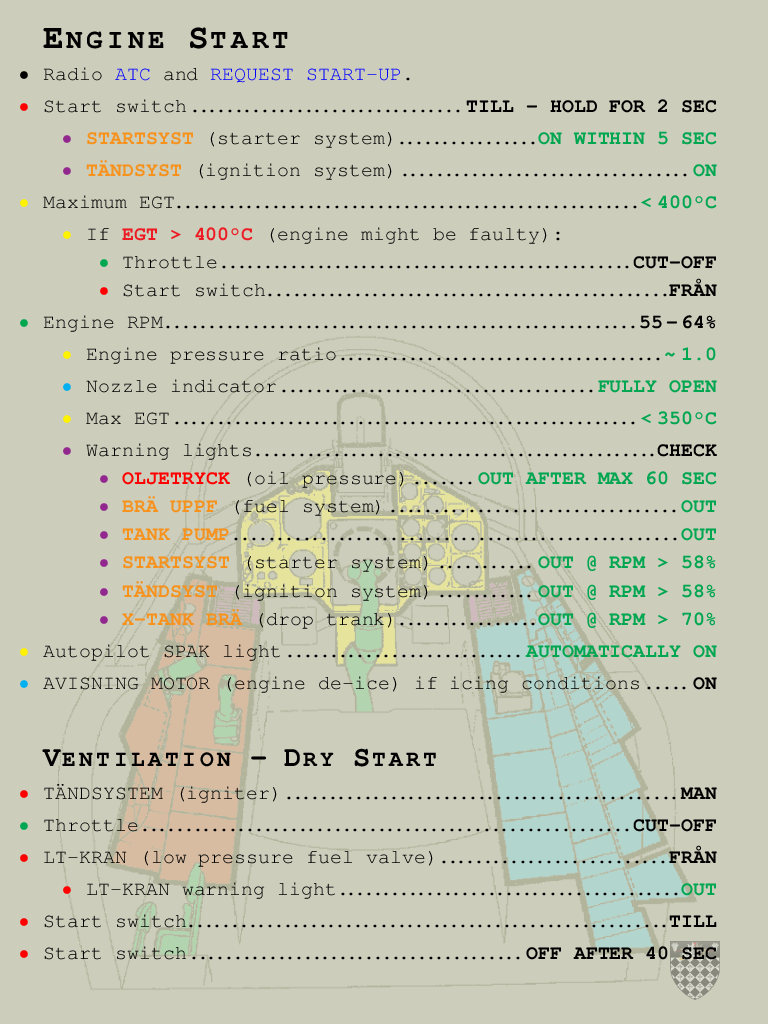

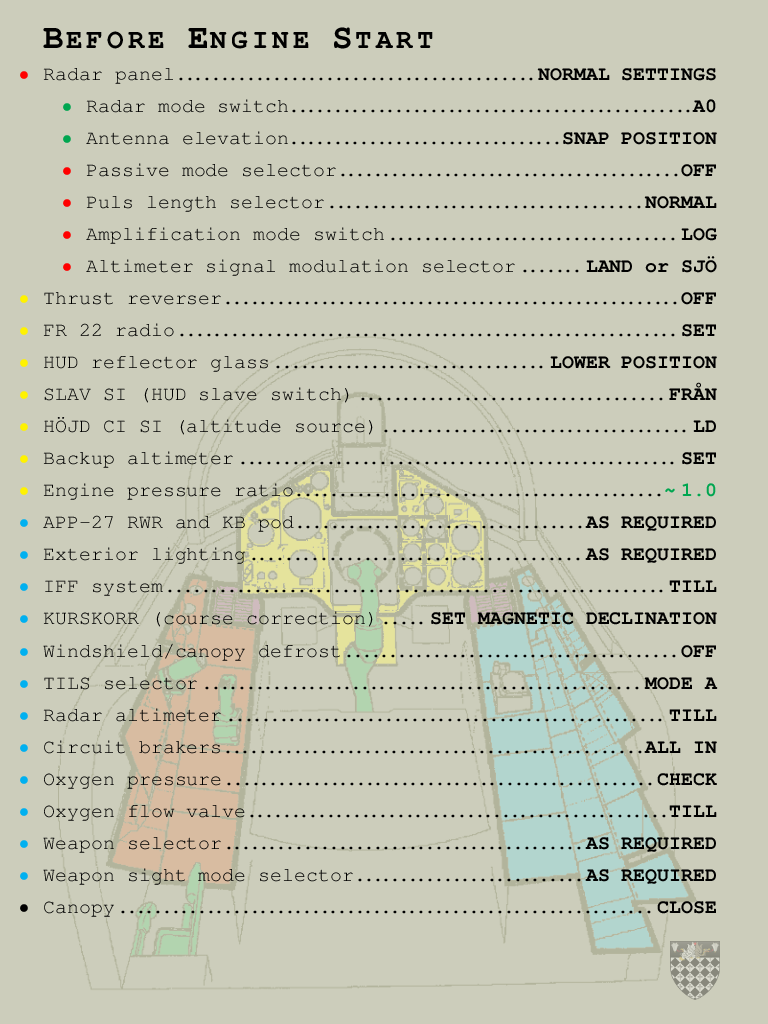

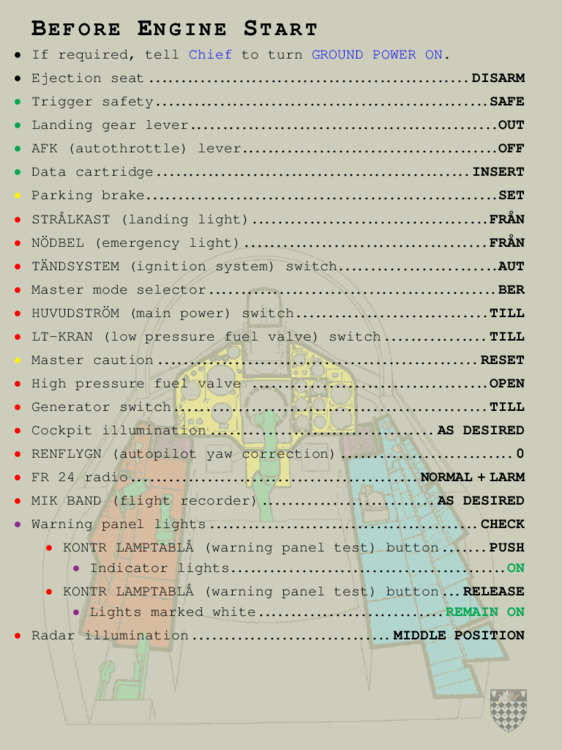

Engine start:

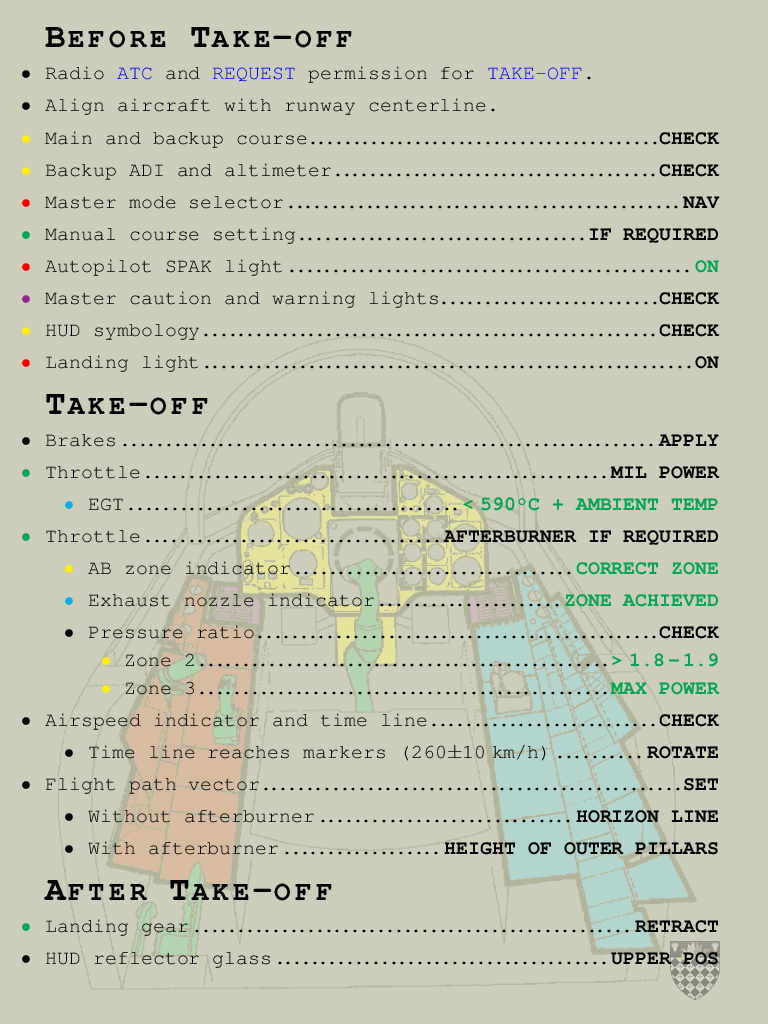

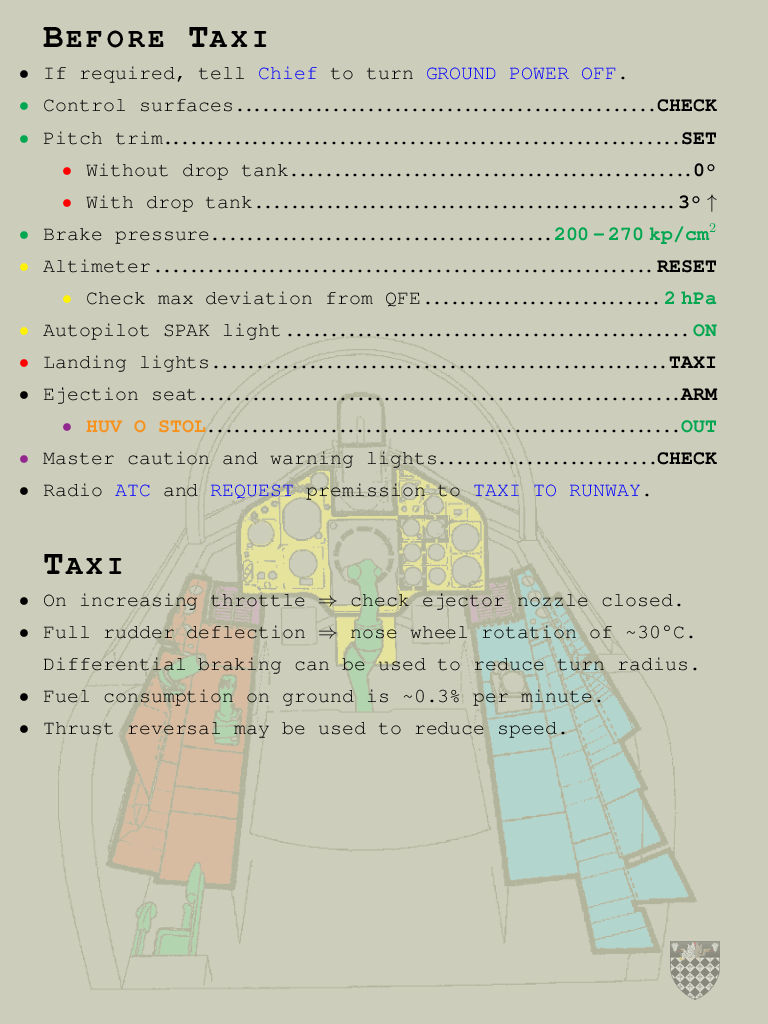

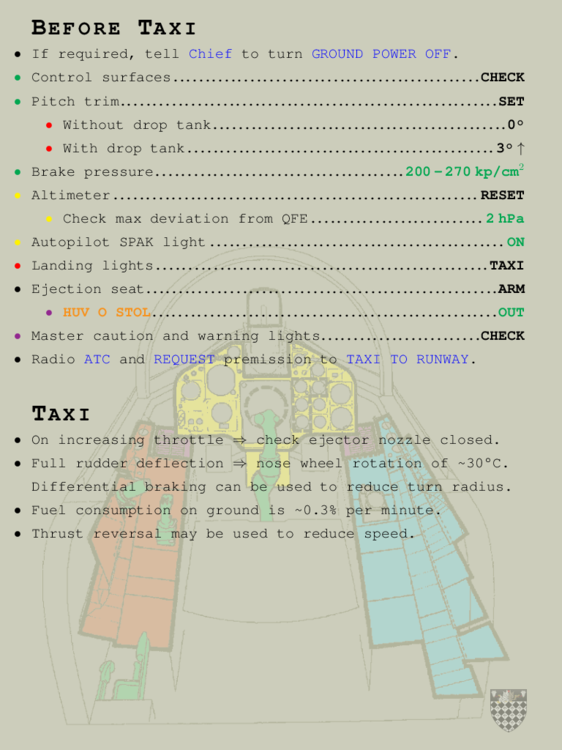

Taxi & Take-Off:

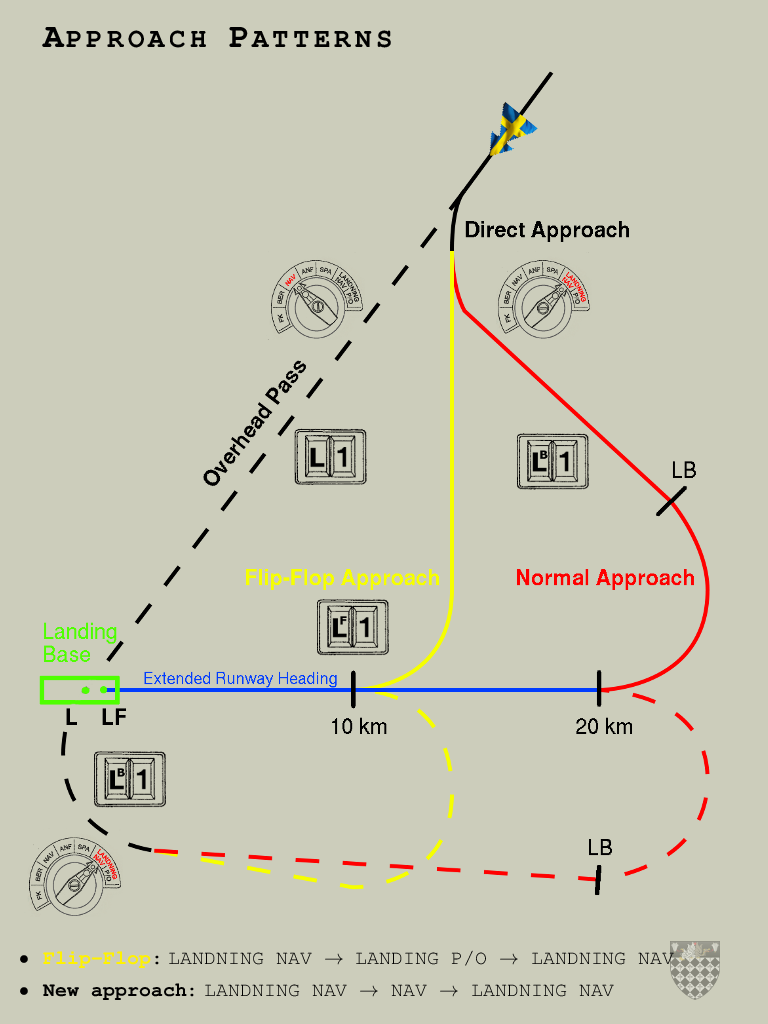

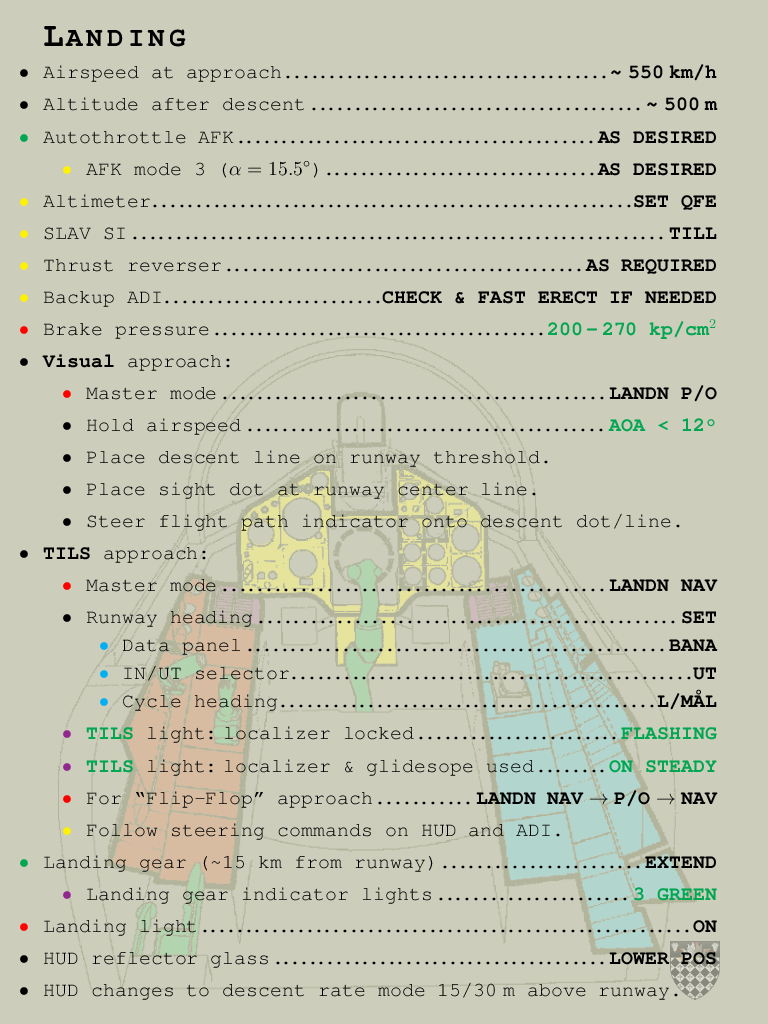

Landing:



Last but not least



Most of the information is based on the beta manual and the current implementation might differ here and there. I reckon both manual and aircraft will converge to the same state eventually.



The attached zip file contains all images as a JSGME/OvGME ready mod using Zabuza's procedure. The pictures will look more worn out in game.



Hope it helps :)



PS: Please let me know, if you spot a mistake (I'm sure there are quite a few) or have suggestions for improvement.
