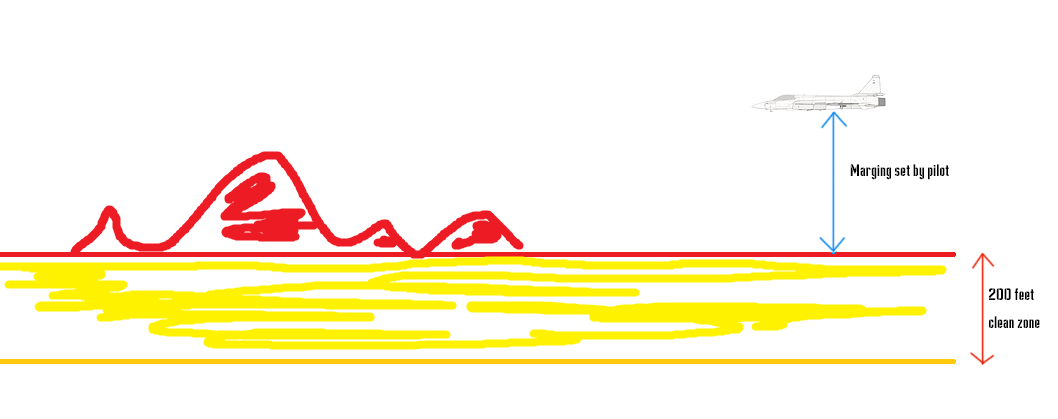

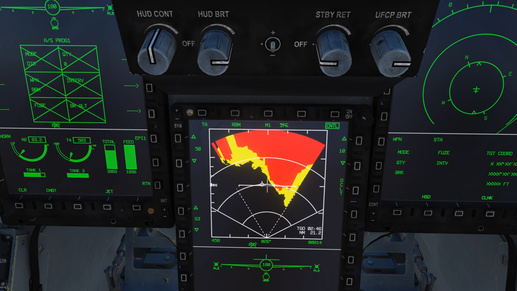

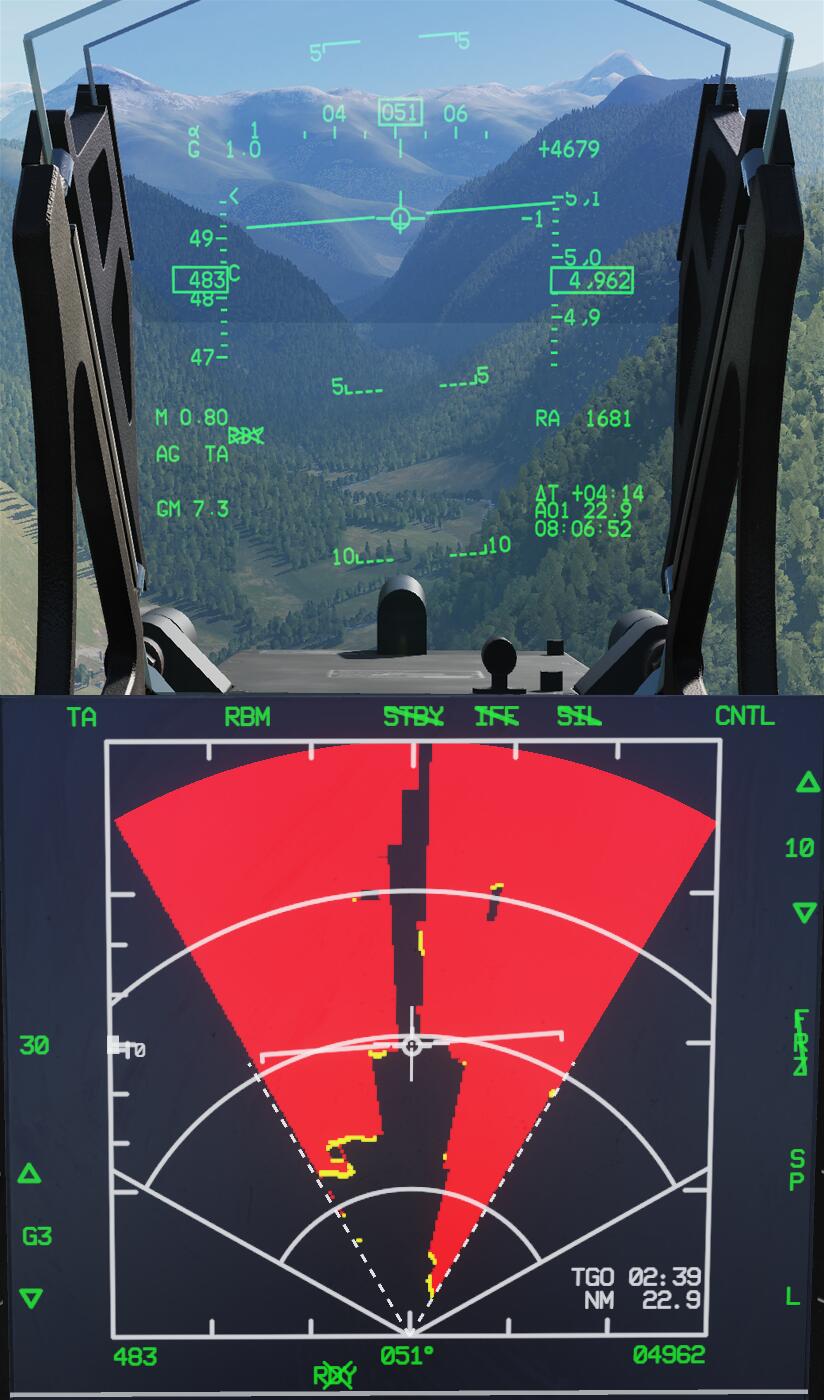

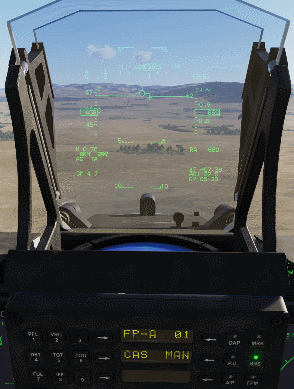

uboats Posted December 23, 2020 Share Posted December 23, 2020 The dev of TA is finished. TA mode defines a clean zone with 200 feet depth. Pilot can set the margin between jf-17 and ceil of clean zone. - Terrain elevation above the ceil of clean zone will be rendered in red, - Yellow if terrain altitude within clean zone. - Nothing will be rendered, if terrain elevation lower than floor of clean zone. All the area behind obstacle that LOS from radar is unavailable will also be rendered in red. 5 [sIGPIC][/sIGPIC] My DCS Mods, Skins, Utilities and Scripts | Windows 10 | i7-4790K | GTX 980Ti Hybrid | 32GB RAM | 3TB SSD | | TM Warthog Stick | CH Pro Throttle + Pro Pedal | TIR5 Pro | TM MFD Cougar | Gun Camera: PrtScn | Link to comment Share on other sites More sharing options...
killkenny1 Posted December 23, 2020 Share Posted December 23, 2020 Can this module get even better? What next, WXR? НЕТ ВОЙНЕ! Gib full-fi Su-27 or MiG-29 plz! AMD R7 3700X|32GB DDR4 RAM|Gigabyte RTX2070S Gaming OC|2TB NVMe SDD + 1TB SSD + 2TBB + 1TB HDD|Dell P3421W|Windows 10 Pro x64 TM Warthog|MFG Crosswind|Samsung Odyssey+|TrackIR 5 Modules: Mirage F1|Mi-24P|JF-17|F/A-18C|F-14A/B|F-5E|M-2000C|MiG-21bis|L-39|Yak-52|FC3|Supercarrier || Terrains: Persian Gulf|NTTR|Normandy|Syria Link to comment Share on other sites More sharing options...
L0op8ack Posted December 23, 2020 Share Posted December 23, 2020 the last radar submode WA, will have to wait new DCS cloud. it works, but not good enough for release. 1 Link to comment Share on other sites More sharing options...
sylkhan Posted December 23, 2020 Share Posted December 23, 2020 50 minutes ago, L0op8ack said: the last radar submode WA, will have to wait new DCS cloud. it works, but not good enough for release. Hello LOop8ack, Will we have EXP (1, 2,3) submodes Thanks Link to comment Share on other sites More sharing options...
sylkhan Posted December 23, 2020 Share Posted December 23, 2020 (edited) Oooh good surprise, with new patch SPI works in AG radar now with EXP DBS submodes, great, Will test it. Many thx Edited December 23, 2020 by sylkhan Link to comment Share on other sites More sharing options...
Skysurfer Posted December 23, 2020 Share Posted December 23, 2020 Nice job guys! This is really interesting and surely a first in DCS. Link to comment Share on other sites More sharing options...
unknown Posted December 23, 2020 Share Posted December 23, 2020 That looks really cool! 18 minutes ago, Skysurfer said: Nice job guys! This is really interesting and surely a first in DCS. Nope, the Viggen radar has this function since EA release. Modules: KA-50, A-10C, FC3, UH-1H, MI-8MTV2, CA, MIG-21bis, FW-190D9, Bf-109K4, F-86F, MIG-15bis, M-2000C, SA342 Gazelle, AJS-37 Viggen, F/A-18C, F-14, C-101, FW-190A8, F-16C, F-5E, JF-17, SC, Mi-24P Hind, AH-64D Apache, Mirage F1, F-4E Phantom II System: Win 11 Pro 64bit, Ryzen 3800X, 32gb RAM DDR4-3200, PowerColor Radeon RX 6900XT Red Devil ,1 x Samsung SSD 970 EVO Plus 2TB NVMe, 2 x Samsung SSD 2TB + 1TB SATA, MFG Crosswind Rudder Pedals - VIRPIL T-50CM and VIRPIL MongoosT-50 Throttle - HP Reverg G2, using only the latest Open Beta, DCS settings Link to comment Share on other sites More sharing options...
Skysurfer Posted December 23, 2020 Share Posted December 23, 2020 1 minute ago, unknown said: That looks really cool! Nope, the Viggen radar has this function since EA release. The Vigges does not have automatic TFR. It will plot you the terrain sure but you still gotta fly manually. Link to comment Share on other sites More sharing options...
unknown Posted December 23, 2020 Share Posted December 23, 2020 4 minutes ago, Skysurfer said: The Vigges does not have automatic TFR. It will plot you the terrain sure but you still gotta fly manually. I interpreted uboats post as that the jeff is getting a terrain avoidence mode for the radar, like in the viggen. I didn't know this is an automatic terrain following mode the jeff is flying automatic? Did i misread something? Modules: KA-50, A-10C, FC3, UH-1H, MI-8MTV2, CA, MIG-21bis, FW-190D9, Bf-109K4, F-86F, MIG-15bis, M-2000C, SA342 Gazelle, AJS-37 Viggen, F/A-18C, F-14, C-101, FW-190A8, F-16C, F-5E, JF-17, SC, Mi-24P Hind, AH-64D Apache, Mirage F1, F-4E Phantom II System: Win 11 Pro 64bit, Ryzen 3800X, 32gb RAM DDR4-3200, PowerColor Radeon RX 6900XT Red Devil ,1 x Samsung SSD 970 EVO Plus 2TB NVMe, 2 x Samsung SSD 2TB + 1TB SATA, MFG Crosswind Rudder Pedals - VIRPIL T-50CM and VIRPIL MongoosT-50 Throttle - HP Reverg G2, using only the latest Open Beta, DCS settings Link to comment Share on other sites More sharing options...
J20Stronk Posted December 23, 2020 Share Posted December 23, 2020 Will you guys be finishing up the AGR in the near future then? I do have a list of bugs and of things to tweak that I've noticed: - S2 left to enter EXP modes does not render anything on the AGR screen. - TDC slew sensitivity in EXP modes is much higher than in MAP modes - TDC designation in EXP is misaligned; it designates as if it were still in the full scale MAP image instead of the EXP'd zone - GMTI and SEA1/2 modes drop lock very easily; most likely I assume A/A Radar notch speed gates are just copied over to A/G Radar. - EXP/DBS image is very grainy/low res compared to F-18, despite having a more modern and similar sized radar. (might be accurate? idk) - No SPI on AGR. Unsure if real one has a SPI on AGR. TDC is used as SPI stand-in but slight, accidental movements when TDC is depressed makes it no longer move with designated point; makes it hard to make out designated point in MAP/EXP. Appreciated the hard work guys! Link to comment Share on other sites More sharing options...
sylkhan Posted December 23, 2020 Share Posted December 23, 2020 22 minutes ago, J20Stronk said: - EXP/DBS image is very grainy/low res compared to F-18, despite having a more modern and similar sized radar. (might be accurate? idk) Yep, think(hope) they are still WIP since the new ED API. Link to comment Share on other sites More sharing options...
uboats Posted December 23, 2020 Author Share Posted December 23, 2020 It's TA mode not TF, so no auto evading [sIGPIC][/sIGPIC] My DCS Mods, Skins, Utilities and Scripts | Windows 10 | i7-4790K | GTX 980Ti Hybrid | 32GB RAM | 3TB SSD | | TM Warthog Stick | CH Pro Throttle + Pro Pedal | TIR5 Pro | TM MFD Cougar | Gun Camera: PrtScn | Link to comment Share on other sites More sharing options...
unknown Posted December 23, 2020 Share Posted December 23, 2020 (edited) 1 hour ago, uboats said: It's TA mode not TF, so no auto evading Thank you for clarification uboats OT Total OT and random but thank you again uboats and each one of the Deka team for all your hard work on this beautiful module! Originally i was not interested in the JF-17 but your YT videos before EA release showed that you put your heart and soul in this module and your sustained work to finish and improve this module is a delight to see! Keep going like you did until now! /OT Edited December 23, 2020 by unknown 1 Modules: KA-50, A-10C, FC3, UH-1H, MI-8MTV2, CA, MIG-21bis, FW-190D9, Bf-109K4, F-86F, MIG-15bis, M-2000C, SA342 Gazelle, AJS-37 Viggen, F/A-18C, F-14, C-101, FW-190A8, F-16C, F-5E, JF-17, SC, Mi-24P Hind, AH-64D Apache, Mirage F1, F-4E Phantom II System: Win 11 Pro 64bit, Ryzen 3800X, 32gb RAM DDR4-3200, PowerColor Radeon RX 6900XT Red Devil ,1 x Samsung SSD 970 EVO Plus 2TB NVMe, 2 x Samsung SSD 2TB + 1TB SATA, MFG Crosswind Rudder Pedals - VIRPIL T-50CM and VIRPIL MongoosT-50 Throttle - HP Reverg G2, using only the latest Open Beta, DCS settings Link to comment Share on other sites More sharing options...
Rhinozherous Posted December 27, 2020 Share Posted December 27, 2020 It is such a well made aircraft (the real one and Dekas) Thank you! i7-14700KF 5.6GHz Water Cooled /// ZOTAC RTX 4070 TI Super 16GB /// 32GB RAM DDR5 /// Win11 /// SSDs only DCS - XP12 - MSFS2020 Link to comment Share on other sites More sharing options...
AeriaGloria Posted January 28, 2021 Share Posted January 28, 2021 Works really well. Can’t wait to fly that campaign misssion that requires low flight. It’s quite a treat to watch it work Black Shark Den Squadron Member: We are open to new recruits, click here to check us out or apply to join! https://blacksharkden.com Link to comment Share on other sites More sharing options...
Jerec Posted January 28, 2021 Share Posted January 28, 2021 Do I have to press a button to activate TA on UFC or console? The TA screen stays black. Link to comment Share on other sites More sharing options...
ivo Posted January 28, 2021 Share Posted January 28, 2021 how I can enable the TA radar ground mode? cpu:I7-6700k Z170 16GB Ram DDR4 Gtx 1080 8Gb DDR5 11GBs SSD 500 Gb 2 HDD 1Tb Evga supernova G2 850w Case Bequiet series 800 Silent base Win 10 pro 64 bit My wishlist: F-35/B-17G/F4U Corsair/Yak-3/P-40B Tomahawk Link to comment Share on other sites More sharing options...
razo+r Posted January 28, 2021 Share Posted January 28, 2021 10 minutes ago, ivo said: how I can enable the TA radar ground mode? Change the radar mode by clicking on the button next to the active radar mode. Link to comment Share on other sites More sharing options...
ivo Posted January 28, 2021 Share Posted January 28, 2021 30 minutes ago, razo+r said: Change the radar mode by clicking on the button next to the active radar mode. Thank cpu:I7-6700k Z170 16GB Ram DDR4 Gtx 1080 8Gb DDR5 11GBs SSD 500 Gb 2 HDD 1Tb Evga supernova G2 850w Case Bequiet series 800 Silent base Win 10 pro 64 bit My wishlist: F-35/B-17G/F4U Corsair/Yak-3/P-40B Tomahawk Link to comment Share on other sites More sharing options...
uboats Posted January 28, 2021 Author Share Posted January 28, 2021 10 hours ago, AeriaGloria said: Works really well. Can’t wait to fly that campaign misssion that requires low flight. It’s quite a treat to watch it work Single mission "surprise" also has low flight in valley with bad weather [sIGPIC][/sIGPIC] My DCS Mods, Skins, Utilities and Scripts | Windows 10 | i7-4790K | GTX 980Ti Hybrid | 32GB RAM | 3TB SSD | | TM Warthog Stick | CH Pro Throttle + Pro Pedal | TIR5 Pro | TM MFD Cougar | Gun Camera: PrtScn | Link to comment Share on other sites More sharing options...
ivo Posted January 28, 2021 Share Posted January 28, 2021 3 hours ago, uboats said: Single mission "surprise" also has low flight in valley with bad weather First of all the yf17 is my favorite fighter very well done. The TA radar ground mode how its works, and what are the right set up its is very slow to show the red and jellow terrain. Explain me plesse. Bye cpu:I7-6700k Z170 16GB Ram DDR4 Gtx 1080 8Gb DDR5 11GBs SSD 500 Gb 2 HDD 1Tb Evga supernova G2 850w Case Bequiet series 800 Silent base Win 10 pro 64 bit My wishlist: F-35/B-17G/F4U Corsair/Yak-3/P-40B Tomahawk Link to comment Share on other sites More sharing options...
AeriaGloria Posted January 29, 2021 Share Posted January 29, 2021 Here is how I interpret it using the information in the first post, but please correct me if I’m wrong. Anything clear is is an area you can fly through and have more then 200 feet clearance between you and the ground. Yellow is anywhere where if you fly straight and level you will be within 200 feet or less of the ground. And the red is anywhere above that that you may crash into if you continue to fly straight and level. The margin set by pilot referenced in the first post is just the altitude you choose to fly at, there is nothing in the MFDs that you can adjust other then azimuth, gain and freezing the picture as far as I can tell. I think you can also relate the colors to the general display colors, yellow being an “advisory” or “caution” color and red being for “danger.” please correct me if that’s wrong Uboats, but that’s what I can tell atleast. if the scan time is too slow, you can reduce azimuth from 30 to 15 degrees and you will get half the response time for less side coverage. But also remember that it is stabilized and looks straight ahead expecting you to fly straight and level, so diving or climbing won’t help you much or work quite so well. When you pitch more then thirty degrees it’ll always be looking +/- 30 degrees from your nose trying to look level and not boresight, so the more level you fly the better it works. I also find in my time it doesn’t do much if flying at Viggen height, once your below 200 feet pretty much everything is red and it won’t really help you. Happy flying:) Black Shark Den Squadron Member: We are open to new recruits, click here to check us out or apply to join! https://blacksharkden.com Link to comment Share on other sites More sharing options...
ivo Posted January 29, 2021 Share Posted January 29, 2021 Thank, AeriaGloria I will try to do practice. cpu:I7-6700k Z170 16GB Ram DDR4 Gtx 1080 8Gb DDR5 11GBs SSD 500 Gb 2 HDD 1Tb Evga supernova G2 850w Case Bequiet series 800 Silent base Win 10 pro 64 bit My wishlist: F-35/B-17G/F4U Corsair/Yak-3/P-40B Tomahawk Link to comment Share on other sites More sharing options...
ivo Posted January 29, 2021 Share Posted January 29, 2021 (edited) In the first post there is an image wirh " margin set by pilot" what its mean ? And how I can set the margin? Edited January 29, 2021 by ivo cpu:I7-6700k Z170 16GB Ram DDR4 Gtx 1080 8Gb DDR5 11GBs SSD 500 Gb 2 HDD 1Tb Evga supernova G2 850w Case Bequiet series 800 Silent base Win 10 pro 64 bit My wishlist: F-35/B-17G/F4U Corsair/Yak-3/P-40B Tomahawk Link to comment Share on other sites More sharing options...
unknown Posted January 29, 2021 Share Posted January 29, 2021 12 hours ago, AeriaGloria said: The margin set by pilot referenced in the first post is just the altitude you choose to fly at, there is nothing in the MFDs that you can adjust other then azimuth, gain and freezing the picture as far as I can tell. 5 hours ago, ivo said: In the first post there is an image wirh " margin set by pilot" what its mean ? And how I can set the margin? There is a "CNTRL" option OSB button, there you can set the "margin set by pilot" Attached is a quick and dirty picture how i understand TA mode: - the 200ft "clean zone" is always there(from your plane downwards ) -> if the radar detects ground in that zone it will be rendered yellow on the radar -> if the radar detects that the ground extends above that 200ft zone it will be rendered red - with the "margin set by pilot" you can "push" that "200ft zone" down between 0ft - 300ft for extra safety margin -> if you want for example atleast 50ft clearance to the ground you set the pilot margin to 50ft I hope the quick paint picture is more understandable as my words above, also i attached a YT video(should be 1440p after YT processing) showing the "pilot margin" setting, you can see that setting also in the OP post by uboats. I also used 2 pictures from uboats for my picture, if there is a problem with that by uboats/Deka or if my understanding/explanation of the TA mode is wrong please let me know and i will remove it. Also i had no time to check the TA mode, i literally only spend 2 minutes in DCS to test it, short of time right now. 1 3 Modules: KA-50, A-10C, FC3, UH-1H, MI-8MTV2, CA, MIG-21bis, FW-190D9, Bf-109K4, F-86F, MIG-15bis, M-2000C, SA342 Gazelle, AJS-37 Viggen, F/A-18C, F-14, C-101, FW-190A8, F-16C, F-5E, JF-17, SC, Mi-24P Hind, AH-64D Apache, Mirage F1, F-4E Phantom II System: Win 11 Pro 64bit, Ryzen 3800X, 32gb RAM DDR4-3200, PowerColor Radeon RX 6900XT Red Devil ,1 x Samsung SSD 970 EVO Plus 2TB NVMe, 2 x Samsung SSD 2TB + 1TB SATA, MFG Crosswind Rudder Pedals - VIRPIL T-50CM and VIRPIL MongoosT-50 Throttle - HP Reverg G2, using only the latest Open Beta, DCS settings Link to comment Share on other sites More sharing options...
