Help with F16 ILS

[westr]

Hi could someone help with the ILS on the F16



I've followed tutorials to the letter ensuring the frequencies are set on the DED TACAN and ILS both set ON T/R Tacan On for ILS. Set PLS/TCN on HSI set my course, the needles show but are off and seemed locked like they would be on the A10 if you don't uncage the HSI, It seems like that's the case because their is a red marker on the HSI and two red markers on my artificial horizon.

Could someone explain where i'm going wrong?



Edit: I've worked out that it seems like when I set the TACAN channel first it was stopping the ILS signal and I was not getting the ILS signal.

I set ILS to On without setting TACAN then got an ILS morse code which I couldn't get before, then I was able to get everything working. I could then set my TACAN channel without it interfering with the ILS. Strange, but I've worked it out.

Edited February 13, 2021 by westr

[Florence201]

You can have either TACAN needles or ILS needles. If you fly the approach as per the plate, you won’t get ILS localiser until approximately 12nm, then glide path activates at around 8nm.


use TACAN to get to within 12nm then switch to ILS localiser

[ruddy122]

Like Florence201 said the ILS will uncage.



Couple of tips from an old KC-10 driver that likes flying the Viper in DCS



1) The DCS:Vipers HUD is in True or I can't find the button to switch to MAG, the reason I say this is if you put RWY Heading without MAG Deviation you know that the ILS should be aligned to runway heading

2) Make sure the ILS works for that runway, a lot of terrains give you ILS course and frequency but it doesn't work yet maybe in the future

3) Give yourself room to stop. The Viper is one of the Trickiest planes to land.  It's not impossible but you need to bring your A-Game till the Viper stops completely.  Narrow wheel base, little speedbrakes, and wheel brakes that are best used for taxiing than landing rollout

[SpaceMonkey037]

23 minutes ago, ruddy122 said:

1) The DCS:Vipers HUD is in True or I can't find the button to switch to MAG, the reason I say this is if you put RWY Heading without MAG Deviation you know that the ILS should be aligned to runway heading

This is not true. The heading you enter into the ILS page is not used for regular ILS approaches and does not need to be entered. It is used for a special ILS approach mode that is not currently implemented.

[Florence201]

6 hours ago, SpaceMonkey037 said:

This is not true. The heading you enter into the ILS page is not used for regular ILS approaches and does not need to be entered. It is used for a special ILS approach mode that is not currently implemented.

You need to enter the ILS heading for command steering bars/bug to show you L/R deviation from course. Without a heading, reference you’ll not get correct information

[SpaceMonkey037]

2 hours ago, Florence201 said:

You need to enter the ILS heading for command steering bars/bug to show you L/R deviation from course. Without a heading, reference you’ll not get correct information

True, if you don't enter an course you will not be able to use the command steering cue, and you will not be able to use the HSI in a standard way, however it has no effect on the actual glideslope nor the localize meaning that if you're not interested in using the HSI nor the command steering cue there is no reason to enter the course. The ADI will function equally with or without the course.

[westr]

ok so I can get this to work on the PG map but not on Caucasus? really confusing. I've tried Kolki, ensured wind direction is facing me so ATC tells me to land on runway 9. Tune ILS to 108.90 flying all the way to the runway but get no ILS signal? Tacan works fine.

[VampireNZ]

Check the airfield on F10 map, no all runways have ILS.

[westr]

Kolkhi does on runway 09, well according to F10 map it does. Same thing on Kobuleti 07. I have Caucasus textures mod installed I wonder i this is effecting things?

Edited February 15, 2021 by westr

[drPhibes]

There's a bug in the active runway logic, so the ILS isn't synchronized with the active runway given by ATC at low wind speeds. Set up a headwind of ~7kts and see if that helps.

[Steelpanther]

im having big trouble also intercepting and maintaining the localizer mainly and glide slope in Al Dafra Persian Gulf. I've been practising ILS in visual conditions just to be sure. I inputted the correct rwy 13 ILS into freq in T-ILS. I even asked Al Dafra ATC where to land, he said rw 13. (this could be good or bad because theres left and right thirteen actually there) Ok, so then I turn back north towards the coast and use TACAN to lineup with airbase for a straight in landing. Then I change the EHSI into PLS TACN mode for intercepting the localizer. Im on perfect approach to one of the runways 13 (there left). I intercept localizer but not yet glide slope. Then the localizer just goes crazy on approach basically.

Edited February 16, 2021 by Steelpanther

[=52d= Skip]

9 hours ago, westr said:

ok so I can get this to work on the PG map but not on Caucasus? really confusing. I've tried Kolki, ensured wind direction is facing me so ATC tells me to land on runway 9. Tune ILS to 108.90 flying all the way to the runway but get no ILS signal? Tacan works fine.

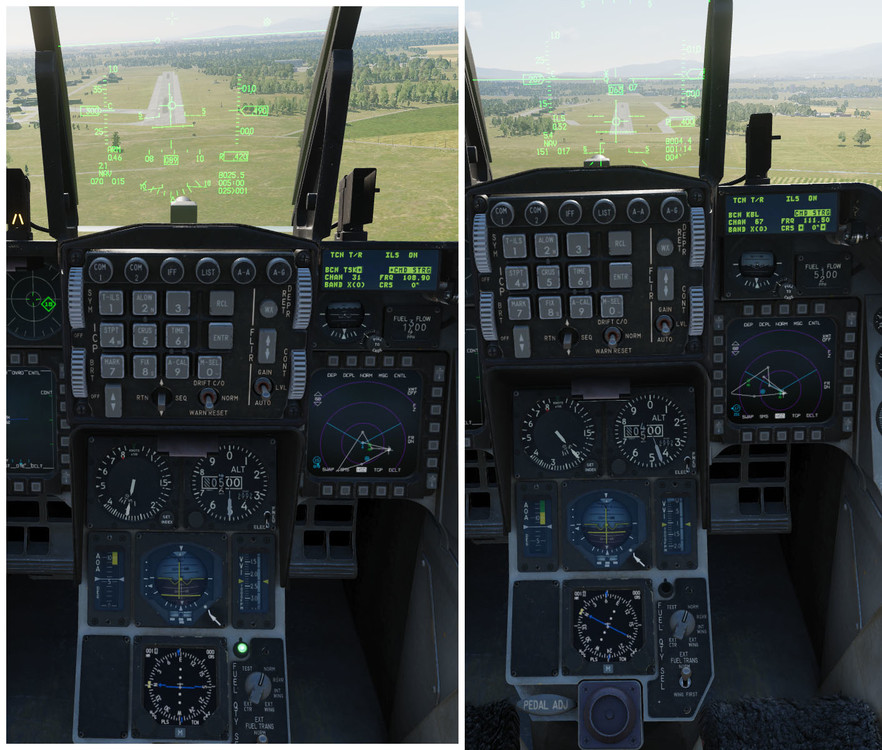

Both worked forme just now. Make sure ILS is on and the HSI set to PLS/ TCN.



Pix where taken on OB, Airstart and default Weather/ no Wind.

[Steelpanther]

im gonna try it on PG map also again. I think the mission editor should show the ILS approaches and frequencies there at least. Im not sure if those show on f10 map once youre in the actual mission- I think Al Dafra has the problem that theres two runways 13 L and 13 R and only one ILS frequency shows for one of these on the F10 map ingame. Not sure if this is supposed to be this way. I just made a custom mission for myself on PG and it only shows one ILS for rw13

Edited February 16, 2021 by Steelpanther

[westr]

9 hours ago, =52d= Skip said:



Both worked forme just now. Make sure ILS is on and the HSI set to PLS/ TCN.



Pix where taken on OB, Airstart and default Weather/ no Wind.

Yes definitely had ILS on. I turned the rotation switch fully to the left to confirm it actually switched off then turned it back the other way and can see it’s on on the ded, yes also have PLS/TCN mode on. Like I say I can get it working on the PG map. I will try uninstalling the Caucasus textures mod this evening and see if that fixes anything, can’t see how that would be effecting ILS but you never know. A repair might be needed as well.

[drPhibes]

Have you checked the wind settings in the mission editor?

[westr]

yeah just done a couple of tests can confirm that its the wind that's causing it not to work, is this a known issue? Just seen your earlier post so inputting a head wind 7 or higher might be a workaround?



Well done drPhibes, set a headwind speed of 8kts and ILS works thanks.

Edited February 16, 2021 by westr

[Davee]

9 minutes ago, westr said:

yeah just done a couple of tests can confirm that its the wind that's causing it not to work, is this a known issue? Just seen your earlier post so inputting a head wind 7 or higher might be a workaround?



Yes, a known issue for some time. Hope they fix this soon.

[Jef Costello]

14 hours ago, Catseye said:

Yes, a known issue for some time. Hope they fix this soon.

For years now! A very old bug.

[mad.mad.mad]

On 2/16/2021 at 12:54 PM, Davee said:

Yes, a known issue for some time. Hope they fix this soon.



On 2/17/2021 at 3:09 AM, Jef Costello said:

For years now! A very old bug.

On 2/17/2021 at 3:09 AM, Jef Costello said:

For years now! A very old bug.

I've been trying to learn the F-16 recently. I just spent 2 hours trying to figure out what I was doing wrong with the ILS system and why I couldn't manage to set up such a ridiculously simple task.



It's frustrating the amount of bugs that have been know for years in DCS but never fixed. None of the videos I watched or documents I read mentioned this bug.



ILS approaches are such a core fundamental of flight, especially in the military application. I feel like this bug should be a high priority.

[macedk]

This post is old and many patches ago. Last post from OP is from a year ago. Op might have fixed it and not posted

[BIGNEWY]

Hi, not seeing any issues here please attach a short track replay and we can take a look

thanks

[macedk]

23 hours ago, BIGNEWY said:

Hi, not seeing any issues here please attach a short track replay and we can take a look

thanks

Hey BN, Looks like an very old thread :). Since OP has not reacted, it might not be an issue anymore

[BIGNEWY]

understood,

I will lock the thread so there is no confusion.

If you do have an issue please make a new thread with a track replay

thanks
