AH-64 TEDAC unit built

[Alphamike7]

Hello to all, i will here share my work on TEDAC display unit. I am quite in project now, making prototypes, electronics...etc

But first i would like, if it is posible, to get in touch with awesome guy who created tedac unit for ah64 DCS module

Cheers to you all

[kirrasdad]

Looks awesome. All 3D printed?

[KeyCat]

Very impressive model!

[hannibal]

mfd frame looks good.

how ever your grip dont look doable.. the area housing the trigger and the cursor select is small, not enough to house the cursor select button, the trigger, and wiring between the top assembly and bottom grip.. in long run, it might not be durable, as in the bottom of the grip could snap off the top section of the grip

make the area between it thicker



Edited April 11, 2022 by hannibal

[Alphamike7]

Well, i already made all of electronics, and grip is done. I am not 100% happy with the grip design, BUT it will have to do for now, until i manage to make something more realistic. However all functions are the same as on real grip, overall dimensions are quite right.

If anyone has better model of grips, we can talk in pm

[badlands122]

VERY IMPRESSIVE!!!!

[Lt_Jaeger]

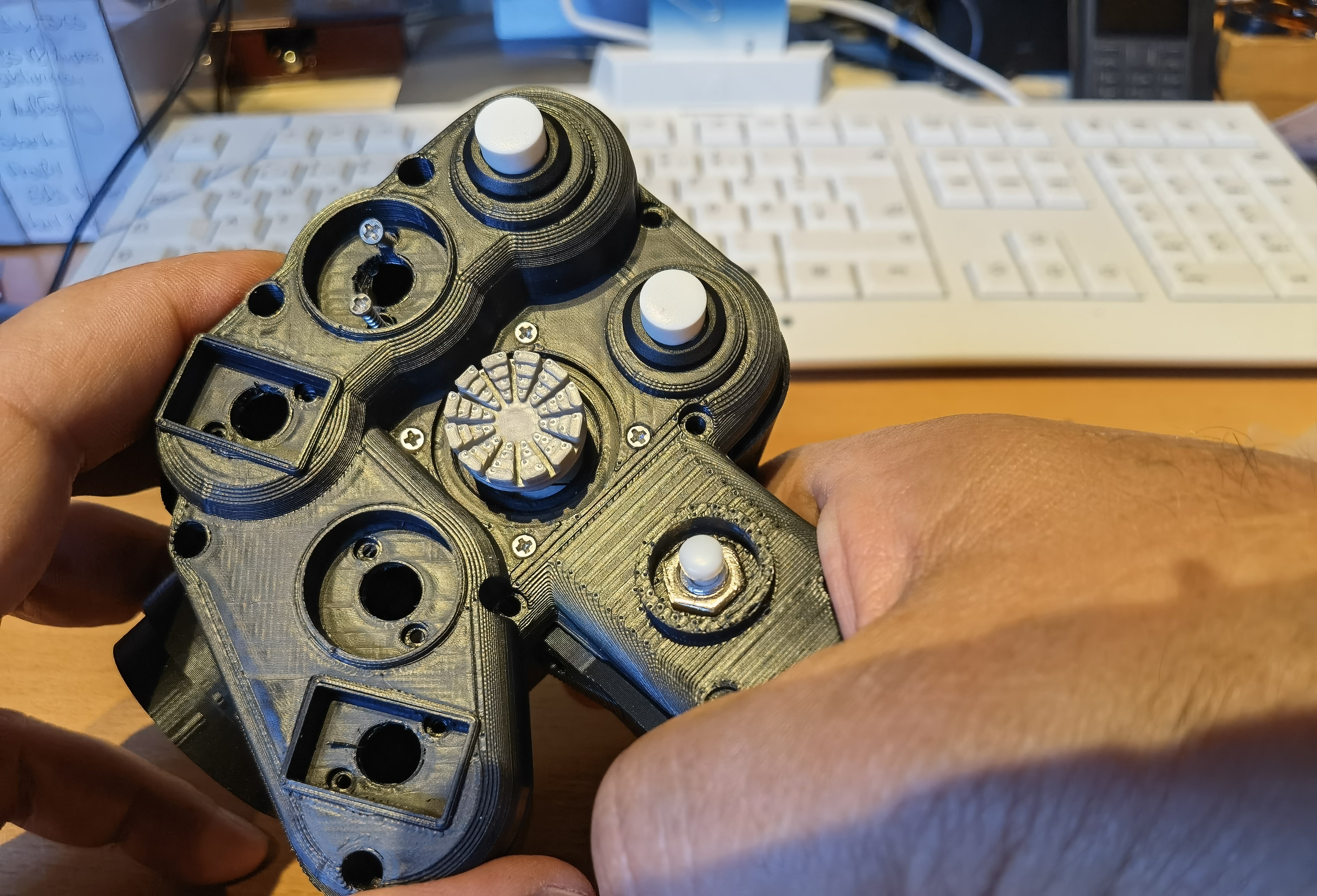

One step closer, finished to integrate the PS4 ministick.

Since the files for the grip are available on thingyverse, I thought it would be a quick one, man was I wrong.

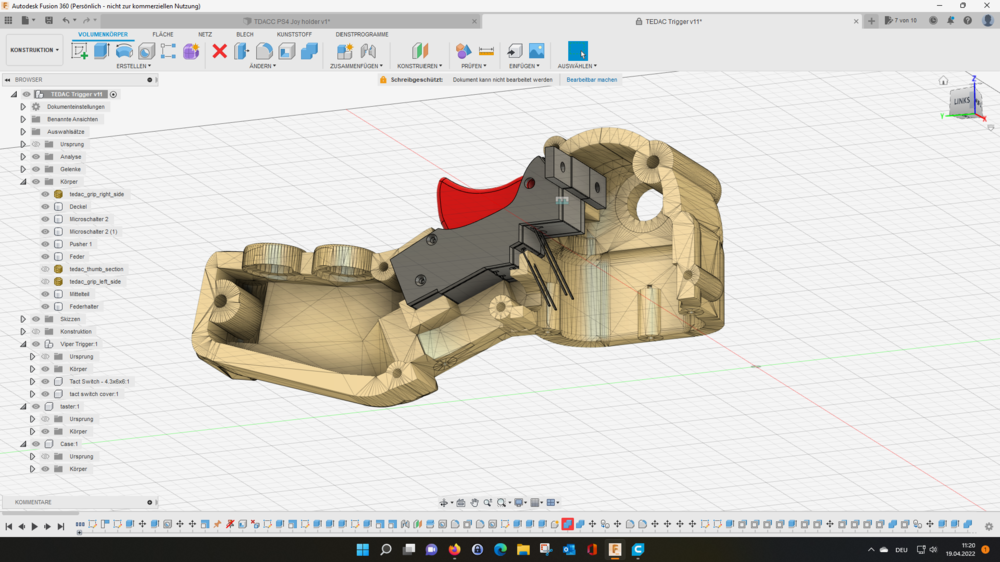

Trigger and that thing took a while, since I'm not very professional with Fusion360, or with CAD in general. Mostly trial and error, and that's how it will continue.

[amets]

En 2/4/2022 a las 16:18, Alphamike7 dijo:

Hello to all, i will here share my work on TEDAC display unit. I am quite in project now, making prototypes, electronics...etc

But first i would like, if it is posible, to get in touch with awesome guy who created tedac unit for ah64 DCS module

Cheers to you all

Hello,

I'm interested in your TEDAC model, your model is incredible, can you share STL files?



[Purzel]

Very impressive....!!!!

Do you want to use own buttons/switches/hats or do you consider to us X-Box-Controllers (or similar devices).
If someone would get one or two X-Box-Controller(s) -> windows compatible!) opened and extract all the switchable-stuff would be a huge advantage.

@Alphamike7: Would you please share you STLs?

[Hammer1-1]

man if you're willing to build and sell, Ill be happy to be your first customer!

[Nevyn]

5 minutes ago, Hammer1-1 said:

man if you're willing to build and sell, Ill be happy to be your first customer!

I will duel you for that honour.

[markturner1960]

On 4/19/2022 at 10:41 PM, Lt_Jaeger said:

One step closer, finished to integrate the PS4 ministick.

Since the files for the grip are available on thingyverse, I thought it would be a quick one, man was I wrong.

Trigger and that thing took a while, since I'm not very professional with Fusion360, or with CAD in general. Mostly trial and error, and that's how it will continue.

Damn Jaeger, you got some skills going on there buddy!!

[Lt_Jaeger]

4 hours ago, ApacheLongbow said:

I'm very interested in starting in 3d printing, but am a little reluctant concerning costs. I still haven't recovered from the economical impact of the pandemic.

How much does a print like this usually cost, including tests and prototyping? What printer do you have?

Cheers



Gees, that is hard to tell.



Let's start with the fixed costs, the printer.

I got the artillery Sidewinder 2, which is rather big for these kinds of work, but, as also a total 3d printing noob, YouTube brought me to the understanding that this thing is idiot-proof. It isn't, of course, but after some testing and stuff, I could get some decent results. Don't get the idea though that you will come up with commercial grade results, but since I fly in VR, I don't care much about appearance.



I paid around 370€, but I believe there are cheaper ones around which produce the same results.



Software:

Free

I use Fusion360 and Cura which are both free. For Fusion, I would wish for the professional features, but I won't pay a couple of hundred € per year, so I get along fine so far, especially since I got no idea of CAD constructing



Filament.



The most filament I waste on printing prototypes like caps and stuff. These don't need much material, so it's in the lower cent area. I believe the grips will do fine with one roll (20 - 30€)of black, and then I have the gray for the knobs and stuff.

Let's say you need 2 rolls, make it 3 for the frame still to be constructed, with being able to print all the knobs as well if you don't care for appearance.



Electronics.

I will do a simple st32 board to emulate a joystick device, so no DCS BIOS and stuff. These things are cheap (~3€) + let's say 30€ for switches and stuff,

I order all my stuff in China, which takes forever but get you better prices. Like, I did order a bag with 400 tactile pushbuttons, which hopefully last me forever.

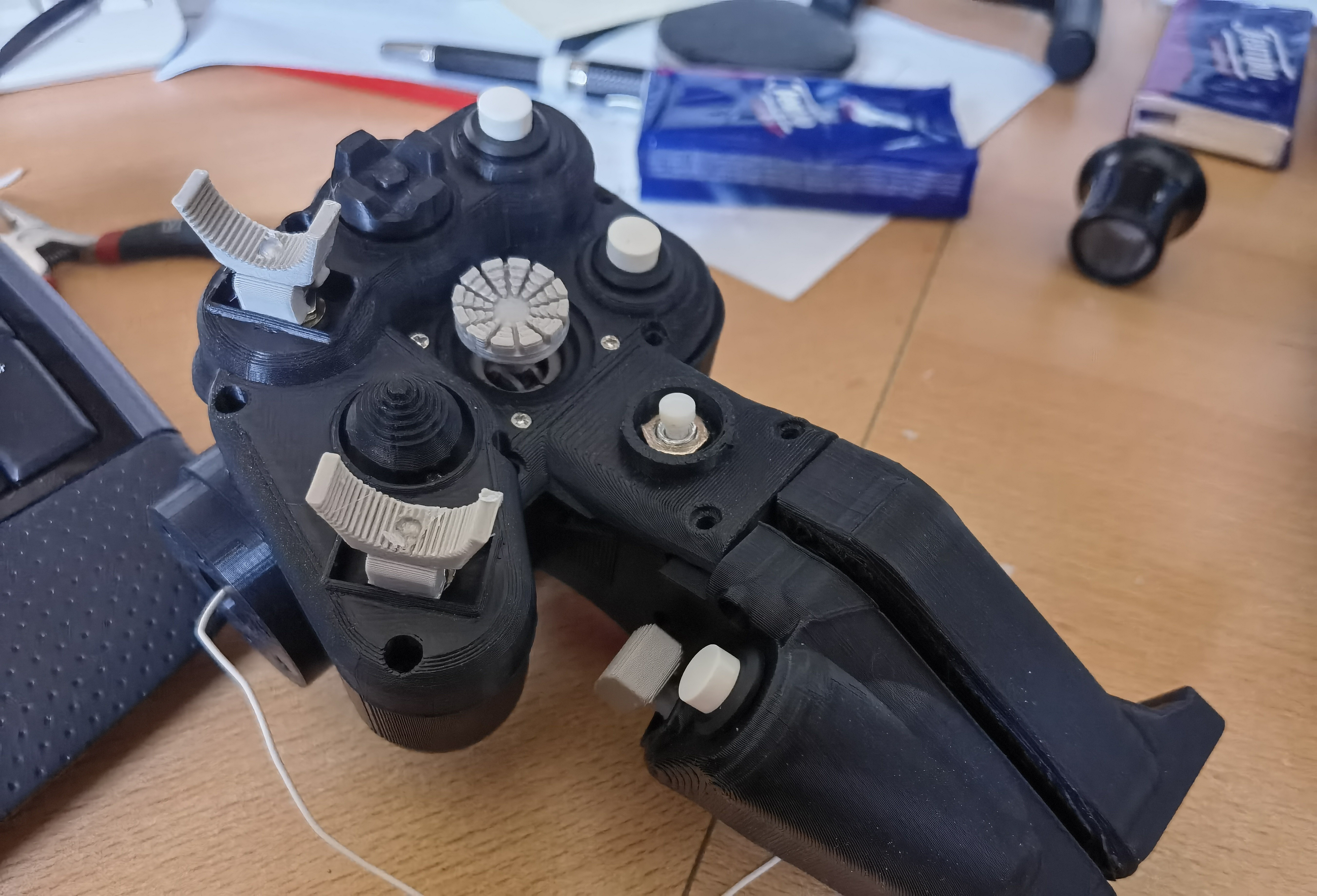

All this yields to something like that





Not very professional, but it will do the Job, I hope. AND you get a hobby in a hobby. Did so much stuff already around the house with that printer, I cannot imagine how it was without one.







Edited April 23, 2022 by Lt_Jaeger

[Lt_Jaeger]

Not sure if I gonna do a collective.

I'm more of a jet guy. This project is more born out of the "hobby in the hobby" thing and due to the fact, that I did not found a good way to operate the CPG station in VR, while the pilot office is kinda easy to operate with my throttle and stick + PointCTRL.

Edited April 23, 2022 by Lt_Jaeger

[cgjimeneza]

On 4/23/2022 at 1:57 AM, ApacheLongbow said:

I'm very interested in starting in 3d printing, but am a little reluctant concerning costs. I still haven't recovered from the economical impact of the pandemic.

How much does a print like this usually cost, including tests and prototyping? What printer do you have?

Cheers



the thing to consider also is electronics, you might have to spend some time looking for th switches/buttons et al that will fit the printed grips...  or else, dive into 3d draftign, and modify the internal cavities to accept the ones that you did find





[Lt_Jaeger]

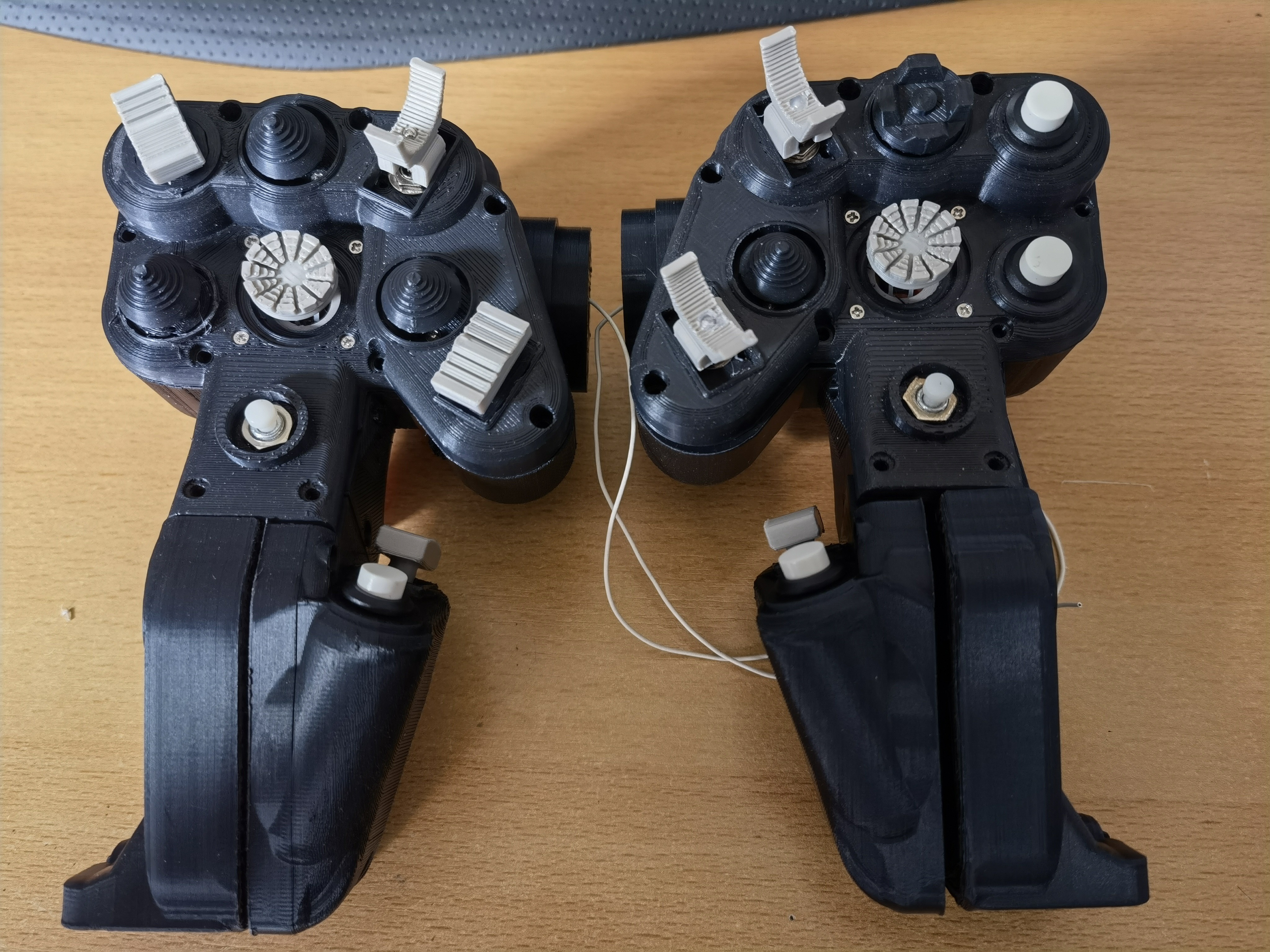

That was "easy"





...now on to the hard part...mounting that stuff somewhere.

[kotti]

Very nice!

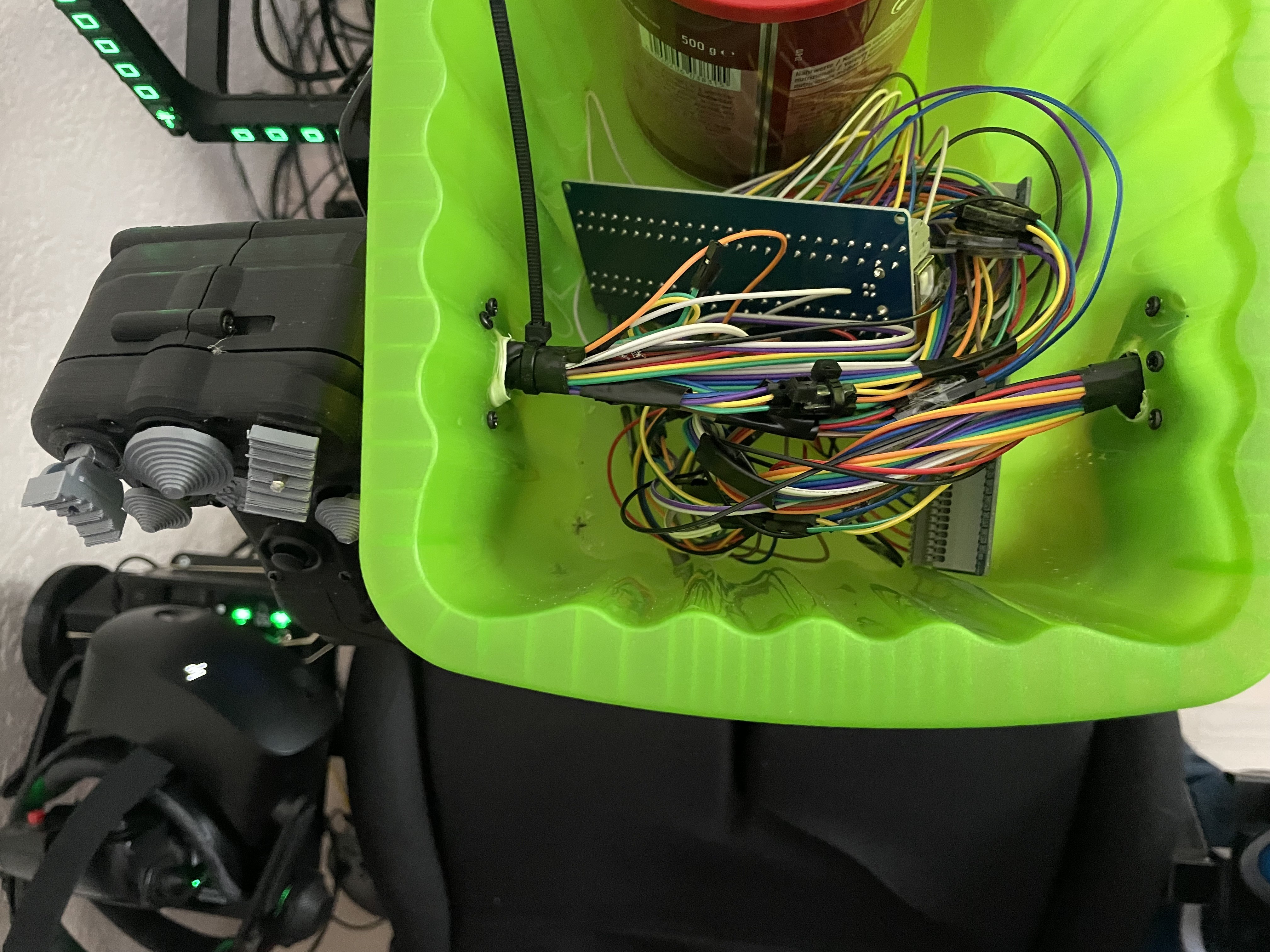

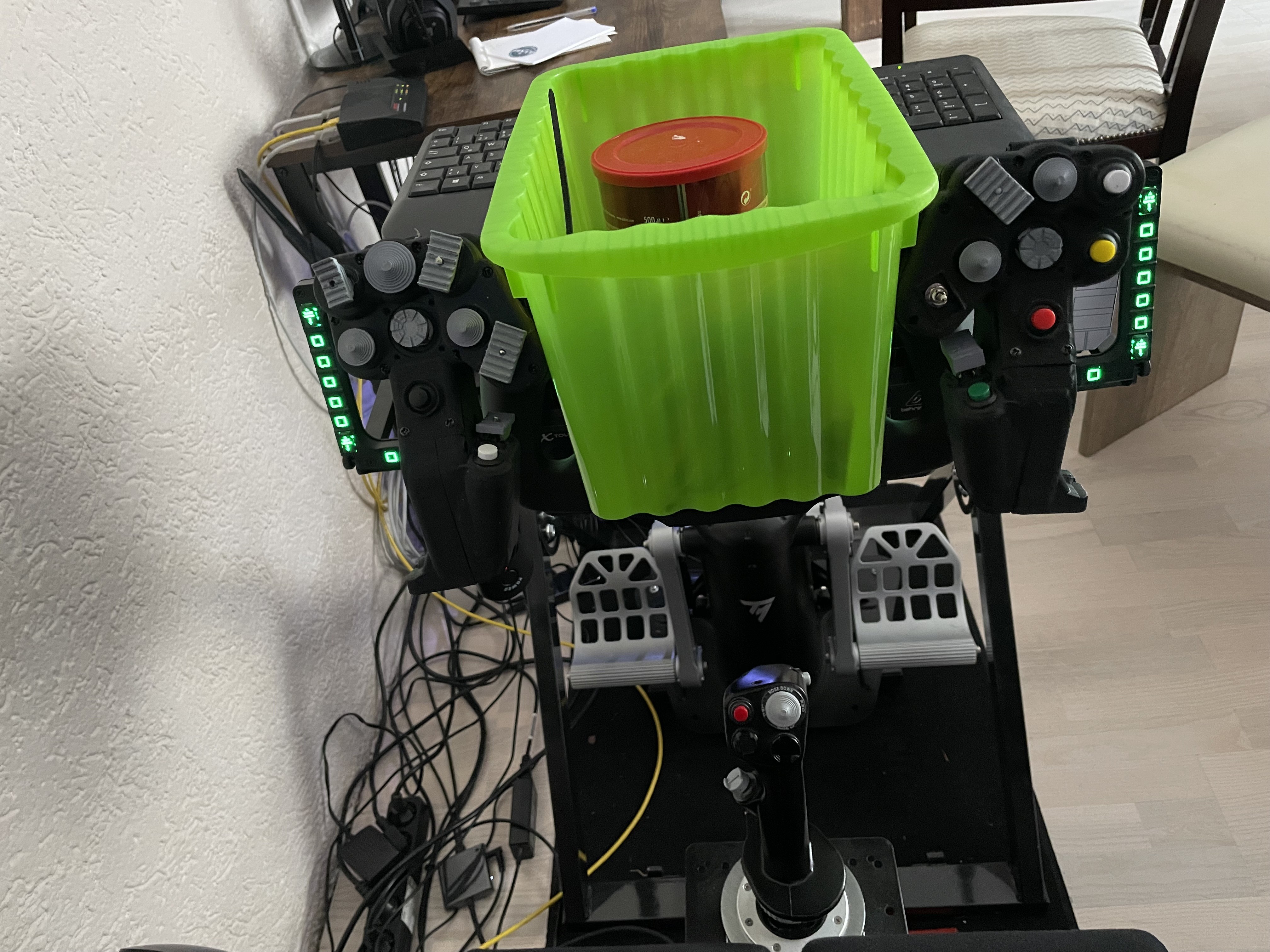

Are the 2 thin wires your complete cableing? My TEDAC looks so, the green box is my temporary mounting (Thanx to VR, I dont must see it).....let me know if you found a solution for yours

And so is my cableing looking....a big chaos.





Edited April 27, 2022 by kotti

[Lt_Jaeger]

3 minutes ago, kotti said:

Are the 2 thin wires your complete cableing?

No, no, for sure not. Actually, I did not bother  to think about the wiring, since I want to do the "mechanical" part first. It will either be a Matrix or I might use some shift register, not sure yet.

[cgjimeneza]

wow... and (for the cables) Jesucristo!!

this is just awesome....



[cgjimeneza]

you must share your part list.

this is very interesting build... do let us know how it handles



hats off, sir

[agamemnon_b5]

I wish I had the electrical knowledge to build my own stick.

[cgjimeneza]

to begin with, do you have access to a 3D printer?

there is a guy that made a very simple collective stick in you tube, do check it:



[hannibal]

wowwowowowowowo

looks better than mine..

maybe i should buy your build from you!

congrats, welcome to DIY TEDAC Club!

the thing is not easy to make! thats off to you @Lt_Jaeger @kotti

Edited April 30, 2022 by hannibal

[hannibal]

@kotti @Lt_Jaeger @Alphamike7

is this the official, " SHOW US YOUR DIY TEDAC" thread?

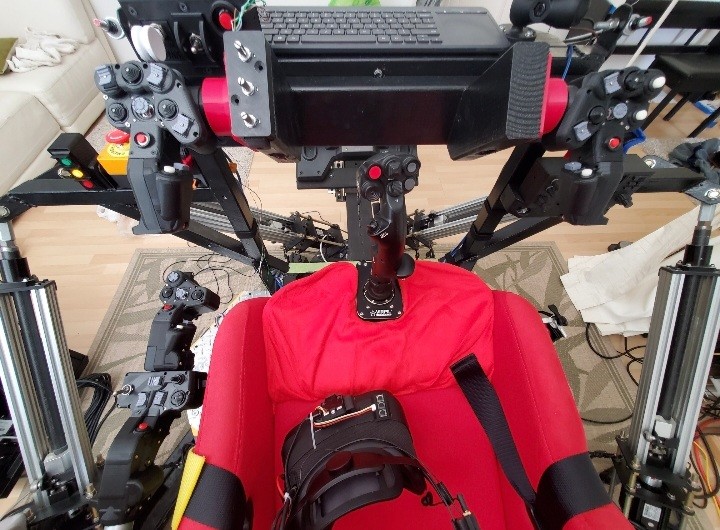

6 months to make the TEDAC and apache collective was worth the time spent.

lessons learn.. if u guys plan to make the tedac or collective, add an additional hat for the George Ai menu... (right now, my collective search light controls are facilitating the george ai menu plus the chop button as hide Ai menu

Edited April 30, 2022 by hannibal

[Lt_Jaeger]

@hannibal



Im working currently on your TEDAC MFD frame. Got it printed, waiting for switches. Since I don't want to fit a screen (VR only) I thought I want to place a 4 - way (5 way) for Georg control.

Then I need to see how to merge it all. Did some measurements for fitting it on my Monstertech. Will be a huge box like 15x15x20cm plus the mounting.

Currently I try to design a spring loaded lock system so I could adjust the grips. Will see how far I get with this.

Actually I know that I won't fly the Apache much, but the setup is a challenge and for a 50+ guy, who never had something to do with designing stuff, let alone 3d printing, it is quiet fun to try it anyway. Kinda hobby in a hobby

Edited April 30, 2022 by Lt_Jaeger
