Quite fit.......but who knows ?

Yes,scale is in degrees.All russian gunsights(ASP-3,ASP-5 ASP-21),which are used in DCS have this scale in degrees as well.

I had the same issue,weird.

+3,please ED how exactly I can spend my bonus point?

Hi .you must armed fuses in your bombs.The switch is on panel between legs next to tablo.Plus red light.When red light is ON the fuses are ARMED.

https://forums.eagle.ru/attachment.php?attachmentid=211980&stc=1&d=1560583790

Amen

1-Muzzle flash is much bigger.In simulation is small and too cartoonish.We can see this effect on Su-7 photos (the same cannons,the same position in root of wings) 2-Smoke marks after cannon firing on fuselage skin around cannon barrel(after 30 shots)After 3-4 trainig flights (90-120 shots) the plane was really dirty. 3-Vibration in cockpit during firing.According to the pilots,it was similar to driving on cobblestones. Each cannon has 6 tons of recoil force.The standart firing duration was 1-1,5 sec(15-20 shots) Unreadable needles(values). 4-Sounds-outer is very good,maybe a little deeper(like big drum) inner-needs to be amplified at least two time.I have personal experience from cannons and gunsight harmonization on Su-7 A/C by live fire.It was realy,realy loud.

This is no bug,but feature and nice effect,which arises when lever(GYRO- FIXED)is switching from FIXED position to GYRO position. This photo series was taken from an ASP-3NMU gunsight and it is very,very similar to ASP-5.

Hi KOŠ this is video No.9 A/G GUNS,RKT,BOMIIRC.First action is bombing.ASP-5 need for bombing so-called bomb chart,so everything what pilot is doing(in video) is nonsense.MiG-19P have not possibility to drop bombs in single mode.Scale on the right side does not show dive angle,but aiming angle(0-11deg) Second action is RKT firing.ASP-5 is capable to set aiming angle for S-5 rocket automatically according ballistic properties of S-5 by switching from bomb(NR-30) to rkt Third action is GUN firing.ASP-5 is capable to set aiming angle for NR-30 automatically according ballistic properties of NR-30 by switching from rkt(bomb) to NR-30. In all three cases is ASP-5 in uncage mode but the piper moves only NR-30 mode-nonsens.Uncage is still uncage, gyroscope is free so piper is moving. Not good simulation of gyrosight.

Hi,do not vorry,because this mission is pure fiction.ASP-5 does not work like in real life.

Hi OverStratos,of course you are right it is my incorrect statment.So once again: 1)The RP-5 has LOCK ON TARGET at 4000m and GREEN light above RP-5 screen is ON.ASP-5 is still waiting for range 2000m.When it gets it GREEN light on ASP-5 head is ON. 2)The needle of range indicator is starting to move from 2000m to 0m and the diameter of piper is changing in is working area range.Working area of piper is relationship between wingspan(7-70m) and range(0-2000m). 3)If I have exactly set wingspan,target will be still precisely framed.

"BREAK OFF"red light does not work(still OFF) under 600m (critical range of target) in "OPTICAL"mode.bug."RADAR"mode is ok.

After a target "LOCK" by RP-5(2000m and less)the piper diameter must change according to distance.Without changes in sim.Bug.

MiG-19S/P has not ability to perform simoultaneously rocket fire from four(4)rocket pods,but only from two(2),which are mounted on inner or outer pylons.Delete please this slot from A/C armament chart.

Hi,many thanks for your answer.Hmm,sorry dear Zeus,ASP-5 has not ability to sets itself to AG mode,when selecting BOMB or RKT mode.For dive bombing is ASP used like simple collimator.So you can set aiming angle(right scale 0-11deg) according bomb chart.There are no calculation. For GUN and RKT mode ASP-5 calculate the same quantity when you are aiming on ground or air target.There is no difference,because ASP know:ballistic,range, height and angular velocity.Especialy for S-5M rocket are calculated complementary correction angles(angle of attack and angle of sideslip) due to very small initial velocity,when it is leaving rocket pod(only 48m/s) These angles are calculated in cooperation with NULL-SET gyroscope.For launch of R-3S missile you do not need any calculation. Unfortunately Zeus,ASP-5 can not calculate "SLANT RANGE" which you need for proper and accurately aiming on ground target. BTW I studied these systems many years ago and I still have many remarks,wiring diagrams and so on.

Hi,what is depresion angle according to you?,And where I do set it?I am still looking for in cockpit to get ASP-5N to A/G mode?

Hi Overstratos sorry,but do you mean seriously this?I would like to know, how do you get this ASP to the A/G mode ?

MiG-19 S,P-bomb release bug. MiG-19 S,P has not possibility bomb release in "SINGLE"mode,because there is so-called "AOS"circuitry (AVTOMAT ODNOVREMENNOGO SBROSA-SIMULTANEOUSLY AUTO RELEASE)It override other circuitry of bomb armament without pilot intervention.

Quite similar to MiG-23 BN,when it is on "IDLE".

1-missing auto-dampening when deflection angle of gyroscope mirror is more than 13deg.The piper will be oscillating at bottom edge of field of view in range 45min (up-down) by speed 20deg/sec.Feature. 2.Scale on right side of ASP head is aiming angle scale(not diving angle)It is auto controlled(angle setting) by ballistics"GUN-RKT" mode and manually in "BOMB" mode."GUN"=0 deg,"RKT"-according ballistic box(block)and "BOMBS"-according bomb chart.Big bug. 3.Target range introduction-manual (OPTIC)mode and auto (RADAR)mode.So when we have set RADAR,we can not introduce target range manuallly(OPTIC) and reversely.Bug. 4.Red light "BREAK OFF"must be ON,when target range is 600m and less in both mode(OPTIC-RADAR).Bug. 5.Ballistis change-when we change ballistic from GUN to RKT and reversely,only aiming angle will be changed(scale automatically set the angle) and nothing more.Bug. 6.Piper movement-IRL is movement very steady.Movement in sim is like rabbit on the field when is hunted.ASP-5N has two gyroscopes.First is inside ASP head and second, so-called NULL-SET gyroscope or ZERO-gyroscope is in avionics bay behind cockpit.The task of NULL-SET gyroscope is dampening of movement of piper in space.We can see piper in field of view up-to 5-6g-load and angular speed up-to 30deg/sec. 7.CAGE-UNCAGE-when CAGED the mirror of gyroscope is mechanicaly fixed and el.motor of gyro is not powered,so angular speed and complementary correction angles are not calculated. UNCAGED-el.motor is powered, mirror of gyroscope is free and spun and start calculate. When auto or manual dampening is used ,ASP does not provide any calculation.In training video No.9 you can see total nonsense,when ASP is in UNCAGE mode for bombing,RKT firing and GUN firing,but piper is glued to boresight.After switching to GUN, piper come to life.This is from fairy tale imperium. 8.ASP-5N as well as the other gyro gunsights in DCS(ASP-3.ASP-21,K-14,EZ-42) is not real-time gunsight ,so we need 3-5 sec of synchronization of piper with target.

Same problem here-Spitfire, Bf-109,Fw-190 lost power. Mustang is OK

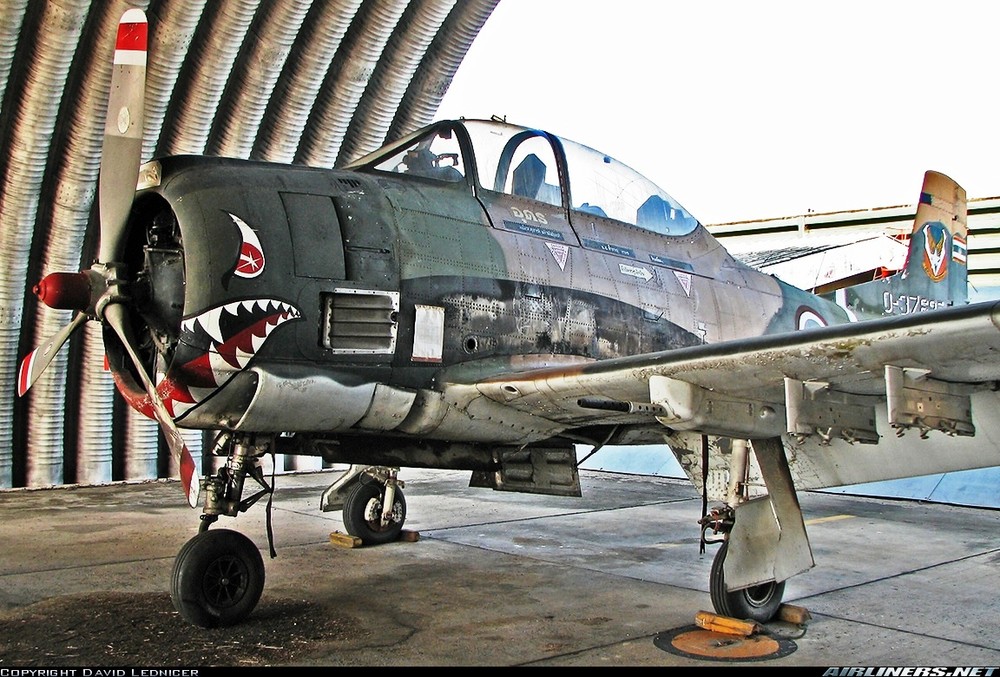

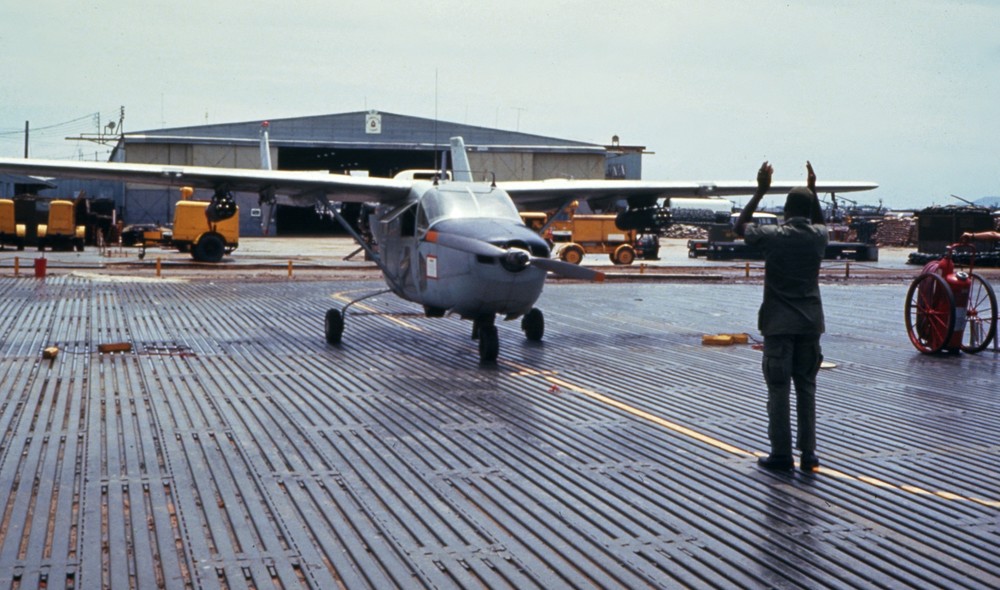

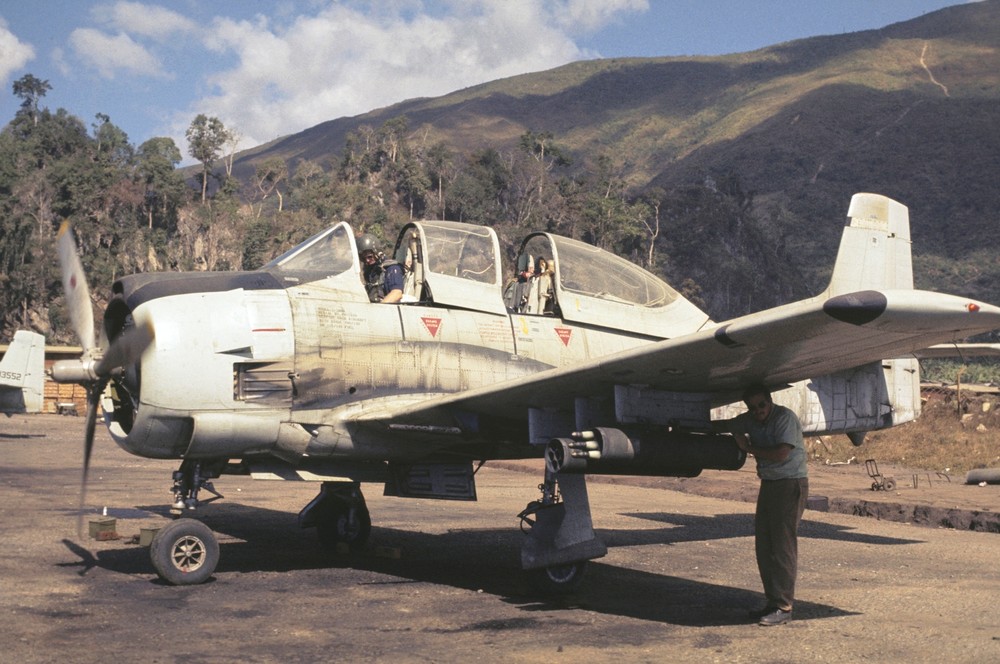

https://forums.eagle.ru/attachmenhttps://forums.eagle.ru/attachment.php?attachmentid=177561&stc=1&d=https://forums.eagle.ru/attachment.php?attachmentid=177562&stc=1&d=15176019731517601973t.php?attachmentid=177560&stc=1https://forums.eagle.ru/attachment.php?attachmentid=177563&stc=https://forums.eagle.ru/attachment.php?attachmentid=177564&stc=1&d=15176019731&d=1517601973&d=1517601568 Why not? Very simply avionics system(if any),non classified,multicrew possibility a lot of fun as a FAC in Vietnam map-OV-10,T-28D and Cessna O-2A.

Yes.yes.This is very sad part of simulation of MiG-21 and big shame,if this is end of iconic MiG. This is statment,not complaint.

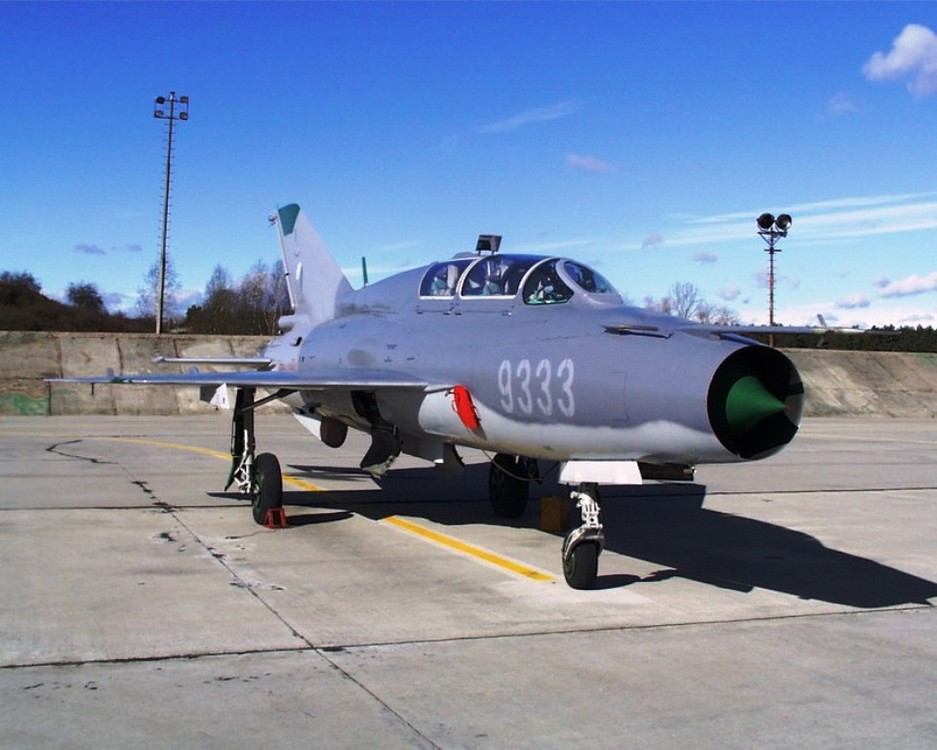

https://forums.eagle.ru/attachment.php?attachmentid=160485&stc=1&d=1491671582 +1 This is my favourite(15 years my active duty)
