F-2

I have to find the source but as I understand Shape is the primary source of RCS reduction while RAM is comparatively minor (it’s not minor but it’s the shape doing the heavy lifting).

F-15J was considered for upgrades to F110-IHI-129 in the early 2000s but it never happened.

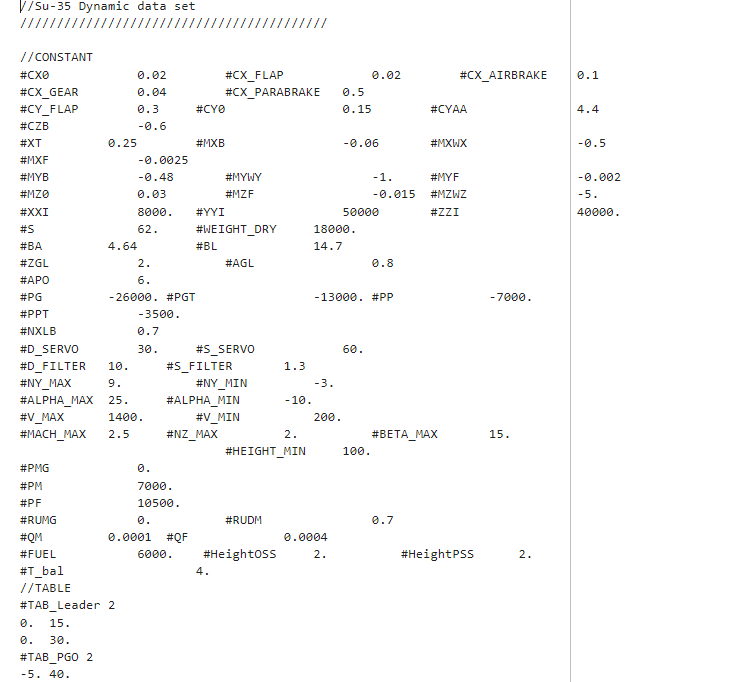

Su-30mk old MKI desktop sim developed with flanker engine https://web.archive.org/web/20030621173542/http://supermaneuver.narod.ru/ flight model code ripped by flanker team https://ryanporto.com/wiki/aerospace/su-37-flight-control-system/ flight control law Bars N011M info I think an AI asset is possible

F-15C never had GE!

Thank you. I don’t think a J-20 module is plausible but my hope was J-10 module and J-20 AI asset.

https://basicsaboutaerodynamicsandavionics.wordpress.com/2022/11/27/j-20-radar-scattering-simulation/

https://basicsaboutaerodynamicsandavionics.wordpress.com/2022/11/27/j-20-radar-scattering-simulation/ it’s doable

https://web.archive.org/web/20171024100225/http://www.salut.ru/ViewTopic.php?Id=1459 Some stuff on the ws-10 variant I’ll post later when I go through my article collection

https://html.rhhz.net/KQDLXXB/2022-01-1.htm J-20 AoA paper last image is supposedly the J-20 radar

War of the triple alliance part 2

Not at all likely though an AI asset would be cool. Quite a few papers on Aero, RCS studies and the general characteristics of the radar is known. Early batch used an al31f variant

I suspect it will come. actually since they use the F-117 as an aggressor to simulate Chinese stealth jets it’s perfect for the F-35.

https://discovery.nationalarchives.gov.uk/details/r/C17574716 apparently this has lots of information on blue vixen. I’m looking into requesting a copy. It might be a bit pricy but it should be worth it. still no luck on blue fox

Did they have F-15C? I thought they were A. Or was it both.

I just wanted the date

Yea, APG-70 entered service in 1988, APG-63(v)1 in mid 2001, actually a few months before APG-63(v)2 (April vs December) https://aviationweek.com/af-begins-deploying-apg-63v1-radar-upgrades-f-15-fleet i don’t know if APG-63(v)1 is actually that different in performance or if it’s mostly a reliability replacement modification. As I understand it apg-63 and apg-70 were out of production and in need of parts https://comptroller.defense.gov/Portals/45/Documents/execution/reprogramming/fy2001/prior1415s/01-05_PA_F-15.pdf

Saudi Eagles did also kill some Iranian F-4 in a 1984 skirmish. https://militarymatters.online/military-history/eagle-vs-phantom-5-june-1984/ I only bring it up because I think that’s the first time an F-15C was used in battle.

Wow thank you!

This is 9.18 which doesn’t have the hump 9.19 has the hump. 9.18 is used by Yemen and Eritrea.

https://www.f-16.net/forum/viewtopic.php?f=62&t=53417 Aesa range calculator. Estimating apg-81 with public sources

Do one with no hump then

Cubanace is apparently working on an AI Su-57. An AI J-20 is probably possible, lots of papers on its aerodynamics, early batch use al-31fm2, we have rough radar characteristics.

Apparently Project Flanker is considering applying per the newer rules.

If you want a Su-27sm I would consider holding out. I see people getting Su-30mk stuff in their respective countries all the time. I don’t think it’s particularly secret and it has nearly the same avionics as the SM. I think it’s just a matter of time.

IEEE paper on the apg-77 which is as similar as it gets. LPI is just an inherent characteristic of the system. 154453_575645487_IEEE MALAS F-22 RADAR DEVELOPMENT.pdf
