  1. I've been told the exact opposite very clearly so no I know it is in fact a thing that is trained too.
  2. Good lets hope that this issue gets fixed soon.
  3. Not the tomcat specifically, i just did a competitive match and against every jet we say the behavior above. Ontop of that ECM usage is not allowed and it was still doing the behavior we've been seeing: Tacview-20211031-100758-DCS-S21_Gud-Min.zip.acmi
  4. Не могли бы вы поделиться этими документами? Я бы с удовольствием взглянул на них!
  5. All of them are ITAR and a few I was given by people who asked me not to share the files. I wish I could share everything but I can't. I know that the MLU and F16 stuff is easy to find and the F18 radar manual is somewhere out there. In close proximity the seeker will use the datalink updates to compare and track on the desired target. From my current understanding of what's said is that the missile will select the target that best matches the host radars updates in terms of position and speed. So if you have a two ship in a blue angles tight figertip and one suddenly breaks out right as the missile is going active as far as i'm aware the missile should continue on to track the one that went straight. It's less clear what happens after the initial sorting as these specific manuals really only talk about the moment the seeker is searching for the target and if the target is lost due to notch/ECM. This exact situation though probably wouldn't happen at all as the host radar itself probably wouldn't switch onto the new target breaking away as it itself would be able to see there are two targets and that one has a now very different position and Vc while the other matches the predicted location and Vc of the tracked target, simple it would just build a new track/ignore the breakaway contact. In short I don't think this is really an issue. DL could probably get it a lot closer than I think you imagine it would but not close enough to 100% reliably trigger the proxy fuze to not need terminal homing. Plus if contact is lost by the main radar the missile would be just as trashed as a SARH having a seeker on the target eliminates this weakness. If the amraam's warhead was bigger this probably would be a lot more effective but since its a smaller warhead you need to get closer to the target which you need terminal radar homing for. So regardless of how accurate the DL is terminal homing is needed otherwise you might as well just make a sarh missile. Both the F15 and F18 manuals are pretty clear in that datalink updates continue till missile timeout and will be referenced if needed.
  6. We have multiple manuals from the F15/F16/F18 that all make it explicitly clear that DL continues after pitbull and is referenced by the missile in case of multiple targets in close proximity or if the target fades.
  7. Yeah this is an issue that has been present since I started playing back in 2013 think of chaff as long burning flares but for radar missiles. Also its worse than just that, radars are able to essentially ignore returns outside of what's called their resolution cell so it jumping like 4° to the left onto a stationary chaff bundle is even more absurd. Especially if its outside the seekers FOV... Yes yes it should, but its because the systems used on the amraam render chaff pointless. Chaff is a 1940's countermeasure to radars so there has been quite some time for countermeasures to be developed. If chaff is so good why is everyone flying towed decoys now and very modern jets like the F22/F35 carry very few traditional CM's. And btw this applies to the more modern Russian missiles too both the adder and alamo are too sensitive to chaff. While defiantly not as good as the amraam-C it should still be well below a 1% chance against these missiles not what it is now. The amraam just has all of the things with regards to defeating chaff.
  8. From various manuals we have 1-F15C-34-1, HAF1-F16C-34, MLU, a1-f18ac-nfm-700c, and a few others the datalink updates are not severed at pitbull they continue until missile timeout. What your saying is how it used to work in DCS (well hopefully used too), but that was not accurate. As was said by Harker this allows the missile to have an extra layer (ontop of the already op monopulse stuff) of countermeasures to notching and CCM teqniques. It should be more than good enough to get it close enough that the seeker will be able to get that last little bit of terminal guidance. But yes if your in a 6 bar scan updates will be slow to be sent and it may not be enough if some really lucky (for the bandit) situations. Hence why they often train for STT shots on closely grouped bandits according to the navy's BVR manual that's out there the update rate from STT should be well beyond adequate to get it close enough. Plus getting it close is all that really counts at some point its going to become impossible to notch the amraam's seeker the S/N ratio will be too high and it will be too hard to stay in the notch, in theory this should occur at a few miles from the bandit. Which is more than enough time for the amraam's seeker itself to find/reacquire the target. Monopulse seekers like the one on the amraam should have amazing range and azimuth resolution so getting it close should be well beyond good enough.
  9. Odd with the datalink now that shouldn't happen, even post pitbull datalink updates are sent to the missile and would prevent this. This is why shooting into furballs with 120's is a thing that can be done IRL.
  10. only the amraam got the latest set of INS/Datalink updates. The notch width issue though seems to be a problem across all the missiles.
  11. The F15 episode of the FPP has two pilots who have both brought the eagle up to over 10g. Both of them talk about doing that, and others who have and they talk about it in a way that indicates it is not a rare occurrence. Just because you go to high G does not mean the airframe falls apart that's not how this works, which is why some of ED's recent changes are not really accurate (again exceptions do apply). Safety margins are a thing, they are hammered into an engineer from day 1 of their classes and its often a 50% safety margin from designed load till you get more permanent deformation. This can and will vary from aircraft to aircraft, but the eagle has shown that it is a strong design and there are a plethora of times where significant overloads were achieved and sustained in flight. Even with weapons and fuel tanks on the aircraft. IRL there are consequences on frame life and that is something worth worrying about in peace time hence why pilots are chewed out for unnecessarily over-g'ing. However taking a few years off the frame life when in combat is well worth brining the frame back and accomplishing your task. Such maneuvers irl are limited by the fact that it's really only possible to pull that many g's once in a flight. The physical effort of doing so is so extreme that doing it over and over again is not possible. Without significant recover time between. If a more realistic G-system was implemented you'd really only get one good pull at that G before not being able to do that again before nearly snapping to black out.
  12. Agreed this last patch seems to have made it worse. I'd hoped that this issue would have been fixed but unfortunately it hasn't. As I said in my original post notching should be very ineffective against a missile that almost certainly has specific countermeasures against this. Such as STAP or the technique I linked. The reduction in CCM against chaff is also an unpleasant surprise as once again chaff is waaay to effective against missiles.
  13. As far as i'm aware ED has relevant documentation about the R27's guidance, I have seen some of it however it's in Russian and I haven't had the time to go through the arduous process of translating it. But from what I could understand what has been said about the missile only using raw PN inside of 25km is correct. We are also rather confident about the AIM-7 series using APN and the amraam/54C using optimal control as well.
  14. From the front missiles are relatively small RCS targets but yes 8 R-27's and you'd probably add a few m^2 from the front and a whole lot more from the side. The su30 itself I agree shouldn't be 5m^2 far closer to 15-20 while clean. Maybe closer to 20-30 from the front when fully loaded, probably tending towards the bottom of those ranges for average numbers over the frontal arch.
  15. tbf the current DCS implementation of the -73 is almost certainly shorter ranged than it should be.
  16. Maybe maybe not we don't know for sure, for now the range is fine, minus the MPRF thing.
  17. I don't think so the 105km range on a 5m^2 target would put it in a similar class to the AN/APG-68V9.
  18. Yeah as I said in the original post when I first tested it was extremely hard even in look down, as it should be. But recently I've noticed that it is now child's play to do this.
  19. The A and C can hardly be called similar on the elctronics front, the entire electronics bay was taken out and replaced. There is no evidence, as in none, that any electronic components from the A made it onto the C. Making the C like the A is a foolish decision that does not match reality plain and simple, they are not the same missile on the inside. One is late 50's tech and other is early 80's tech... They are not comparable in their limitations at all in any way shape or form. Also we know quite a bit about how the 120 works from various manuals, I have 5 separate sources that talk about the 120's operation in detail at this point. Each go into a lot of detail about how the 120 works. So you saying we don't know how the 120 works is just false there is no other word to use. All of these sources taken together build a very detailed picture of the 120's stages of operation. And the terms used are a PERFECT match to the terms used and description of the 54C's modes of operation. What we do know is that the tech used in the 54C was used in the 120, that they were developed by the same company at the exact same time. That the 54c's command inertial system was used in the 120. And we know how the 120 works... I'm sorry but this isn't that hard to work out that the 120A and 54C are essentially the same missie. No it wouldn't be it is quite the opposite, quite simply the C should be treated as a completely new missile compared to the A not just an upgrade. Replacing all of the electronics is not a "small" upgrade. Plus lets be straight up here your not stupid you know as well as we do the information you want to prove how the 54C works we will not get. And if we do so happen to get it it will be ITAR controlled. So ultimately you HAVE to base your modelling off of what you can get and what you can get fully indicates @KenobiOrderand @Triggerjo23are correct and you are not. You sure because it sure seems like it. What we have is what were going to get and it is more than enough to make a reasonable assumption about how the missile works. You don't need a document that says the sky is blue, which is what you're demanding, to make a reasonable guess that the sky is infact blue. There are just so many indications of how the 54C works (the fact that the command inertial system of the 54C was used in the 120 should be enough on its own. I don't get why you don't think it is, its completely unreasonable that this is not enough. There is no evidence to support your argument.
  20. The term is explicitly described in some documentation that if floating out there, I unfortunately can't share this documentation but I assure you we know what it means. As was just posted above the whole point of the command interial system is that the missile is able to know its own position, updating the PIP as need be by the host radar, and if need be guide to and go active near the PIP. Additionally it has been proven to you that the exact same system was used on the AIM-120. And we know for sure how that missile works.
  21. I attached an example tacview to the original post, its not the only tests I did, feel free to look at it. There are at least 8 examples of notching the missiles in that track. https://imgur.com/a/cwrV2dq

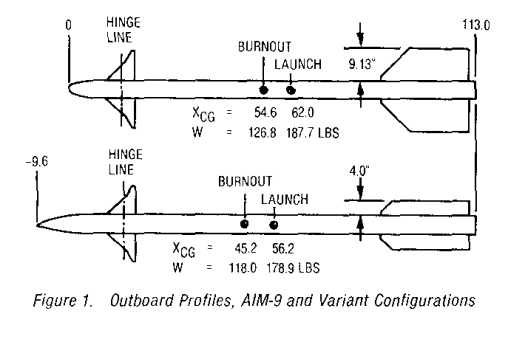

  22. could be the target and its interaction with the seeker as there are vids of 9M's not wobbling anywhere as much:
  23. If there is a note of a reduction in range it may be a bulk average. As in you may not see the target on the first pass as it so happened to be in MPRF and the next pass in HPRF may just so happen not to see it. And by the time you've gotten to the next HPRF pulse the distance could have closed enough to account for this "reduction" in range. As was said above interleaved means that you have one bar in HPRF then the next bar flips to MPRF and so on. There should be no reduction in range for the HPRF and no increase in MPRF. Another possibility is that maybe it doesn't use the same waveform every bar as the pure HPRF and MPRF search modes. As in it uses what's barely considered mprf on one bar to maximize range. And for HPRF it uses a set of HPRF waveforms that are closer to MPRF reducing range but increasing its ability to detect high aspect targets. Essentially a set of wave forms on the HPRF and MPRF bars that minimize the weakness of each, longer range in MPRF and somewhat better aspect detection capabilities in HPRF? And the loss of detection range is just a way of measuring the average reduction of detection range over a pure HPRF waveform dedicated for long range search.
  24. Having missiles hit other missiles isn't that big of a stretch its the main radar detecting them (and their current RCS values) I have an issue with. The F14 specifically has a switch to display targets with a closure high closure rate, allowing for the radar to display targets up to a 4000kt closure rate. Normally its only up to 1200kts of closure, up to 1800 if you put another switch into the up position. @GGTharos
×
×
