My old brain has forgotten how to calculate the heading of the CV, given the wind, to produce 30kts down the angle! Wind 280/15:helpsmilie::helpsmilie:

Posted

Have you got an E-6B? Go online and google it. I have a link for one at home on my gamer. You can use it to determine what the ship's course and speed needs to be in order to achieve 30-31 knots over the deck with little or no drift. I wouldn't set your ship's speed at anything more than 20-25 knots.

[sIGPIC][/sIGPIC]

Posted (edited)

Yes, I have one (40 years old with no slide), so I guess I can't make the required calculations on it. :)



Could you send me a copy of the slide, so I can make one?

PS, mine is the small version not the standard

Edited by oldpop
Posted

May be a good alternative to get the thing as an App.

The link is for Android, but it's available for iPhone/iPad, as well. Just search for Flight Computer Sim. The Pro version has no ads. The manual for the E6B in general is available on the internet.

For the wind Calculation in the App:

-set wind direction on top

-set wind speed from center point up (easier if you set center to 100)

-dial in desired course (correct for magnetic course/variation if required)

-put index point to IAS

read:

-true airspeed on center point

-correction angle at the index point



https://play.google.com/store/apps/details?id=dao.DaoSoftware.FlightComputerSim



P.S. I use an CR-3 at home, but for planning routes, missions etc. on the road this one is pretty handy and I like the old school approach. ;)

Shagrat



- Flying Sims since 1984 -:pilotfly:

Win 10 | i5 10600K@4.1GHz | 64GB | GeForce RTX 3090 - Asus VG34VQL1B  | TrackIR5 | Simshaker & Jetseat | VPForce Rhino Base & VIRPIL T50 CM2 Stick on 200mm curved extension | VIRPIL T50 CM2 Throttle | VPC Rotor TCS Plus/Apache64 Grip | MFG Crosswind Rudder Pedals | WW Top Gun MIP | a hand made AHCP | 2x Elgato StreamDeck (Buttons galore)

Posted

Is that really necessary?

Perhaps I'm missing something obvious here, but couldn't you achieve the result you want by simply taking:



15kts of wind coming from 280,

set ship course to 289°, giving direct headwind down the 9° angled deck,

set speed to 15.2kts (the 30kts you want, minus the 15 you get from the wind, divided by cos(9°))

?

Posted (edited)
Is that really necessary?

Perhaps I'm missing something obvious here, but couldn't you achieve the result you want by simply taking:



15kts of wind coming from 280,

set ship course to 289°, giving direct headwind down the 9° angled deck,

set speed to 15.2kts (the 30kts you want, minus the 15 you get from the wind, divided by cos(9°))

?



Yep, that is what an E6B/CR3 calculates for you, just without the need for batteries... and half a dozen other handy calculations to manage course planning, fuel consumption etc.

Another benefit is the option to simply turn the dial to a new heading and read the WCA... for the Carrier BRC etc. it is a bit overdressed, but handy nonetheless. :)

Edited by shagrat

Shagrat



- Flying Sims since 1984 -:pilotfly:

Win 10 | i5 10600K@4.1GHz | 64GB | GeForce RTX 3090 - Asus VG34VQL1B  | TrackIR5 | Simshaker & Jetseat | VPForce Rhino Base & VIRPIL T50 CM2 Stick on 200mm curved extension | VIRPIL T50 CM2 Throttle | VPC Rotor TCS Plus/Apache64 Grip | MFG Crosswind Rudder Pedals | WW Top Gun MIP | a hand made AHCP | 2x Elgato StreamDeck (Buttons galore)

Posted

it was the JOOD's job during flight OPS to give recommended cus/SP to the OOD to keep the ship "pointed" for optimum WOD! I watched several ENS and JG's melt under the ship's CO or SR. Officer badger them to keep the flag right down the angle!

Posted
I didn't mean to badmouth the device. Just wondered if there was something else involved I didn't think about.
For the wind over the deck likely not, as you want a headwind anyway. If you use it for navigation/route planning it shows head/tail and crosswind components directly, so you know your TAS. This in turn is helpful to get your real time to cover a legs distance, which is required to calculate the fuel consumption...

Modern planes have fancy computers giving them TAS and what not. Still a CR3 is a nice fallback and sometimes it's just fun to calculate remaining range after a dogfight with more afterburner than you thought and figure if you need to divert or make it to the Carrier. As my AAR still sucks, this is a vital skill for me... ;)

Shagrat



- Flying Sims since 1984 -:pilotfly:

Win 10 | i5 10600K@4.1GHz | 64GB | GeForce RTX 3090 - Asus VG34VQL1B  | TrackIR5 | Simshaker & Jetseat | VPForce Rhino Base & VIRPIL T50 CM2 Stick on 200mm curved extension | VIRPIL T50 CM2 Throttle | VPC Rotor TCS Plus/Apache64 Grip | MFG Crosswind Rudder Pedals | WW Top Gun MIP | a hand made AHCP | 2x Elgato StreamDeck (Buttons galore)

Posted

What's the wind angle for "zero crosswind?" I recall a topic where wind 18 degrees left of BRC is supposedly ideal, and I found that the easiest to fly, except having that 18 degree crosswind in the downwind totally FUBAR's your abeam distance, requiring 35-40 degrees of bank in the groove turn (when you're not supposed to go above 30 degrees) from 1.0nm abeam.

Posted
What's the wind angle for "zero crosswind?" I recall a topic where wind 18 degrees left of BRC is supposedly ideal, and I found that the easiest to fly, except having that 18 degree crosswind in the downwind totally FUBAR's your abeam distance, requiring 35-40 degrees of bank in the groove turn (when you're not supposed to go above 30 degrees) from 1.0nm abeam.

1.0nm seems tight. Try 1.2nm up to 1.4nm if the plane is heavier.



Also, the C in BRC is Course (ground track). Even landing on land, a pilot of any airplane needs to compensate for wind to maintain a somewhat rectangular standard traffic pattern.

i7-7700K@4.8GHz, 16Gb-3200, GTX-1080Ti-Strix-11Gb, Maximus IX Hero, Oculus Rift, Thrustmaster Warthog+F/A-18C, Logitech G940 Pedals.

Posted

...lots of brain power going on in here.



In short...The angle of the deck is negligible. Should be easly mitigated by "that pilot sh!t". The boat should not be steaming such that there is an appreciable x wind component.



In all of our sand box servers we just make the boat move at 27kts. (Shrug)

Find us on Discord. https://discord.gg/td9qeqg

Posted

Lex, you have not been on an CV during flight ops I bet! The wind down the landing line is VERY important for several reasons:

1: It is not recommended that the a/c trap with a side slip component.

2: It is recommended that the touchdown relative speed is at a minimum for AG requirements

3: the lower the relative speed of the a/c to the deck allows the pilot better control

4: Trapping cross deck angle is bad

So mim relative speed, no "slip", no drift angel are all very important:

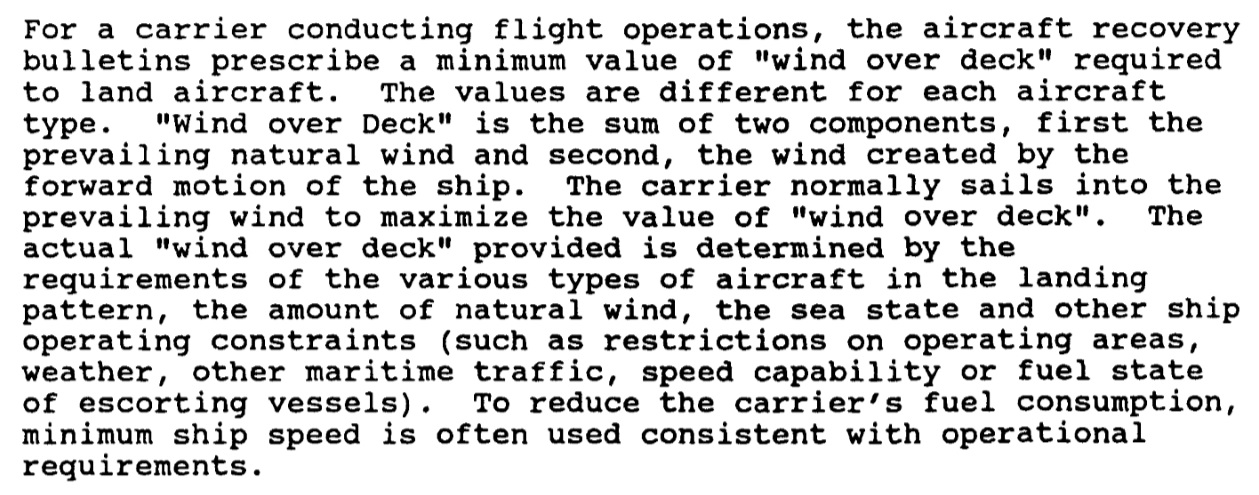

read att form NADC doc


Posted

oldpop, Lex is a naval aviator, he at least used to have a lot of nice F/A-18 vids on his youtube channel, as well as a lot of nice info on pattern work and the likes.

I am fairly certain he has done flight ops on a carrier.

http://www.ipms.dk

i7 9700K, Asus Z390 Prime A, Be Quiet Dark Rock Pro 4, GeForce RTX 2080 Ti STRIX ROG, Fractal Design Define R6, Thrustmaster Warthog HOTAS, MFG Crosswind, Oculus Rift S. 32 GB 3200 MHz RAM

Posted (edited)

... you are all welcome to chat with us on discord. In addition to real life pilots, we have a few LSOs open to questions.



Regardless, and avoiding the argument from authority, an element of side slip can be inevitable from a landing zone that is literally moving sideways away from you. It is why the gear are made like tree trunks as apposed to AF planes. As long as the boat is pointing the correct direction in the wind, your good to go and the rest is transparent to the pilot.

Edited by Lex Talionis

Find us on Discord. https://discord.gg/td9qeqg

Posted
Lex, you have not been on an CV during flight ops I bet! The wind down the landing line is VERY important for several reasons:

1: It is not recommended that the a/c trap with a side slip component.

2: It is recommended that the touchdown relative speed is at a minimum for AG requirements

3: the lower the relative speed of the a/c to the deck allows the pilot better control

4: Trapping cross deck angle is bad

So mim relative speed, no "slip", no drift angel are all very important:

read att form NADC doc



LOL, Lex is a real life Hornet pilot / Naval Aviator. :lol:

Strike

USLANTCOM.com


i7-9700K OC 5GHz| MSI MPG Z390 GAMING PRO CARBON | 32GB DDR4 3200 | GTX 3090 | Samsung SSD | HP Reverb G2 | VIRPIL Alpha | VIRPIL Blackhawk | HOTAS Warthog



Posted (edited)

If so he knows better!

Lex, when was the last time you trapped with a crosswind?

Seems we agree on the basics... I also am a Naval Aviator, 26yr retired CDR,

Edited by oldpop
Posted

Pop, you and Lex definitely should get together. A melding of the minds between old school and new hotness would be a sight to see. Having met you both, I would pay money to be a fly on the wall for that meeting. One couldn't help but learn something from listening to you both palaver.

[sIGPIC][/sIGPIC]Proud founder of VNAO and current deck jockey with VFA-103:pilotfly::pilotfly:

Posted (edited)

To avoid the misconceptions that i believe are about to ensue, i will try and frame the conversation i am (or thought i was) engaging in ...



I thought i was addressing the negligible difference between the winds created from the boat moving and the angle.

I stated that the boat should not be moving in such a way as to create an appreciable x wind component. i.e. perpendicular to natural winds.



There is no need for a wizwheel if you simply insure the boat steams into the wind. What's more, i stated my solution for the game witch was to simply have the boat move at 27 knots with no winds.



.. excessive brain power exertion avoided. Play the game, everyone happy.



my comment to the circumstance of unavoidable side slip forces was in referencing times when the boat must make all WOD (no natural winds) and there is unavoidable x wind between BRC and the angle.



In either case, the side forces that may result are to be expected and this is why navalised aircraft have the landing gear that they have (among other reasons)



If there are misconceptions that i am advocating X wind components, i am not. And yes, there are attempts made to try and keep the wind down the angle. I am simply stating there are times when it is unavoidable. Regardless, as long as the boat is doing what it is suppose to (i.e. steaming in the wind, total WOD 25-30, etc) , the x wind component will never be any greater than if the boat was making 100% of the WOD (no natural winds) for which pilots are very much so expected to fly in if the situation arose, no wizwheel required, no mind splitting brain flexing, everything is transparent to the pilot through "that pilot sh!t", play the game, everyone happy.



Everyone just throttle back a bit....



oldpop, would love to chat with ya on discord. We have many pilots to share stories with. Hope to see you, and anyone else who wants to chat.

Edited by Lex Talionis

Find us on Discord. https://discord.gg/td9qeqg

Posted
Have you got an E-6B?



I have an E6B my Nav gave me for Christmas in 1987...my first year flying. She taught me how to do my own precomps and spin winds. I’m glad to see someone else using prototype equipment for flight sinking!

[sIGPIC][/sIGPIC]

Primary Computer

ASUS Z390-P, i7-9700K CPU @ 5.0Ghz, 32GB Patriot Viper Steel DDR4 @ 3200Mhz, ZOTAC GeForce 1070 Ti AMP Extreme, Samsung 970 EVO M.2 NVMe drives (1Tb & 500 Gb), Windows 10 Professional, Thrustmaster Warthog HOTAS, Thrustmaster Warthog Stick, Thrustmaster Cougar Throttle, Cougar MFDs x3, Saitek Combat Rudder Pedals and TrackIR 5.



-={TAC}=-DCS Server

Gigabyte GA-Z68XP-UD3, i7-3770K CPU @ 3.90GHz, 32GB G.SKILL Ripjaws DDR3 @ 1600Mhz, ZOTAC GeForce® GTX 970.

Posted

Lex and I agree!:)

If you have ever been on the bridge of a carrier during flight ops, as I said, you would see the JOOD sweating as he kept checking the "real wind" and calculating the ships course to keep the "relative" directly down the angle! (Saw many ENS/LTjg's melt under the OOD or worse the ships CO having them checking the ships course)

My time on the Enterprise, the CO was CAPT (later O7) Forrest Sherman Peterson, (first XO of CVN65 and former X15 test pilot). He had the capability to reduce a O5 to a wet pile of uniforms during UNREPs. All of the O5's needed the "alongside OOD qual" to look at O6! I saw the ships Nav Officer hide under the chart table when the CO commented on the O5's performance. I have other stories of him that would fill a book! Master of Verbal abuse!!!!!
