4 hours ago, Comrade Doge said:

It is because your Export.lua is not actually a .lua file, it is a .txt file if you pay attention. Make sure you're actually creating a lua file (you can check by activating the filename extensions)



Hello, i am having trouble reproducing it myself, can you PM me your PC specs, Windows version etc so I can try to make a correlation between those.

Any way to make this work with the New F-15ESE

[skywalker22]

Did reinstall it and still the same thing:



[Valium]

On 8/16/2023 at 2:30 PM, Floyd1212 said:

First, you need to show file extensions in your OS.

1. Open File Explorer (open any folder).
2. Click the View tab.
3. Select "File name extension" so the box is checked.
4. Filename extensions will now be visible.

Now you can see that your file is actually called "Export.lua.txt".  Click on the file name to edit it, and get rid of the .txt at the end.

It's still .txt.

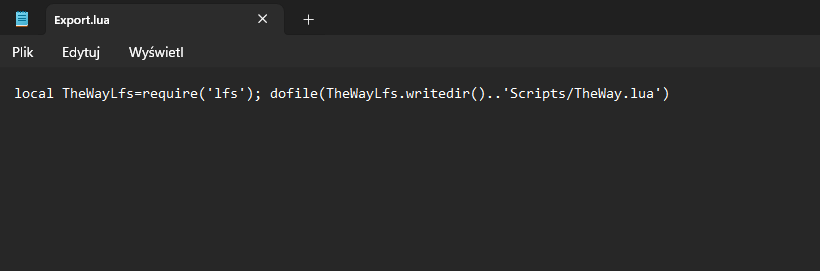

I made it different, I just took TheWay.lua and made a copy. In this copy file, I paste it and saved as 'Export.lua' and put there.
It's .lua file but still, it doesn't work. It's in Saved Games.

null

null





SOLVED:
Just delete '.lua' from name.

Edited August 17, 2023 by Valium

[Valium]

I coped with that, thanks for help.

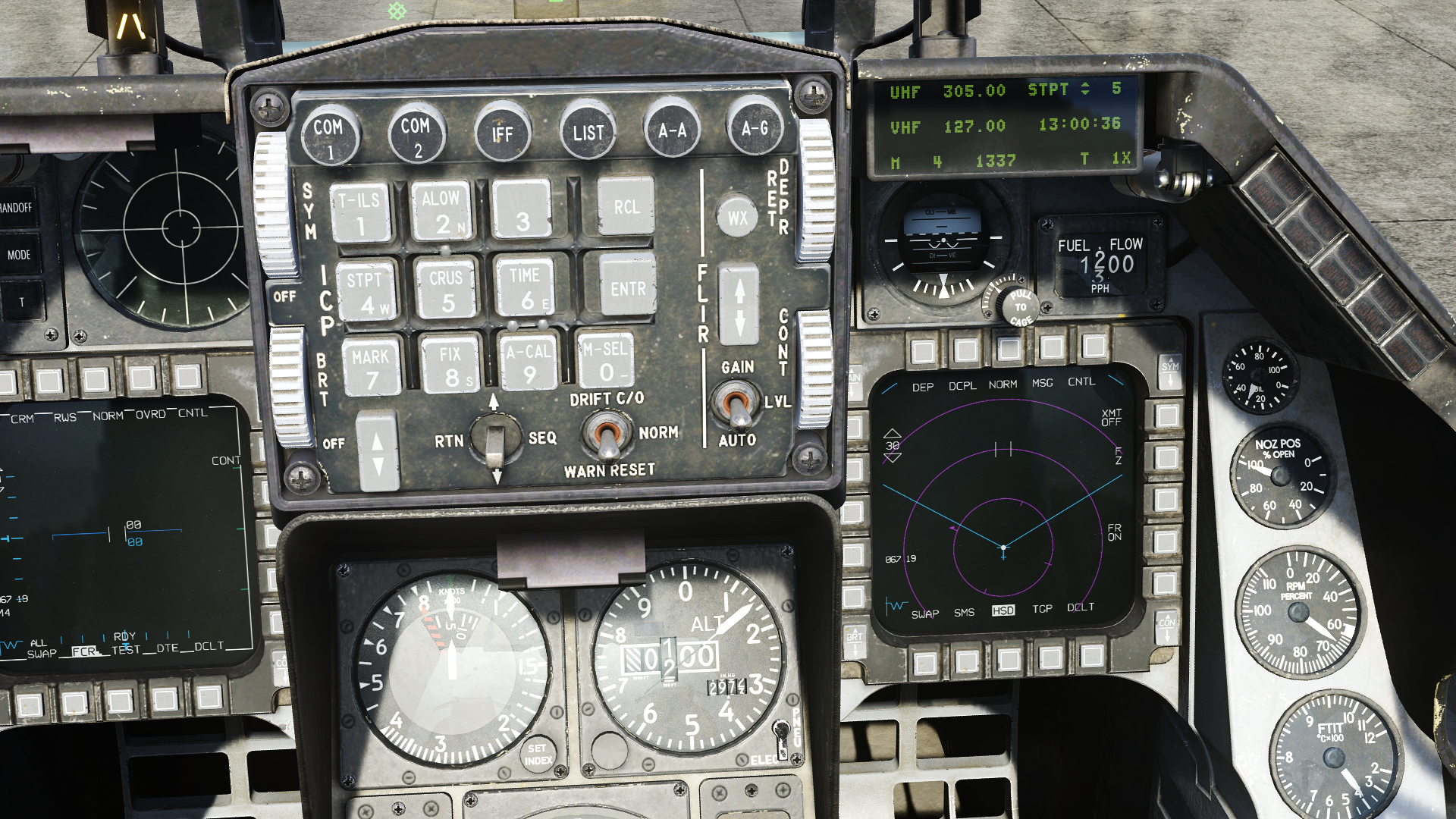

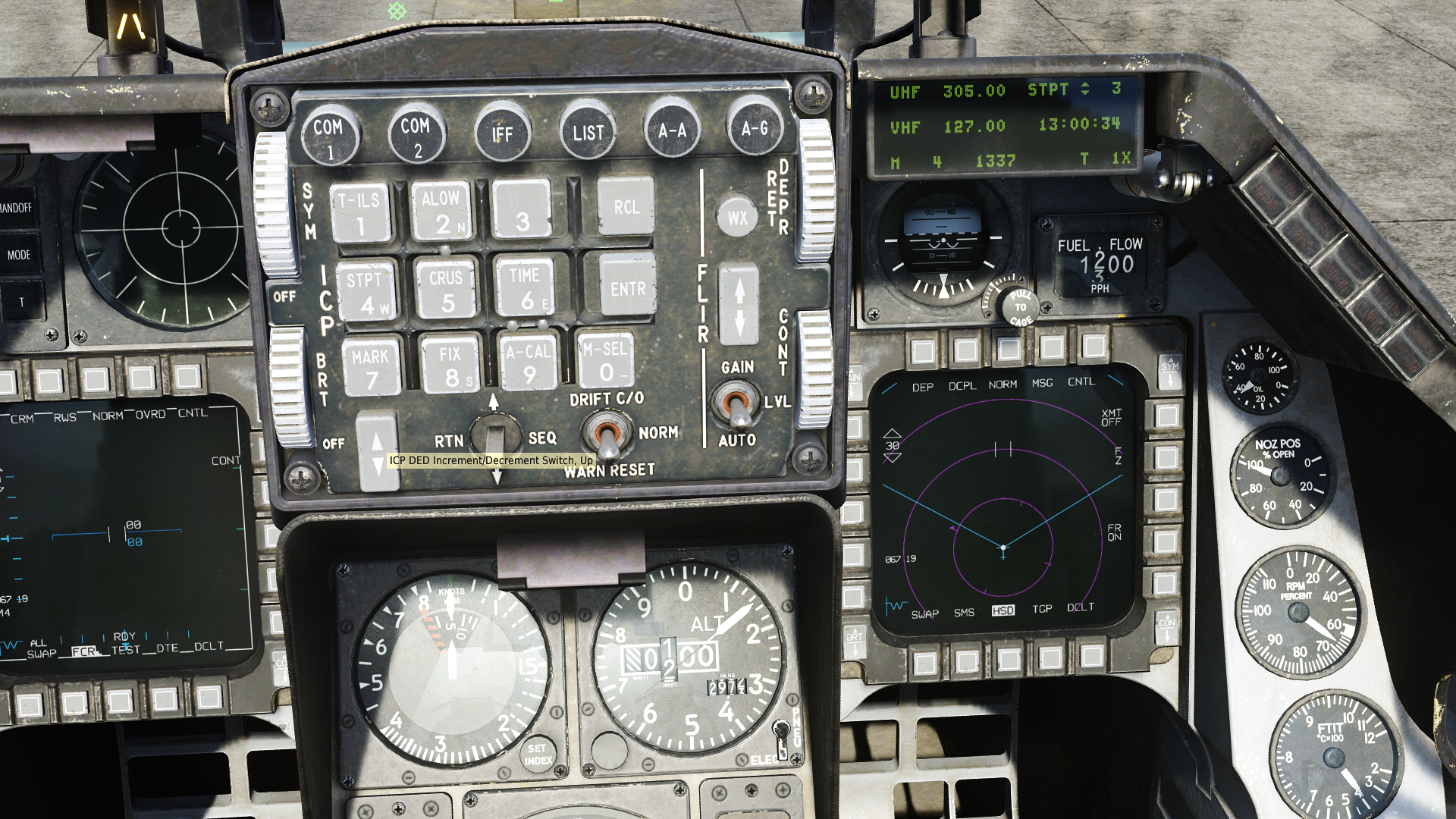

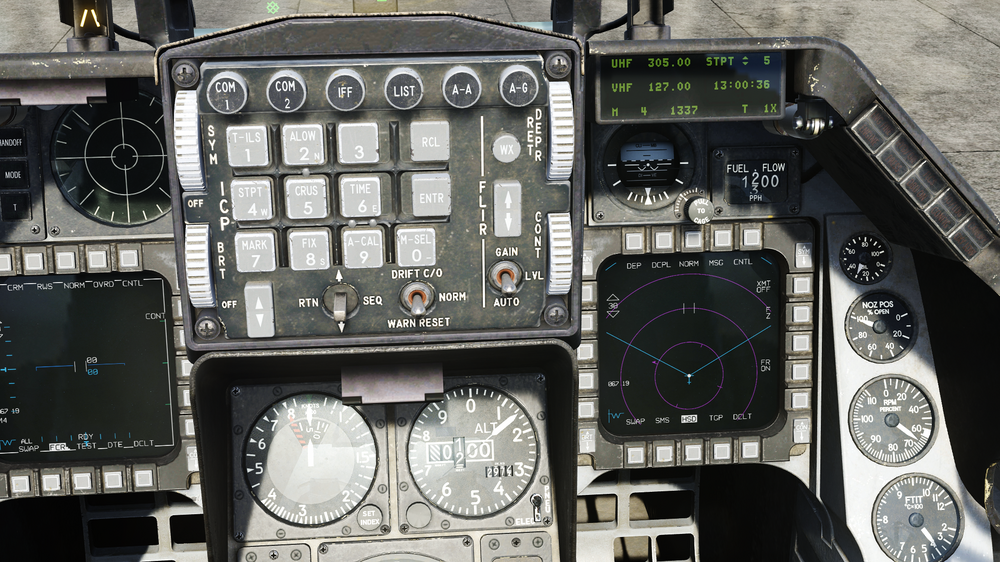

Anyway, I made a cold start and set a few waypoints in different locations.

It was added automatically but looking at HSD, it seems like they are at the same point.

PS:
I know that there's a possibility to change zoom. I checked even in 120 nm.

Edited August 17, 2023 by Valium

[Floyd1212]

23 minutes ago, Valium said:

Just delete '.lua' from name.

Yeah, if you follow the instructions provided to have the OS show all file extensions you probably would have seen "Export.lua.lua" which does not work properly.

In your screenshot, you still aren't seeing the file extension for "TheWay.lua" either.  Once enabled, it would look like this:

This is by no means a requirement, but most Windows "power users" would have this enabled so they can better see what's going on under the hood.

Glad you got that part working.

[Str][ker]

Have a look at this video I made for something else. In the video I took a moment to show how to properly show file name extensions.. The link starts at the appropriate time stamp..





[Str][ker]

On 8/16/2023 at 11:53 AM, skywalker22 said:

Did reinstall it and still the same thing:



Okay, I see the issue. It looks like deleting the waypoints using the little trashcan will only delete the waypoint and not modify the naming sequence. This on the surface makes sense as you don't want to restart the sequence if you delete a waypoint in the middle of the stack. i.e. Waypoints 1,2,3,4 exist and you delete waypoint 2, the next waypoint can't be waypoint 1 (resetting the sequence) nor can it be waypoint 2 (adding in missing numbers). It must continue from the last waypoint entered and be named waypoint 5. I think this behavior makes the most sense. What probably needs to be added is a button to delete all waypoints which will reset the enumeration.

What does work is deleting waypoints using the hotkey which was added to aid VR users. CTRL-SHIFT-D deletes all waypoints AND resets the waypoint naming counter. I would suggest using this key sequence for now to delete all waypoints until a UI solution (a delete all button) is introduced. Mentioning @Comrade Doge for followup.

[Valium]

On 8/17/2023 at 5:55 PM, Valium said:

I coped with that, thanks for help.
Anyway, I made a cold start and set a few waypoints in different locations.

It was added automatically but looking at HSD, it seems like they are at the same point.

PS:
I know that there's a possibility to change zoom. I checked even in 120 nm.



I can confirm that.
I made a few waypoints, they were added automatically but they are located at the same place in HSD.
No routes on HUD and with autopilot set to another steringpoint, there's no reaction or just try to came back where 1st waypoint was although 3rd was set.

Edited August 19, 2023 by Valium

[Valium]

I checked it again.

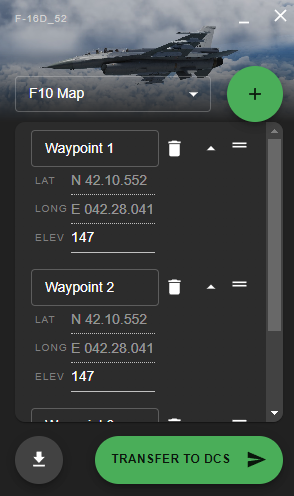

I don't know why coordinates are the same for every waypoint. I set a few from Kutaisi to Tbilisi.

The screen shot is for Sufa mod but I also checked it for standard F-16. I added a few waypoints in different places but coordinates are the same there.

null





SOLVED:

Creating a route with pause turned on makes this problem. When route is creating without pause, everything is ok.

Edited August 19, 2023 by Valium

[Floyd1212]

@Comrade Doge As a feature request, would it be possible to add checkboxes in front of the items and then the button at the bottom would be "transfer checked to DCS"?

This would be useful in the Apache, and possibly in other aircraft, where I might go to the F10 map and save 3 points for waypoints, and then 3 more points where enemy units are positioned.  Then back in the cockpit I would leave 1-3 checked and transfer those in NAV mode and they are created as waypoints, then I uncheck those and check 4-6, switch to ATTACK mode and transfer just those as target points.

Then, after eliminating those units I can delete items 4-6 with the trashcan icon and leave the waypoints in the list.  If I get shot down and spawn into a new aircraft, I recheck 1-3 to transfer those again, and add more points as needed.

Basically, a way to keep items around in the list for a bit, but not always transfer them by default.

[Marshallman]

Can someone please advise?

Loving the Way from early days to Version 2!!

Im running a Reverb G2 V2.....how do I get the way to show through the goggles on the map page...it doesnt overlay, and thinking on neither does SRS.

Is it possible  please?

Regards

Mike



[RogueRunner]

On 8/28/2023 at 9:54 PM, Marshallman said:

Can someone please advise?

Loving the Way from early days to Version 2!!

Im running a Reverb G2 V2.....how do I get the way to show through the goggles on the map page...it doesnt overlay, and thinking on neither does SRS.

Is it possible  please?

Regards

Mike



Same with the Q2 so I just open scratchpad as well and use it's target marker to designate a point on the map

[Marshallman]

Thanks for this, had no idea this existed

[Str][ker]

On 8/28/2023 at 3:54 PM, Marshallman said:

Can someone please advise?

Loving the Way from early days to Version 2!!

Im running a Reverb G2 V2.....how do I get the way to show through the goggles on the map page...it doesnt overlay, and thinking on neither does SRS.

Is it possible  please?

Regards

Mike



Check this video I made to demonstrate how to use The Way in VR. It works so incredibly well!



[Marshallman]

Thankyou!!!!!

[Captain Orso]

On 9/1/2023 at 10:53 PM, Str][ker said:

Check this video I made to demonstrate how to use The Way in VR. It works so incredibly well!



Without having to read through 26 pages of form to find out, but what does "The Way™" offer that Scratchpad doesn't?

[VirusAM]

17 minutes ago, Captain Orso said:

Without having to read through 26 pages of form to find out, but what does "The Way™" offer that Scratchpad doesn't?

I don't use it...but from what I understand are two completely different programs.

With the way you can copy/paste coordinates directly into the aircraft systems (from f10 map). With the scratchpad you have just a notepad window inside DCS to write down stuff.

Edited September 3, 2023 by VirusAM

[Captain Orso]

Many thanks for the reply.

Scratchpad has some plug-ins which transfers the collected F10 map points directly into the waypoints of the aircraft you are flying: F-15E, AV-8B, AH-64D, F-16C, F/A-18C, and M2000C.

With the Apache you can actually select which type of point is inserted per data point, so WayPoint, Control Measure, Target Point, or Hazard Point by modifying the data line beforehand.

It's pretty cool watching the data being entered into the UFC

[Floyd1212]

Yes, Scratchpad has added the "transfer" function in a recent release, so both utilities are more similar now.

However, I still prefer the polished look and feel of TheWay, and installation seems more straight forward to not have to worry about adding plugins.

[Captain Orso]

I've installed The Way. I found it overly complex and the use of an external program made its usage at all overly complex. Plus it still  seems to have ever reoccurring issues simply displaying the F10 targeting dot.

Scratchpad is completely within DCS, being a set of scripts--mostly lua--installed into '..\Saved Games\DCS.openbeta\Scripts'. To implement the additional function of a plug-in, you simply copy it from '..\Scripts\Scratchpad\Extensions\Disabled\' into '..\Scripts\Scratchpad\Extensions', and that's it.

All the things written into the Scratchpad pages are saved for the next session. You can archive them for use with the same mission at another time, or simply clear them out. It's very useful and easy to use.

I just wanted to hear of there was something The Way does, which Scratchpad doesn't. If anyone comes up with something, I'd surely like to hear it.

[Floyd1212]

I still prefer the look and feel of The Way over Scratchpad, but no one says you have to switch from what you are using.

You do you.


[Captain Orso]

I'm just thinking functionality. I'm not worried about the looks of the apps.

[DamnedRen]

I have scratch pad which I DL'd and it's easy to open it and click on the map to insert wypt's. Open = Lctl-Lshft-X. The instructions say removing the wypt's already on the scratch pad = ESC key. In game ESC key = everything from resume to exit game. How do I change the wypt remove esc key to another one and is there a way to assign whatever the correct key is to a function in DCS under controls?

Thanks



[Captain Orso]

4 hours ago, DamnedRen said:

I have scratch pad which I DL'd and it's easy to open it and click on the map to insert wypt's. Open = Lctl-Lshft-X. The instructions say removing the wypt's already on the scratch pad = ESC key. In game ESC key = everything from resume to exit game. How do I change the wypt remove esc key to another one and is there a way to assign whatever the correct key is to a function in DCS under controls?

Thanks



No, that is not correct. Without plug-ins to delete old data, mark it with you mouse and press <Del> {delete}.

<Esc> causes Scratchpad to rescind the focus so that pressing keys passes them on to DCS and not to writing into the open scratchpad.

If you implement the 'QWERTY_KB and Load Coordinates' plug-in you will get a [CLR] button to click, which will clear all content of the current scratchpad page.

[Nialfb]

Outstanding. Thanks for a brilliant MOD. I fly the A-10C II and it works really well, especially the save feature, as it saves me manually enteringmy target waypoints each time for my training missions. Just one item on my wish list ... can we have the green circle indicator disappear from the screen when we minamise the app please. I have yet to test this in VR but for VR I use Voice Attack so I am sure I can map the MOD to that.

Again, thanks for a really useful MOD.

Regards

Nial
