Carbon715 Posted December 23, 2021 Posted December 23, 2021 So looking to limit what threats I'm searching for in the HAD via HTS and am wondering if there is a document saying what's in class 1 2 3 etc so I can filter out
104th_Crunch Posted December 24, 2021 Posted December 24, 2021 (edited) I am looking for a kneeboard version before resorting to making my own. Nice over of the new changes that includes a Table (Class) breakdown. Take a screenshot of the List and put in your kneeboard folder. Edited December 24, 2021 by 104th_Crunch
schurem Posted December 26, 2021 Posted December 26, 2021 (edited) Please make it a written list. This sort of info should not be confined to a bloody youtube vid. F it, if you want something done, do it yourself Typed it all out for your enjoyment. TB RWR ID Name 1 10 110 SA-10 Tracking Radar 30N6 11 115 SA-11 Launcher 9A210M1 Buk BB 104 SA-10 Search Radar 64H6E CS 103 SA-10 Search Radar 5N66M SD 107 SA-11 Search Radar 9S18M1 2 8 117 SA-8 9A33 Osa 15 119 SA-15 9A331 Tor 19 120 SA-19 2S6 Tunguska A 121 ZSU-23-4 Shilka DE 109 Command Post 9S80M1 Sborka 3 2 126 SA-2 Tracking Radar SNR-75 3 123 SA-3 Tracking Radar SNR-125 6 108 SA-6 Search & Tracking Radar 1S91 Kub 13 118 SA-13 9A35M3 Strela-10M3 S 122 Search Radar P-19 4 5 129 SA-5 Search Radar 7 127 HQ7 Launcher 40 407 LHA1 Tarawa 49 401 Oliver Hazzard Perry A 207 AAA Gepard 5 A 208 AAA Vulcan M164 AE 315 Ticonderoga AE 412 Arleigh Burke IIa HK 203 Hawk Search Radar AN/MPQ-50 HK 204 Hawk Tracking Radar AN/MPQ-46 6 HK 206 Hawk CW Acquisition Radar AN/MPQ-55 HN 313 CGN 1144.2 Piotr Velikiy HN 410 DDG Type 052C HP 306 FFG 1124.4 Grisha HQ 128 HQ-7 Search & Tracking Radar MR 409 DDG Type 052B 7 MR 411 FFG Type 054A NS 209 NASAMS Search Radar MPQ-64F1 P 202 Patriot Search & Tracking Radar AN/MPQ-53 PS 312 FSG 124.1MP Molniya PS 408 Type 071 Amphibious Transport Dock 8 RO 201 Roland Air defence System RO 205 Roland Search Radar RP 124 Rapier Blindfire Tracker RT 125 Rapier Launcher S 101 Early Warning Radar 1L13 9 S 102 Early Warning Radar 55G6 SS 402 CVN-70 Carl Vinson SS 403 CVN-71 Theodore Roosevelt SS 404 CVN-72 Abraham Lincoln SS 405 CVN-73 George Washington 10 SS 406 CVN-74 John C. Stennis SS 413 CVN-75 Harry S. Truman SW 301 CV 1143.5 Admiral Kuznetsov SW 320 CV 1143.5 Admiral Kusnetsov (2017) T2 303 CG 1164 Moskva 11 TP 309 FFG 1135M Rezky TP 319 FFG 11540 Neustrashimy TS 130 SA-5 Search Radar Edited December 26, 2021 by schurem 4 4 I5 9600KF, 32GB, 3080ti, G2, PointCTRL
AstonMartinDBS Posted December 26, 2021 Posted December 26, 2021 (edited) 2 hours ago, schurem said: Typed it all out for your enjoyment. Thank you @schurem, but is it correct that table 6 contains six threats, while all other have a maximum of five? Does anyone have an official source for those tables? https://docs.google.com/spreadsheets/d/1p77yaLQJaUMbAIKJDKX5iMN5N5qm_Qqt_dJNyJjLQtw/edit#gid=0 is still limited to the first three tables. I'm about to update my HARM threat code tables (kneeboard and printable versions), but need a serious data source. Edited December 26, 2021 by AstonMartinDBS [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
schurem Posted December 26, 2021 Posted December 26, 2021 (edited) I just typed out the stuff in the video. Wouldn't mind reading this off a credible source myself either. Edited December 26, 2021 by schurem 1 I5 9600KF, 32GB, 3080ti, G2, PointCTRL
Carbon715 Posted December 26, 2021 Author Posted December 26, 2021 it does line up well with this tb = threat.....just the first 3 tables are filled in with threat identifier TB, easy to count from there 1
AstonMartinDBS Posted December 26, 2021 Posted December 26, 2021 2 hours ago, schurem said: Wouldn't mind reading this off a credible source myself either. Maybe we can get access to official information from the developers @BIGNEWY or @NineLine, that we can build our own tables and provide them here or in the DCS user files section? 1 [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
ED Team BIGNEWY Posted December 29, 2021 ED Team Posted December 29, 2021 As far as I am aware this is our latest threat table Display Name RWR DED ID Default Threat Table EWR 1L13 S 101 EWR 55G6 S 102 SAM SA-10 S-300PS SR 5N66M CS 103 1 SAM SA-10 S-300PS SR 64H6E BB 104 1 SAM SA-11 Buk SR 9S18M1 SD 107 1 SAM SA-6 Kub STR 1S91 6 108 3 CP 9S80M1 Sborka DE 109 2 SAM SA-10 S-300PS TR 30N6 10 110 1 SAM SA-11 Buk LN 9A310M1 11 115 1 SAM SA-8 Osa 9A33 8 117 2 SAM SA-13 Strela-10M3 9A35M3 13 118 3 SAM SA-15 Tor 9A331 15 119 2 SAM SA-19 Tunguska 2S6 19 120 2 AAA ZSU-23-4 Shilka A 121 2 SAM SR P-19 S 122 3 SAM SA-3 S-125 TR SNR 3 123 3 Rapier FSA Blindfire Tracker RP 124 Rapier FSA Launcher RT 125 SAM SA-2 TR SNR-75 Fan Song 2 126 3 HQ7 Self-Propelled LN 7 127 HQ7 Self-Propelled STR HQ 128 SAM SA-5 TR "Square Pair" 5 129 SAM SA-5 SR "Tin Shield" TS 130 SAM Roland ADS RO 201 SAM Patriot STR AN/MPQ-53 P 202 SAM Hawk SR AN/MPQ-50 HK 203 SAM Hawk TR AN/MPQ-46 HK 204 SAM Roland SR RO 205 SAM Hawk CWAR AN/MPQ-55 HK 206 AAA Gepard A 207 AAA Vulcan M163 A 208 SAM NASAMS SR MPQ64F1 NS 209 CV 1143.5 Admiral Kuznetsov SW 301 CV 1143.5 Admiral Kuznetsov(2017) SW 320 CG 1164 Moskva T2 303 FFL 1124.4 Grisha HP 306 FF 1135M Rezky TP 309 FSG 1241.1MP Molniya PS 312 CGN 1144.2 Piotr Velikiy HN 313 Ticonderoga class AE 315 FFG 11540 Neustrashimy TP 319 Oliver Hazzard Perry class 49 401 CVN-70 Carl Vinson SS 402 CVN-71 Theodore Roosevelt SS 403 CVN-72 Abraham Lincoln SS 404 CVN-73 George Washington SS 405 CVN-74 John C. Stennis SS 406 LHA-1 Tarawa 40 407 Type 071 Amphibious Transport Dock PS 408 Type 052B Destroyer MR 409 Type 052C Destroyer HN 410 Type 054A Frigate MR 411 DDG Arleigh Burke IIa AE 412 CVN-75 Harry S. Truman SS 413 4 1 Forum rules - DCS Crashing? Try this first - Cleanup and Repair - Discord BIGNEWY#8703 - Youtube - Patch Status Windows 11, NVIDIA MSI RTX 3090, Intel® i9-10900K 3.70GHz, 5.30GHz Turbo, Corsair Hydro Series H150i Pro, 64GB DDR @3200, ASUS ROG Strix Z490-F Gaming, PIMAX Crystal
Floydii Posted December 29, 2021 Posted December 29, 2021 57 minutes ago, BIGNEWY said: As far as I am aware this is our latest threat table Display Name RWR DED ID Default Threat Table EWR 1L13 S 101 EWR 55G6 S 102 SAM SA-10 S-300PS SR 5N66M CS 103 1 SAM SA-10 S-300PS SR 64H6E BB 104 1 SAM SA-11 Buk SR 9S18M1 SD 107 1 SAM SA-6 Kub STR 1S91 6 108 3 CP 9S80M1 Sborka DE 109 2 SAM SA-10 S-300PS TR 30N6 10 110 1 SAM SA-11 Buk LN 9A310M1 11 115 1 SAM SA-8 Osa 9A33 8 117 2 SAM SA-13 Strela-10M3 9A35M3 13 118 3 SAM SA-15 Tor 9A331 15 119 2 SAM SA-19 Tunguska 2S6 19 120 2 AAA ZSU-23-4 Shilka A 121 2 SAM SR P-19 S 122 3 SAM SA-3 S-125 TR SNR 3 123 3 Rapier FSA Blindfire Tracker RP 124 Rapier FSA Launcher RT 125 SAM SA-2 TR SNR-75 Fan Song 2 126 3 HQ7 Self-Propelled LN 7 127 HQ7 Self-Propelled STR HQ 128 SAM SA-5 TR "Square Pair" 5 129 SAM SA-5 SR "Tin Shield" TS 130 SAM Roland ADS RO 201 SAM Patriot STR AN/MPQ-53 P 202 SAM Hawk SR AN/MPQ-50 HK 203 SAM Hawk TR AN/MPQ-46 HK 204 SAM Roland SR RO 205 SAM Hawk CWAR AN/MPQ-55 HK 206 AAA Gepard A 207 AAA Vulcan M163 A 208 SAM NASAMS SR MPQ64F1 NS 209 CV 1143.5 Admiral Kuznetsov SW 301 CV 1143.5 Admiral Kuznetsov(2017) SW 320 CG 1164 Moskva T2 303 FFL 1124.4 Grisha HP 306 FF 1135M Rezky TP 309 FSG 1241.1MP Molniya PS 312 CGN 1144.2 Piotr Velikiy HN 313 Ticonderoga class AE 315 FFG 11540 Neustrashimy TP 319 Oliver Hazzard Perry class 49 401 CVN-70 Carl Vinson SS 402 CVN-71 Theodore Roosevelt SS 403 CVN-72 Abraham Lincoln SS 404 CVN-73 George Washington SS 405 CVN-74 John C. Stennis SS 406 LHA-1 Tarawa 40 407 Type 071 Amphibious Transport Dock PS 408 Type 052B Destroyer MR 409 Type 052C Destroyer HN 410 Type 054A Frigate MR 411 DDG Arleigh Burke IIa AE 412 CVN-75 Harry S. Truman SS 413 So are there Dev notes as to which default threat table all of the emitters above go into on the HAD THRT page? Alternatively, has the THRT page only been populated with tables 1-3? Just had another thought (which I can't check as away from PC), but can the threat pages be modified via the ICP? If so, maybe there is a way to see the default values this way.
Bricux Posted December 29, 2021 Posted December 29, 2021 (edited) 28 minutes ago, Floydii said: So are there Dev notes as to which default threat table all of the emitters above go into on the HAD THRT page? Alternatively, has the THRT page only been populated with tables 1-3? Just had another thought (which I can't check as away from PC), but can the threat pages be modified via the ICP? If so, maybe there is a way to see the default values this way. In HAD You can create custom threat table (with 8 emitters?) via ICP/DED Edited December 29, 2021 by Bricux
ED Team BIGNEWY Posted December 29, 2021 ED Team Posted December 29, 2021 Updated list from the team, the manual will be updated soon. Display Name RWR DED ID Class number SAM SA-10 S-300PS SR 5N66M CS 103 1 SAM SA-10 S-300PS SR 64H6E BB 104 1 SAM SA-11 Buk SR 9S18M1 SD 107 1 SAM SA-10 S-300PS TR 30N6 10 110 1 SAM SA-11 Buk LN 9A310M1 11 115 1 SAM SA-15 Tor 9A331 15 119 1 HQ7 Self-Propelled LN 7 127 1 HQ7 Self-Propelled STR HQ 128 1 SAM SA-5 SR "Tin Shield" TS 130 1 SAM SA-6 Kub STR 1S91 6 108 2 SAM SA-8 Osa 9A33 8 117 2 SAM SA-3 S-125 TR SNR 3 123 2 SAM SA-2 TR SNR-75 Fan Song 2 126 2 SAM SA-5 TR "Square Pair" 5 129 2 SAM SA-13 Strela-10M3 9A35M3 13 118 2 SAM SR P-19 S 122 2 CP 9S80M1 Sborka DE 109 3 SAM SA-19 Tunguska 2S6 19 120 3 AAA ZSU-23-4 Shilka A 121 3 EWR 1L13 S 101 4 EWR 55G6 S 102 4 CV 1143.5 Admiral Kuznetsov SW 301 5 CV 1143.5 Admiral Kuznetsov(2017) SW 320 5 FFL 1124.4 Grisha HP 306 5 FFG 11540 Neustrashimy TP 319 5 CG 1164 Moskva T2 303 5 FF 1135M Rezky TP 309 5 FSG 1241.1MP Molniya PS 312 5 CGN 1144.2 Piotr Velikiy HN 313 5 Type 071 Amphibious Transport Dock PS 408 5 Type 052B Destroyer MR 409 5 Type 052C Destroyer HN 410 5 Type 054A Frigate MR 411 5 SAM Patriot STR AN/MPQ-53 P 202 6 SAM NASAMS SR MPQ64F1 NS 209 6 SAM Roland ADS RO 201 7 SAM Hawk SR AN/MPQ-50 HK 203 7 SAM Hawk TR AN/MPQ-46 HK 204 7 SAM Roland SR RO 205 7 SAM Hawk CWAR AN/MPQ-55 HK 206 7 Rapier FSA Blindfire Tracker RP 124 7 Rapier FSA Launcher RT 125 7 AAA Gepard A 207 8 AAA Vulcan M163 A 208 8 Ticonderoga class AE 315 10 Oliver Hazzard Perry class 49 401 10 LHA-1 Tarawa 40 407 10 DDG Arleigh Burke IIa AE 412 10 CVN-70 Carl Vinson SS 402 10 CVN-71 Theodore Roosevelt SS 403 10 CVN-72 Abraham Lincoln SS 404 10 CVN-73 George Washington SS 405 10 CVN-74 John C. Stennis SS 406 10 CVN-75 Harry S. Truman SS 413 10 4 6 Forum rules - DCS Crashing? Try this first - Cleanup and Repair - Discord BIGNEWY#8703 - Youtube - Patch Status Windows 11, NVIDIA MSI RTX 3090, Intel® i9-10900K 3.70GHz, 5.30GHz Turbo, Corsair Hydro Series H150i Pro, 64GB DDR @3200, ASUS ROG Strix Z490-F Gaming, PIMAX Crystal
AstonMartinDBS Posted December 29, 2021 Posted December 29, 2021 On 12/23/2021 at 7:46 PM, Carbon715 said: So looking to limit what threats I'm searching for in the HAD via HTS and am wondering if there is a document saying what's in class 1 2 3 etc so I can filter out I've updated my threat tables right now. You can download them here: https://forums.eagle.ru/topic/245497-alic-tables-for-the-agm-88c-harm-pdf-and-kneeboard/ Big thanks @BIGNEWY for providing the required data! 2 2 [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
Carbon715 Posted December 29, 2021 Author Posted December 29, 2021 interesting that there isn't a 9 or 11 class but an option in the HAD..more to come i suspect =D 1
FoxOne007 Posted December 29, 2021 Posted December 29, 2021 5 hours ago, BIGNEWY said: As far as I am aware this is our latest threat table Display Name RWR DED ID Default Threat Table EWR 1L13 S 101 EWR 55G6 S 102 SAM SA-10 S-300PS SR 5N66M CS 103 1 SAM SA-10 S-300PS SR 64H6E BB 104 1 SAM SA-11 Buk SR 9S18M1 SD 107 1 SAM SA-6 Kub STR 1S91 6 108 3 CP 9S80M1 Sborka DE 109 2 SAM SA-10 S-300PS TR 30N6 10 110 1 SAM SA-11 Buk LN 9A310M1 11 115 1 SAM SA-8 Osa 9A33 8 117 2 SAM SA-13 Strela-10M3 9A35M3 13 118 3 SAM SA-15 Tor 9A331 15 119 2 SAM SA-19 Tunguska 2S6 19 120 2 AAA ZSU-23-4 Shilka A 121 2 SAM SR P-19 S 122 3 SAM SA-3 S-125 TR SNR 3 123 3 Rapier FSA Blindfire Tracker RP 124 Rapier FSA Launcher RT 125 SAM SA-2 TR SNR-75 Fan Song 2 126 3 HQ7 Self-Propelled LN 7 127 HQ7 Self-Propelled STR HQ 128 SAM SA-5 TR "Square Pair" 5 129 SAM SA-5 SR "Tin Shield" TS 130 SAM Roland ADS RO 201 SAM Patriot STR AN/MPQ-53 P 202 SAM Hawk SR AN/MPQ-50 HK 203 SAM Hawk TR AN/MPQ-46 HK 204 SAM Roland SR RO 205 SAM Hawk CWAR AN/MPQ-55 HK 206 AAA Gepard A 207 AAA Vulcan M163 A 208 SAM NASAMS SR MPQ64F1 NS 209 CV 1143.5 Admiral Kuznetsov SW 301 CV 1143.5 Admiral Kuznetsov(2017) SW 320 CG 1164 Moskva T2 303 FFL 1124.4 Grisha HP 306 FF 1135M Rezky TP 309 FSG 1241.1MP Molniya PS 312 CGN 1144.2 Piotr Velikiy HN 313 Ticonderoga class AE 315 FFG 11540 Neustrashimy TP 319 Oliver Hazzard Perry class 49 401 CVN-70 Carl Vinson SS 402 CVN-71 Theodore Roosevelt SS 403 CVN-72 Abraham Lincoln SS 404 CVN-73 George Washington SS 405 CVN-74 John C. Stennis SS 406 LHA-1 Tarawa 40 407 Type 071 Amphibious Transport Dock PS 408 Type 052B Destroyer MR 409 Type 052C Destroyer HN 410 Type 054A Frigate MR 411 DDG Arleigh Burke IIa AE 412 CVN-75 Harry S. Truman SS 413 When can we finally expect the kneeboard of this in game, the one that was promised when you brought the HARMs to the Viper over a year ago…. [sIGPIC][/sIGPIC]
AstonMartinDBS Posted December 29, 2021 Posted December 29, 2021 20 minutes ago, FoxOne007 said: the one that was promised when you brought the HARMs to the Viper over a year ago ED really promised a kneeboard with such codes and tables? [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
FoxOne007 Posted December 29, 2021 Posted December 29, 2021 19 minutes ago, AstonMartinDBS said: ED really promised a kneeboard with such codes and tables? Yepp, and still have yet to deliver… 1 [sIGPIC][/sIGPIC]
ED Team NineLine Posted August 4, 2022 ED Team Posted August 4, 2022 On 12/29/2021 at 9:27 AM, AstonMartinDBS said: ED really promised a kneeboard with such codes and tables? Hi, can you link to this promise please? Thanks Forum Rules • My YouTube • My Discord - NineLine#0440• **How to Report a Bug**
AstonMartinDBS Posted August 4, 2022 Posted August 4, 2022 2 hours ago, NineLine said: Hi, can you link to this promise please? Thanks I just was wondering, but I didn't make that claim. It was @FoxOne007: On 12/29/2021 at 6:04 PM, FoxOne007 said: When can we finally expect the kneeboard of this in game, the one that was promised when you brought the HARMs to the Viper over a year ago…. [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
AlexCaboose Posted August 5, 2022 Posted August 5, 2022 The full table is above, but you can always create a manual table and turn off the default tables for faster scanning. 476th vFG Website, 476th vFG Discord, 476th vFG Pipeline
Frederf Posted August 5, 2022 Posted August 5, 2022 7 minutes ago, AlexCaboose said: The full table is above, but you can always create a manual table and turn off the default tables for faster scanning. That isn't the HAD threat table. That's the HARM threat table.

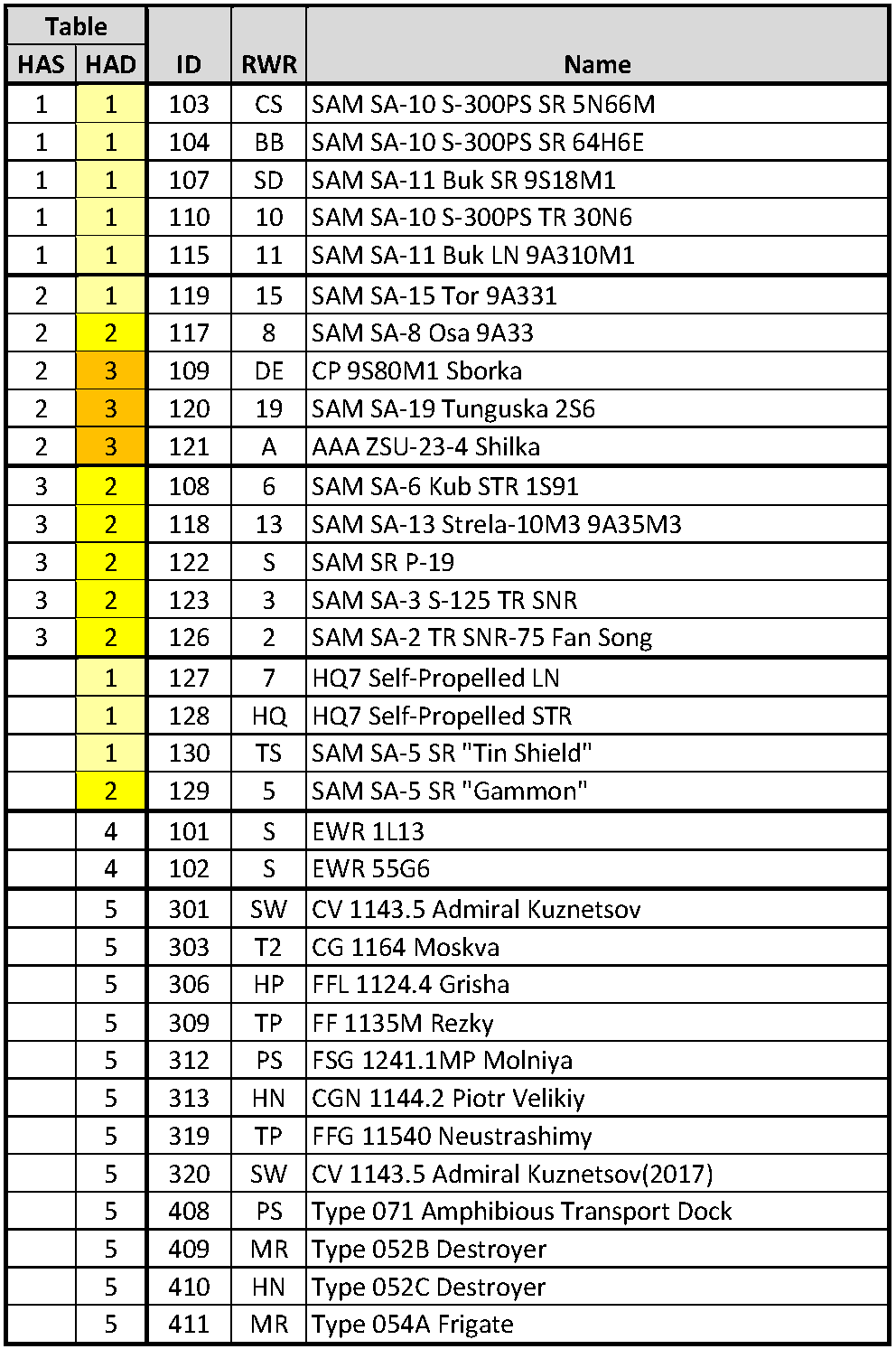

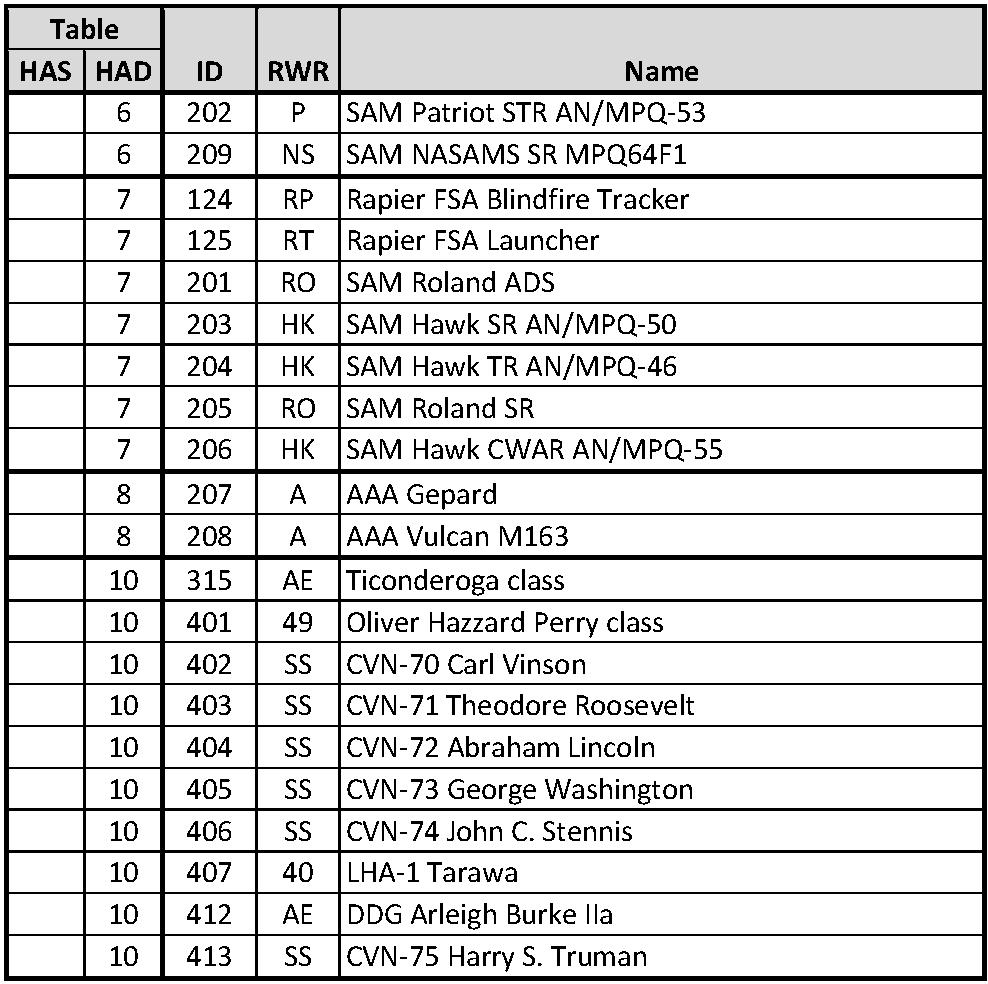

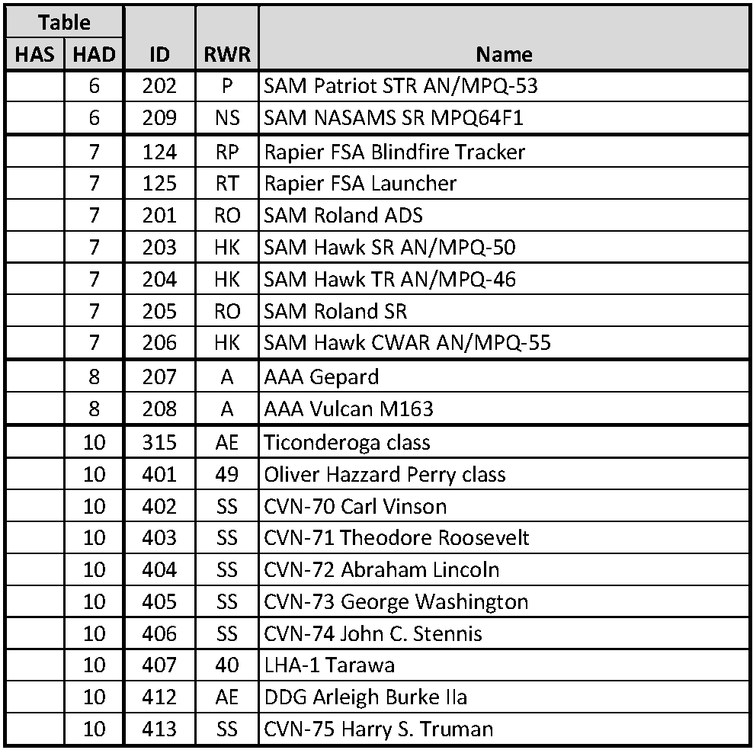

AlexCaboose Posted August 5, 2022 Posted August 5, 2022 (edited) On 12/29/2021 at 7:51 AM, BIGNEWY said: Updated list from the team, the manual will be updated soon. Display Name RWR DED ID Class number SAM SA-10 S-300PS SR 5N66M CS 103 1 SAM SA-10 S-300PS SR 64H6E BB 104 1 SAM SA-11 Buk SR 9S18M1 SD 107 1 SAM SA-10 S-300PS TR 30N6 10 110 1 SAM SA-11 Buk LN 9A310M1 11 115 1 SAM SA-15 Tor 9A331 15 119 1 HQ7 Self-Propelled LN 7 127 1 HQ7 Self-Propelled STR HQ 128 1 SAM SA-5 SR "Tin Shield" TS 130 1 SAM SA-6 Kub STR 1S91 6 108 2 SAM SA-8 Osa 9A33 8 117 2 SAM SA-3 S-125 TR SNR 3 123 2 SAM SA-2 TR SNR-75 Fan Song 2 126 2 SAM SA-5 TR "Square Pair" 5 129 2 SAM SA-13 Strela-10M3 9A35M3 13 118 2 SAM SR P-19 S 122 2 CP 9S80M1 Sborka DE 109 3 SAM SA-19 Tunguska 2S6 19 120 3 AAA ZSU-23-4 Shilka A 121 3 EWR 1L13 S 101 4 EWR 55G6 S 102 4 CV 1143.5 Admiral Kuznetsov SW 301 5 CV 1143.5 Admiral Kuznetsov(2017) SW 320 5 FFL 1124.4 Grisha HP 306 5 FFG 11540 Neustrashimy TP 319 5 CG 1164 Moskva T2 303 5 FF 1135M Rezky TP 309 5 FSG 1241.1MP Molniya PS 312 5 CGN 1144.2 Piotr Velikiy HN 313 5 Type 071 Amphibious Transport Dock PS 408 5 Type 052B Destroyer MR 409 5 Type 052C Destroyer HN 410 5 Type 054A Frigate MR 411 5 SAM Patriot STR AN/MPQ-53 P 202 6 SAM NASAMS SR MPQ64F1 NS 209 6 SAM Roland ADS RO 201 7 SAM Hawk SR AN/MPQ-50 HK 203 7 SAM Hawk TR AN/MPQ-46 HK 204 7 SAM Roland SR RO 205 7 SAM Hawk CWAR AN/MPQ-55 HK 206 7 Rapier FSA Blindfire Tracker RP 124 7 Rapier FSA Launcher RT 125 7 AAA Gepard A 207 8 AAA Vulcan M163 A 208 8 Ticonderoga class AE 315 10 Oliver Hazzard Perry class 49 401 10 LHA-1 Tarawa 40 407 10 DDG Arleigh Burke IIa AE 412 10 CVN-70 Carl Vinson SS 402 10 CVN-71 Theodore Roosevelt SS 403 10 CVN-72 Abraham Lincoln SS 404 10 CVN-73 George Washington SS 405 10 CVN-74 John C. Stennis SS 406 10 CVN-75 Harry S. Truman SS 413 10 @Frederf This is for the HAD. The "class" is the HAD threat table. You can see the SA-15 matches up to #1 as you mentioned. Edit: I can't remember who made these kneeboards, but someone posted them in another thread some months ago when the HTS was released. Edited August 5, 2022 by AlexCaboose 2 476th vFG Website, 476th vFG Discord, 476th vFG Pipeline

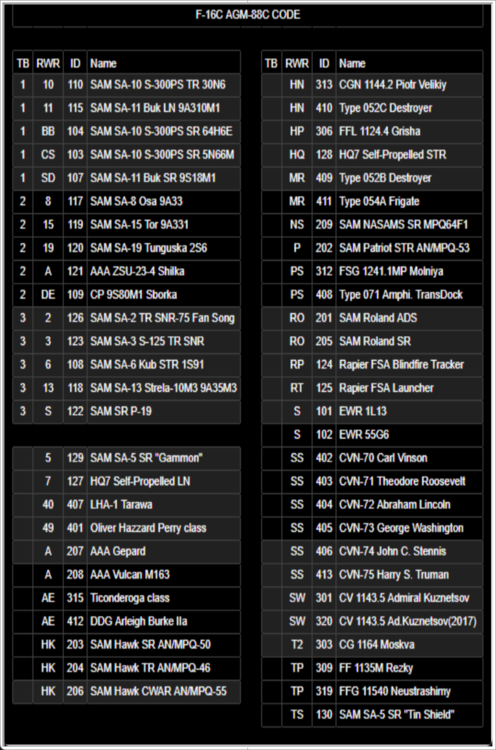

AstonMartinDBS Posted August 5, 2022 Posted August 5, 2022 3 hours ago, AlexCaboose said: I can't remember who made these kneeboards, but someone posted them in another thread some months ago when the HTS was released. The tables are based on official data from ED. For further details see the information in the first post in the linked thread. [Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC [Maps] PG, NTTR, Normandy, Sinai, Syria, TC [OS] Windows 11 Pro [PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro [Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H
TEOMOOSE Posted August 10, 2022 Posted August 10, 2022 On 12/29/2021 at 7:51 AM, BIGNEWY said: Updated list from the team, the manual will be updated soon. Display Name RWR DED ID Class number SAM SA-10 S-300PS SR 5N66M CS 103 1 SAM SA-10 S-300PS SR 64H6E BB 104 1 SAM SA-11 Buk SR 9S18M1 SD 107 1 SAM SA-10 S-300PS TR 30N6 10 110 1 SAM SA-11 Buk LN 9A310M1 11 115 1 SAM SA-15 Tor 9A331 15 119 1 HQ7 Self-Propelled LN 7 127 1 HQ7 Self-Propelled STR HQ 128 1 SAM SA-5 SR "Tin Shield" TS 130 1 SAM SA-6 Kub STR 1S91 6 108 2 SAM SA-8 Osa 9A33 8 117 2 SAM SA-3 S-125 TR SNR 3 123 2 SAM SA-2 TR SNR-75 Fan Song 2 126 2 SAM SA-5 TR "Square Pair" 5 129 2 SAM SA-13 Strela-10M3 9A35M3 13 118 2 SAM SR P-19 S 122 2 CP 9S80M1 Sborka DE 109 3 SAM SA-19 Tunguska 2S6 19 120 3 AAA ZSU-23-4 Shilka A 121 3 EWR 1L13 S 101 4 EWR 55G6 S 102 4 CV 1143.5 Admiral Kuznetsov SW 301 5 CV 1143.5 Admiral Kuznetsov(2017) SW 320 5 FFL 1124.4 Grisha HP 306 5 FFG 11540 Neustrashimy TP 319 5 CG 1164 Moskva T2 303 5 FF 1135M Rezky TP 309 5 FSG 1241.1MP Molniya PS 312 5 CGN 1144.2 Piotr Velikiy HN 313 5 Type 071 Amphibious Transport Dock PS 408 5 Type 052B Destroyer MR 409 5 Type 052C Destroyer HN 410 5 Type 054A Frigate MR 411 5 SAM Patriot STR AN/MPQ-53 P 202 6 SAM NASAMS SR MPQ64F1 NS 209 6 SAM Roland ADS RO 201 7 SAM Hawk SR AN/MPQ-50 HK 203 7 SAM Hawk TR AN/MPQ-46 HK 204 7 SAM Roland SR RO 205 7 SAM Hawk CWAR AN/MPQ-55 HK 206 7 Rapier FSA Blindfire Tracker RP 124 7 Rapier FSA Launcher RT 125 7 AAA Gepard A 207 8 AAA Vulcan M163 A 208 8 Ticonderoga class AE 315 10 Oliver Hazzard Perry class 49 401 10 LHA-1 Tarawa 40 407 10 DDG Arleigh Burke IIa AE 412 10 CVN-70 Carl Vinson SS 402 10 CVN-71 Theodore Roosevelt SS 403 10 CVN-72 Abraham Lincoln SS 404 10 CVN-73 George Washington SS 405 10 CVN-74 John C. Stennis SS 406 10 CVN-75 Harry S. Truman SS 413 10 May i request an update on this, just would like to if its still up to date. I thought we have 11 class in total, i see 10 here.
