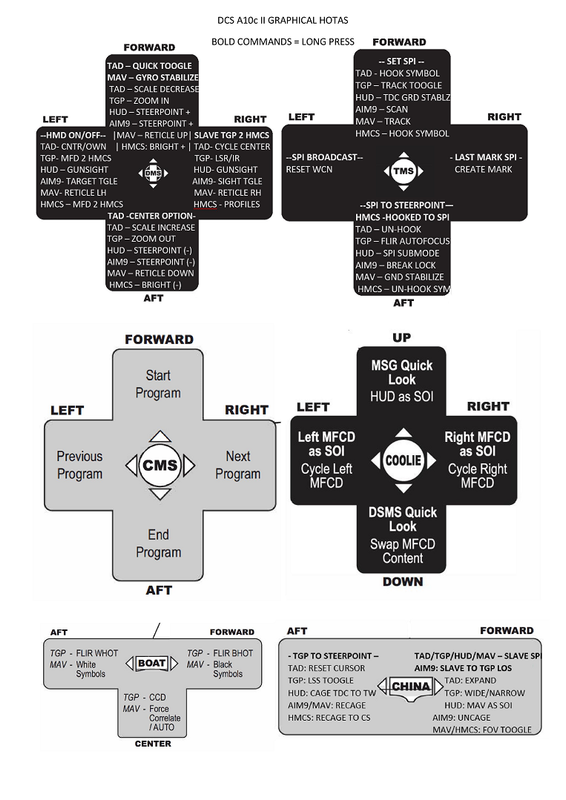

Hi, I took an old chart that I used in the old A-10c as kneeboard and updated it for the new A/C. Just download it and save to /saved games/dcs/kneeboard/A-10c_2/



I also got it in PDF if wanted... just PM.




Edited by HC.Coyote
Ziptie

Ziptie

Posted
Posted
Nice - thanks for that

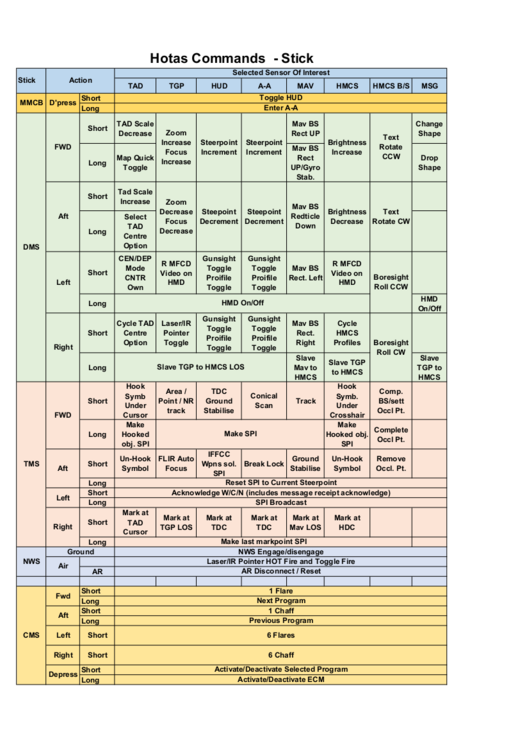

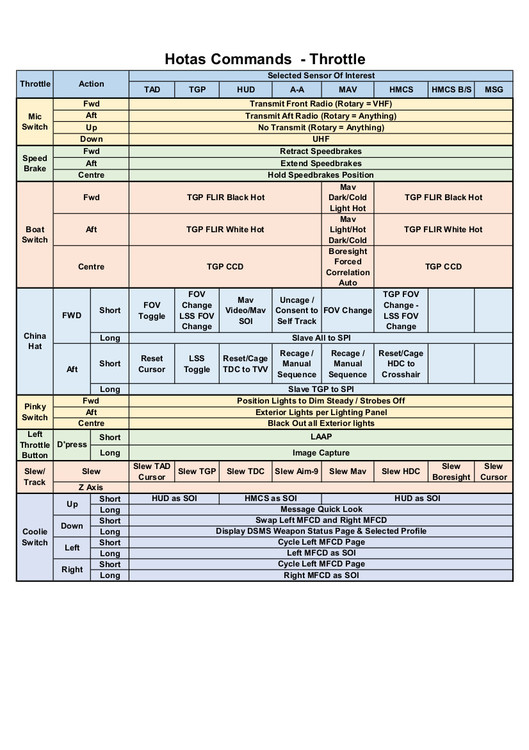

Or these if you wanted them.



Apparently there is a possibility of a change coming to the CMS commands. Not confirmed yet - but sounds likely.... These reflect those changes.







Cheers,



Ziptie


1884642953_A-10C2Throttlecommands_rev3.thumb.jpg.17a309aa951ca4d07873bb10f99227fb.jpg

i7 6700 @4ghz, 32GB HyperX Fury ddr4-2133 ram, GTX980, Oculus Rift CV1, 2x1TB SSD drives (one solely for DCS OpenBeta standalone) Thrustmaster Warthog HOTAS, Thrustmaster Cougar MFDs



Airframes: A10C, A10CII, F/A-18C, F-14B, F-16C, UH=1H, FC3. Modules: Combined Arms, Supercarrier. Terrains: Persian Gulf, Nevada NTTR, Syria

Ziptie

Ziptie

Posted
Posted (edited)
I like the way you’ve visualized this.



Missing one more button press though: Z Axis on CMS



Not my work, so I cannot take credit - but when I saw it - was happy to share it. The member that made it is, bjwonsite , unless I am mistaken. The Z axis is actually in that chart, it is just listed as "depress" rather than Z axis. Not thrilled about the incoming changes to the CMS functionality - but if it's accurate to real life, happy to retrain the muscle memory.





Cheers,



Ziptie

Edited by Ziptie

i7 6700 @4ghz, 32GB HyperX Fury ddr4-2133 ram, GTX980, Oculus Rift CV1, 2x1TB SSD drives (one solely for DCS OpenBeta standalone) Thrustmaster Warthog HOTAS, Thrustmaster Cougar MFDs



Airframes: A10C, A10CII, F/A-18C, F-14B, F-16C, UH=1H, FC3. Modules: Combined Arms, Supercarrier. Terrains: Persian Gulf, Nevada NTTR, Syria

Flia

Flia

Posted
Posted

Cool.Thank you.

PC: i7 9700K, 32 GB RAM, RTX 2080 SUPER, Tir 5, Hotas Warthog Throttle, VPC MongoosT-50CM2 Base with VPC MongoosT-50CM2 Grip, VKB-SIM T-RUDDER PEDALS MK.IV. Modules : NEVADA, F-5E, M-2000C, BF-109K4, A-10C, FC3, P-51D, MIG-21BIS, MI-8MTV2, F-86F, FW-190D9, UH-1H, L-39, MIG-15BIS, AJS37, SPITFIRE-MKIX, AV8BNA, PERSIAN GULF, F/A-18C HORNET, YAK-52, KA-50, F-14,SA342, C-101, F-16, JF-17, Supercarrier,I-16,MIG-19P, P-47D,A-10C_II

Mr_sukebe

Mr_sukebe

Posted
Posted

My thanks to the contributors, much appreciated

7800x3d, 5080, 64GB, PCIE5 SSD - Oculus Pro - Moza (AB9), Virpil (Alpha, CM3, CM1 and CM2), WW (TOP and CP), TM (MFDs, Pendular Rudder), Tek Creations (F18 panel), Total Controls (Apache MFD), Jetseat

VaporFlow

VaporFlow

Posted
  • Author
Posted
I like the way you’ve visualized this.



Missing one more button press though: Z Axis on CMS



Yes, you're right. I've got it binded but didn't remember to add it.

Rogago

Rogago

Posted
Posted

Is there a way to re-center the TGP?

Like in the old hog with china hat short aft?

A-10C II, F-18C, F-16C, F-14, AV-8B, F-5E, L-39, Hawk, F-86, MiG-15, UH-1H, Ka-50, P-51D, BF-109, FW-190, FC3, CA, SC.

i9 9900K | RTX 3080Ti | Aorus Ultra Z390 | 32gb Vengeance 3200mhz | WD Black M.2 SN750.

Hotas Warthog | TrackIR 5 | CH Pro Pedals.

Ziptie

Ziptie

Posted
Posted
Ahh yes, I'm not the only one who though this was missing



Negative. There are several posts about it. It’s been deemed “correct as is by SME(s).”





Cheers,



Ziptie

i7 6700 @4ghz, 32GB HyperX Fury ddr4-2133 ram, GTX980, Oculus Rift CV1, 2x1TB SSD drives (one solely for DCS OpenBeta standalone) Thrustmaster Warthog HOTAS, Thrustmaster Cougar MFDs



Airframes: A10C, A10CII, F/A-18C, F-14B, F-16C, UH=1H, FC3. Modules: Combined Arms, Supercarrier. Terrains: Persian Gulf, Nevada NTTR, Syria

Fri13

Fri13

Posted
Posted

Ain't TMS and DMS hats at wrong order?

i7-8700k, 32GB 2666Mhz DDR4, 2x 2080S SLI 8GB, Oculus Rift S.

i7-8700k, 16GB 2666Mhz DDR4, 1080Ti 11GB, 27" 4K, 65" HDR 4K.

Raven434th

Raven434th

Posted
Posted (edited)

for those of us who are half blind...I made them separate and bigger



https://imgur.com/EJDEGpu



https://imgur.com/WljOv9e



https://imgur.com/NW1khYd



https://imgur.com/lsSvW0r

Edited by Raven434th

MODUALS OWNED       AH-64D APACHE, Ka-50, UH-1H, Mi-8MTV2, Mi-24,Gazelle, FC3, A-10C, A-10CII, Mirage 2000C, F-14 TOMCAT, F/A-18C HORNET, F-16C VIPER, AV-8B/NA, F-15 E, F-4 Phantom, MiG-21Bis, L-39, F-5E, AJS 37 Viggen, MiG-19, F-86, MiG-15Bis, Spitfire IX, Bf-109K, Fw-190D, P-51D, CA, SYRIA, AFGHANISTAN,NEVADA, NORMANDY, PERSIAN GULF, MARIANA ISLANDS,SUPER CARRIER, WORLD WAR II ASSETS PACK, HAWK T1

SYSTEM SPECS            AMD  7600X 4.7 Ghz CPU , MSI RX 6750 12 gig GPU ,32 gig ram on Win11 64bit.



Raven434th

Raven434th

Posted
Posted

sorry could get them to show in thread...links only

MODUALS OWNED       AH-64D APACHE, Ka-50, UH-1H, Mi-8MTV2, Mi-24,Gazelle, FC3, A-10C, A-10CII, Mirage 2000C, F-14 TOMCAT, F/A-18C HORNET, F-16C VIPER, AV-8B/NA, F-15 E, F-4 Phantom, MiG-21Bis, L-39, F-5E, AJS 37 Viggen, MiG-19, F-86, MiG-15Bis, Spitfire IX, Bf-109K, Fw-190D, P-51D, CA, SYRIA, AFGHANISTAN,NEVADA, NORMANDY, PERSIAN GULF, MARIANA ISLANDS,SUPER CARRIER, WORLD WAR II ASSETS PACK, HAWK T1

SYSTEM SPECS            AMD  7600X 4.7 Ghz CPU , MSI RX 6750 12 gig GPU ,32 gig ram on Win11 64bit.



nessuno0505

nessuno0505

Posted
Posted
Negative. There are several posts about it. It’s been deemed “correct as is by SME(s).”





Cheers,



Ziptie





Yes it is, but in the real a-10 there's a function on the mfd, currently not modeled but it has been suggested to be added and reported by NineLine.

Ziptie

Ziptie

Posted
Posted
Yes it is, but in the real a-10 there's a function on the mfd, currently not modeled but it has been suggested to be added and reported by NineLine.



Correct.





Cheers,



Ziptie

i7 6700 @4ghz, 32GB HyperX Fury ddr4-2133 ram, GTX980, Oculus Rift CV1, 2x1TB SSD drives (one solely for DCS OpenBeta standalone) Thrustmaster Warthog HOTAS, Thrustmaster Cougar MFDs



Airframes: A10C, A10CII, F/A-18C, F-14B, F-16C, UH=1H, FC3. Modules: Combined Arms, Supercarrier. Terrains: Persian Gulf, Nevada NTTR, Syria

Ziptie

Ziptie

Posted
Posted

If you’re referencing the ones I shared - they are not mine and unable to assist with a version for formatting. NineLine shared it in a sticky and you could ask the person who made it though







Cheers,



Ziptie

i7 6700 @4ghz, 32GB HyperX Fury ddr4-2133 ram, GTX980, Oculus Rift CV1, 2x1TB SSD drives (one solely for DCS OpenBeta standalone) Thrustmaster Warthog HOTAS, Thrustmaster Cougar MFDs



Airframes: A10C, A10CII, F/A-18C, F-14B, F-16C, UH=1H, FC3. Modules: Combined Arms, Supercarrier. Terrains: Persian Gulf, Nevada NTTR, Syria

AstonMartinDBS

AstonMartinDBS

Posted
Posted
If you’re referencing the ones I shared - they are not mine and unable to assist with a version for formatting. NineLine shared it in a sticky and you could ask the person who made it though
The sheets are included in the A-10C-II manual (\Mods\aircraft\A-10C_2\Doc). You can find them at page 91 and 94. :music_whistling:

[Modules] A-10C, A-10C II, AH-64D, F-4E, F-14A/B, F-16C, F/A-18C, FC3, Ka-50, P-51D, UH-1H, CA, SC
[Maps] PG, NTTR, Normandy, Sinai, Syria, TC
[OS] Windows 11 Pro
[PC] MSI Pro Z790-A, i9-13900K, 128 GB DDR5, RTX 4090 24 GB GDDR6X, 2 x SSD 990 PRO 2 TB (M.2), Corsair 5000D Airflow, HX1500i, H150i RGB Elite, Acer X28, TM HOTAS Warthog (Grip@WarBRD Base), MS SW FFB2, Thrustmaster TFRP, TrackIR 5 & TrackClip Pro
[Checklists] A-10C, F-16C, F/A-18C, AH-64D, Ka-50, UH-1H

Hotdognz

Hotdognz

Posted
Posted
Hi, I took an old chart that I used in the old A-10c as kneeboard and updated it for the new A/C. Just download it and save to /saved games/dcs/kneeboard/A-10c_2/



I also got it in PDF if wanted... just PM.






Hi Coyote, great image and thanks for sharing, I started to use it but found it caused some confusion when using these with a Warthog in DCS, the images is wrong compared to the real stick which can aid with some confusion. you have the DMS on the L side and TMS on the R side, where as the stick has the TMS on the L side and DMS on the R side also the Coolie hat and CMS could do with being swapped to too, this would then mirror your stick you are looking at vs the image your looking at as a Kneeboard.



Any chance you can you possible do another one with both the DMS and TMS and CMS and Coolie hat reversed.



I tried to do it but im not very good at this kind of stuff>



Cheers



Cheers

Catweedle

Catweedle

Posted
Posted (edited)

TMS Aft short on TGP as SOI changes to INR and doesn't auto-focus -- that's what I was also used to in the old A10-C; long also doesn't reset SPI to steerpoint and actually it doesn't seem to do anything. Is something wrong with my installation, is it WIP? I checked my controls and everything is bound correctly.



Solved -- user malfunction.
