reported Undercarriage warning horn at +7 psi boost - early onset when throttle moved back

[CalypteAviation]

Currently the undercarriage warning horn engages at +7 lb/sq.in. boost. That is the Max Continuous power setting according to the manual (DCS) and Pilot Notes (real-world).



Pilot Notes provide various cruise power settings for the Mosquito - including -4 lb/sq.in. for long range cruise. This is currently unobtainable without the Gear Horn.

EDITED:

Mosquito Horn.trk

Edited September 19, 2021 by CalypteAviation

[NineLine]

Please supply a track file, thanks.

[MarcT-NL]

Also, shouldn't there be a silencer-button, like in the P-51 ?

[Land0]

Agreed, I get this happening from about +6 lb/sq in boost. Difficult to have an economical cruise if I can only use the maximum continuous power setting without a horn.

[iFoxRomeo]

[Nealius]

So how did real Mossie pilots cruise without getting tinnitus?

[iFoxRomeo]

8 minutes ago, Nealius said:

So how did real Mossie pilots cruise without getting tinnitus?

They probably told the maintenace to rip this thing out of the aircraft.



Here is a "nice" demo.





[312_JS]

9 hours ago, CalypteAviation said:

Currently the undercarriage warning horn engages at +7 lb/sq.in. boost. That is the Max Continuous power setting according to the manual (DCS) and Pilot Notes (real-world).



Pilot Notes provide various cruise power settings for the Mosquito - including -4 lb/sq.in. for long range cruise. This is currently unobtainable without the Gear Horn.

What was your RPM? I found out it's the warning goes on on higher boost if your RPM is lowered.

[some1]

33 minutes ago, iFoxRomeo said:



This assumes, that ED exactly matched the real Merlin 25 engine throttle in game. Which means that it produces the right amount of boost at the right amount of throttle angle. These things are hardly linear.



[Nealius]

40 minutes ago, 312_JS said:

What was your RPM? I found out it's the warning goes on on higher boost if your RPM is lowered.



RPM at +7 boost should be 2650 for published max continuous.

[Davee]

Even with throttles pulled fully back is this real?  For example, descending from altitude at idle is impossible because of the warning sound.



[Mogster]

38 minutes ago, Davee said:

Even with throttles pulled fully back is this real?  For example, descending from altitude at idle is impossible because of the warning sound.



The A10C has exactly the same alarm. There’s a nice gear horn mute button you can press on the WH throttle though…

[CalypteAviation]

5 hours ago, some1 said:

This assumes, that ED exactly matched the real Merlin 25 engine throttle in game. Which means that it produces the right amount of boost at the right amount of throttle angle. These things are hardly linear.



As I said, quoting the Pilot Notes, +7 boost is max continuous power. It is hardly believable that Mosquito pilots would spend all their flights with gear horn buzzing.

[iFoxRomeo]

I'd like to pull the circuit breaker for this annoying horn, but where is it....



At sealevel standatd wx the throttles give 7 inches just above the horn threshold. No way to decelerate this way. Looking at the video I posted, it seems "working as intended", but I hope not.

[CalypteAviation]

15 hours ago, NineLine said:

Please supply a track file, thanks.

Mosquito Horn.trk

[No1sonuk]

2 hours ago, iFoxRomeo said:

I'd like to pull the circuit breaker for this annoying horn, but where is it....

I searched - I couldn't find one.

[ac5]

Same issue here. Very odd indeed that there is no switch or other means to

silence this annoying horn. There is one in the P-51, and on many other planes...

[Nealius]

Perhaps maintenance crews back in the day unofficially snipped the wires? Little “life hacks” like that aren’t often documented and only come from first-hand oral accounts, much like some of the janky stuff Tomcat crews did with screwdrivers.

Edited October 15, 2021 by Nealius

[SMH]

On 9/19/2021 at 12:15 PM, Davee said:

Even with throttles pulled fully back is this real?  For example, descending from altitude at idle is impossible because of the warning sound.



How is the sound stopping you from descending?



[grafspee]

On 9/19/2021 at 1:08 PM, some1 said:



This assumes, that ED exactly matched the real Merlin 25 engine throttle in game. Which means that it produces the right amount of boost at the right amount of throttle angle. These things are hardly linear.



Ofc boost level vs throttle position is not linear, climb to 10k ft and you will have less then 7lbs at throttle wide open.

1 hour ago, SMH said:

How is the sound stopping you from descending?



Wonder my self as well

[some1]

58 minutes ago, grafspee said:

Ofc boost level vs throttle position is not linear, climb to 10k ft and you will have less then 7lbs at throttle wide open.

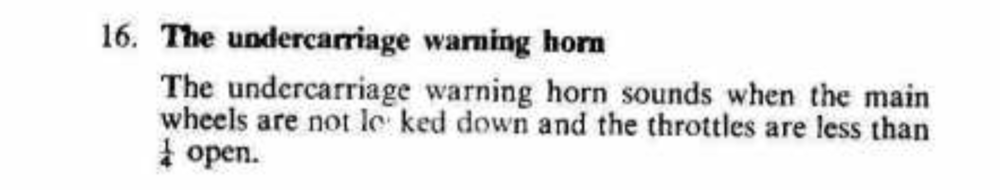

That's not what I meant. The horn starts at 1/4 throttle angle, it's a simple contact switch after all, but how much boost the real engine produces at that throttle lever position at sea level? That's the real question here.

[grafspee]

42 minutes ago, some1 said:

That's not what I meant. The horn starts at 1/4 throttle angle, it's a simple contact switch after all, but how much boost the real engine produces at that throttle lever position at sea level? That's the real question here.

ED model and calculate that things, so it is accurate as can be.

[some1]

And that quote proves what, actually?

[grafspee]

15 minutes ago, some1 said:

And that quote proves what, actually?

Travel of the throttle levers is very short for power obtained, this mean that you just touch the throttle and you have a lot of power.

If you have something like this mentioned in pilot notes then it means that throttle behavior is abnormal and warns pilot to expect different then other planes behavior.

Throttle maxed out, everyone expect that you get max power, throttle 1/4 no one expect half power.

It is better then nothing.

Edited October 17, 2021 by grafspee

[some1]

First of all, the specific quote relates to ground behavior. You don't need a lot of power to start rolling. Doesn't say anything about flying and how much throttle angle you need to obtain cruise setting.

Second, the throttles in Mosquito had indeed a short travel. Like they were literally a short, highly geared levers, which don't move very much, and that could caught pilots used to other types by surprise. Hence the extra warning. It's not about having a lot of power at small throttle angle, but rather the whole throttle having a short throw between closed and fully open position.

EDIT:

- To obtain +7 boost in Mosquito's Merlins on the ground in DCS you need roughly 26% of joystick input.

- To obtain 44 inHg in Mustang's Packard Merlin on the ground in DCS you need roughly 37% of joystick input. (44 inHg is equivalent to +7 boost)

That alone raises an eyebrow.

Edited October 17, 2021 by some1
