TDC SLEW Too Fast

[GrEaSeLiTeNiN]

Using Warthog F16 stick dome shape hat as TDC slew but it moves way too fast. Any way to slow it down?


Hope they will add a slider for slew sensitivity adjustment in the special options soon.

[clanitho]

I confirm, especially in wide TPOD view.

[Phantom_Mark]

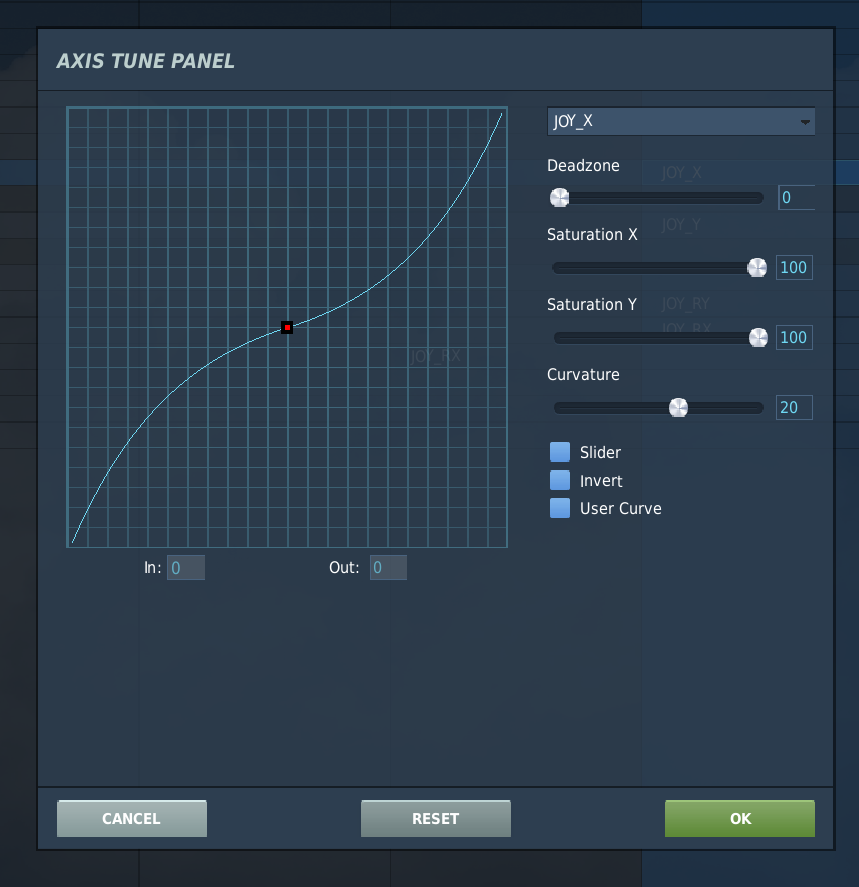

Go into Axis Tune and set a +20 curve, this will flatten out the movement to a much more steady rate, or tune that value to suit your Hog ( I am on a SuperTaurus)

null

[GrEaSeLiTeNiN]

3 minutes ago, Phantom_Mark said:

Go into Axis Tune and set a +20 curve, this will flatten out the movement to a much more steady rate, or tune that value to suit your Hog ( I am on a SuperTaurus)

null

I am not using a slew axis but have always mapped TDC to my stick's 4 way hat switch on all my other modules and it worked well. It is just overly sensitive in the F15E.

[Phantom_Mark]

Ahh right, that's a shame, any reason you choose not to use the stick on the throttle ???? (Here's me assuming you have a throttle as well now, sorry )

Edited June 30, 2023 by Phantom_Mark

[GrEaSeLiTeNiN]

4 hours ago, Phantom_Mark said:

Ahh right, that's a shame, any reason you choose not to use the stick on the throttle ???? (Here's me assuming you have a throttle as well now, sorry )

I have the Warthog throttle but its mini stick slew meant for TDC use is not good unless a mod replacement, like the one by Delta Sim, is used to replace it. The F16 stick dome HAT as TDC works fine for me in the F18/16 and the JF17 has lots of slew sensitivity bars in special options.

[clanitho]

I don't have an axis for mini stick on my CH FighterStick.

[Phantom_Mark]

4 hours ago, GrEaSeLiTeNiN said:

I have the Warthog throttle but its mini stick slew meant for TDC use is not good unless a mod replacement, like the one by Delta Sim, is used to replace it. The F16 stick dome HAT as TDC works fine for me in the F18/16 and the JF17 has lots of slew sensitivity bars in special options.

I used to have the Hog throttle, I found it was ok as long as you used curve, the mod of course is a ton better, what you are asking for doesn't seem over and above so fingers crossed they can sort something out for sure

[dporter22]

On 6/30/2023 at 12:54 AM, clanitho said:

I don't have an axis for mini stick on my CH FighterStick.

+1

No way to adjust the slew rate through axis control and it's impossible to make fine adjustments. Does the SE have a system-level slew rate adjustment that hasn't been  implemented yet?

Edited August 23, 2023 by dporter22

[Tenkom]

It might be possible to adapt the trick used here:

A few posts down you will see how they fixed the slew rate for the antenna elevation on the viper. I've done this and it works quite well.

Try finding the line the describes the bind for the TDC slew and change the values there.

It gets reset every update so use JSGME or take a back up so you can paste it back in after updates.

[LeCuvier]

The fix I posted in that thread for the F-16 works with the POV hat there.
This thread here is about the TDC axis settings. Therefore "my" fix cannot help here.

[Tenkom]

3 hours ago, LeCuvier said:

The fix I posted in that thread for the F-16 works with the POV hat there.
This thread here is about the TDC axis settings. Therefore "my" fix cannot help here.

No. The OP is using a 4-way hat switch on his stick and is having issues with the cursor being too sensitive. It's not about axis setting.

Your fix should work here.

[LeCuvier]

5 hours ago, Tenkom said:

No. The OP is using a 4-way hat switch on his stick and is having issues with the cursor being too sensitive. It's not about axis setting.

Your fix should work here.

You are right. I was misled by one of the posts above that talked about axis settings.
I tried "my" method but it does not work in the F-15E. Possible reason:
In the Strike Eagle the LUA code uses the "down" command, while the F-16 uses the "pressed command.

[dporter22]

The fix is for buttons or 4-way switches, so it won't work for my situation where I have a mini stick (CH Pro Throttle) used for TDC control.

[Tenkom]

4 hours ago, dporter22 said:

The fix is for buttons or 4-way switches, so it won't work for my situation where I have a mini stick (CH Pro Throttle) used for TDC control.

I don't understand. Either your mini stick is analog, in which case you should be able to adjust it using axis tune. Or it is a digital switch in which case the .lua trick would be the way to go. Except it doesn't seem to work with this module so I guess it's a moot point in either case.

[ebabil]

I am using hog mini stick and it is way too fast. How o you deal with it? I can’t put the cursor on ag radar targets since they are so small

[draconus]

On 11/19/2023 at 7:08 PM, ebabil said:

I am using hog mini stick and it is way too fast. How o you deal with it?

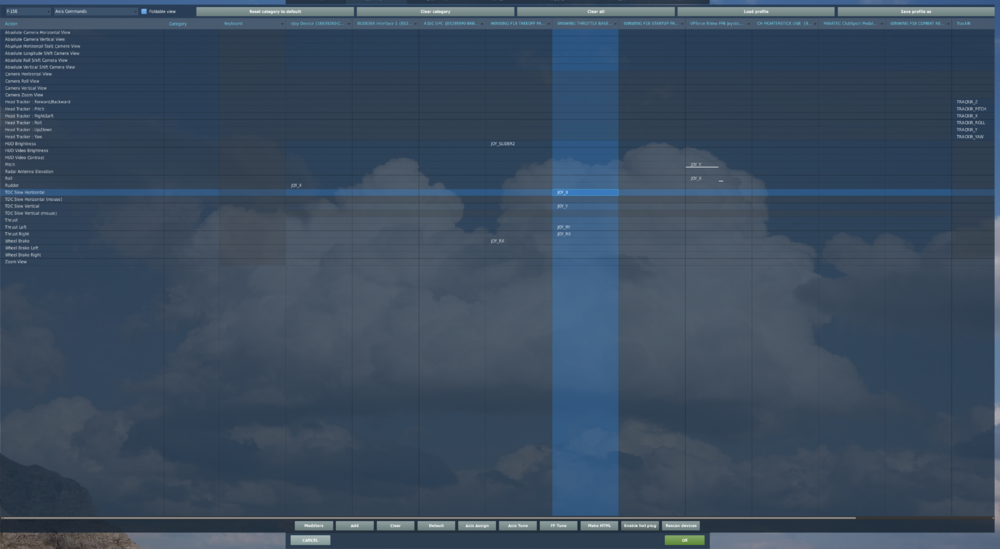

Go to controls > F-15E pilot > axis category > TDC X axis > axis tune > lower the Y saturation value, same for Y axis, also lower Y saturation.

[jaylw314]

Just to increase the confusion, I noticed that the sensitivity of the TPOD slew is much higher in the most wide FOV compared to the middle and narrow FOV, by a fairly large margin
