RocketmanAL Posted June 12, 2020 Posted June 12, 2020 (edited) I put together a SEAD Reference guide for my group and thought others might find it useful. SEAD Reference Guide V1.2 Includes a basic overview, order of battle, deployment template, and system engagement procedures for the RF equipped air defense units within DCS. Open to comments or suggestions. Edited September 22, 2021 by RocketmanAL 9 10
AG-51_Sabot Posted June 12, 2020 Posted June 12, 2020 Nice Job and thank you "There is an art … to flying. The knack lies in learning how to throw yourself at the ground and miss." Douglas Adams, The Hitchhikers Guide to the Galaxy https://www.cag-51.org/contact
Backy 51 Posted June 12, 2020 Posted June 12, 2020 Very nice! Thanks for posting. I don't need no stinkin' GPS! (except for PGMs :D) [sIGPIC][/sIGPIC]
diogofalcao Posted June 12, 2020 Posted June 12, 2020 Great manual! Thanks for sharing. A-10C / AJS-37 / AV-8B / BF-109 / KA-50 / F-14 / F-16C / F-5E / F/A-18C / FC3 / JF-17 / F-86 / M-2000C / MiG-21bis / P-51D / Spitfire LF Mk. IX / UH-1H Huey
markuscha Posted June 12, 2020 Posted June 12, 2020 Great ! Thank You !:thumbup: CPU: i7-5820K, 3.3GHz GPU: nVidia GeForce GTX1080 Motherboard: Gigabyte X99-UD3 RAM: G.Skill DDR4-2133 16GB SSD: Crucial MX200 500GB OS: Win 10 64Bit
Motomouse Posted June 12, 2020 Posted June 12, 2020 Thanks a lot! VIC-20@1.108 MHz, onboard GPU, 5KB RAM, μυωπία goggles, Competition Pro HOTAS
Rhinozherous Posted June 14, 2020 Posted June 14, 2020 Very nice made manual! Thank you very much! i7-14700KF 5.6GHz Water Cooled /// ZOTAC RTX 4070 TI Super 16GB /// 32GB RAM DDR5 /// Win11 /// SSDs only DCS - XP12 - MSFS2020
Sierra99 Posted June 15, 2020 Posted June 15, 2020 This is a great guide. I have a question for you regarding SA-10 configuration. "The FLAP LID has a max detection range of 86 nm, but this will vary on target RCS. The CLAM SHELL has a limited autonomous scan ability tailored to detect low level targets. An EWR is required to effectively detect medium- to high-altitude targets. ���� If we add an EWR to an SA-10 Group, does it actually change the detection range and operation of the SA-10 in the game? [sIGPIC][/sIGPIC] Primary Computer ASUS Z390-P, i7-9700K CPU @ 5.0Ghz, 32GB Patriot Viper Steel DDR4 @ 3200Mhz, ZOTAC GeForce 1070 Ti AMP Extreme, Samsung 970 EVO M.2 NVMe drives (1Tb & 500 Gb), Windows 10 Professional, Thrustmaster Warthog HOTAS, Thrustmaster Warthog Stick, Thrustmaster Cougar Throttle, Cougar MFDs x3, Saitek Combat Rudder Pedals and TrackIR 5. -={TAC}=-DCS Server Gigabyte GA-Z68XP-UD3, i7-3770K CPU @ 3.90GHz, 32GB G.SKILL Ripjaws DDR3 @ 1600Mhz, ZOTAC GeForce® GTX 970.
Koriel Posted July 17, 2020 Posted July 17, 2020 I put together a SEAD Reference guide for my group and thought others might find it useful. SEAD Reference Guide Includes a basic overview, order of battle, deployment template, and system engagement procedures for the RF equipped air defense units within DCS. Open to comments or suggestions. Very nice guide, thanks. And now for a very bold request. ;-) Is it possible to create templates for complete SAM sites? So one can drop a complete SAM system into a mission? This is something that I really find lacking in the mission editor. 1
shu77 Posted July 17, 2020 Posted July 17, 2020 Thanks for this I like the layout diagrams it adds some accuracy to design beyond plonking assets down. It would be worth cross referencing Acquisition time against what I have in my slides to make yours more accurate. Hornet, Super Carrier, Warthog & (II), Mustang, Spitfire, Albatross, Sabre, Combined Arms, FC3, Nevada, Gulf, Normandy, Syria AH-6J i9 10900K @ 5.0GHz, Gigabyte Z490 Vision G, Cooler Master ML120L, Gigabyte RTX3080 OC Gaming 10Gb, 64GB RAM, Reverb G2 @ 2480x2428, TM Warthog, Saitek pedals & throttle, DIY collective, TrackIR4, Cougar MFDs, vx3276-2k Combat Wombat's Airfield & Enroute Maps and Planning Tools
Furia Posted July 18, 2020 Posted July 18, 2020 :thumbup: Thanks for sharing [sIGPIC]http://menorca.infotelecom.es/~raulurbina/ESA/banner_furia.png[/sIGPIC]
RealPhoenix Posted July 18, 2020 Posted July 18, 2020 Excellent guide, thanks! [sIGPIC][/sIGPIC] Phoenix F-16C i7-8700K, Z370, 32GB DDR4-2400MHz, GTX 1080, FSSB R3L, TM Warthog HOTAS, MFD's, Windows 10 Pro, Oculus Rift S
Home Fries Posted July 19, 2020 Posted July 19, 2020 Great guide. Thank you for sharing. :thumbup: -Home Fries My DCS Files and Skins My DCS TARGET Profile for Cougar or Warthog and MFDs F-14B LANTIRN Guide
DAZnBLAST Posted July 19, 2020 Posted July 19, 2020 Very useful, thank you. My Hangar: F16C | FA18C | AH64D | F14A/B | M2000C | AV8B | A10C/ii | KA50/iii | Chinook | UH1H | Gazelle | FC3 | CA | Supercarrier My Spec: Obsidian750D Airflow | Z690 Tomahawk | 12700K | 32GB DDR4 Vengeance @3600 | RTX3080 12GB OC | ZXR PCIe | WD Black 2TB SSD | Log X56 | Log G502 | TrackIR | 1 badass mutha
RocketmanAL Posted September 15, 2020 Author Posted September 15, 2020 If we add an EWR to an SA-10 Group, does it actually change the detection range and operation of the SA-10 in the game? Sorry for the late reply, honestly stopped paying attention to this thread. In my experience adding the BIG BIRD significantly improves the SA-10's ability to engage higher altitude and longer range targets. The CLAM SHELL is better for low-altitude, but if you put it's detection range next to the BIG BIRD it's significantly outclassed.
RocketmanAL Posted September 15, 2020 Author Posted September 15, 2020 Is it possible to create templates for complete SAM sites? So one can drop a complete SAM system into a mission? This is something that I really find lacking in the mission editor. Sorry for the delayed response, wasn't really watching this thred after the first week or so. You can create your own templates. It's the bottom section of the templates window. Just set-up a site like I have in the guide, or in your own style, and save it to have it avaliable for future uses.
Aries Posted September 16, 2020 Posted September 16, 2020 Great guide!!! THX!!! :thumbup: [sIGPIC][/sIGPIC] ...the few, the proud, the remaining...
petritis Posted September 16, 2020 Posted September 16, 2020 Great work!!! "ARGO 2.0 Project Phoenix" UH-1H DLC Campaign - WIP "ARGO" DCS UH-1H DLC SP Campaign
falcon_120 Posted September 16, 2020 Posted September 16, 2020 Excellent job. Just a minor correction, within DCs the SA11 is very capable against HARMS.
sleepycanuck Posted September 16, 2020 Posted September 16, 2020 Thank you so very much ... very helpful, especially when making missions in the editor! SleepyCanuck :sleep:[sIGPIC][/sIGPIC]
RocketmanAL Posted July 27, 2021 Author Posted July 27, 2021 I've updated the guide to V1.1. Added the NASAMS, corrected a few deployment layouts, and retested some capabilities against PGMs and updated relevant systems. 1 1
RocketmanAL Posted September 22, 2021 Author Posted September 22, 2021 Version 1.2 now available. Changelog: Added SA-5 Modified the Patriot to reflect new radar behavior Moved quick reference cards to front of packet 1

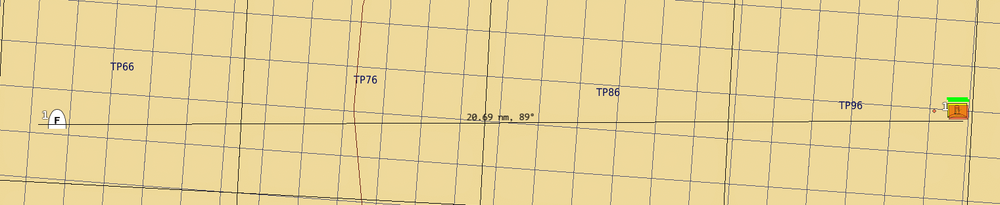

Minsky Posted September 22, 2021 Posted September 22, 2021 Hi! The ranges in your guide -- are they based on the in-game values, or real-world data? Because some numbers for the SA-5, SA-6, and SA-8 (I haven't read the whole document, so there can be more) are quite different from my own playtests. For example, the guide says that the Gammon's max and min engagement ranges are 138 and 3.75 nm, respectively. In DCS, however, it won't fire on targets that are farther than ~70 and closer than ~9 nm. SA-6' max range is listed as 13 nm. It can, however, fire at you from ~21 nm: SA-8: same story. Listed as 5.5 nm, will actually fire from ~9 nm away. I mean, the guide has a lot of good info overall, but the wrong ranges can easily get people killed 1 Dima | My DCS uploads
