  1. Ramsay
    AFAIK it's a index that (should) indicate drift and the route followed i.e. your ground track. Detail (translated from the ALAT SA-342 Manual) 4 AUTONOMOUS NAVIGATION 4.1 General The tactical navigation system consists of a digital computer which performs navigation calculations and visualizes the information of present and guided position. These calculations are based on the following parameters provided by associated equipment - Pitch and roll of the gyroscopic horizon - Gyromagnetic compass magnetic heading - Components of the ground speed vector delivered by a Doppler radar. - Proper velocity of the compensated anemometer. 4.2 Navigation Indicator (Figure 10) The navigation indicator has the function of: - present the position of the goal in bearing and distance from a helicopter by receiving information from the navigation system. The operator chooses the goal to which he wants to be guided from the 9 goals stored in the calculator. - Indicate the route followed and the route to follow. 4.2.1 Description The navigation indicator is mounted on the dashboard. His face front features: - a rose that indicates the magnetic heading (4) - A fine needle that gives a compass radio reading (3) - A 3-reel counter that indicates the distance to the goal (1) - a moving index indicates the drift and the course followed (2) - A wide needle that indicates the magnetic bearing of the goal and the route to follow. (5) - CAP? alarm flags (6)
  2. Ramsay
    Best MB-339A planning guide I've found is "Appendix A" of the real "PI AD-03-39A - Instrument Flying and Navigation Manual" dated 1st June 1989 Takeoff and initial climb to altitude Cruise Max Range Cruise (Diagram)
  3. Ramsay
    Here is a quick demo of importing ATHS F10 Map Markers after cold starting the Harrier in the current 2.9.7.59263 version of DCS. IIRC there may be a bug when working with DCS's built in JTAC i.e. when Mirroring the 9-line script as a AV-8B ATHS CAS Message, but I haven't tested/confirmed the report.
  4. Ramsay
    @Vakarian @YoYo MT means the range finder is getting an ambiguous range i.e. due to multiple reflections, etc. It is the same as the "BACK SCATTER" warning in the AH-64D.
  5. Ramsay

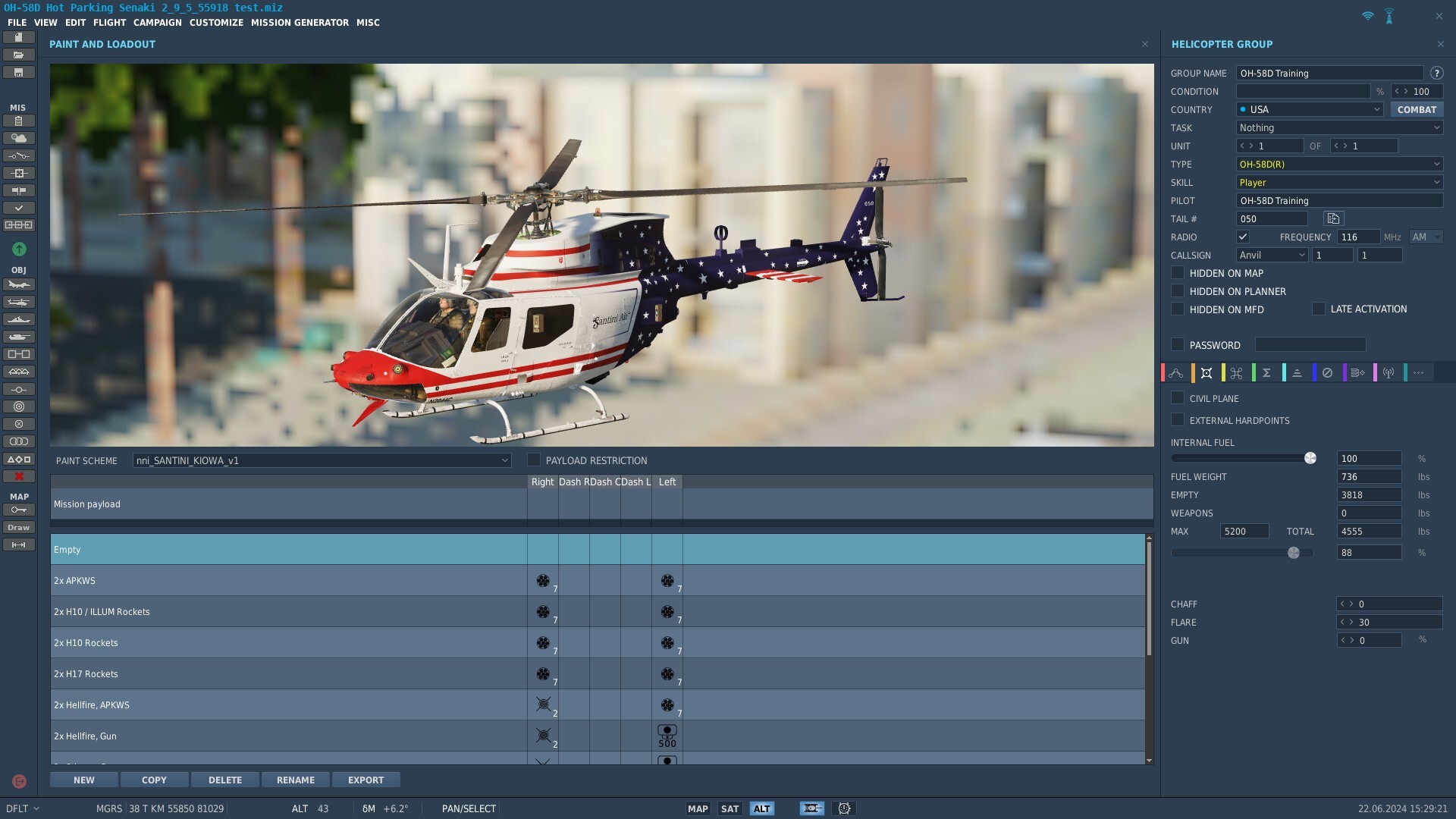

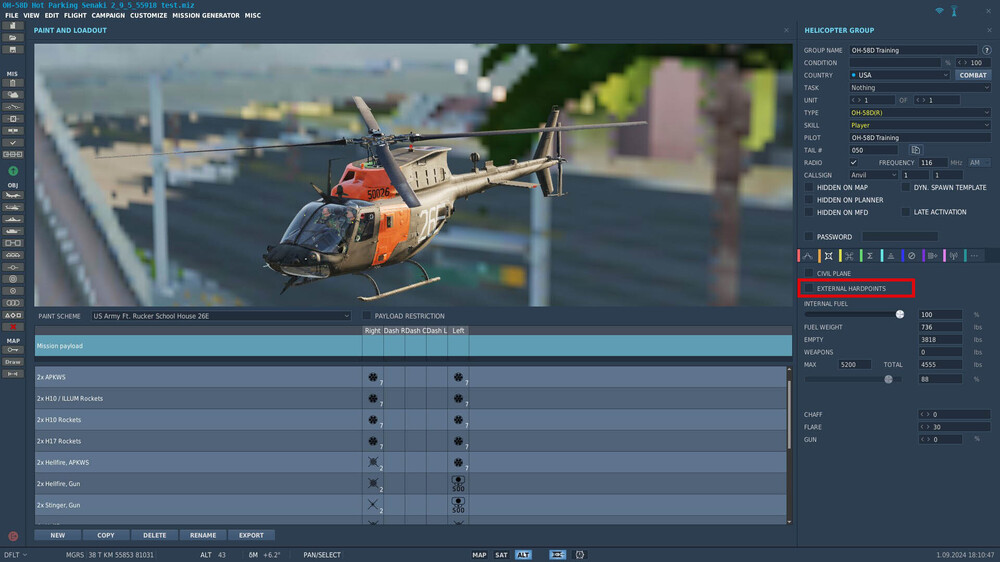

    Yes, there is a check box for "External Hardpoints" on the OH-58D's Mission Editor Loadout tab - if left unchecked, the weapon pylons are removed.
  6. Ramsay

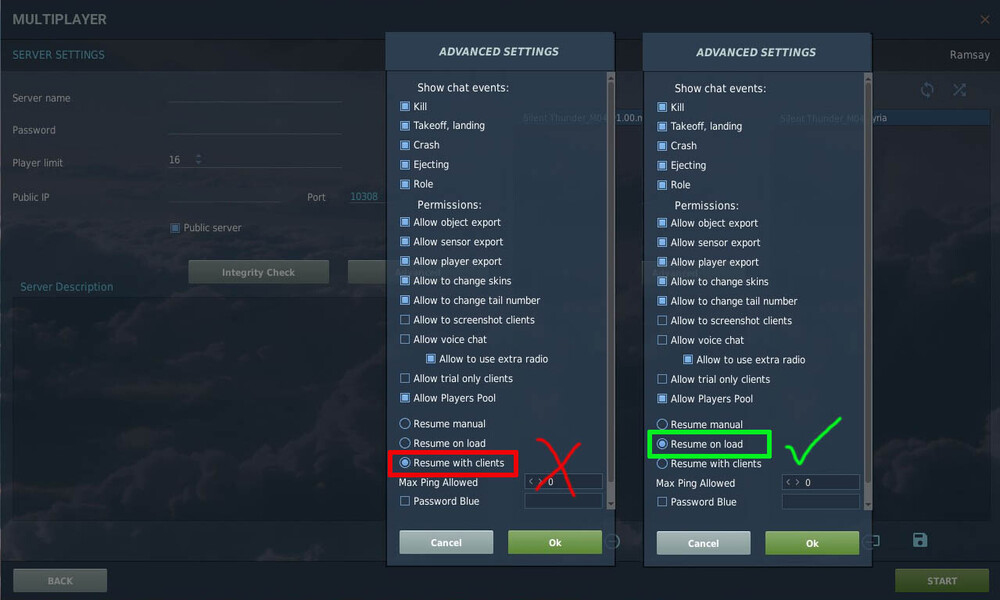

    By Pluto. I'm only flying the Kiowa more or less once a week (so it's not surprising I'm "out of practice") - perhaps I'll let "George" fly the initial inbound leg and set the MMS to point track the Chinook before switching back to the right seat myself. @BoFrost @Mistermann In the Multiplayer Advanced Settings there are settings that will start the mission at load time (i.e. before the client/player loads in) or start the mission paused. It is this setting that allows the Kiowa to spawn before/with the static Blackhawk/service vehicle. I had "Resume with clients" checked and this was the cause, switching to "Resume on load" allowed the slot 1 Kiowa to spawn in the correct place and as in your video.
  7. Ramsay
    If you select slot 2 and then reslot to slot 1, you'll start in the correct aircraft/position and the Chinnock will take off, etc. when instructed. That worked for me though I wasn't able to keep up with the Chinnock and thus the mission was aborted early into it's flight. Still found it a cool mission but obviously formation night flying, etc. is something I need to practice.
  8. Ramsay
    I see the same. Just a quick test using the SP (Run as multiplayer) option. I also tested from the Multiplayer menu which was the same. I haven't examined the mission file in detail or tried to fly the mission yet. Tested using DCS 2.9.7.59263.
  9. Ramsay
    Bug has been reproduced and was already reported.
  10. Ramsay

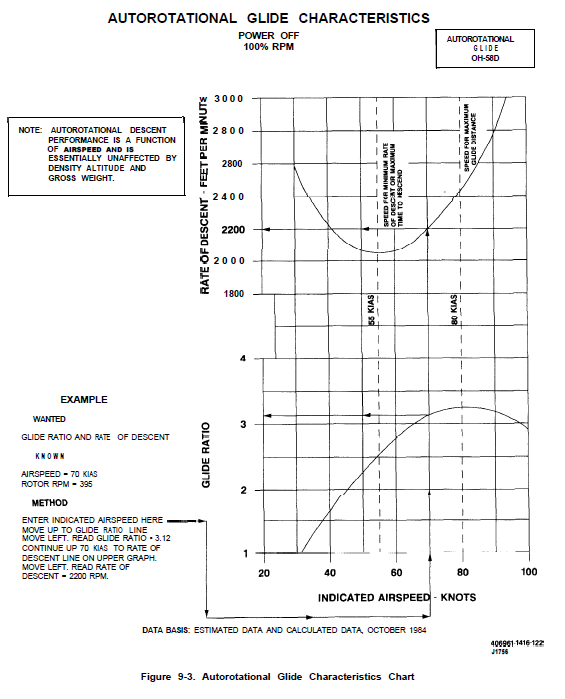

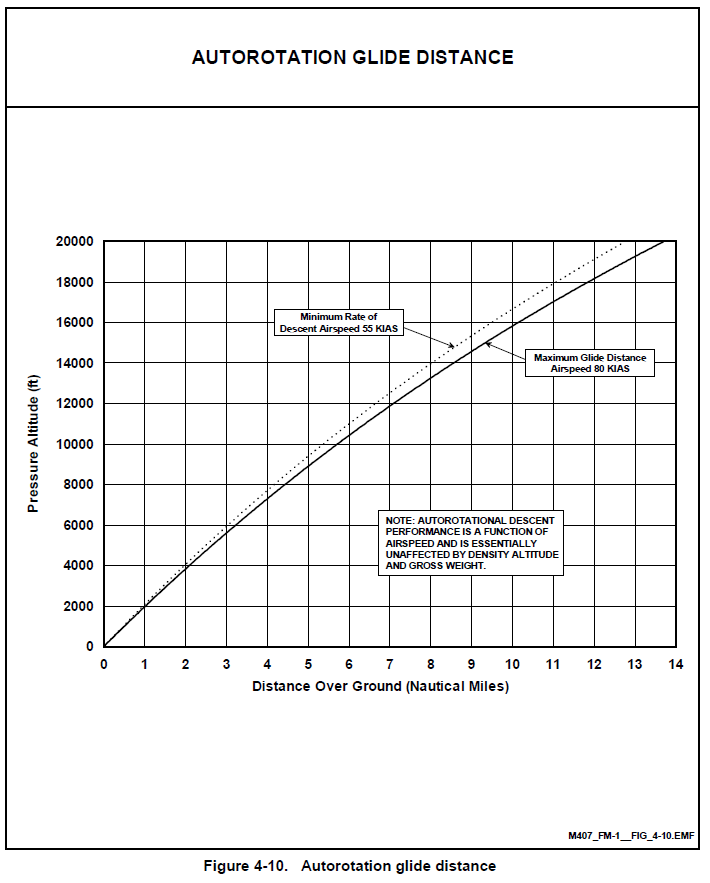

    That sounds unlikely, like the Kiowa, the 407 has a best Auto descent rate at 55 KIAS and best Auto Glide (distance) at 80 KIAS. Kiowa Autorotation Bell 407 Autorotation AFAIK the RL Kiowa landing technique is to land with a little bit of forward momentum/speed. DCS Autorotation Tutorial by Harpoon. AFAIK Polychop hope to refine rotor behaviour a bit further in subsequent patches.
  11. Ramsay
    Great to have something like this for the Kiowa so early at release. One thing I haven't seen mentioned is that Mission 1 's Waypoint 1 (American University Soccer Field) is at 2000m (6000ft) rather than at ground level. It's not a biggie and I only noticed as I used pre-point to slave the MMS to WP1 (the field) and it ended up looking at the sky. Not a total loss as - I did learn how to edit WP altitudes in the Kiowa but I doubt using the default DCS altitude was a deliberate design decision.
  12. Ramsay

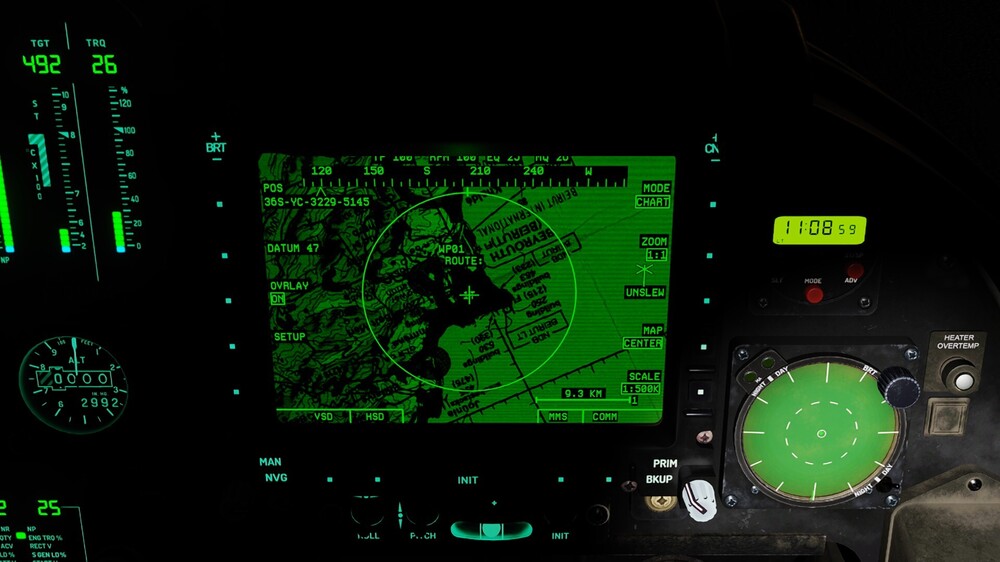

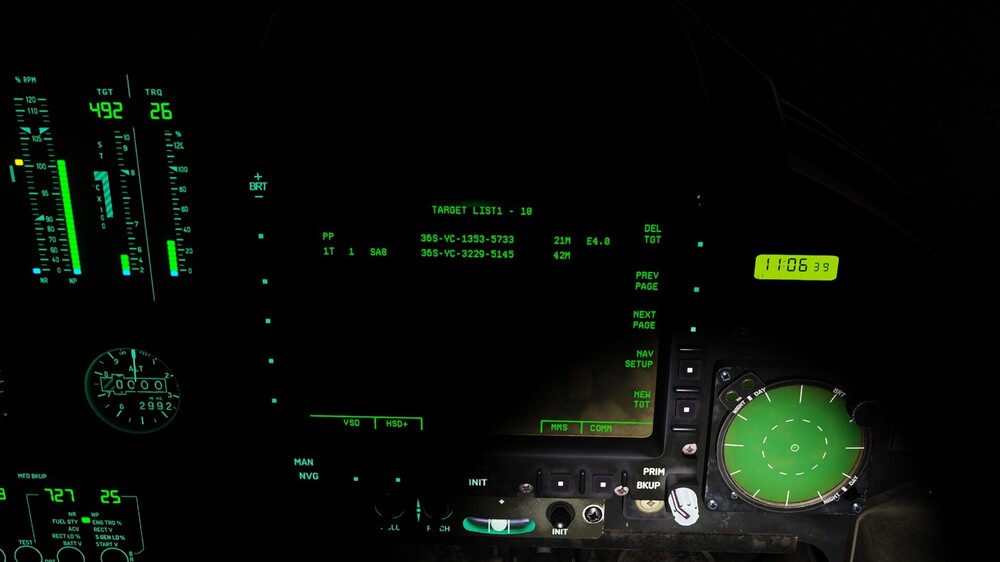

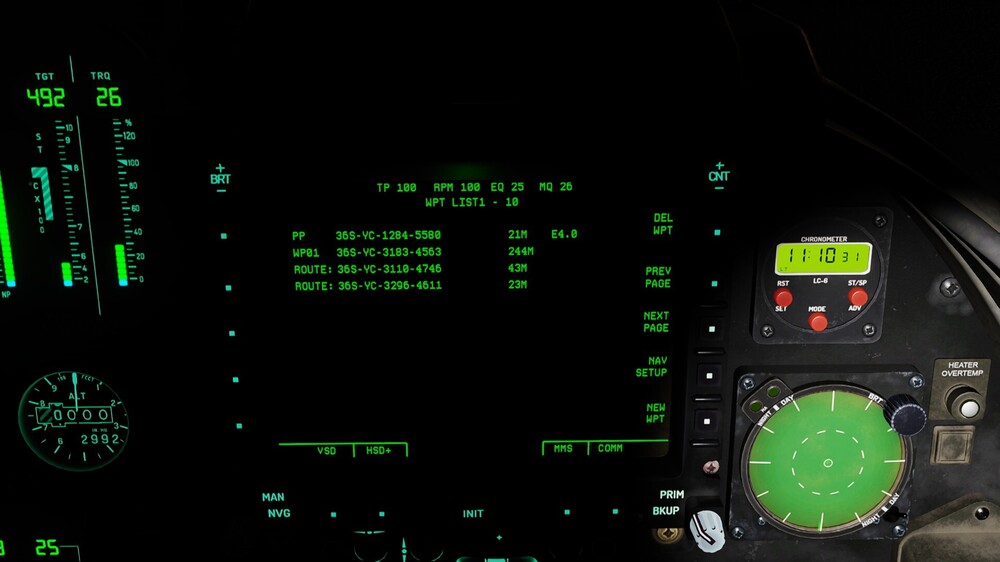

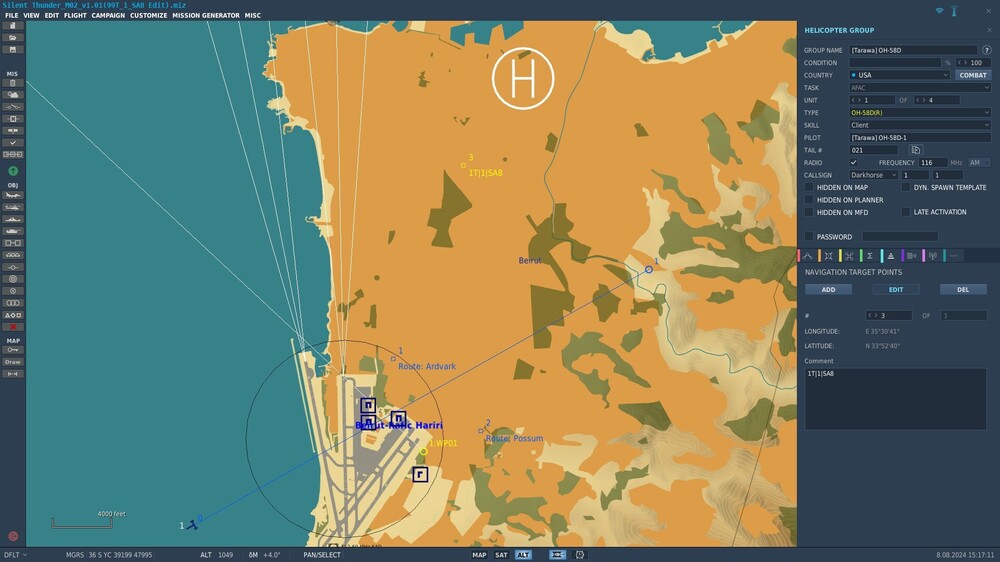

    Using the Mission Editor and how to name target points, etc. is documented in the DCS Kiowa Manual, Section 24 (page 235) i.e. the SA-8 target point should be labelled "1T|1|SA8" to appear in the Kiowa's target list. Mission Editor Kiowa Target List HSI+ / RMS Slew to 1T (seems like slew wouldn't accept double digits i.e. 99T) Mission Editor Target Point 1 and 2 names like "Route: Ardvark" and "Route: Possum" aren't parsed as target points but do appear in the waypoint list and on the HSI as "ROUTE:" The DCS Kiowa includes an example ME mission file "DCS World\Mods\aircraft\OH-58D\Doc\kw_demo_mission.miz" to demo waypoint, control point, target point and drawing tool DCS naming schemes - note that, like RMS slewing to 99T, there may be features that still don't work as the dev's intended/documented. Tested in single player using DCS 2.9.6.58056
  13. Ramsay

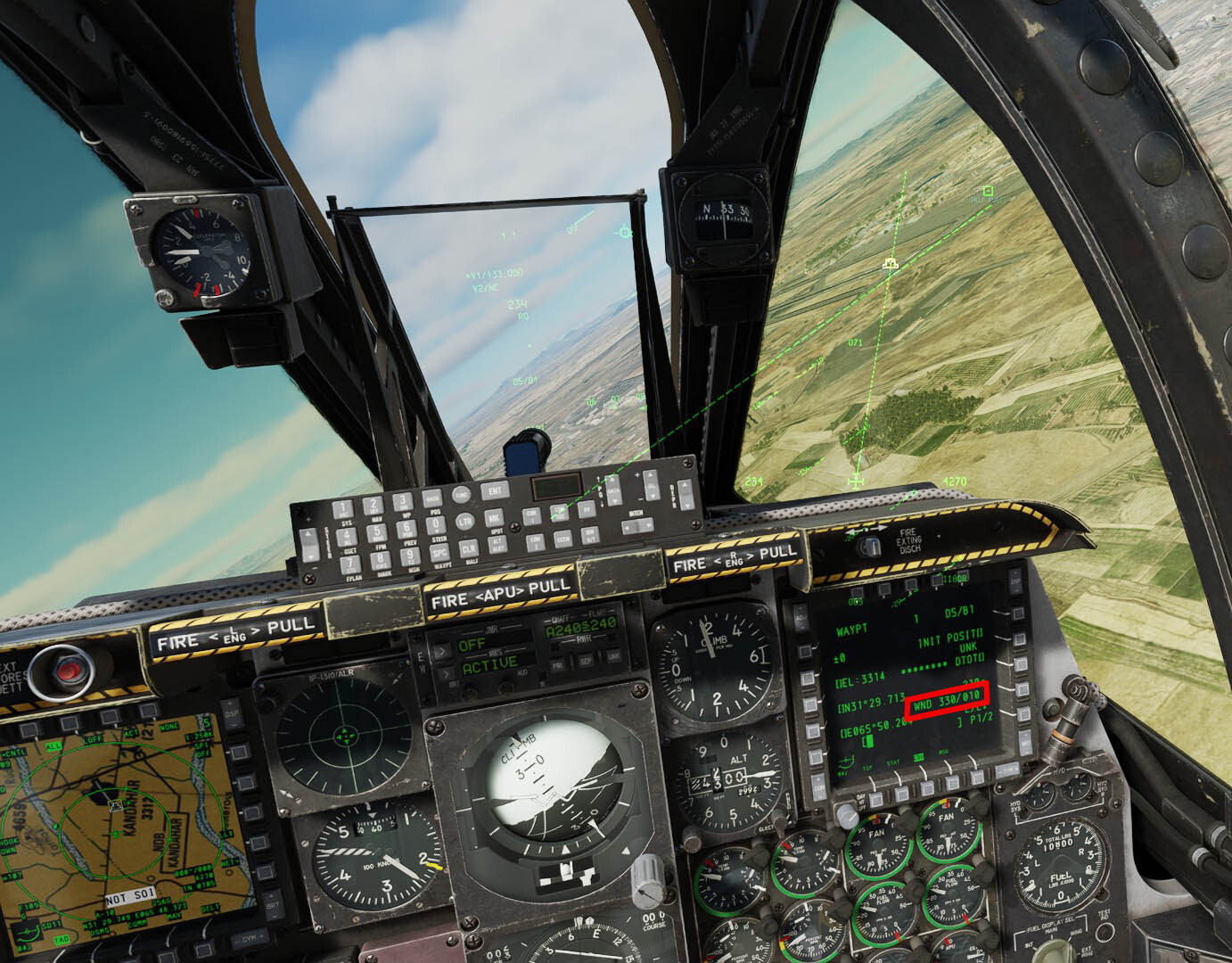

    Not specifically at Kandahar. Have you accounted for DCS's 3 wind "layers" that start at 0 ft MSL and auto fill an increased wind speed for 1600 ft MSL ? A-10C measured wind speed and direction from the above example When making missions for the Kiowa, I found I was getting higher than expected (2 knot) crosswinds due to Afghanistan's higher (~3,000ft) airfield elevations and needed to adjust the wind values I'd grown accustom to using for the Caucasus, etc. Perhaps that is what you are seeing or a significant contributing factor ? Here is a link to the DCS Wind Speed/Direction spreadsheet I used.
  14. Ramsay

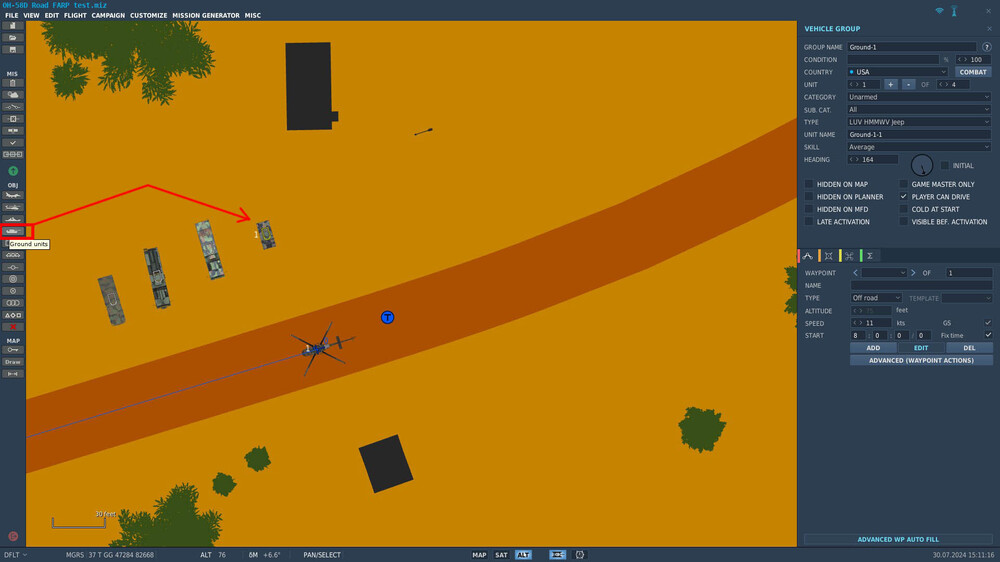

    I did not find an issue when testing in Single Player - perhaps you've used support vehicles from the "static" tab instead of from the "ground units" tab ? Attached is a simple FARP example with a cold start Kiowa that requires rearming/refuelling before take off. Tested using DCS 2.9.6.58056 OH-58D Road FARP test.miz
  15. Ramsay
    My "impression" is that when the DCS Gazelle's AP is out of parameters, it correctly disconnects but likely shouldn't re-engage (when back within parameters) without positive input from the pilot (perhaps depression of the cyclic AP button?) - however I haven't checked what the French SA-342 Manual says on the behaviour of the real as the DCS AP is known to be WIP.
  16. Ramsay
    You shouldn't engage auto hover until you are in a stable/trimmed hover and in parameters. Check out this tutorial video to see if there's anything you've missed
  17. Ramsay
    This thread gives a BLUFOR FARP example and links to the relevant DCS Manual/pages and/or Hoggit World list of FARP vehicles.
  18. Ramsay
    Same, I paid £57.30 and it's now listed at £43.37. I've asked for a refund through Steam as, although £13.93 isn't a lot, it seems a waste to over pay for something that seems very much "Early Access" and incomplete. Once/if Steam process my refund - I'll purchase at the now correct lower price.
  19. Ramsay

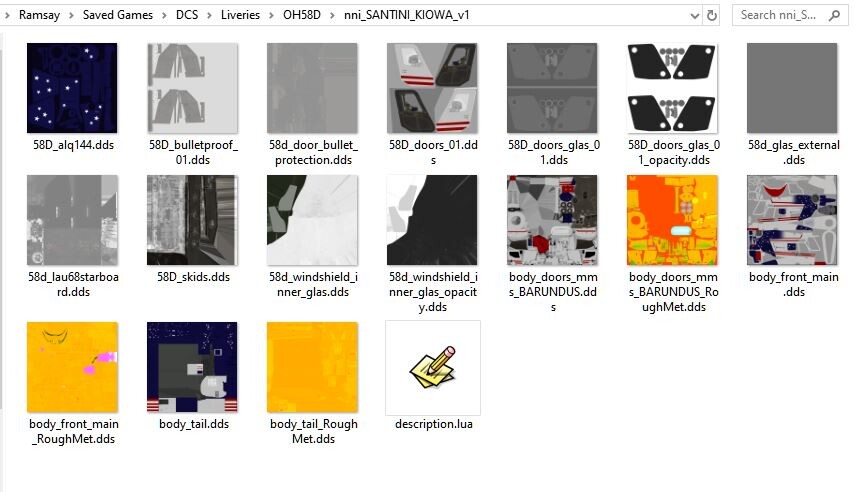

    "Saved Games/DCS/Liveries/OH58D/[Livery Folder]" https://www.digitalcombatsimulator.com/en/files/3339127/
  20. Ramsay

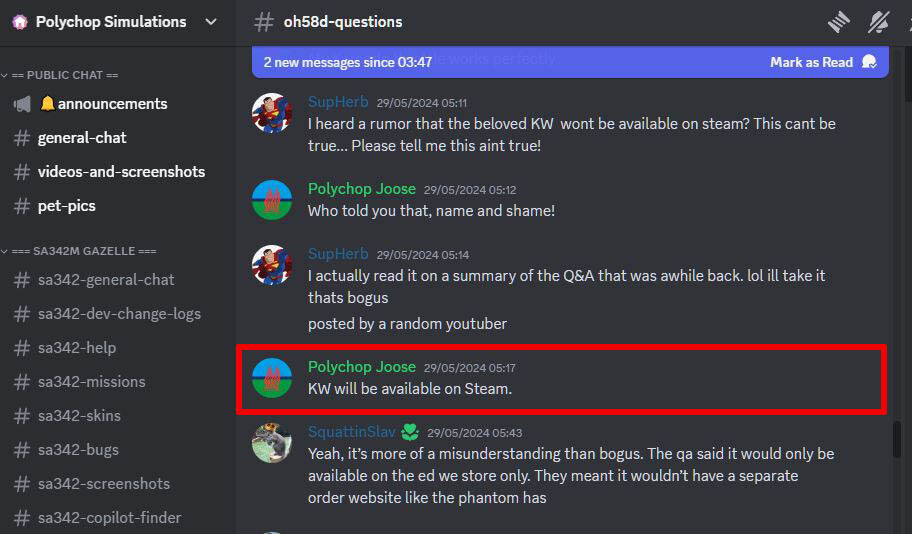

    No ($48.99), however the Early Access price ($55.99) usually is - sometimes for a short period/during sales and sometimes for the life of a module until ED decide the module is out of early access (this doesn't always align with ED's own store and perhaps is done to offset Steam's cut of the sale price?).
  21. Ramsay
    No idea, it's working for a simple "hot start" single player mission I created using the Mission Editor and a regular DCS route with waypoints. I haven't tested from a cold start or started without a pre-configured DCS route, perhaps describe or share a track of how you are creating/flying your Kiowa route/waypoints ?
  22. Ramsay

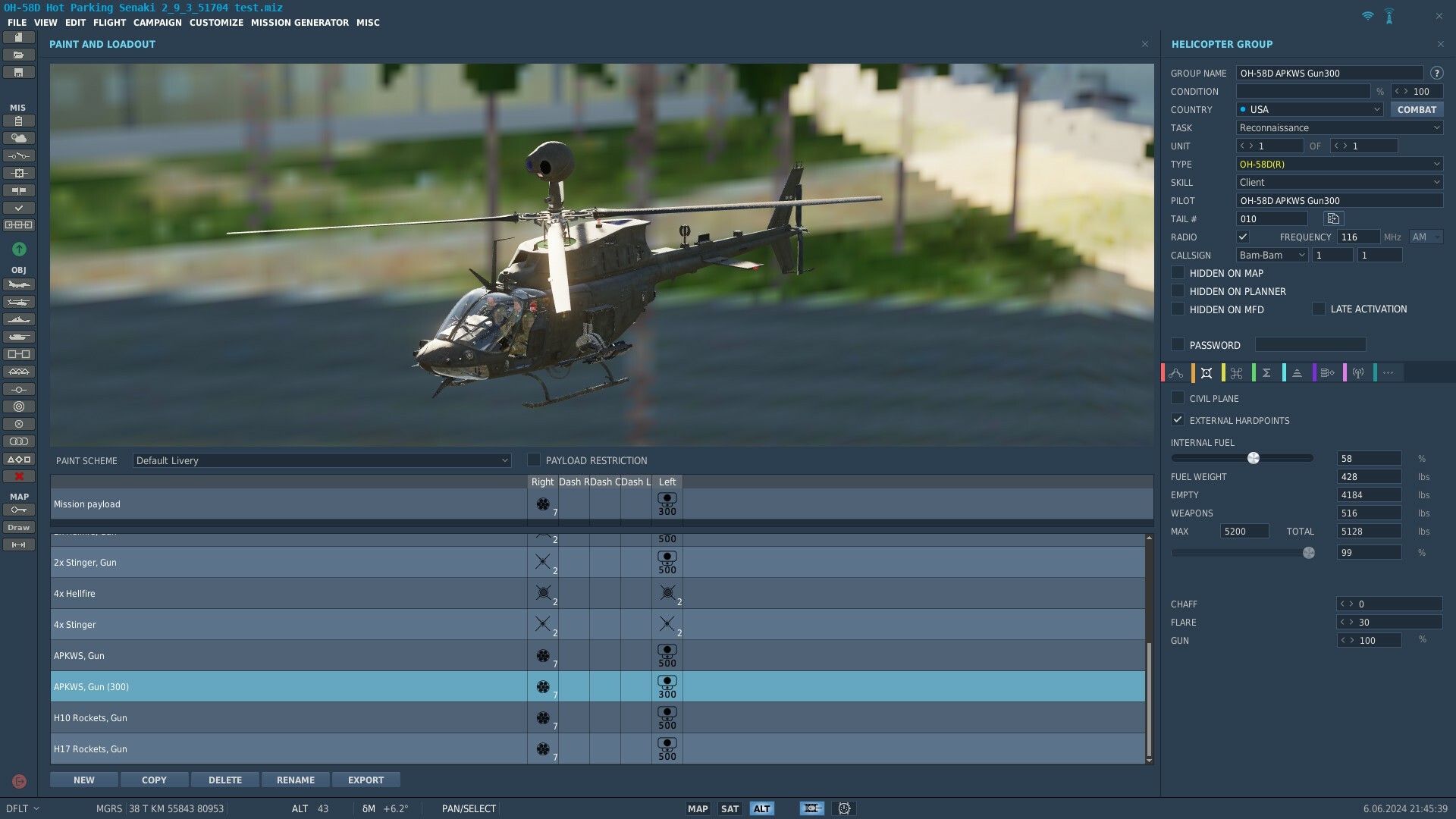

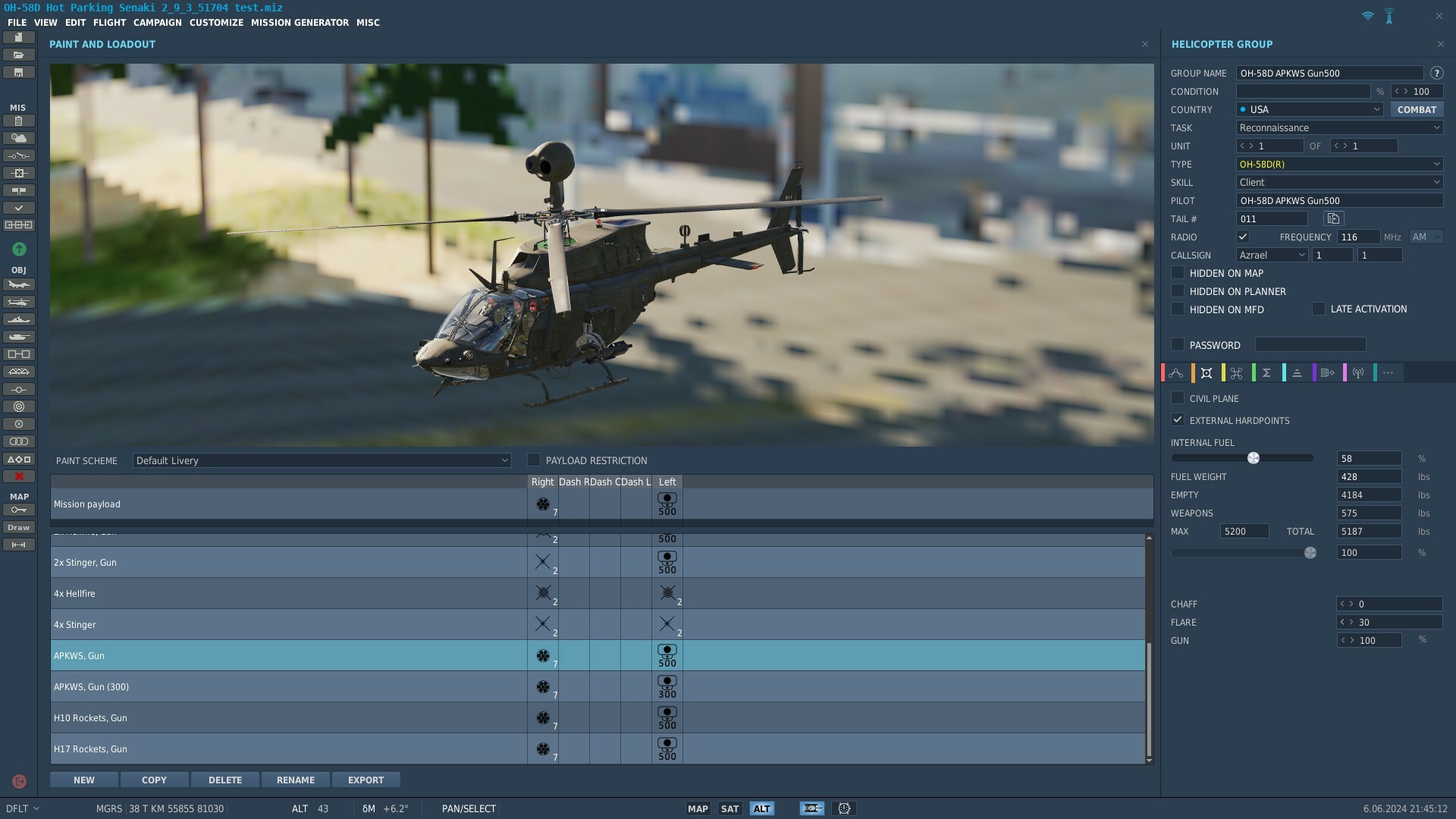

    100 rounds of .50 weighs approx. 30lbs, so carrying 200 rounds, saves approx. 90lbs and adds an additional 18 minutes of "time on station" when replaced with fuel (@300lb/hr). And yeah, it's not what I was expecting - but it is what it is. Detail
  23. Ramsay
    Note the Huey's mechanical Stabilizer Bar damps out oscillations with periods greater than 5 seconds and AFAIK in real life is more stable than in DCS i.e. the real Huey has active (mechanical) stabilization.
  24. Ramsay
    The Kiowa Warrior never carried the MPP version, so KW APKWS loadouts are limited to the M151 HE warhead.
  25. Ramsay
    It has promise but hasn't been updated since release, only recommended if planning to make immediate use of it i.e. for a particular F-4E mission or if you have friends to fly with. Otherwise I'd stick with Syria. I've already uninstalled Sinai to make room for ED's up coming Afghanistan map.
×
×
